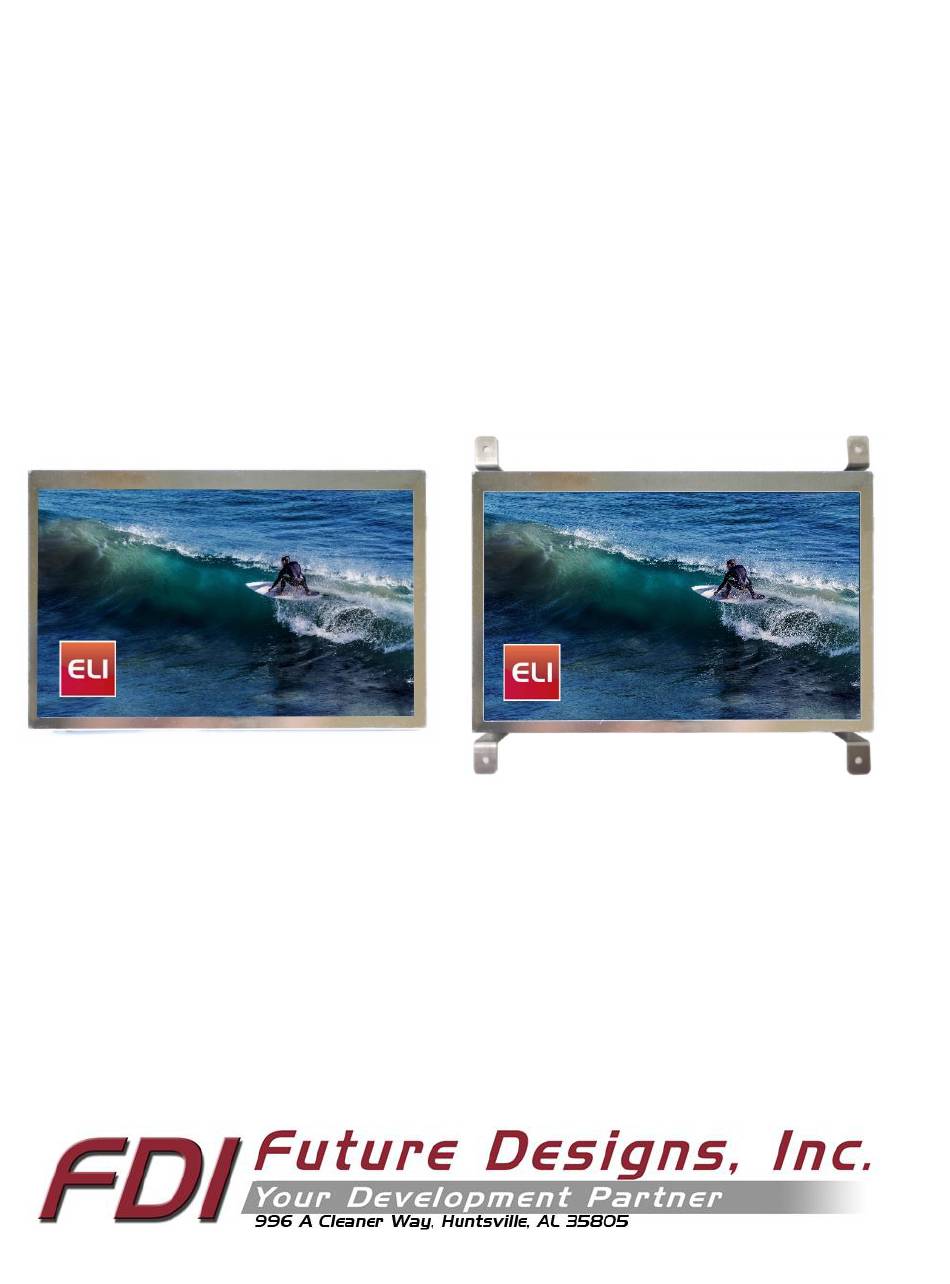

- Page 1 User’s Manual ELI70-IPHW & ELI70-IPHW-M ELI70-IPHW ELI70-IPHW-M (includes brackets) Revision 1.02 Copyright ©2017, Future Designs, Inc., All Rights Reserved...
- Page 2 ELI70-IPHW Important Legal Information Information in this document is provided solely to enable the use of Future Designs, Inc. (FDI) products. FDI assumes no liability whatsoever, including infringement of any patent or copyright. FDI reserves the right to make changes to these specifications at any time, without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Future Designs, Inc.
- Page 3 User’s Manual ELI70-IPHW Important Legal Information .......................... 2 Introduction ............................4 ELI70-IPHW Box Contents ........................ 5 Optional Accessories Recommended for Use (Purchased Separately) ..........5 ESD Warning ............................5 Technical Specifications ........................6 Connectors ............................7 Power Details ............................7 Extended Display Information Data (EDID) ..................
- Page 4 Raspberry Pi, BeagleBone Black and Windows-based units. FDI designed ELI as an embedded display option that requires minimal development time to help customers reach production quickly. Once a product is in production, FDI’s 10-15 year ELI product availability guarantee helps ensure production schedules without the risk of expensive or time consuming redesigns.
-
Page 5: Optional Accessories Recommended For Use (Purchased Separately)
User’s Manual ELI70-IPHW Your ELI Experience Share your experience connecting ELI devices to various (single board) computers at: http://www.teamfdi.com/edid/#edidform. ELI70-IPHW Box Contents ELI70-IPHW Quick Start Guide Optional Accessories Recommended for Use (Purchased Separately) 12V DC +/-5% 2A Power Supply with a center positive b arrel plug 2.1mm I.D. -
Page 6: Technical Specifications
User’s Manual ELI70-IPHW Technical Specifications Table 1. Technical Specifications Screen Size (inches): Display Technology: IPS a-Si TFT LCD Resolution: 800 x 480 (WVGA) Brightness (nits typical): 1000:1 Contrast Ratio (typical): Aspect Ratio: 16:9 Interface Input Mode: HDMI/DVI Colors: 262K (18 bit) 85/85°... -
Page 7: Power Details
User’s Manual ELI70-IPHW Connectors Figure 3. ELI70-IPHW Connectors (Similar model with the same connectors shown) Power Details A 12VDC +/- 5% power supply with a 2.0A output will power any board from the ELI Family. This allows a common, off-the-shelf power supply such as the T1071-P5P-ND to be used for quick demos or prototyping across the entire ELI Family. - Page 8 User’s Manual ELI70-IPHW In cases where the barrel connector is not desired, you can use the alternate power input connector (J8) with supports directly plugging in 20-26 AWG wire with maximum 5A current per contact. The datasheet for this J8 connector (PCB terminal block - PTSM 0,5/ 2-2,5-H SMD WH R24 – 1814634) can be found at http://tinyurl.com/1814634.
-
Page 9: Extended Display Information Data (Edid)
User’s Manual ELI70-IPHW Extended Display Information Data (EDID) ELI uses Extended Display Identification Data (EDID) for automatic configuration with many operating systems. You can find out more on our website at http://www.teamfdi.com/edid/. PWM Control of Backlight Figure 5. PWM Backlight Control All ELI products are designed to reduce power consumption when required. - Page 10 ELI70-IPHW Bracket ELI70-IPHW-M comes with brackets to provide additional mounting options. The dimensions of the bracket and mounting holes are shown below for your reference. If necessary, the brackets can be removed or replaced by removing two screws on each side of the ELI display.
- Page 11 User’s Manual ELI70-IPHW Support 11.1 Where to Get Help Online technical support is available at http://www.teamfdi.com/support/ 11.2 Useful Links Future Designs, Inc. Forums: http://www.teamfdi.com/forum ELI70-IPHW Product Page: http://www.teamfdi.com/product-details/eli70-iphw ELI Software User’s Manual: http://www.teamfdi.com/wp-content/uploads/ELI-Software- Users-Manual.pdf Tell us about your ELI experience: http://www.teamfdi.com/edid/#edidform ...
