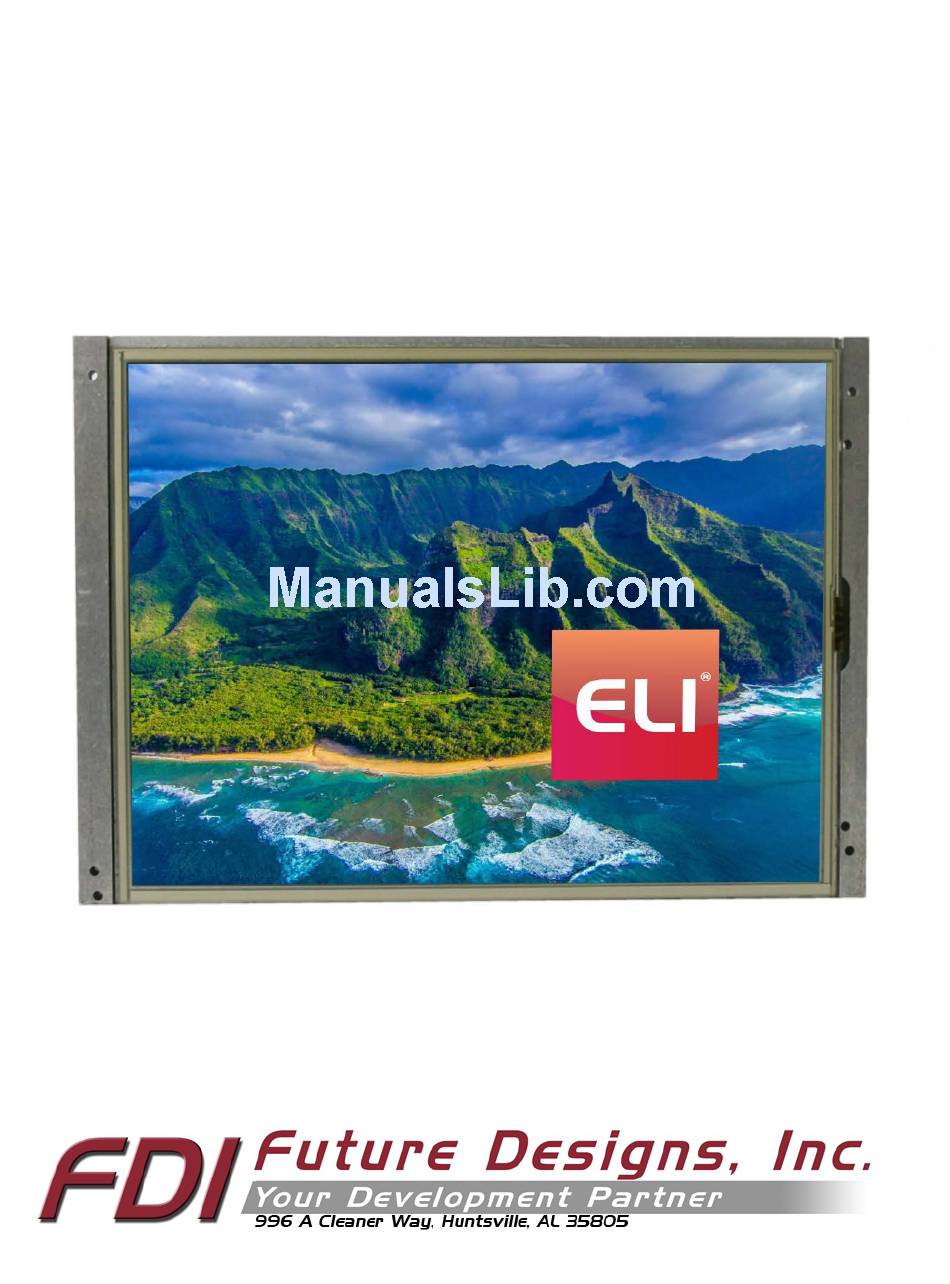

- Page 1 User’s Manual ELI121-CRW Revision 1.04 Copyright ©2016, Future Designs, Inc., All Rights Reserved...
-
Page 2: Important Legal Information
User’s Manual Important Legal Information Information in this document is provided solely to enable the use of Future Designs, Inc. (FDI) products. FDI assumes no liability whatsoever, including infringement of any patent or copyright. FDI reserves the right to make changes to these specifications at any time, without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Future Designs, Inc. -
Page 3: Table Of Contents
ELI121-CRW User’s Manual Important Legal Information .......................... 2 Introduction ............................4 ELI121-CR Box Contents ........................5 Optional Accessories Recommended for Use (Purchased Separately) ..........5 ESD Warning ............................5 Technical Specifications ........................6 Connectors ............................7 Power Details ............................7 Extended Display Information Data (EDID) .................. -
Page 4: Introduction
Raspberry Pi, BeagleBone Black and Windows-based units. FDI designed ELI as an embedded display option that requires minimal development time to help customers reach production quickly. Once a product is in production, FDI’s 10-15 year ELI product availability guarantee helps ensure production schedules without the risk of expensive or time consuming redesigns. -
Page 5: Optional Accessories Recommended For Use (Purchased Separately)
User’s Manual Your ELI Experience Share your experience connecting ELI devices to various (single board) computers at: http://www.teamfdi.com/edid/#edidform. ELI121-CRW Box Contents • ELI121-CRW • Quick Start Guide Optional Accessories Recommended for Use (Purchased Separately) • 12V DC +/-5% 2A Power Supply with a center positive b arrel plug 2.1mm I.D. -
Page 6: Technical Specifications
ELI121-CRW User’s Manual Technical Specifications Table 1. Technical Specifications 12.1 Screen Size (inches): Display Technology: a-Si TFT LCD Resolution: 1024 x 768 (XGA) Brightness (nits typical): 700:1 Contrast Ratio (typical): Aspect Ratio: Interface Input Mode: HDMI/DVI Colors: 16.7M (24 bit) Horizontal Viewing Angle: 80/80°... -
Page 7: Connectors
ELI unit being used. On the ELI121-CRW plug power into the (P2) connector. For volume production applications, the input power can be optimized for your particular ELI unit and lower capacity power supplies can be used. -
Page 8: Extended Display Information Data (Edid)
ELI121-CRW User’s Manual To verify that the ELI121-CRW unit is correctly powered you may check the 12VDC input with a Fluke meter or scope by probing the +12V and GND contacts shown below. Please verify that the 12VDC is present, is within the +/- 5% tolerance and is free from excessive noise or AC ripple. -
Page 9: Pwm Control Of Backlight
PWM diming signal. Bracket ELI121-CRW comes with a bracket that provides a variety of mounting options. The dimensions of the bracket and mounting holes are shown below for your reference. If necessary, the brackets can be removed or replaced by removing two screws on each side of the ELI display. - Page 10 ELI121-CRW User’s Manual Copyright ©2016, 12/27/2016 Future Designs, Inc. Page 10 of 11...
-
Page 11: Support
11.1 Where to Get Help Online technical support is available at http://www.teamfdi.com/support/ 11.2 Useful Links • Future Designs, Inc. Forums: http://www.teamfdi.com/forum • ELI121-CRW Product Page: http://www.teamfdi.com/product-details/eli121-crw • ELI Software User’s Manual: http://www.teamfdi.com/wp-content/uploads/ELI-Software- Users-Manual.pdf • Tell us about your ELI experience: http://www.teamfdi.com/edid/#edidform...
