FDI ELI70-CR User Manual
Hide thumbs
Also See for ELI70-CR:
- User manual (12 pages) ,
- Quick start manual (6 pages) ,
- How to do (5 pages)
Related Manuals for FDI ELI70-CR
Summary of Contents for FDI ELI70-CR

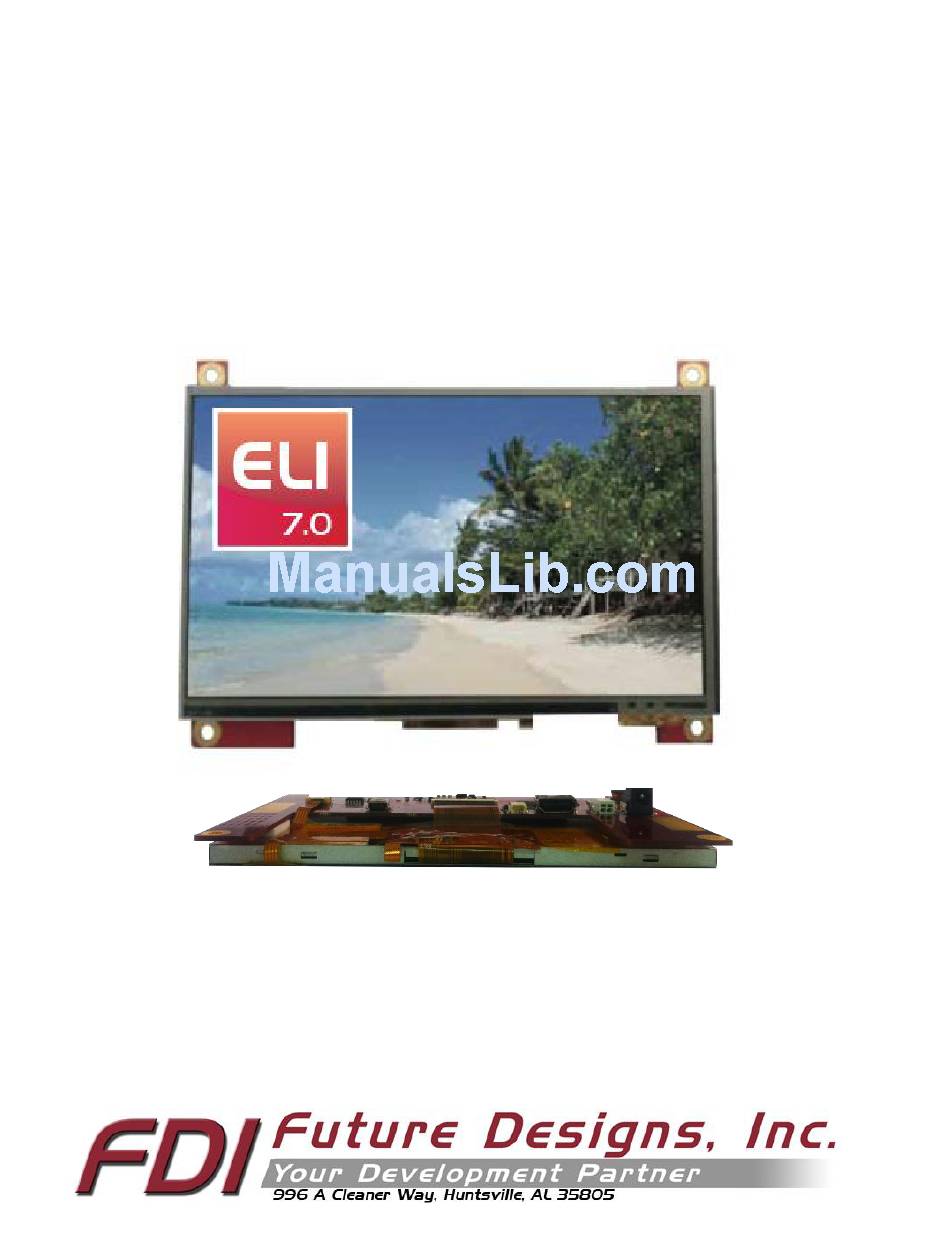

- Page 1 User’s Manual ELI70-CR Revision 1.01 Copyright ©2015, Future Designs, Inc., All Rights Reserved...
-
Page 2: Important Legal Information
ELI70-CR Important Legal Information Information in this document is provided solely to enable the use of Future Designs, Inc. (FDI) products. FDI assumes no liability whatsoever, including infringement of any patent or copyright. FDI reserves the right to make changes to these specifications at any time, without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Future Designs, Inc. -
Page 3: Table Of Contents
User’s Manual ELI70-CR Important Legal Information .......................... 2 Introduction ............................4 ELI70-CR Box Contents ........................5 Optional Accessories Recommended for Use (Purchased Separately) ..........5 ESD Warning ............................5 Technical Specifications ........................6 Connections ............................7 Power Details ............................7 Extended Display Information Data (EDID) .................. -
Page 4: Introduction
Raspberry Pi, BeagleBone Black and Windows-based units. FDI designed ELI as an embedded display option that requires minimal development time to help customers reach production quickly. Once a product is in production, FDI’s 10-15 year ELI product availability guarantee helps ensure production schedules without the risk of expensive or time consuming redesigns. -
Page 5: Eli70-Cr Box Contents
ELI70-CR Your ELI Experience Share your experience connecting ELI devices to various (single board) computers at: http://www.teamfdi.com/edid/#edidform. ELI70-CR Box Contents ELI70-CR Quick-Start Guide Optional Accessories Recommended for Use (Purchased Separately) 12V DC +/-5% 2A Power Supply with a center positive b arrel plug 2.1mm I.D. -
Page 6: Technical Specifications
User’s Manual ELI70-CR Technical Specifications Table 1. Technical Specifications 7.0 inches (diagonal) Screen Size: a-Si TFT LCD Display Technology: 800x480 (WVGA) Resolution: Brightness: 280 nits (typ) Contrast Ratio: 500:1 (typ) Aspect Ratio: 15:9 Interface Input Mode: HDMI/DVI 16.7M (24 bit) Colors: 70°... -
Page 7: Connections
ELI unit being used. On the ELI70-CR plug power into the (P2) connector. For volume production applications, the input power can be optimized for your particular ELI unit and lower capacity power supplies can be used. -
Page 8: Extended Display Information Data (Edid)
User’s Manual ELI70-CR To verify that the ELI70-CR unit is correctly powered you may check the 12VDC input with a Fluke meter or scope by probing the +12V and GND contacts shown below. Please verify that the 12VDC is present, is within the +/- 5% tolerance and is free from excessive noise or AC ripple. -
Page 9: Pwm Control Of Backlight
Modulated (PWM) signal to pin 2 of J5. This signal must be between 5KHz and 100KHz. On the ELI side we softly pull the PWM diming signal to LCD_VDD providing 100% backlight power when no PWM signal is applied at J5. In the ELI70-CR, power consumption can be controlled from 1.27W to 0.43W with the PWM signal. -
Page 10: Mechanical View
● Tape used for the LCD to PCB Attachment: 3M VHB 4959 ½” width ● 4 screw holes on the ELI70-CR accept up to #8 size screws for mounting into an enclosure and connect to the system ground directly. ●... -
Page 11: Support
11.1 Where to Get Help Online technical support is available at http://www.teamfdi.com/support/. 11.2 Useful Links Future Designs, Inc. Forums: http://www.teamfdi.com/forum ELI70-CR Product Page: http://www.teamfdi.com/product-details/eli70-cr/ ELI Software User’s Manual: http://www.teamfdi.com/wp-content/uploads/ELI-Software- Users-Manual.pdf Tell us about your ELI experience: http://www.teamfdi.com/edid/#edidform...
