The BOARD FALL water feature is available in 2 styles described below. Each style will work on the following:
a 6, 8 or 10 foot Duro-Beam aquaBoard™; a 6 or 8 foot Edge aquaBoard™; the T7™ diving board.
NOTE: Minimum 10 GPM water supply recommended. Please see detailed installation instructions for dive stand
installation information and requirements.
BO RD F LL CONFIGUR TIONS:
1. BO RD F LL: kit includes Board Fall, Mounting Hardware (4 screws), 8' & 4" of 1/2" Flex PVC Pipe, 1-Union
2. BO RD F LL-L: kit includes Board Fall parts PLUS LED Lights Assembled (RGB), Color Controller, 35' of
Wire (10' on unit – 25' on controller), Coupler. NOTE: No transformer is provided.*
STEP 1: INST LL BO RD F LL W TER FE TURE ON T7 BO RD:
If purchased, attach the optional waterfall assembly to the underside of the T7™ diving board as follows:
IMPORTANT: To keep the BOARD FALL from clogging when installing on a Sand Filter System, an in-line
cartridge filter is recommended on the BOARD FALL water supply line.

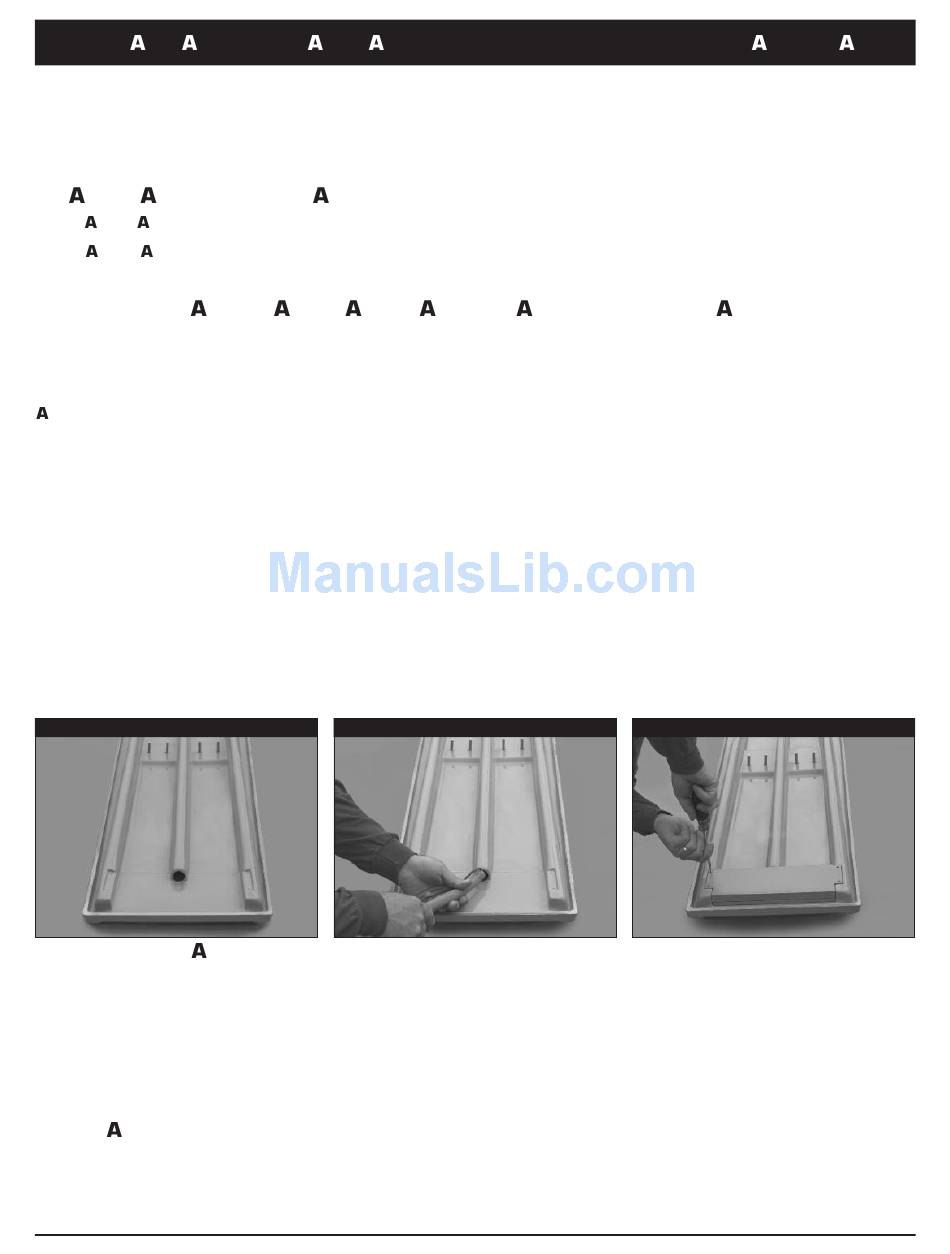

) The center (central) rib on the underside of the diving board is hollow and is capped at the factory. Remove the
cap from front of the center rib exposing the hollow channel.
B) The BOARD FALL comes from the factory with an 8' length of 1/2" flex PVC pipe attached. The 8' length
goes thru the board and attaches with PVC glue to one side of the 1/2" union. The 4" length of flex PVC
pipe attaches with PVC glue to the stub-up and then to the other side of the 1/2" union.
C) If purchased, your BOARD FALL waterfall comes with an optional pre-wired, factory installed LED lighting
system. Simply thread the wiring attached to your waterfall lighting system down the conduit in the central
rib on the board along side the 1/2" PVC tubing.
TIP: You may find it simpler to put end of wire into end of hose or tape the wiring to the end of the 1/2"
flex PVC and thread them thru the conduit at one time.
The LED lighting system comes with 10' of wire attached to the LED which goes through the board
and attaches to the coupler, the additional 25' of wiring attaches to the coupler and then passes
through the customer installed conduit to the color controller.
T7™ Diving Board
Fig.
D) Once the water tubing and wiring are threaded all the way through the diving board, from the base side,
gently pull the end of the tubing until the waterfall assembly is pulled gently but snugly against the end of
the center rib.
E) Attach the waterfall unit to the Diving Board by inserting the 4 provided screws thru the pre-drilled holes in
the waterfall assembly; hand tighten only (DO NOT USE SCREW GUN), over tightening the screws will
cause them to strip inside the board or break the waterfall housing, and voids the warranty.
*W RNING:
Do not attach the color controller directly to 110V, the LED lighting is a low voltage system
requiring a transformer (not included) to provide power to the color controller. Inter-Fab recommends the
Intermatic PX100 transformer. If the Intermatic PX100 is not utilized the color controller Input Rating is:
12 VAC, 1.7 Amp 60/50HZ. Exceeding the input rating will severely damage the color controller
and void the warranty.
