The BOARD FALL water feature is available in 2 styles described below. Each style will work on the following:
a 6, 8 or 10 foot Duro-Beam aquaBoard™; a 6 or 8 foot Edge aquaBoard™; the T7™ diving board.
NOTE: Minimum 10 GPM water supply recommended. Please see detailed installation instructions for dive stand
installation information and requirements.
BO RD F LL CONFIGUR TIONS:
1. BO RD F LL: kit includes Board Fall, Mounting Hardware (4 screws), 8' & 4" of 1/2" Flex PVC Pipe, 1-Union
2. BO RD F LL-L: kit includes Board Fall parts PLUS LED Lights Assembled (RGB), Color Controller, 35' of
Wire (10' on unit – 25' on controller), Coupler. NOTE: No transformer is provided.*
STEP 1: INST LL BO RD F LL W TER FE TURE ON DURO-BE M aquaBoard™
OR EDGE aquaBoard™ :
If purchased, attach the optional waterfall assembly to the underside of the Duro-Beam aqua oard™ or Edge
aqua oard™ as follows:
IMPORTANT: To keep the BOARD FALL from clogging when installing on a Sand Filter System, an in-line
cartridge filter is recommended on the BOARD FALL water supply line.
) The BOARD FALL comes from the factory with an 8' length of 1/2" flex PVC pipe attached. The 8' length
goes thru the board and attaches with PVC glue to one side of the 1/2" union. The 4" length of flex PVC
pipe attaches with PVC glue to the stub-up and then to the other side of the 1/2" union.
B) If purchased, your BOARD FALL waterfall comes with an optional pre-wired, factory installed LED lighting
system. Simply thread the wiring attached to your waterfall lighting system down the channel in the center
of the board along side the 1/2" PVC tubing.
TIP: You may find it simpler to put end of wire into end of hose or tape the wiring to the end of the 1/2"
flex PVC and thread them thru the conduit at one time.
The LED lighting system comes with 10' of wire attached to the LED which goes through the board
and attaches to the coupler, the additional 25' of wiring attaches to the coupler and then passes
through the customer installed conduit to the color controller.
C) Once the water tubing and wiring are threaded all the way through the diving board, from the base side,
gently pull the end of the tubing until the waterfall assembly is pulled gently into the BOARD FALL receiver
on the top of the diving board.

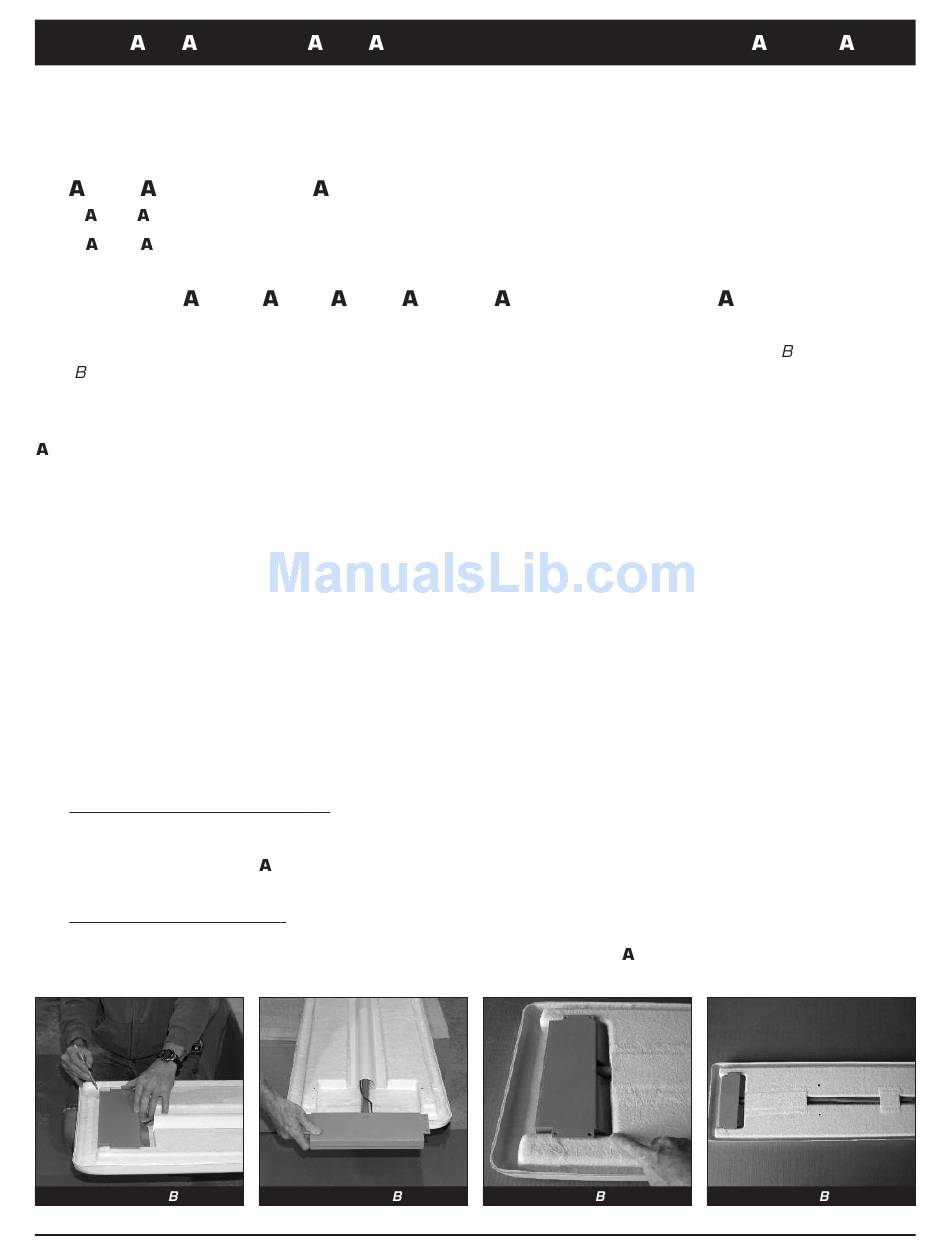

D) Mark the hole locations for attaching the BOARD FALL unit to the board.
For a Duro-Beam aquaBoard™ : Locate the BOARD FALL unit flush to the end of the BOARD FALL receiver.
(Fig. D) Use a marker or pencil to mark through the BOARD FALL holes onto the board. Pull BOARD FALL
unit slightly out of receiver. (Fig. E) Using a 1/8" drill bit, drill the 4 holes 1/2" deep. Use tape to mark the
drill bit depth. IMPORT NT: Do not drill the holes deeper than 1/2" as there is a risk of drilling all
the way through the board.
For an Edge aquaBoard™ : Locate the BOARD FALL unit all the way to the back of the BOARD FALL receiver.
(Fig. F) Make sure the hose is threaded through the channel as shown. (Fig. G) Using a 1/8" drill bit, drill
the 4 holes 1/2" deep. Use tape to mark the drill bit depth. IMPORT NT: Do not drill the holes deeper
than 1/2" as there is a risk of drilling all the way through the board.
