C. 1 Power adapter
D. 1 Data line
E. 1Disk (PC software)

6. Operating guide

6.1. Application Method

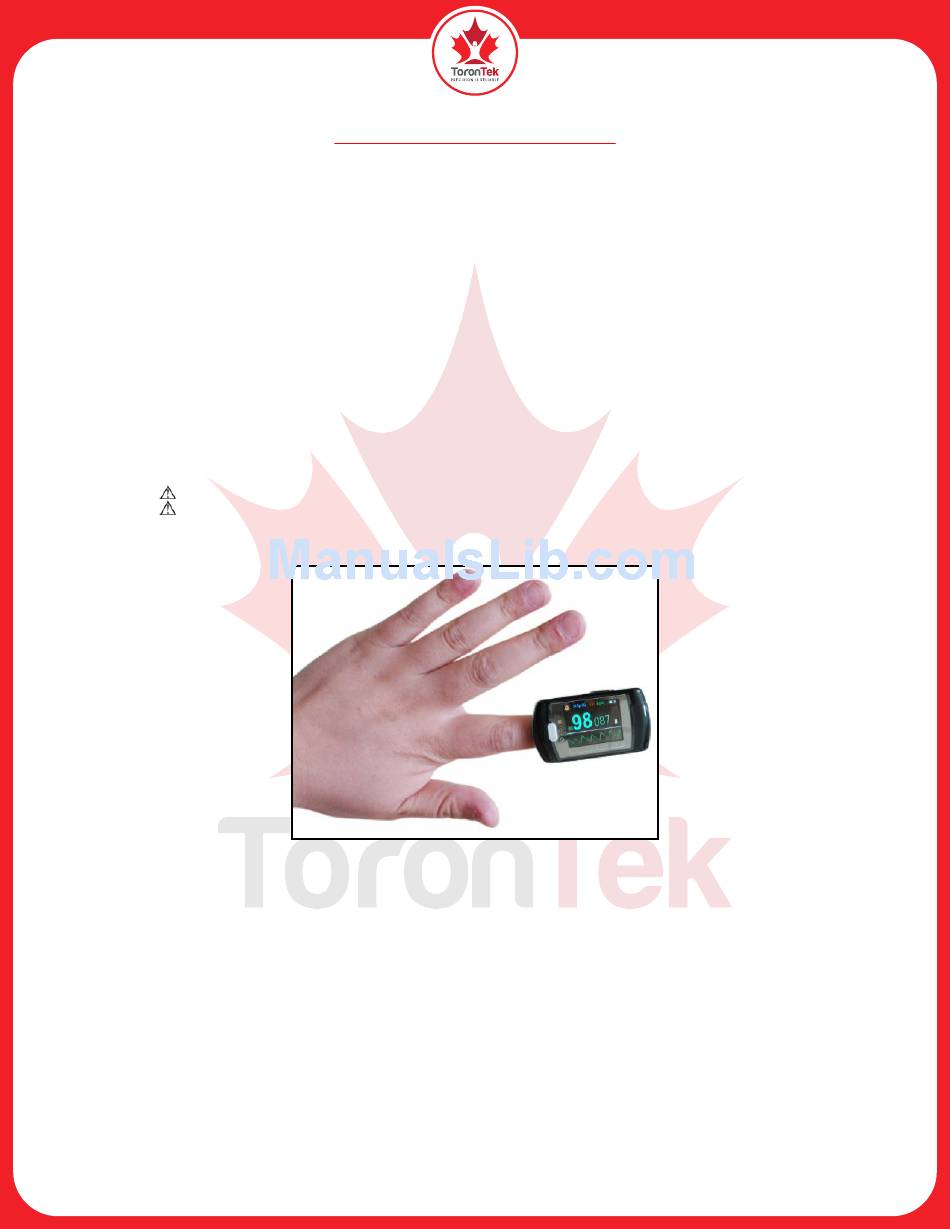

A. Squeeze the clamp, put a finger into the rubber hole, then release it.
a) Press the Power Button on the front panel until the device turns on.
b) Do not shake the finger. Keep the patient still and at ease during the process.
c) The data can be read directly from the screen on the measuring interface.
Fingernails and the luminescent tube should be on the same side.
If the alarm function is on, the device will provide a medium-priority alarm signal when
the finger is removed. Intermittent alarm will go off and the user interface will display
"FINGER OUT".
(Medium priority indicating that prompt operator response is required.)
B. Change display direction:
On the measuring interface, you can change the display direction by pressing the button shortly.
C. Pause alarm:
a) Alarms include the alarm of measured data going beyond the limits, the low battery alarm, and
the alarm of the finger moving out of position.
b) You can pause the alarm when it goes off by clicking the power button while on the measuring
interface. The alarm will restart in 60 seconds.
c) Use the menu operations to turn the alarm off permanently.
D. Menu operations:
On the measuring interface, the display direction can be changed by pressing the power button. There are
four modes of data display that can be viewed.
TORONTEK-E400 Pulse Oximeter
Figure 4
