c. Pulse sound indication setting
Select "Pulse Sound", choose to have the Pulse Sound (heart beat) alarm either "On" or "Off."
d. Exiting the Alarm settings
Select "EXIT" to exit the Alarm Settings Menu.
C. Data transmission setting
First, please install the affiliated software onto the computer. Two icons will appear on the desktop after
installation. The SpO icon is a program for receiving real-time data (as shown in figure 7.) The SpO
2
Review icon is a program for receiving stored data (shown in figure 8.)
a. Connect the device to a computer with the data line, then double click the SpO
program.
b. On the main menu interface, Click the power button to select "USB", then Press the power button
to choose whether to transmit the real-time data to the computer which displays the data
synchronously or not. Choose "on" to permit transmission; choose "off" to forbid transmission.
c. When you unplug the data line from the computer, a dialog box "Save data at view" appears on the
desktop, in which you can input the patient's basic information.
If the user chooses to turn on the display function on the computer, it will take several
seconds for the data to appear on the computer screen.
D. Data storage settings
This device has the ability to store 24 hours worth of data. It can store the measured pulse rate and SpO
value accurately, transfer the data to a computer, display the data and print reports (with the included
SpO Software - Green Heart.)
2
a. From the "Settings Menu", Click the power button to select "Record", then Press the power button
to enter the start time of data storage test (see figure 9).
b. Click the power button to move the underline to the time to be set (hours and minutes), then Press
and hold the power button to adjust the time setting. After setting the time, Click the power
button to move the underline to "Y" and Press the power button to exit the "time setting menu".
Recording will begin. If you move the underline to "N", and Press the power button to quit the
"time setting menu", the recording will not begin. The data stored in memory will not be
deleted.
c. If the data storage function is turned on, a red "REC" sign and a flashing red dot will appear on-
screen on the measuring interface. This means the device is in a state of storing data.
d. In the state of storing, whatever interface the device is on (measuring interface or menu
TORONTEK-E400 Pulse Oximeter

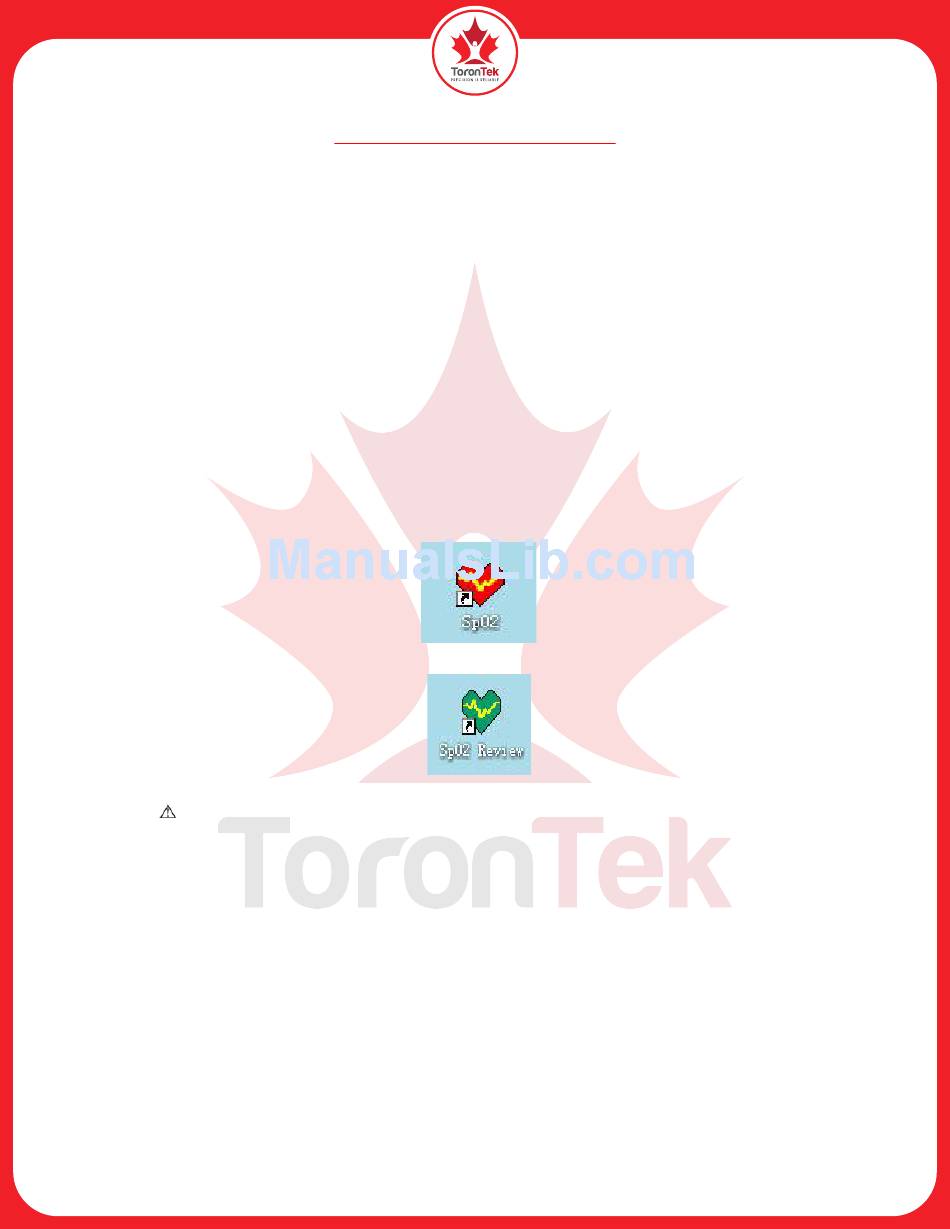

Figure 7. SpO program
2
Figure 8. SpO Review program
2
8
2
icon to start the
2
2
