Summary of Contents for Matrix G7-S21

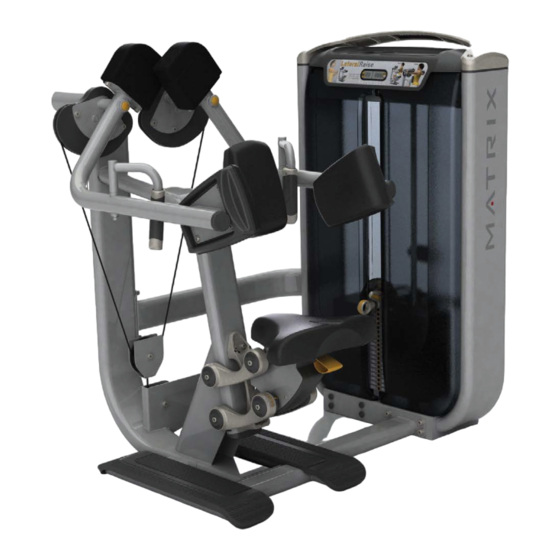

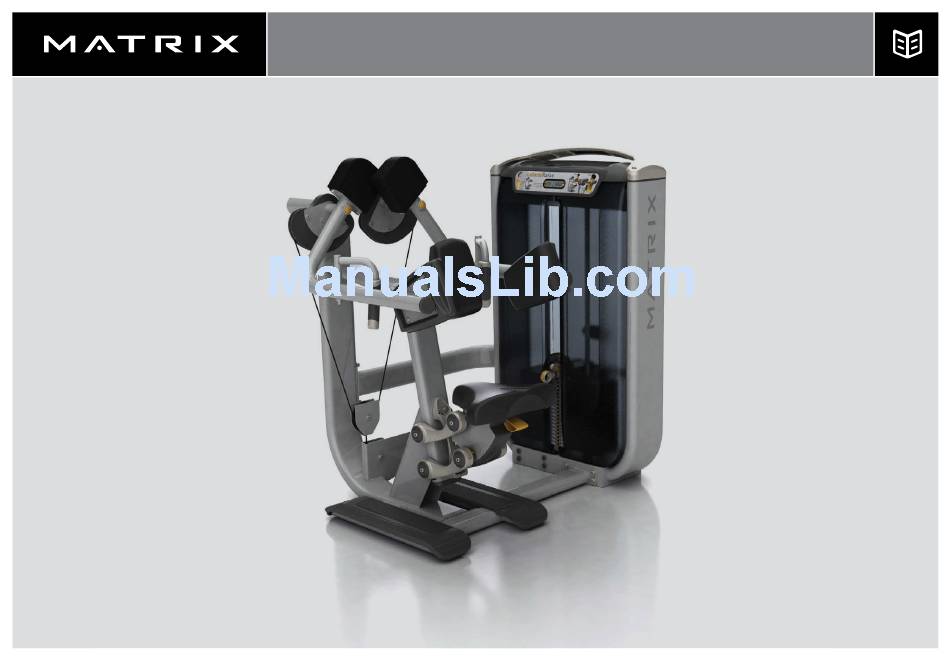

- Page 1 ULTR A SERIES G7-S21 LATERAL RAISE...
- Page 2 NETHERLANDS (BELGIUM, DENMARK, LUXEMBOURG) UNITED ARAB EMIRATES Johnson Health Tech Brasil Johnson Health Tech (HK) Limited Matrix Fitness / Johnson Health Tech. Netherlands Johnson Health Tech. UAE Estrada Municipal, 200 – mód 14 e 15 – gleba 3 Room 1501-1502, Aitken Vanson Centre,...
-
Page 3: Important Safety Information
WARNING IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of MATRIX products to instruct all individuals, whether they are the end user or DEATH OR SERIOUS INJURY CAN OCCUR ON THIS supervising personnel on proper usage of the equipment. -
Page 4: Proper Usage
* Ensure a minimum clearance width of 0.6 meters (24”) for access to and pas- Clean Machine As Needed sage around MATRIX strength equipment. Please note, 0.91 meters (36”) is the ADA recommended clearance width for individuals in wheelchairs. Clean Grips * As Needed Lubricate Guide Rods †... - Page 5 UNPACKING CAUTION Thank you for purchasing a MATRIX Fitness product. It is inspected before it is To avoid injury to yourself and prevent damage to the frame components, be sure packaged. It is shipped in multiple pieces to facilitate the compact packaging of the to have proper assistance removing the frame pieces from this box.
- Page 6 Hardware Description Spring Washer (M10) Nylon Nut (M10) Round Screw (M10X1.5PX80L) Flat Washer (M10) Arc Washer (M10) Round Screw (M10X1.5PX30L) Hex Screw (M10X1.5PX30L) Z05 Z04 Z03 B22...
- Page 7 Hardware Description Round Screw (M10X1.5Px20L) Flat Washer (M10) Small Pulley Cover C Ring Fixing Plate Wave Spring Nylon Nut (M10x1.5P) Flat Washer (M10) Cable Stopper Round Screw (M10X1.5Px50L) Pulley Take the pulley sets apart...
- Page 8 Hardware Description Round Screw (M8X1.25PX25L) Small Pulley Cover Con Rod Spring Circle Con Rod Axle...
- Page 9 Hardware Description Flat Washer (8) Round Screw (M8X25L) Hex Socket Screw (M10X25L) Hex Screw (M10X1.5PX25L) Spring Washer (M10) Flat Washer (M10) Counterweight Z03x3 Chest Pad B22x3 Z03x3 Fixing Block Seat Pad B22x3 Fixing Block Plastic Cover Fixing Block Chest Pad...
- Page 10 Hardware Description Round Hex Socket Screw Right Front Cover Rear Cover Left Front Cover Lift the wing and top cover, then assemble the front and rear shields to the frame. Raise up the Add-A-Weight Plate Hold by Pull Pin...
- Page 11 G7-S21 TRAINING AREA FREE AREA WIDE PATH 1.43 M (56.1”) 1.47 M (57.6”) Lateral Raise Start Finish Adjust seat height so shoulders align with orange pivots Lateral Raise...
- Page 12 G7-S21 LATERAL RAISE Part # 1000102456 © 2016 Johnson Health Tech Rev 1.1 A...
