Table Of Contents Safety, General Care & Maintenence ........................3 Getting Started (Product Specifications) ......................5 Assembly Information .............................6 Markings ..................................7 Parts List ...................................8 Installation & Assembly: Value Line Part 1 Weight Stack & User Frame Assembly ..................10 Part 2 Seat Assembly ..........................13 Part 3 Pivot Block Assembly ........................
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or supervising personnel on proper usage of the equipment. It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
Page 4
IMPORTANT SAFETY INSTRUCTIONS WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE PRECAUTIONS TO AVOID INJURY! Never allow children on strength training equipment. Teenagers must be supervised at all times while using this equipment.

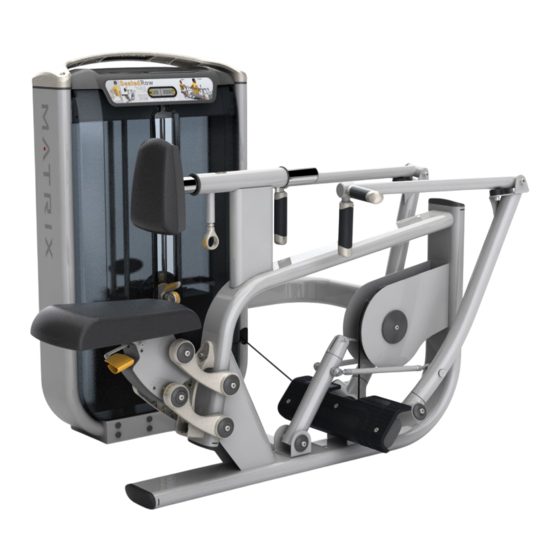

GETTING STARTED EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST EXERCISE PLACARD PRODUCT SPECIFICATIONS TECH SPECS Maximum User Weight 136 kg / 300 lbs. Maximum Training Weight 109 kg / 240 lbs. Product Weight 311 kg / 685 lbs. Overall Dimensions (L x W x H) 158.1 x 142.8 x 129.6 cm / 62.3"...
Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Matrix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine.
Parts List DESCRIPTION Lower Connecting Tube M10 X 30L Socket Head Cap Screw M10 Flat Washer Weight Stack M10 Nylock Nut M10 X 75L Socket Head Cap Screw Upper Connecting Tube M10 Saddle Washer User Frame M10 X 50L Socket Head Cap Screw Pulley M8 X 25L Socket Head Cap Screw Medium Pivot Cap...
Page 9
Parts List DESCRIPTION Wave (Spring Washer) Right Lower Arm Snap Ring Left Lower Arm M10 X 15L Socket Head Cap Screw Left Upper Arm Right Upper Arm M10 X 95L Socket Head Cap Screw Chest Pad Assembly M10 X 25L Button Head Cap Screw M10 X 25L Hex Bolt Left Front Shroud Rear Shroud...
ASSEMBLY PART 1: USER FRAME ASSEMBLY STEP 1 | USER FRAME INSTRUCTIONS & NOTES DESCRIPTION QUANITY Lower Connecting Tube M10 X 30L SHC M10 Flat Washer Weight Stack M10 Nylock Nut M10 X 75L SHC Upper Connecting Tube Tip frame as shown to access hardware. DO NOT FULLY TIGHTEN...
Page 11
ASSEMBLY PART 1: USER FRAME ASSEMBLY STEP 2 | USER FRAME INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 X 30L SHC M10 Saddle Washer User Frame View A Tip frame as shown to access hardware. Orient the saddle DO NOT FULLY TIGHTEN washer as shown...
Page 12
ASSEMBLY PART 1: USER FRAME ASSEMBLY STEP 3 | WEIGHT STACK CABLE INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 Flat Washer M10 X 50L SHC Pulley Torque all to: 77 N-m/57 ft-lbs.
ASSEMBLY PART 2: SEAT ASSEMBLY STEP 1 | SEAT LINK INSTRUCTIONS & NOTES DESCRIPTION QUANITY M8 X 25L SHC Medium Pivot Cap Seat Link Axle Spring Tighten to 39 N-m/29 ft-lbs. Seat Mechanism Ensure bottom links are assembled correctly by testing spring tension Outer tab of spring must be secured behind frame reaction bar...
Page 14
ASSEMBLY PART 2: SEAT ASSEMBLY STEP 2 | SEAT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M8 X 25L SHC Medium Pivot Cap Seat Link Axle Spring Torque all to: 39 N-m/29 ft-lbs.
ASSEMBLY PART 3: PIVOT BLOCK ASSEMBLY STEP 1 | PIVOT BLOCK ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY Pivot Block Assembly M10 X 55L SHC Axles must be red Loctited (Loctite 272) and torqued to: 180 N-m/133 ft-lbs. Hand thread - do not fully tighten ***NOTE: Pivot Block is symmetrical***...
ASSEMBLY PART 5: CAM/CABLE ASSEMBLY STEP 1 | CAM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 Flat Washer M10 Nylock Nut Large Pivot Cap M10 X 105L SHC Separate CAM to assemble weight stack cable as shown. Capture cable with forked clip and orient as shown.
ASSEMBLY PART 6: ARM ASSEMBLY STEP 1 | SWINGARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 Flat Washer M10 Nylock Nut M10 X 105L SHC Swingarm M6 Nylock nut M6 Shoulder Bolt Small Pivot Cap Assemble cable into swingarm and tighten M6 to 16 N-m/142 in-lbs. Tighten M10 to 77 N-m/57 ft-lbs.
Page 19
ASSEMBLY PART 6: ARM ASSEMBLY STEP 2 | TIE ROD TO SWINGARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY Tie Rod (Left Side Not Shown) M6 Flat Washer (Left Side Not Shown) M6 X 12L SHC (Left Side Not Shown) Torque to 16 N-m/142 in-lbs.
Page 20
ASSEMBLY PART 6: ARM ASSEMBLY STEP 3 | LEFT AND RIGHT* LOWER ARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY Small Pivot Cap* Wave (Spring) Washer* Right Lower Arm Snap Ring* Left Lower Arm* M10 X15L SHC* *Only right arm is shown Apply blue Loctite 242 and tighten to 77 N-m/57 ft-lbs.
Page 21
ASSEMBLY PART 6: ARM ASSEMBLY STEP 4 | TIE ROD TO ARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M6 Flat Washer (Left Side Not Shown) M6 X 12L SHC (Left Side Not Shown) Torque to 16 N-m/142 in-lbs.
ASSEMBLY PART 6: ARM ASSEMBLY STEP 5 | LEFT AND RIGHT* UPPER ARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 Flat Washer* M10 Nylock Nut* Left Upper Arm Right Upper Arm (Not shown) M10 X 95L SHC* *Only left arm is shown Torque to: 39 N-m/29 ft/lbs.
Page 23
ASSEMBLY PART 6: ARM ASSEMBLY STEP 6 | ARM POSITIONING INSTRUCTIONS & NOTES Before fully tightening the pivot block, ensure that the arms are symmetrical about the centerline of the machine. The left and right hand grips should be centered to the user. Tighten four bolts of pivot block, and then back out one bolt to apply red Loctite 272, replace bolt to proper torque.
ASSEMBLY PART 7: PAD ASSEMBLY STEP 1 | THIGH PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY Chest Pad Assembly M10 X 25L BHC Install the pad as shown. Tighten to 27 N-m/20 ft-lbs.
Page 25
ASSEMBLY PART 7: PAD ASSEMBLY STEP 2 | BOTTOM PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 X 25L Hex Bolt Install the pad as shown. Tighten to 27 N-m/20 ft-lbs.
ASSEMBLY PART 8: PLASTICS ASSEMBLY STEP 1 | SHROUD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY Left Front Shroud Rear Shroud Right Front Shroud Install the weight stack shrouds as shown.
Page 27
ASSEMBLY PART 8: PLASTICS ASSEMBLY STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M8 X 60L SHC Top Cap I M PO RTA NT NOTI CE Install the top cap and connect rep counter plug as shown. Torque to 17 N-m/147 in-lbs.
