Eckman EKEMS2 Instruction Manual

4-in-1 1200w extendable electric hedge trimmer, grass trimmer/ brush cutter & chainsaw branch lopper set
Hide thumbs
Table of Contents

Advertisement

Quick Links

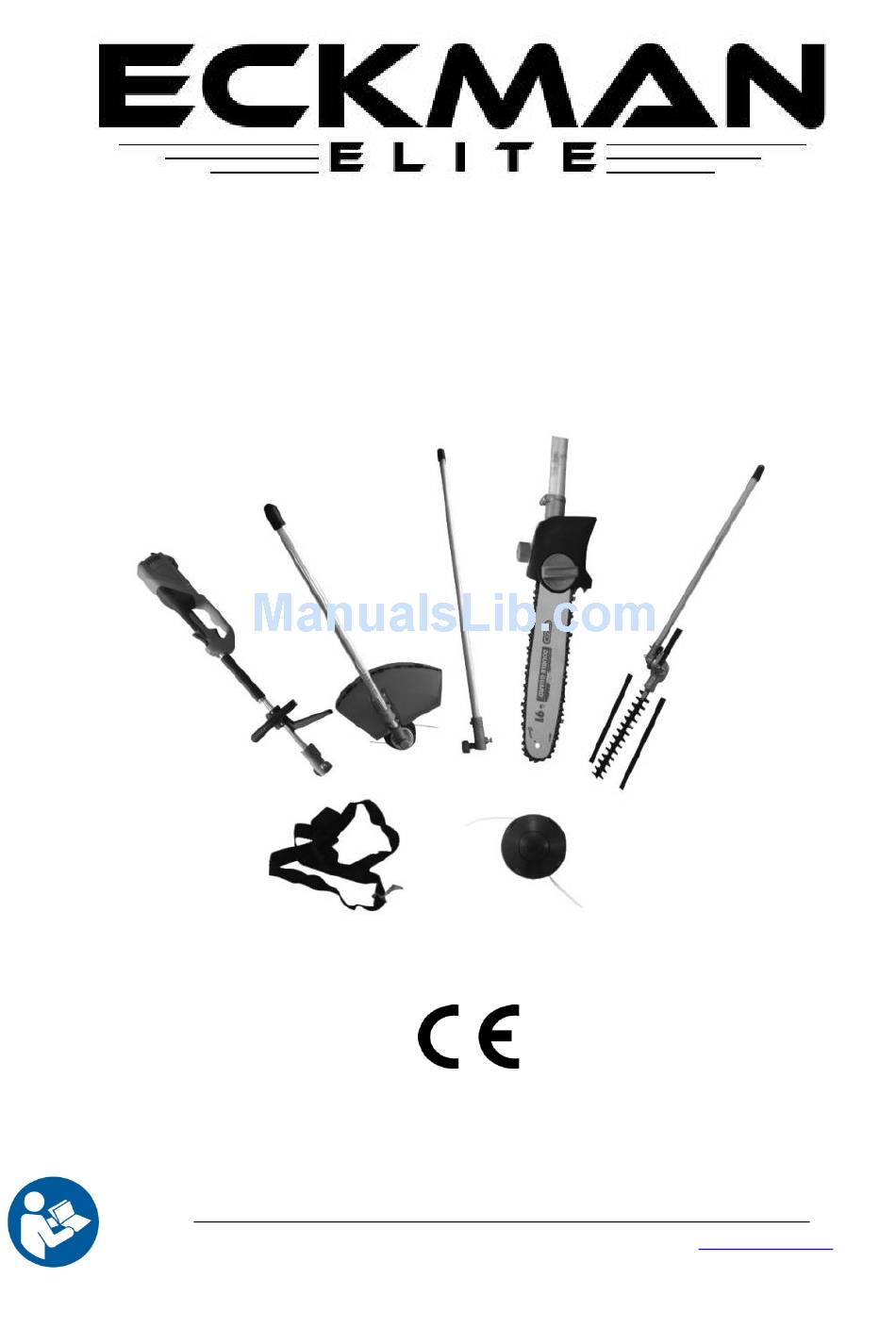

4-IN-1 1200W EXTENDABLE ELECTRIC HEDGE TRIMMER, GRASS TRIMMER/
BRUSH CUTTER & CHAINSAW BRANCH LOPPER SET MODEL EKEMS2
INSTRUCTION MANUAL
回
PLEASE READ AND SAVE THE INSTRUCTION MANUAL FOR FUTURE REFERENCE
Any questions please call the Eckman helpline on：0844 441 3011 or go to
www.eckman.co.uk

Advertisement

Table of Contents
loading

Related Manuals for Eckman EKEMS2

Summary of Contents for Eckman EKEMS2

  • Page 1 4-IN-1 1200W EXTENDABLE ELECTRIC HEDGE TRIMMER, GRASS TRIMMER/ BRUSH CUTTER & CHAINSAW BRANCH LOPPER SET MODEL EKEMS2 INSTRUCTION MANUAL 回 PLEASE READ AND SAVE THE INSTRUCTION MANUAL FOR FUTURE REFERENCE Any questions please call the Eckman helpline on：0844 441 3011 or go to www.eckman.co.uk...

  • Page 2: Table Of Contents

    - 1 - Contents: SYMBOLS / PICTURES MARKED ON THE PRODUCT OR USED IN MANUAL....2-3 ............GENERAL SAFETY INSTRUCTIONS.…… .3-6 III. PARTS IDENTIFICATION....................7-9 IV. TECHNICAL DATA......................10 V. ASSEMBLY........................10-11 VI. CHAINSAW LOPPER ATTACHMENT.................12-14 VII. HEDGE TRIMMER ATTACHMENT..................14 VIII. BRUSH CUTTER/GRASS TRIMMER ATTACHMENTS..........14-16 IX.CONNECTION........................16 X.

  • Page 3: Symbols Pictures Marked On The Product Or Used In Manual

    - 2 - SYMBOLS PICTURES MARKED ON THE PRODUCT OR USED IN MANUAL Read the user manual before using the machine WARNING! Wear CE approved eye protection! Wear CE approved ear and head protection! Wear gloves to protect your hands. Wear sturdy and high safety boots.

  • Page 4: General Safety Instructions

    - 3 - C utting length of chainsaw lopper 220mm C utting length of hedge trimmer 400mm Cutting length of brush cutter 230mm C utting length of grass trimmer 400mm WARNING: Read and understand all instructions. Deviation from these instructions can result in serious injury.
  • Page 5 - 4 - ● Do not use the unit if it is damaged or poorly adjusted. Never remove the machine’s guard. Serious injury to the operator or bystanders could result as well as damage to the machine. ● Inspect the area to be cut and remove all debris that could become entangled in the nylon cutting head or cutting blade.
  • Page 6 - 5 - Before re-using the machine after any impact, check the machine for wear and tear or damage.  If necessary have the machine repaired. Wear CE Approved eye and ear protection and if applicable a hard hat.  Periodically check and maintain the unit.
  • Page 7 - 6 - Before you start working remove any debris from the ground to avoid tripping. Always stand in a secure position and keep your balance. Always keep extension and connecting cables behind the saw or away from the cutting area. Only use spare parts approved by the manufacturer, in particular with regard to the chain and chain guide.

  • Page 8: Parts Identification

    - 7 - medical implant manufacturer before operating this machine. III. PARTS IDENTIFICATION Drive Unit: 1 Motor Housing Case 2.Throttle control Trigger 3.Trigger lockout 4.Main Cable (10m with fused UK plug) 5.“D” Handle 6.Hand Tighten Knob...
  • Page 9 - 8 - Tool attachments: Chainsaw Pruner Brush cutter Grass trimmer Hedge trimmer 11. Optional Extra Extension Pole...
  • Page 10 - 9 - Accessories: Protection guard for line trimmer/brush cutter 13 Belt 14 Chain Saw protection cover 15 Oregon bar 16 Oregon chain 17 Blade 18 Double line, bump-feed Spool 19 Hand-Tighten Knobs 20 Hexagon key 21 Blade retainer 22 Hexagon socket wrench 23 Blade retainer Nut 24 Inner flange 25 Inner flange...

  • Page 11: Technical Data

    - 10 - Before assembly firstly unpack and check all parts have been supplied. If you think any parts are missing, check the packaging again before calling the Eckman helpline on 0844 441 3011. IV. TECHNICAL DATA ECKMAN Code/Factory Code...
  • Page 12 - 11 - The handle has two parts. First seperate the upper and lower parts by removing the four hex-bolts using the hex key supplied. The power unit handle has two black rubberized cover sections. The longer one is sponge rubber, the shorter one is strong rubber.

  • Page 13: Chainsaw Lopper Attachment

    - 12 - Clip to the power unit and adjust for length and comfort. (Photo 4-5) VI. CHAINSAW LOPPER ATTACHMENT Photo 4 Assembly Photo 5 This also need to be assembled and comprises the following parts: WARNING: BE SURE TO FILL THE OIL RESERVOIR WITH THE APPROPRIATE CHAIN OIL OTHERWISE YOU WILL SEIZE AND BURN OUT THE CHAIN Photo 6 IMPORTANT:...
  • Page 14 - 13 - WARNING The saw chain has very sharp edges. Use protective gloves for safety. 1、Loosen the nut and remove the chain cover 2、Mount the guide bar then fit the saw chain around the bar and sprocket.(Photo 7) Photo 7 WARNING Pay attention to the correct direction of the saw chain(Photo 8) Photo 8...

  • Page 15: Hedge Trimmer Attachment

    - 14 - WARNING It is very important to maintain the proper chain tension. Rapid wear of the guide bar or the chain coming off easily can be caused by improper tension. Especially when using a new chain, take good care as it will expand when first used. VII.
  • Page 16 - 15 - Attach shaft to the groove then mount plastic seat to tighten. (See photo14-16) 2) Fitting the safety guard to the brush cutter Mount two inner flanges to the safety guard then put on blade and blade retainer fixed by blade retainer nut using hexagon socket wrench, You’ll need to line up the two holes in the side of the cutting head assembly and insert the hex key in them to keep the blade still.(see photo 17-21) Photo 17...

  • Page 17: Ix.connection

    - 16 - 3) Fitting the safety guard to the grass trimmer If you use the unit as a grass trimmer follow the instructions below: 1. Loosen the blade retainer nut clockwise and remove the blade retainer. 2. Mount the grass trimmer head and tighten it.(see photo 22-23) Photo 23 Photo 22 Note: Please store the blade retainer and nut in a safe place.

  • Page 18: Maintenance

    - 17 - NOTE: NEVER ATTEMPT TO LOCK A SWITCH IN THE ON POSITION. MAINTENANCE  Store the tool, instruction manual and accessories in a secure, dry place. In this way you will always have the information ready to hand. ...

  • Page 19: Xiii.guarantee

    Equipment Category - (As defined in the Directive) Product Name: 4 IN 1 ELECTRIC HEDGE TRIMMER Model: SF7A214（ECKMAN MODEL NO.: EKEMS2） The technical documentation is kept by: ZHEJIANG SAFUN INDUSTRIAL CO.,LTD 7 South Mingyuan AVE,Economic Development Zone,Yongkang, Zhejiang China...

  • Page 20: Exploded View & Parts List

    - 19 - IMPORTED BY ECKMAN CO.,LTD ADD: 29 WELBECK STREET,LONDON W1G 8DA, ENGLAND Exploded View & Parts List...
  • Page 21 - 20 -...
  • Page 22 NAME NO NAME armature anti-dust cover bearing 608 - 21 - upper press plate carbon brush 3 teeth blade screw down press plate brush holder shield ring 32 rear holder bearing 6002 axle sheath key axle bearing 609 cable screw cable sheath anti dust cover wire press board...
