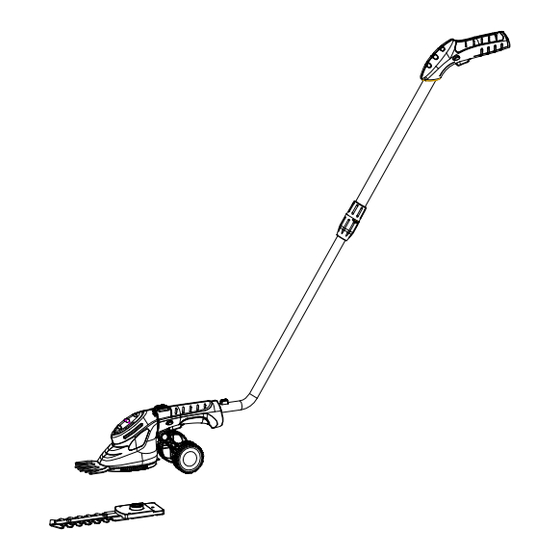

Eckman HT001 User Manual

3.6v lithium-ion battbery-operated grass shear and hedge trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

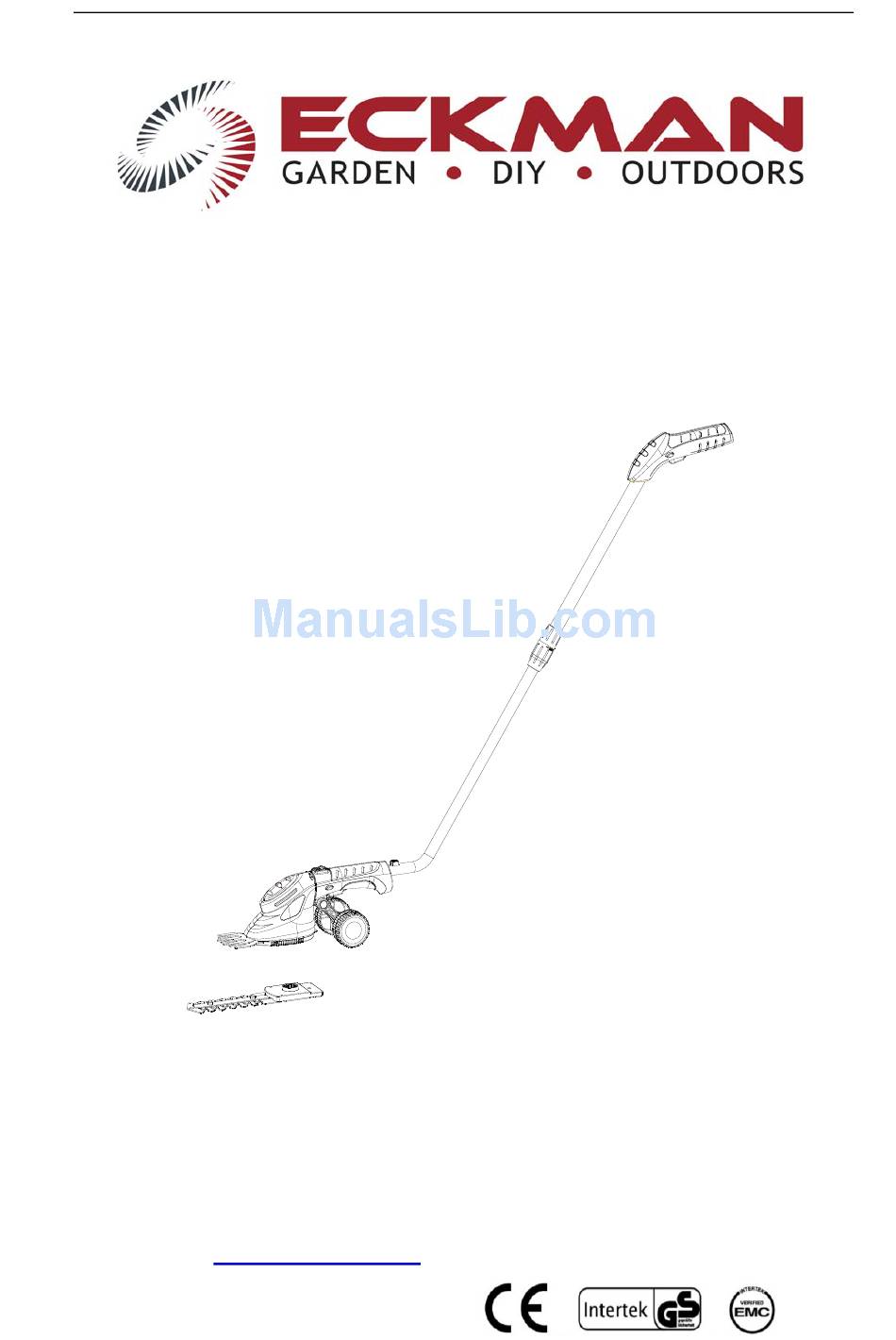

3.6V LITHIUM-ION BATTBERY-OPERATED
GRASS SHEAR AND HEDGE TRIMMER
MODEL:HT001
USER MANUAL
IMPORTANT: Read and understand this manual before assembling or
operating this appliance. Improper use of this appliance can cause
severe injury or death. Keep this manual in a safe place for future
reference.
Any questions or problems-please call the Eckman Helpline on 0845 555
4440 or visit
www.eckman.co.uk

Advertisement

Table of Contents
loading

Related Manuals for Eckman HT001

Summary of Contents for Eckman HT001

  • Page 1 IMPORTANT: Read and understand this manual before assembling or operating this appliance. Improper use of this appliance can cause severe injury or death. Keep this manual in a safe place for future reference. Any questions or problems-please call the Eckman Helpline on 0845 555 4440 or visit www.eckman.co.uk...

  • Page 2: Important Tips

    IMPORTANT TIPS: 1， Unit is fully assembled. Remove clear plastic blade guard before use and save it to use as blade-cover when unit is not in use. 2， Battery must be charged before use. Please refer to battery charging instructions. 3，If the blade becomes jammed on a branch while cutting, IMMEDIATELY release trigger and clear jam.

  • Page 3: Important Safety Instructions For Battery Charger

    Keep cutting tools sharp and clean for better and safer performance. Follow instructions for lubrication and changing accessories. 8. Disconnect tools Disconnect the tool from its battery pack when not in use, before servicing and when changing accessories such as blades. 9.
  • Page 4 11. To reduce risk of electric shock, unplug charger from outlet before attempting any cleaning. Removing the battery pack will not reduce this risk. 12. Never attempt to connect 2 chargers together. 13. DO NOT store or use the tool in locations where the temperature may reach or exceed 105°F (such as outside sheds or metal buildings in summer).
  • Page 5 Fig. 1 2， Fitting/removing the telescopic swivel handle(see Fig. 2) Guide the swivel handle (2) at the desired angle into the handle holder of the grass shear until the lock engages. The starting lockout and ON button on the tools no longer function when the swivel handle is mounted.
  • Page 6 Fig. 3 Cutting with telescopic handle: The telescopic handle is fully height adjustable and can be adapted to suit your height.. Fig. 4 Warning: Do not turn on the switch when you adjust the telescopic handle. This can cause a (see Fig.
  • Page 7 Fig. 5 Fig. 6 (see Fig. 6) Swivel 90 for trimming grass. Use the swivel head function with wheels to trimmer along lawn edges. Fig. 7 (see Fig. 7) Swivel 180 for trimming the tops of hedges. Adust height for cutting and trimming grass. The suitable height for cutting grass is 40mm and (see Fig.
  • Page 8 Fig. 8 Fig. 9 (see Fig. 9) The suitable height for trimming grass is 80mm、65mm and 40mm. CHARGE ● The battery can be charged in about 4 hours. Be sure to read all safety instructions before using your charger. This product is not user serviceable. There are no user serviceable parts inside the charger.
  • Page 9 (see Fig. 10) 1. Charging procedure These chargers require no adjustment and are designed to be as easy as possible to operate. Fig. 10 (1). Connect the charger and the tool. (Insert into the INLET of the machine) (2). Plug the charger into an appropriate 230V AC power outlet. When the LED on the machine is red, it means the battery is on charge.

  • Page 10: Changing The Blades

    (6). Do not immerse charger in water or any other liquid. (7). WARING: don’t allow any liquid to get inside charger. Electric shock may result. To facilitate the cooling of the battery pack after use, avoid placing the charger or tool in a warm environment such as in a metal shed, or an uninsulated trailer.
  • Page 11 Fig. 12 Warning! DO NOT operate the trimmers before the blade cover is installed. Risk of injury! (see Fig. 13) 3， Install the blade cover following the steps as shown. ① Insert the blade cover align the two lines marked in the upper figure. ②...

  • Page 12: Maintenance And Repair

    MAINTENANCE AND REPAIR ● Do not rinse the machine with water. The trimmer should be stored in a dry place when it is not in use. Before every use of this trimmer, check whether the blade is in good order and undamaged. Replace blade if damaged.
