Martin Exterior 50 User Manual

Ip68
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TM
Martin Exterior 50 IP68
TM
Martin Exterior 100 IP68
System
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Exterior 50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Martin Exterior 50

Summary of Contents for Martin Exterior 50

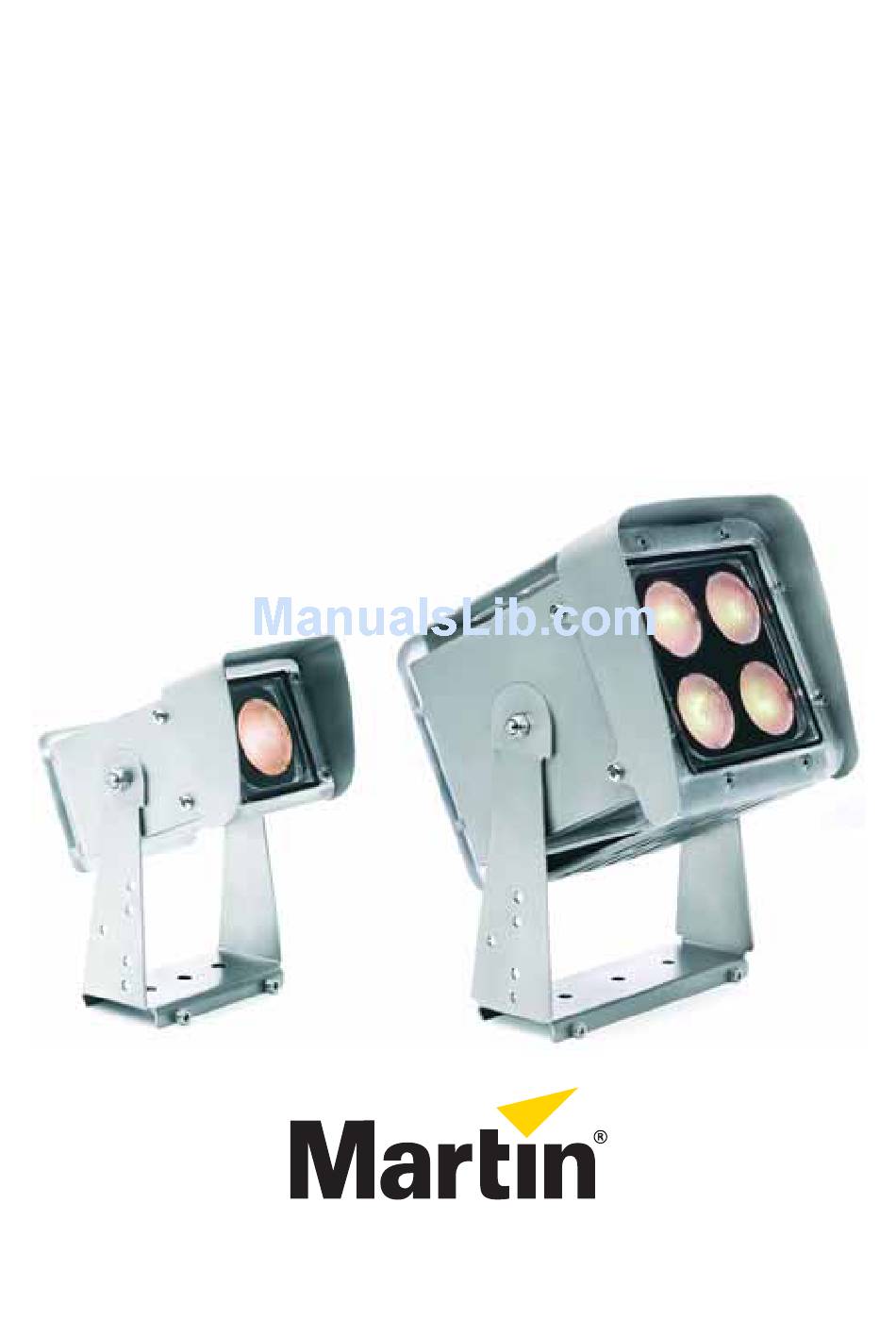

  • Page 1 Martin Exterior 50 IP68 Martin Exterior 100 IP68 System User Manual...

  • Page 2: Dimensions

    The Martin logo, the Martin name and all other trademarks in this document pertaining to services or products by Martin Professional A/S or its affiliates and subsidiaries are trademarks owned or licensed by Martin Professional A/S or its affiliates or subsidiaries.
  • Page 3 Exterior 100 IP68 Luminaire 165* *Approximate figure allowing for cable exit Standard mounting post Ø6 Dimensions...
  • Page 4 Ø 5.5 Ø 5.5 M3 screw for mounting on DIN rail M3 screw for mounting on DIN rail Exterior 100 Mounting bracket Exterior 50 Mounting bracket Exterior 50 and 100 Splitter Ø5.5 Martin Professional™ Exterior 50 & 100™ system user manual...
  • Page 5 Exterior 50 and 100 PSU (EU model, 50/60 Hz) 4x M3 screws DIN 912 Dimensions...
  • Page 6 Exterior 50 and 100 PSU (US model, 60 Hz) Martin Professional™ Exterior 50 & 100™ system user manual...

  • Page 7: Table Of Contents

    DMX control ..........70 Using Martin M-PC™ for DMX control ......71 DMX protocols .

  • Page 8: Safety Information

    Warning! The Martin™ Exterior 50 & 100 system is not for household use. Warning! Read this guide before operating the system, follow the safety precautions listed in this section of the guide, and observe all warnings in this guide and printed on devices.
  • Page 9 Martin™. • Use only the hybrid (combined power and data) Splitter cables supplied by Martin for the products concerned to connect a PSU to Splitters and to connect Splitters to each other. • Do not connect the system to power unless all cable glands are sealed by either a cable or a blanking plug installed as described in this guide.
  • Page 10 PSU. • Do not connect any chain of devices that contains more than fifteen Exterior 50 or five Exterior 100 Luminaires (or any combination within these limits where three Exterior 50 Luminaires is equivalent to one Exterior 100 Luminaire) to any single output from a PSU.
  • Page 11 PROTECTION FROM INJURY • Do not view the light output with optical instruments or any device that may concentrate the beam. • When installing devices overhead, ensure that the supporting structure and all hardware used can hold the weight of all the devices they support plus an adequate safety margin.

  • Page 12: Introduction

    Splitter hybrid cable gland. • The Exterior 50 & 100 PSU is supplied with a blanking plug for sealing an unused control data cable gland, two blanking plugs for sealing unused AC mains power or hybrid cable glands, and this Installation and Safety Guide.

  • Page 13: General Information

    • The Exterior 50™, an IP68-rated LED washlight Luminaire. • The Exterior 100™, an IP68-rated LED washlight Luminaire. • The Exterior 50 & 100 PSU, a Power Supply Unit in an IPX7-rated housing that supplies the Exterior 50 & 100 system with 30 VDC power.

  • Page 14: System Control: General

    The Exterior 50 & 100 system can be: • controlled using a DMX control device or PC application, • set up and controlled using a PC running the Martin M-PC™ RDM- compliant Windows application via a Martin USB Duo™ USB/DMX interface box, or •...

  • Page 15: System Layout: General

    In the Exterior 50 & 100 system, the data signal can be relayed from the PSU to either: • two Luminaires directly via their hybrid (power and data) luminaire cables (see Figure 2 on page 18) • a chain of Exterior 50 & 100 Splitters via hybrid Splitter cables and then sent to Luminaires via their luminaire cables (see Figure 3 on page 19) •...
  • Page 16 AC mains power. Warning! Respect the following maximum limits when connecting Luminaires and Splitters to ANY ONE OUTPUT from an Exterior 50 & 100 PSU: • Maximum FIVE Exterior 100 Luminaires per output, or •...
  • Page 17 One Exterior 100 Luminaire (up to 18 W) is the equivalent of three Exterior 50 (up to 6 W) Luminaires in terms of power consumption and current draw (see Figure 1). Exterior 100 IP68 Exterior 50 IP68 Exterior 50 IP68...
  • Page 18 Figure 2 shows the most basic system layout possible. In a minimum system: • AC mains power is supplied to the Exterior 50 & 100 PSU via suitable power cable. • A data signal from a DMX controller is supplied to the PSU via DMX cable.
  • Page 19 Single group system layout Figure 3 shows the layout of a single group of Exterior 100 Luminaires: Figure 3: Single group system layout General information...
  • Page 20 In a single group system: • AC mains power is supplied to the Exterior 50 & 100 PSU via suitable power cable. • A DMX control data signal from a DMX controller is supplied to the PSU via DMX cable.
  • Page 21 Max. permitted total current draw for all interconnected devices = 16 amps 4 M lti A larger version of this diagram is available on the After-Sales/Product Support pages for the Exterior 50 and 100 at www.martin.com Figure 4: Multiple group system layout General information...

  • Page 22: Installation And Connections: General

    Installation and connections: general Warning! Read the ”Safety information” section starting on page 8 before carrying out work on the Exterior 50 & 100 system. Warning! Luminaire cables may be installed in Luminaires and serviced only by Martin™ and its authorized service agents.
  • Page 23 C – Cable entry F – Compression nut Figure 5: Cable glands To install a cable in a cable gland in a device in the Exterior 50 & 100 system: 1. If necessary, prepare the cable as described in the relevant sections of this guide.
  • Page 24 Installing a blanking plug in an unused cable gland All unused cable glands in the Exterior 50 & 100 system must be sealed with blanking plugs to prevent the entry of water and dust. Enough suitably sized blanking plugs are supplied with PSUs and Splitters to cover all possible situations.
  • Page 25 (see “Accessories” on page 79 for cable available from Martin™). • Ensure that cables connected using the box cannot be placed under strain or tension.
  • Page 26 Data -ve Table 1: Luminaire cable wiring identification • When you have finished making connections, close the connections box as directed in the supplied instructions, fastening it tightly with two cable ties. Martin Professional™ Exterior 50 & 100™ system user manual...

  • Page 27: Installing Power Supply Units

    Installing Power Supply Units Physically installing a PSU Exterior 50 & 100 PSUs must be fastened to a flat surface. See Figure 8. (EU model PSU illustrated) Figure 8: Mounting a PSU Installing Power Supply Units...
  • Page 28 Fasten the PSU securely to the mounting surface, ensuring space around it so that you have access to cable glands and can open the PSU for access to internal connections. Martin Professional™ Exterior 50 & 100™ system user manual...

  • Page 29: Connecting A Psu

    Connecting a PSU Internal access to a PSU (EU model PSU illustrated) Screw Outer cover Screw Inner cover Figure 9: Internal access to PSU To access the terminals or check the system status indicator LEDs inside a PSU, see Figure 9: 1.
  • Page 30 AC mains power input AC mains power operating range The Exterior 50 & 100 PSU is fully auto-sensing and can be connected to AC mains power as follows: • The EU model PSU can be connected to mains power at 100-240 VAC nominal at 50/60 Hz.
  • Page 31 Figure 10: AC mains power connections in PSU To connect the Exterior 50 & 100 PSU to AC mains power: 1. Check that the system is isolated from AC mains power and that power cannot be reapplied during work on the system.
  • Page 32 2. Refer to Table 2 for common AC mains power cable wiring color coding schemes. 3. The Exterior 50 & 100 PSU has quick-lock terminals for connecting power cables. Each terminal accepts one input and one throughput wire. Push down with a flat-blade screwdriver on a terminal as shown in Figure 10 each time you need to insert or release wires.
  • Page 33 AC power source in one interconnected chain must not exceed 16 amps. Exterior 50 & 100 PSUs can be interconnected in a chain so that they all draw AC mains power via the first PSU, but the following points must be respected: •...
  • Page 34 IN/OUT 2 Figure 11: Control data input connections in PSU To connect the Exterior 50 & 100 PSU to DMX control data: 1. Check that the system is isolated from AC mains power and that power cannot be reapplied during work on the system.
  • Page 35 3. See ”Installing a cable in a cable gland” on page 23. Pass the data input cable through the cable gland marked DMX Line 1 on the PSU. DMX data IN/OUT Function Data shield Data -ve (cold) Data +ve (hot DMX data IN/OUT Function Data shield...
  • Page 36 Install plugs in all unused cable glands Figure 13: DMX termination in last PSU on link 7. If you are continuing the DMX data link to another PSU, follow the instructions in the next section. Martin Professional™ Exterior 50 & 100™ system user manual...
  • Page 37 Exterior 50 & 100 PSUs can be interconnected using DMX cable in a chain to continue the DMX data link. To extend the DMX data link from one Exterior 50 & 100 PSU to another: 1. Obtain a suitable length of DMX cable to use for data throughput.
  • Page 38 To connect a hybrid Splitter cable to carry data and low-voltage DC power from a PSU to a Splitter: 1. Obtain a suitable length of Martin hybrid Splitter cable (see cable lengths available from Martin under “Accessories” on page 79).
  • Page 39 3. See ”Installing a cable in a cable gland” on page 23. Pass the hybrid output cable through the cable gland marked DMX/RDM +Power #1 on the PSU. HYBRID SPLITTER CABLE PINOUT Wire Function Terminal White +30 VDC Black -30 VDC Shield Data shield DMX GND...
  • Page 40 DMX/RDM +Power #2 for cable exit from the PSU. 8. If you have finished making connections inside the PSU, follow the instructions in ”Closing a CPU after internal access” on page 41. Martin Professional™ Exterior 50 & 100™ system user manual...
  • Page 41 CPU: • Check that mating surfaces are clean and undamaged. If surfaces are not in perfect condition, contact Martin™ for assistance. • Reinstall the inner cover as it was originally installed, with the connectors label over the connectors, or it will be impossible to seal correctly.

  • Page 42: Installing Splitters

    Installing Splitters Physically installing a Splitter Exterior 50 & 100 Splitters can be fastened to a flat surface (see Figure 18) or mounted on DIN rail (see Figure 19). Supporting surfaces, fasteners and hardware must be capable of supporting ten times the load they will bear when devices are installed.
  • Page 43 M3x10 screws (supplied) 4 mm screws (not supplied) 35 mm DIN rail (not supplied) 7 - 15 Ø5 130 - 150 Figure 19: Mounting a Splitter on DIN rail Installing Splitters...

  • Page 44: Connecting A Splitter

    Note that, if the Splitter is required to be fully waterproof, you will need to fill it with IP68 sealant (see ”Filling a Splitter with IP68 sealant” on page 57). Martin Professional™ Exterior 50 & 100™ system user manual...
  • Page 45 1. Check that the system is isolated from AC mains power and that power cannot be reapplied during work on the system. 2. See Figure 21. Prepare a suitable length of Martin™ hybrid Splitter cable for connection to the Splitter: •...
  • Page 46 • Connect the green data -ve (cold) wire to the terminal marked DMX- • Connect the white 30 V +ve (hot) wire to the terminal marked +U. • Connect the black 30 V -ve (cold) wire to the terminal marked -U. Martin Professional™ Exterior 50 & 100™ system user manual...
  • Page 47 5. Tighten the cable gland as described in ”Installing a cable in a cable gland” on page 23. HYBRID SPLITTER CABLE PINOUT HYBRID SPLITTER CABLE PINOUT HYBRID SPLITTER CABLE PINOUT HYBRID SPLITTER CABLE PINOUT Wire Signal Terminal Wire Signal Terminal Wire Function Terminal...
  • Page 48 Install plugs in all across DMX +ve and DMX -ve unused cable glands Figure 23: Terminating hybrid link in Splitter 8. To connect Luminaires to a Splitter, see the next section of this guide. Martin Professional™ Exterior 50 & 100™ system user manual...

  • Page 49: Installing Luminaires

    (including a ground stake that is pushed into the ground to anchor it securely) Fastening to a surface An Exterior 50 or 100 Luminaire can be mounted on a flat, stable surface in any orientation by fastening its mounting bracket to the surface. See Figure 24.
  • Page 50 4. Check that the Luminaire is held securely and cannot fall. Exterior 50 M5 screw M5 threaded rod Exterior 100 M5 screw M5 threaded rod Figure 24: Fastening to a surface Martin Professional™ Exterior 50 & 100™ system user manual...
  • Page 51 35 mm DIN rail (not supplied) Figure 25: Fastening to DIN rail To fasten an Exterior 50 or 100 mounting bracket to 35 mm DIN rail: 1. Check that the DIN rail is securely mounted on a flat surface that can hold ten times the weight of all the hardware to be installed on it.
  • Page 52 Installing on a mounting post or ground stake Using their mounting bracket, Exterior 50 & 100 Luminaires can be fastened onto the telescopic or standard (fixed-length) mounting posts or ground stakes that are available as accessories from Martin™. Mounting posts must be securely fastened to a flat surface. Ground stakes must be securely embedded in the ground.
  • Page 53 that fasteners and the anchoring method have sufficient strength to hold the Luminaire plus an adequate safety margin for the location. 3. Fasten the Luminaire mounting bracket to the end of the post, adjusting orientation before tightening the attachment nut. 4.

  • Page 54: Connecting Luminaires

    Black 3 / no mark Data +ve Black 4 / yellow Data -ve Blue No colored marking Yellow Figure 27: Luminaire cable wire markings Preparation of Luminaire cable Figure 28: Luminaire cable connections in Splitter Martin Professional™ Exterior 50 & 100™ system user manual...
  • Page 55 To connect a luminaire cable to a Splitter: 1. Check that the system is isolated from AC mains power and that power cannot be reapplied during work on the system. 2. See ”Installing a cable in a cable gland” on page 23. Pass the luminaire cable through either of the luminaire (smaller cable diameter) cable glands on the Splitter (see Figure 29).
  • Page 56 (see ”Installing a blanking plug in an unused cable gland” on page 24). • If the Splitter needs to be fully waterproof, fill it with the sealing compound available from Martin™ (see ”Filling a Splitter with IP68 Martin Professional™ Exterior 50 & 100™ system user manual...
  • Page 57 Filling a Splitter with IP68 sealant If a Splitter needs to be protected to IP68, a sealing compound gel available from Martin™ must be injected into the Splitter using a standard caulking gun after all connections have been made. The sealant is self-healing. This means that you can push a screwdriver through it, for example, and it will reseal itself.
  • Page 58 6. If you removed the Splitter cover, reinstall it, fastening both screws A. 7. Allow the sealant to cure for 24 hours before exposing the Splitter to heavy splashing with water or immersion. Martin Professional™ Exterior 50 & 100™ system user manual...

  • Page 59: Installing Light Shields

    Installing light shields Light shields for Exterior 50 & 100 Luminaires are available as accessories from Martin™. The shields reduce unwanted glare and guide the light output at various beam angles. To install a shield on the front of a Luminaire, see Figure 32.

  • Page 60: Checking And Monitoring The Installation

    Figure 33: Status indicator LEDs in PSU For access to the indicator LEDs, follow the instructions in ”Internal access to a PSU” on page 29 and ”Closing a CPU after internal access” on page 41. Martin Professional™ Exterior 50 & 100™ system user manual...

  • Page 61: System Status Indicators In A Splitter

    System status indicators in a Splitter See Figure 34. Two indicator LEDs inside a Splitter give information about system status: • Link flashes green: indicates data transmission at one or both of the DMX data outputs. • Voltage lights constant yellow: indicates that the DC power received is outside the 20-40 V acceptable range.

  • Page 62: Setup

    Setting up for DMX control DMX Addressing If DMX control of Exterior 50 & 100 Luminaires is required, they must be set up to receive instructions from the DMX controller on a DMX channel or group of DMX channels in the 512 channels available in their DMX universe.
  • Page 63 RGBW Luminaires In RGBW Luminaires: • Calibrated mode gives slightly reduced LED power but, LEDs follow factory-calibrated settings to give the best-matched color and white output across multiple Luminaires. In Calibrated mode, color output is controlled using three RGB DMX channels.

  • Page 64: Setting Up Using The Remote Control

    Setting up using the remote control An IR (infrared) remote control unit for the Exterior 50 & 100 system is available as an accessory from Martin™ (P/N 90510210). Sign Numeric keypad Blank Activates Remote Control mode in Luminaire Stores configuration and exits Remote Control mode in...
  • Page 65 Setting a Luminaire to Remote Control mode Before you can set up or program a Luminaire with the remote control, you must set the Luminaire to Remote Control mode to allow communication between the two devices: 1. See Figure 36. Point the remote control at the IR sensor on the back...
  • Page 66 A ‘scene’ is a lighting effect or appearance (i.e. intensity, and in RGBW Luminaires color). Note that: • Sixteen intensity levels are available in programmed scenes. • If a DMX signal is present, it overrides the programmed scene. Martin Professional™ Exterior 50 & 100™ system user manual...

  • Page 67: Setting Up Via Rdm Using Martin M-Pc

    Sign scene in the Luminaire and exit Scene Setting Mode. An Exterior 50 & 100 Luminaire will display its default scene each time it is powered on, unless it receives a DMX signal. Setting up via RDM using Martin M-PC™...
  • Page 68 Scan button (arrowed bottom left) gives a list of the RDM-compliant devices on the data link (in this example, one Exterior 100 and one Exterior 50 are present on the link, and both are set to DMX address 1). Figure 38: M-PC RDM View To set Luminaires’...
  • Page 69 Configuring Luminaire settings See Figure 39. Opening the Device Info window for a Luminaire on the link calls up data for that Luminaire: • Clicking on the Change personality... button (arrowed on right) in this window lets you select Mode 1 (Calibrated RGB) or Mode 2 (Raw RGBW) for the Luminaire.

  • Page 70: Operation

    Luminaire, they override its default scene display. Ambient temperatures The Exterior 50 & 100 system – apart from the US model PSU for use in North America – can be operated at ambient temperatures from ­40° C (­40° F) to 45° C (113° F). The US model PSU for use in North America can be operated at ambient temperatures from ­40°...

  • Page 71: Using Martin M-Pc™ For Dmx Control

    See Figure 40. If you do not already have M-PC™ profiles for the models in the Exterior 50 & 100 series, you can create them in a few seconds. Once you have profiles in the M-PC fixture library, you can control Exterior 50 &...
  • Page 72 Luminaire is in Raw (uncalibrated RGBW) mode. Red output is set to 5%, Green is set to 10%, Blue is set to 30% and White is set to 40%. Figure 41: M-PC DMX control interface Martin Professional™ Exterior 50 & 100™ system user manual...

  • Page 73: Dmx Protocols

    DMX protocols RGBW Luminaires Calibrated mode (calibrated RGB control) Start code = 0 Channel Value Percent Function → 0 - 255 0 - 100 Intensity 0 100% Green → 0 - 255 0 - 100 Intensity 0 100% Blue → 0 - 255 0 - 100 Intensity 0...

  • Page 74: Service

    Please contact your Martin supplier for details. The only service operation the user can carry out on the Exterior 50 & 100 system is occasional cleaning. Cleaning Do not use abrasive, caustic or solvent-based products for cleaning, as they can encourage corrosion and cause surface damage.
  • Page 75 Installing software 1. Connect a PC running the Martin Software Uploader application to a Martin DABS 1™ interface box (included in P/N 90758090) and from there to the Luminaire’s DMX data input or to a suitable point on the DMX link. Software will be uploaded to that Luminaire and all Luminaires of the same type that are powered on and connected via the DMX link.

  • Page 76: Troubleshooting

    Ensure free airflow around PSU. Clean PSU. Luminaires cut out PSU is too hot. Check that ambient temperature does intermittently. not exceed maximum permitted level. Contact Martin for service. Table 3: Troubleshooting Martin Professional™ Exterior 50 & 100™ system user manual...

  • Page 77: Specifications

    Weight ..........230 g (8.1 oz.) Exterior 50/100 Power Supply Unit, EU model Length .
  • Page 78 Calibrated mode, white (CW, NW or WW) Luminaire. . . 5.5 W, 0.2 A at 30 VDC Uncalibrated mode, white (CW, NW or WW) Luminaire . . . 6 W, 0.2 A at 30 VDC Martin Professional™ Exterior 50 & 100™ system user manual...
  • Page 79 Exterior 50 light shield, medium ......P/N 90510280 Exterior 50 light shield, wide......P/N 90510290 Exterior 100 light shield, narrow .
  • Page 80 Exterior 50 & 100 ground stake ......P/N 90510320 IP68 Sealing compound set (for use with Splitters) ... .P/N 90510220 Gel-sealed cable connection box kit incl.

  • Page 81: Ordering Information

    Exterior 50 & 100™ PSU (Power Supply Unit), US model ..P/N 90510155 Exterior 50 & 100™ Splitter ......P/N 90510160 Exterior 50™...
  • Page 84 • • • www.martin.com Olof Palmes Allé 18 8200 Aarhus N Denmark • Tel: +45 8740 0000 Fax +45 8740 0010...
