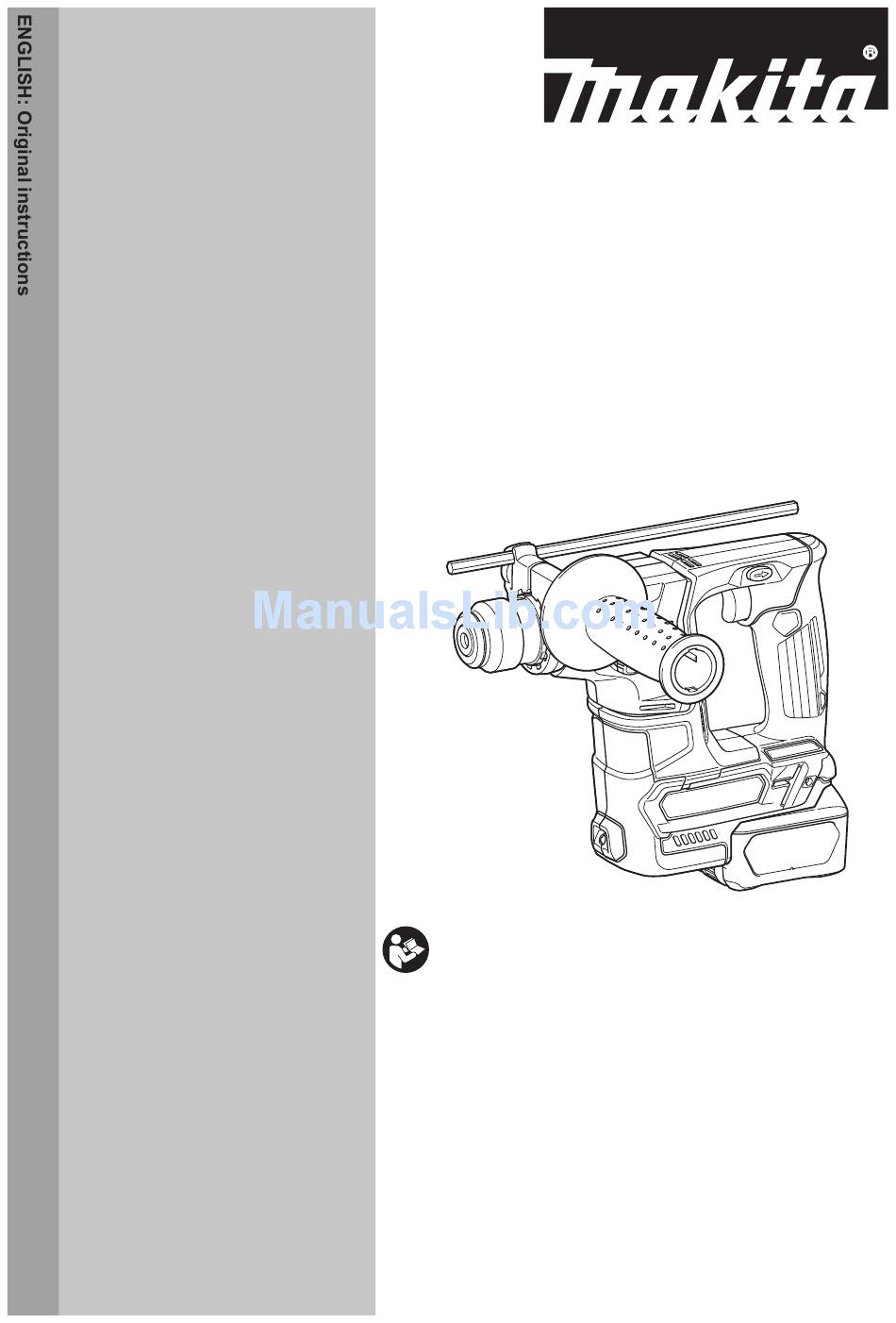

- Page 1 INSTRUCTION MANUAL Cordless Rotary Hammer HR166D Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: HR166D Drilling capacities Concrete 16 mm Steel 10 mm Wood 13 mm No load speed 0 - 680 min Blows per minute 0 - 4,800 min Overall length 250 mm Rated voltage D.C. 10.8 V Battery cartridge BL1015 / BL1020B... - Page 3 Save all warnings and instruc- Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves tions for future reference. away from moving parts. Loose clothes, jewel- The term "power tool" in the warnings refers to your mains-oper- lery or long hair can be caught in moving parts. ated (corded) power tool or battery-operated (cordless) power tool. If devices are provided for the connection of dust extraction and collection facilities, ensure Work area safety...
- Page 4 Follow material supplier have been altered, may result in the battery bursting safety data. causing fires, personal injury and damage. It will SAVE THESE INSTRUCTIONS. also void the Makita warranty for the Makita tool and charger. WARNING: DO NOT let comfort or familiarity Tips for maintaining maximum...
-
Page 5: Functional Description
Indicating the remaining battery FUNCTIONAL capacity DESCRIPTION Only for battery cartridges with the indicator CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge CAUTION: Always switch off the tool before... - Page 6 Overdischarge protection Reversing switch action When the battery capacity is not enough, the tool stops automatically. If you turn the tool on, the motor runs again but stops soon. In this case, remove the battery from the tool and charge the battery. Switch action WARNING: Before installing the battery car-...
- Page 7 Rotation only Installing or removing drill bit For drilling in wood, metal or plastic materials, rotate Clean the shank end of the drill bit and apply grease the action mode changing knob to the symbol. Use a before installing the drill bit. twist drill bit or wood drill bit.
- Page 8 Depth gauge NOTE: The standard side grip cannot be used with the dust cup set being installed on the tool. Use an optional side grip when the dust cup set is The depth gauge is convenient for drilling holes of installed on the tool. uniform depth. Loosen the side grip and insert the depth gauge into the hole on the side grip. Adjust the depth Before installing the dust cup set, remove the bit from gauge to the desired depth and tighten the side grip the tool if installed.
-
Page 9: Operation
To remove the dust cup set, hold the root of dust cup and pull it out. ► 1 . Dust cup NOTE: If the cap comes off from the dust cup, attach ► 1 . Dust cup 2. Claws it with its printed side facing up so that groove on the cap fits in the inside periphery of the attachment. -
Page 10: Maintenance
CAUTION: Always secure workpieces in a be performed by Makita Authorized or Factory Service vise or similar hold-down device. Centers, always using Makita replacement parts. NOTICE: Never use “rotation with hammering” when the drill chuck is installed on the tool. The drill chuck may be damaged. Also, the drill chuck will come off when reversing the tool. -
Page 11: Optional Accessories
OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center. - Page 12 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885557-226 www.makita.com 20161004...
