Summary of Contents for smirthwaite Zoomi 13011

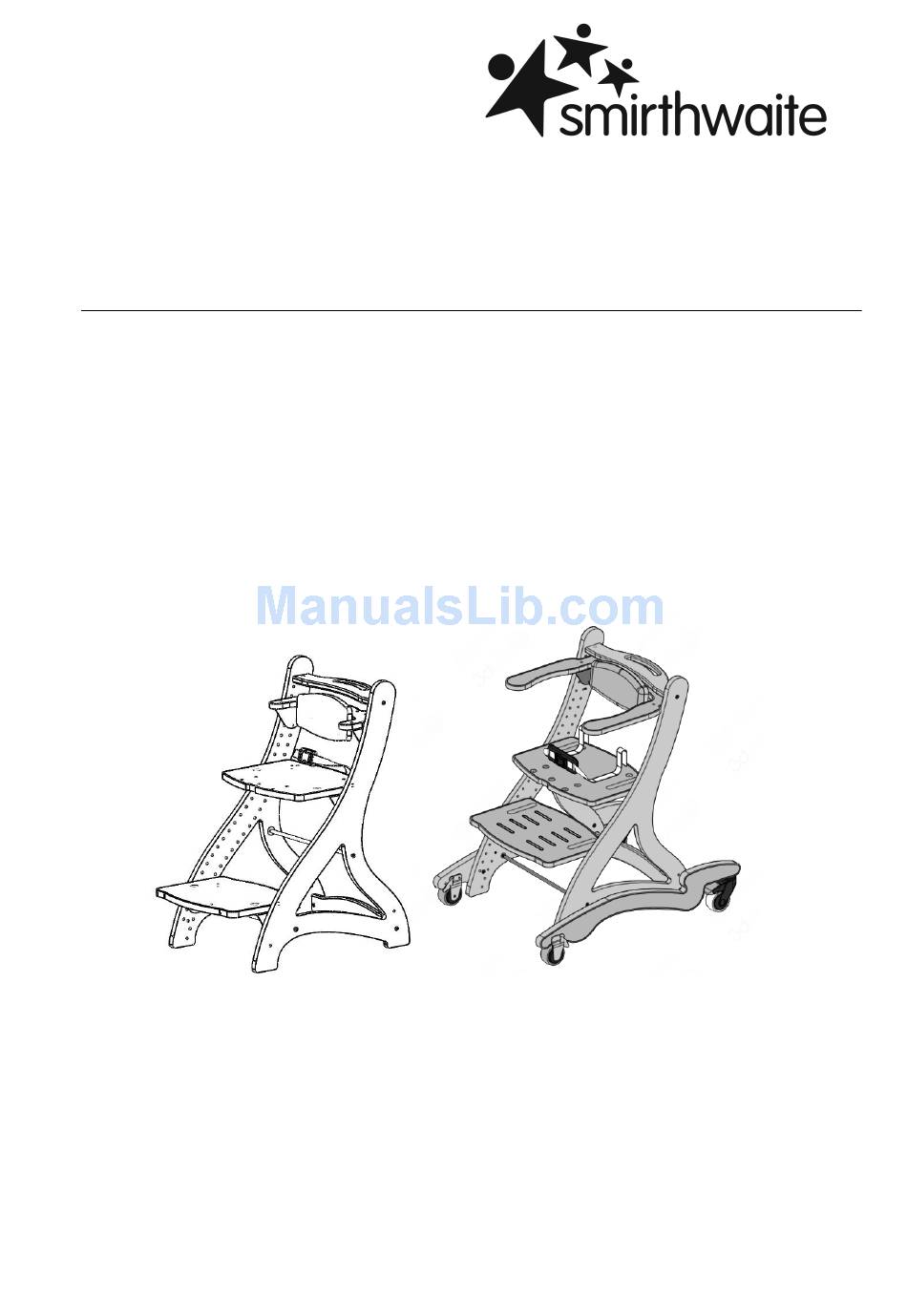

- Page 1 6/17 ZOOMI INSTRUCTIONS FOR USE Zoomi 13011, 13021, 13031 / Zoomi+ 13012, 13022, 13032...
-
Page 2: Table Of Contents
11.0 SERVICE INSPECTION 1.0 INTRODUCTION Thank you for choosing the ZOOMI seating system from Smirthwaite. The ZOOMI seating system has been designed with versatility and functionality in mind. It is a seating solution which grows with your child; from toddler to teen, encouraging social inclusion in both the home and school environment. -
Page 3: Illustration Of Your Zoomi Seating System
2.0 ILLUSTRATION OF YOUR ZOOMI SEATING SYSTEM Zoomi Main frame Pelvic lap strap Seat board Foot board Back rest Push handle ZOOMI AND ZOOMI + ... -
Page 4: Illustration Of Your Zoomi + Seating System
3.0 ILLUSTRATION OF YOUR ZOOMI + SEATING SYSTEM Zoomi + Main frame 5 point harness Padded seat board Slotted foot board Mobile Skis Arm rest Padded back rest Push handle Quick release tray ZOOMI AND ZOOMI + ... -
Page 5: Product Codes Reference Table
4.0 PRODUCT CODES REFERENCE TABLE PRODUCT LIME BLUE / CLOUOR ZOOMI 13021 13031 13011 ZOOMI+ 13022 13032 13012 5.0 TECHNICAL DATA ZOOMI Seating System Dimension All measured in mm Frame (H x W x D) 810 x 450 x 550 Seat board (W x D) 430 x 300 Foot board (W x D) -
Page 6: For Your Safety
DO NOT fit parts or accessories of other manufacturers to this product unless authorized to do so in writing by Smirthwaite Ltd. Failure to follow these instructions will not only invalidate the guarantee but could make the product dangerous to use. - Page 7 7.0 ASSEMBLY AND ADJUSTMENT OF YOUR ZOOMI SEATING SYSTEM STOP! If in any doubt, ALWAYS seek ADVICE. Always turn hand wheels, levers and screws clockwise to tighten or anti- clockwise to loosen. When delivered, the product will be supplied flat packed, and will require assembly and setting up to suit your client’s need.
- Page 8 Insert one end of the Handle (E) into frame side (A). Insert a M6 cross dowel (F) into the underside of the Handle (E). Fix together by inserting a M6 x 40 bolt (G) through the hole in frame side (A) and into the M6 cross dowel (F) now held in Handle (E).
- Page 9 Repeat the above steps for the second frame side, to complete the seat frame assembly STOP! Ensure all screws are TIGHTENED on the Seat Frame before continuing assembly SEAT PREPARATION FOOT BOARD PREPARATION ZOOMI AND ZOOMI + ...
- Page 10 7.2 SEAT BOARD/PADDED SEAT (PLUS)/CONTOURED SEAT (ACCESSORY) Take a support bracket (J) and insert into frame side (A) at the appropriate height for the seat board to suit your client’s needs. Repeat this step by taking a second support bracket (J) and inserting at the same height on the second frame side The support brackets (J) simply push into the frame sides Carefully place and rest the seat board (I) on top of the support brackets –...
- Page 11 7.3 FOOT BOARD/SLOTTED FOOT BOARD (PLUS)/TRANSFER STEP (ACCESSORY) Take a support bracket (J) and insert into frame side (A) at the appropriate height for the foot board to suit your client’s needs. Repeat this step by taking a second support bracket (J) and inserting at the same height on the second frame side...
- Page 12 7.4 BACK REST FRAME/ARM RESTS (PLUS) Take a support bracket (O) and insert into frame side (A) at the appropriate height for the back rest to suit your client’s needs. Repeat this step by taking a second support bracket (O) and inserting at the same height on the second frame side Note: Support brackets (O) are...
- Page 13 7.5 BACK REST/HIGH BACK REST (ACCESSORY) Take a support bracket (S) and fix onto back rest frame (N) using 2 x M6 x 16 bolts (Q) as shown above – a hex key is provided. Repeat this step to secure a second support bracket (S) onto the back rest frame (N). Now offer up the back rest wood (T) and secure onto bracket (S) using 4 x M6 x 12 button head screws (R) ZOOMI...
- Page 14 7.6 PELVIC LAP STRAP A padded pelvic lap strap is provided for your client’s safety. 6.6.1 PELVIC LAP STRAP BUCKLE OPERATION Press areas (U) to unlock the buckle and pull the two buckle parts apart. To fasten simply reconnect the two parts – the buckle will ‘click’ and lock. ZOOMI AND ZOOMI + ...
- Page 15 7.7 FIVE POINT HARNESS (PLUS/ACCESSORY) The ZOOMI PLUS is supplied with a 5 point buckle release harness Feed the 4 straps through cam locks (1,2,3 & 4 below) Insert the hand wheel through a strap eyelet and into seat board (5, below) ZOOMI AND ZOOMI + ...
- Page 16 7.8 QUICK RELEASE TRAY (PLUS/ACCESSORY) The ZOOMI PLUS is provided with a white quick release tray. 6.8.1 TRAY FITMENT/RELEASE Slide the tray onto the armrests, to the desired position – the tray will automatically lock into position. Check the tray is locked into position by pulling towards you. Ensure the protective film on the tray is removed before use.
- Page 17 7.9 PADDED BACK REST (PLUS/ACCESSORY) The ZOOMI PLUS is supplied with a padded cushion for the backrest. Slide the back rest wood through the elasticated center strap on the padded cushion (see right) Stretch the edges of the padded cushion over each end of the back rest wood (see right) Fix the back rest brackets to the back rest wood (see right) and attach to the seat frame...
- Page 18 7.10 MOBILE SKIS (PLUS/ACCESSORY) The ZOOMI PLUS is provided with a set of mobile skis, which are fitted to the outside face of the seat frame (A). Align the first ski (W) to the side of the seat frame (A) – ensure the ski is orientated correctly, with the braked caster at the rear, as shown.
-
Page 19: Care & Maintenance
Check all straps for fraying, and that buckles are not missing/damaged 8.2 ANNUAL SERVICE The ZOOMI Seating System should be serviced every 3 years. Servicing must only be undertaken by a Smirthwaite service engineer, or by a Smirthwaite trained representative. 8.3 NOMINAL SERVICE LIFE Your product has a nominal service life of 12 years, during which full post-sales support will be available with regard to spares and servicing. - Page 20 Use by a client who is extremely active, either voluntarily or involuntarily 8.4 EXTENDING NOMINAL SERVICE LIFE At Smirthwaite we are proud to produce products that have a reputation for quality and durability. We believe our products have the potential to provide benefits to our clients beyond the nominal service life documented above.
- Page 21 DO NOT fit parts or accessories of other manufacturers to this product unless authorized to do so in writing by Smirthwaite Any servicing or repairs required must be carried out by Smirthwaite (or a Smirthwaite trained engineer). If you believe this product to be faulty – DO NOT USE...
-
Page 22: Warranty & Service
9.0 WARRANTY & SERVICE Smirthwaite Ltd warrants the products detailed on your order to be free from defects in materials and workmanship for a period of 2 years from date of delivery. If a fault develops during the period, please call Customer Services by email or telephone 01626 835552 who will advise you on the best course of action. -
Page 23: Service Inspection
11.0 SERVICE INSPECTION 11.1 Product Information Model: Size: Date of Manufacture: Serial Number: Final Inspection: 11.2 Service & inspection record form: Date Procedure Service Personnel ZOOMI AND ZOOMI + ... -
Page 24: Zoomi And Zoomi
Smirthwaite, 16 Wentworth Road, Heathfield, Newton Abbot, Devon.TQ12 6TL T: +44 (0) 1626 835552 F: +44 (0) 1626 835428 E: info@smirthwaite.co.uk www.smirthwaite.co.uk ZOOMI AND ZOOMI + ...
