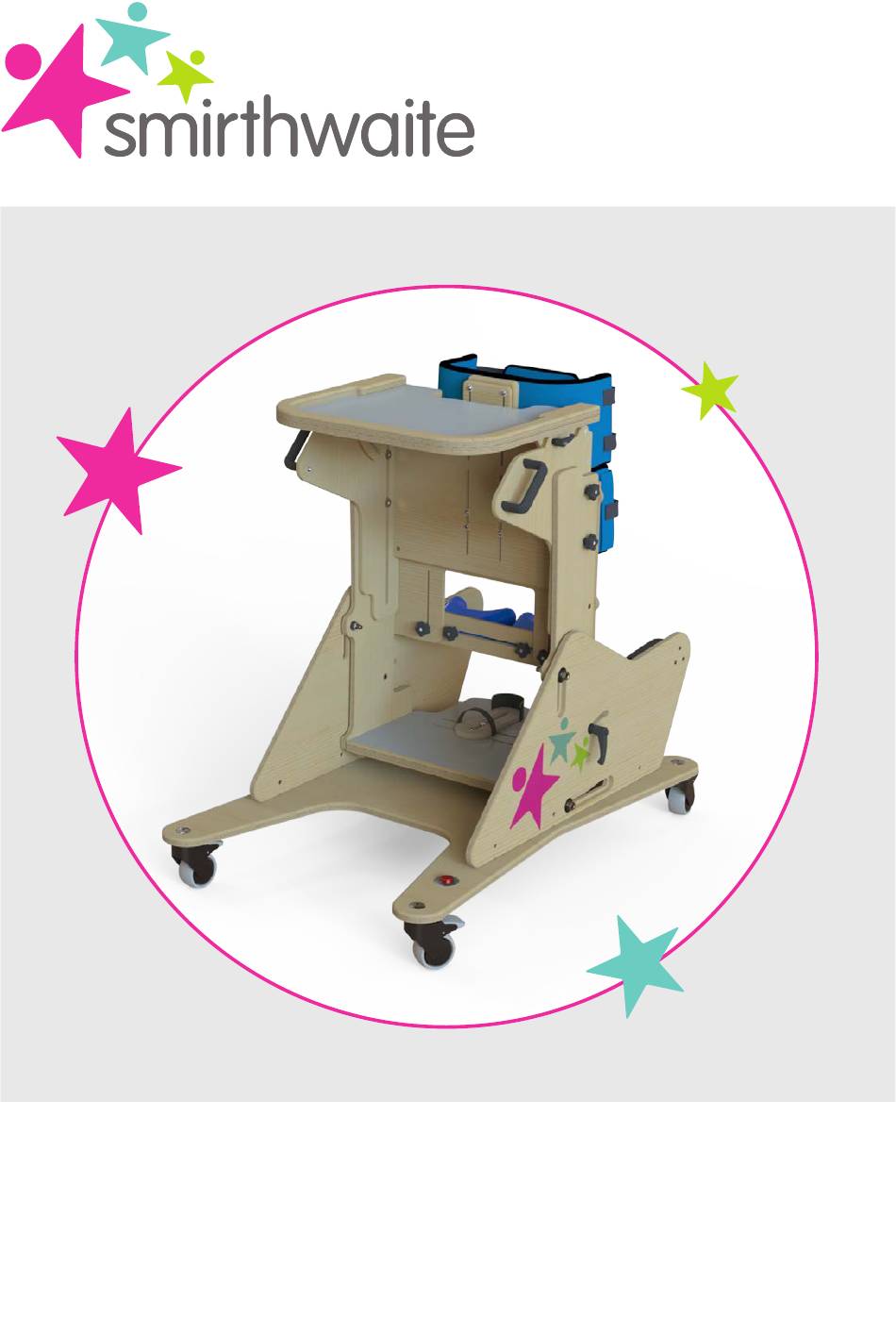

- Page 1 Instructions for Use...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION Welcome to the Sta Product specifications Stander angle adjustment Angle adjustment Trunk Top cradle height adjustment Top trunk support Lower trunk support Legs Lower leg support height (knee block height) Lower leg support width (knee block width) Product configuration Feet Warranty &... -
Page 3: Introduction
It aims to make standing enjoyable and practical for your child, while simple to achieve. To gain these benefits, it’s important that the Sta is correctly fitted and that’s why our customer support team and technical product advisors are here to work with you to find that optimal position. -
Page 4: Product Specifications
PRODUCT SPECIFICATIONS Size Code 21003 User age 6-12 years Thoracic support (top to foot board) 693-1000 Pelvic support (top to foot board) 478-808 Knee support (top to foot board) 223-343 Foot board height (floor to foot board, excluding sandals) Max width (between thoracic supports) Tray size (depth and width) 390 x 446 Tray angle (°) -
Page 5: Stander Angle Adjustment
Once released, press and hold the button Fig.3 (highlighted in yellow) with your right foot. Once you have pressed the button you can move the Sta to the desired angle by pulling down on the handles on either side of the stander Fig.1. The amount of force required to move the stander will be dependant on the height and weight of the child. -
Page 6: Trunk
TRUNK Top cradle height adjustment To adjust the top section of the stander, first release the four hand wheels which are located on both sides of the stander Fig.4 (highlighted in yellow) Once released you can move the top cradle to the desired height. CAUTION - Make sure to re-tighten the hand wheels before any weight is applied to the stander. -
Page 7: Lower Trunk Support
Lower trunk support To adjust the low trunk support height, release the four bolts located on the front of the stander as seen in the Fig.6 (highlighted in yellow). Once released you can move the support up and down. CAUTION - Make sure to re-tighten the four bolts before any weight is applied to the stander. Fig.6... -
Page 8: Legs
LEGS Lower leg support height (knee block height) To adjust the lower leg support height, release the two hand wheels located on the lower front of the stander as seen in the Fig.7 (highlighted in yellow) Once released you can move the support up and down, then re-tighten the hand wheels. Fig.7 Lower leg support width (knee block width) To adjust the lower leg support width, release the two hand wheels located on the lower front of... -
Page 9: Feet
FEET Sandal positioning To adjust the sandal position, release the four bolts located on the top of the footboard at the base of the stander as seen in the Fig.9 (highlighted in yellow). Once released you can move the sandal to the desired position, then re-tighten the four bolts. Fig.9 Harness Operation To open the stander harness, locate the clips seen in Fig.10 (highlighted in yellow) press the clips... -
Page 10: Care And Maintenance
The user should not be seated while the checks are carried out. SERVICE INTERVAL The Sta should be serviced annually. Servicing must only be undertaken by a Smirthwaite Service Engineer, or by a Smirthwaite trained representative. NOMINAL SERVICE LIFE Your product has a nominal service life of 12 years, during which full post-sales support will be available with regard to spares and servicing. -
Page 11: Extending Nominal Service Life
Use by an extremely active client, either voluntarily or involuntarily. EXTENDING NOMINAL SERVICE LIFE At Smirthwaite we are proud to produce products that have a reputation for quality and durability. We believe our products have the potential to provide benefits to our clients beyond the nominal service life documented above. -
Page 12: Warranty & Service
Any servicing or repairs required must be carried out by Smirthwaite Ltd (or a Smirthwaite trained engineer). If you believe this product to be faulty – DO NOT USE – Contact Smirthwaite Ltd on: +44 (0) 1626 835552 If in any doubt, ALWAYS seek ADVICE.mportant! -
Page 13: Service Inspection
SERVICE INSPECTION Product Information Model Size Date of Manufacture Serial Number Final Inspection Service & Inspection Record Form Service Date Procedure Personnel... - Page 14 NOTES...
- Page 15 NOTES...
- Page 16 Smirthwaite 16 Wentworth Road, Heathfield Newton Abbot, Devon, UK, TQ12 6TL +44 (0) 01626 835552 info@smirthwaite.co.uk www.smirthwaite.co.uk...
