760ES Radio Siren Installation Guide
Overview
The 760ES is an external, self powered, siren and strobe unit designed to work with the
i-on range of control units.
Fitted within the enclosure are twin sounders capable of exceeding 100dB(A), a radio
transceiver operating on 868MHz, a battery pack and a LED strobe strip. The unit can be
mounted on any non-metallic vertical surface. The range of operation from the control unit
may vary depending on the site conditions and in particular the material of walls between
the two units. In free air the range will easily exceed 100m.
This product is suitable for use in systems designed to comply with EN 50131-1:2006 and
PD6662:2004 +A1+A2 at Grade 2 and is tested to prEN 50131-4:2008 at Grade 2.

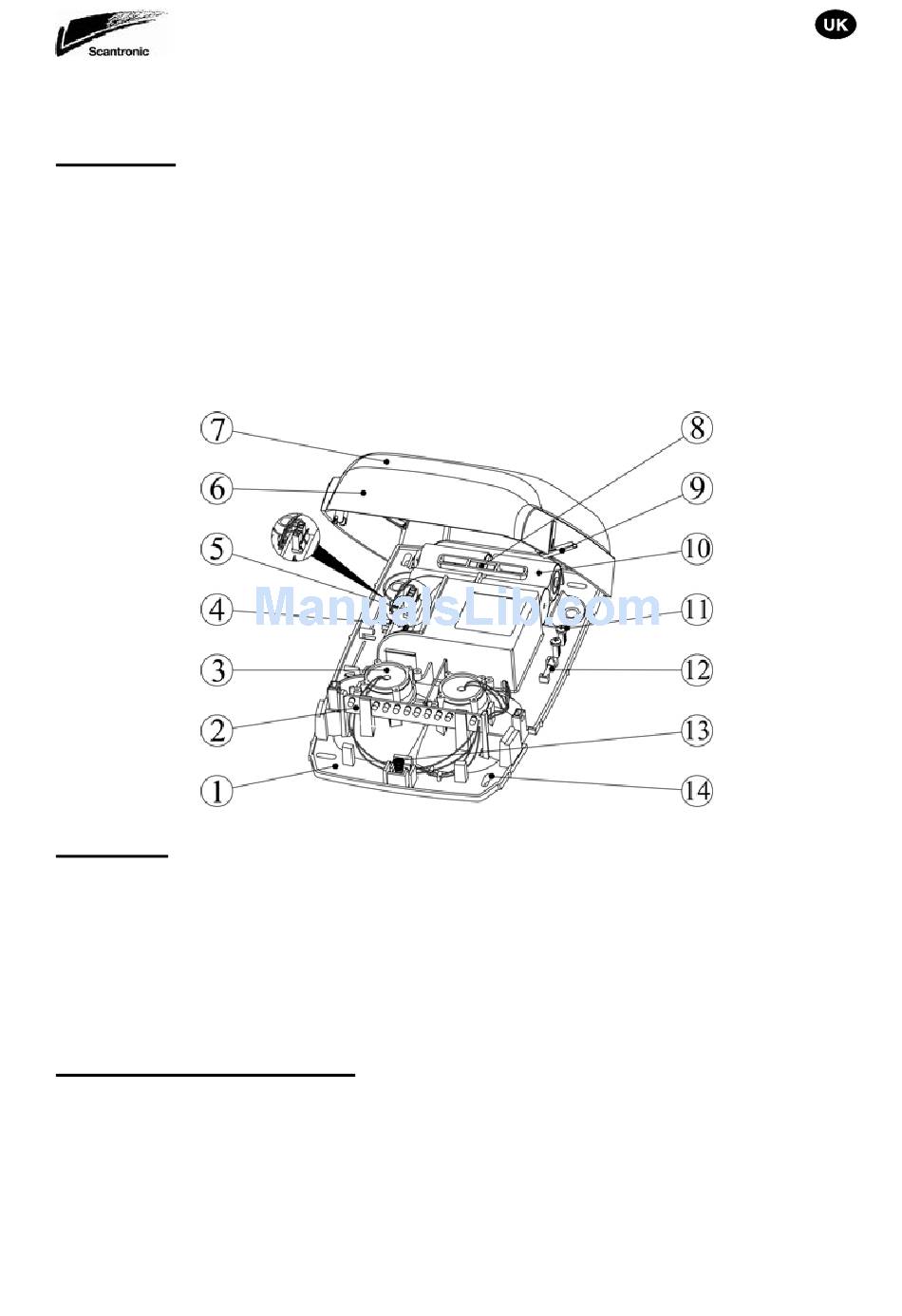

Lens
Cover
Battery
Connector
Main PCB
Piezo sounder
LED Strobe
strip
Backplate
Features
•
105 dB(A)@1m sound output
•
prEN 50131-4 Grade 2 Compliant
•
High power LED strobe
•
Cover and rear tamper detection
•
Selectable cut-off timer
•
Anti-jamming detection
•
Conformally coated electronics
Technical Specification
Sound Output
Cut-off Timer
Environmental
Operating temperature
Humidity
Dimensions
Weight
Case material
PAK200474_01E August 2008
•
Battery change warning
•
Built in spirit level installation aid
•
Choice of battery options
•
Quiet installation mode
•
Cover screen printing facility
•
High impact resistant polycarbonate
backplate and cover
105 dBA@1m (tone)
Selectable 5 secs, 3 mins, 15 mins
EN 50130-5:1999 class IV
-25°C to +60°C
93% RH
212mm W, 346mm H, 76mm D
1.2 kg (without batteries)
Polycarbonate
Spirit Level
Screw Cover
Battery pack
Fixing screws
parking
Tamper
extender pin
Cover tamper
detector
Wall fixing
points
Page 1 of 4
