Summary of Contents for Trotec BD5A

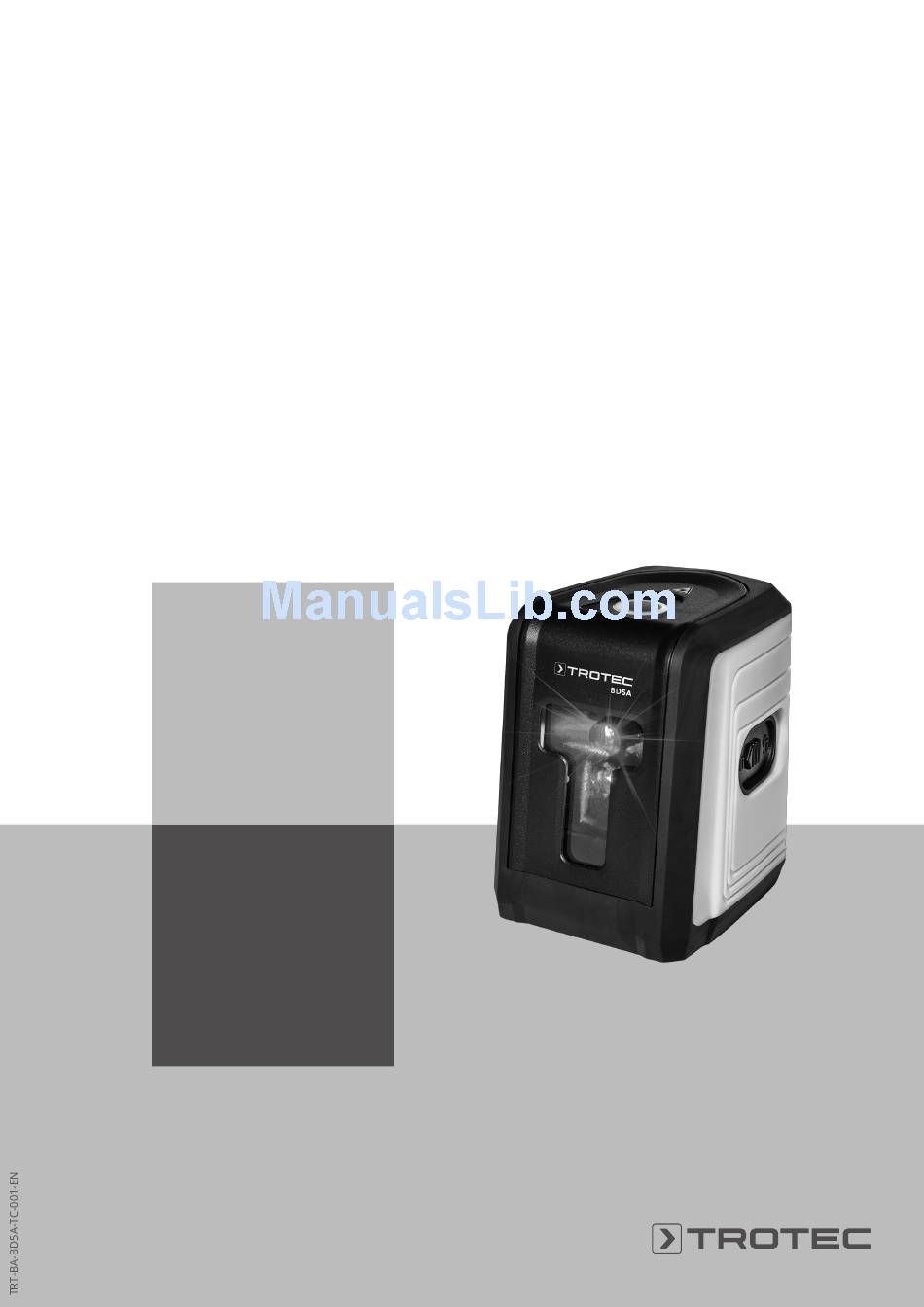

- Page 1 BD5A OPERATING MANUAL CROSS LINE LASER...
-
Page 2: Table Of Contents
Info Information marked with this symbol helps you to carry out your tasks quickly and safely. Follow the manual Information marked with this symbol indicates that the operating manual must be observed. Operating manual – cross line laser BD5A... -
Page 3: Safety
Improper use Do not use the device in potentially explosive atmospheres or in liquids. Never point it at people or animals. Trotec accepts no liability for damages resulting from improper use. In such a case, any warranty claims will be voided. -
Page 4: Information About The Device
Warning of laser radiation Device description Laser class 2, P max.: > 1 mW, λ: 650 nm, The cross line laser BD5A projects laser lines on surfaces, e.g. EN 60825-1:2014 to drill holes in a straight line – similar to using a spirit level. -
Page 5: Transport And Storage
< 1 mW (650 nm) Laser class: Power supply: 2 x Alkaline AA, 1.5 V batteries Scope of delivery • 1 x Cross line laser BD5A • 2 x Alkaline AA, 1.5 V batteries • 1 x Multifunctional mount • 1 x Quick guide Operating manual – cross line laser BD5A... -
Page 6: Operation
The device has 2 different modes of operation. On the one hand, you can use the device with the automatic self-levelling function, on the other, it is possible to set the laser to a fix position. Operating manual – cross line laser BD5A... - Page 7 Position the device Alternatively, the clamping jaws can be used to fasten it to a horizontally. shelf or the edge of a table. Operating manual – cross line laser BD5A...
- Page 8 3. Retighten the wing nut (7). no longer be moved to and fro. 3. To unfasten the clamping jaws (11), loosen the screw (8) until the retainer can be removed from the carrier without difficulty. Operating manual – cross line laser BD5A...
- Page 9 2. Disengage the lever (9) at the suction cup (10). 3. Press the suction cup (10) against the surface (here: tiles). 4. Engage the lever (9) until it locks in place. 5. Check the suction cup (10) for tight fit. Operating manual – cross line laser BD5A...
-
Page 10: Maintenance And Repair
Directive 2006/66/EC of the European Parliament and of the Council of 6 September 2006 on batteries and accumulators. Please dispose of batteries and accumulators according to the relevant legal requirements. Operating manual – cross line laser BD5A... - Page 12 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
