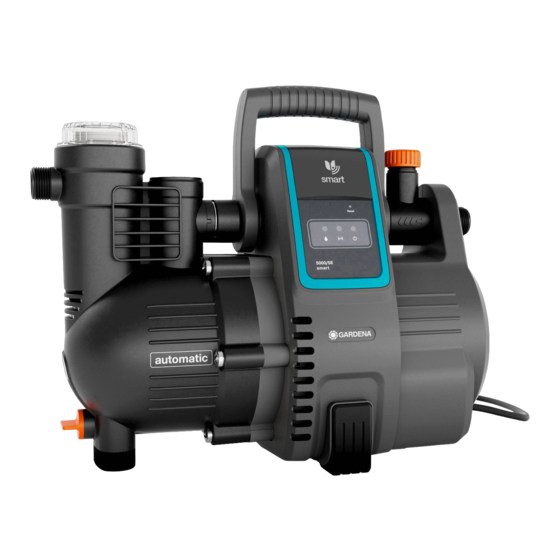

Gardena 19080 Operating Instructions Manual

Smart pressure pump

Hide thumbs Also See for 19080:

Operator's manual (9 pages)

Operator's manual (75 pages)

Table Of Contents

Table of Contents

Quick Links

Summary of Contents for Gardena 19080

Page 1 Art. 19080 Betriebsanleitung smart Pressure Pump Operating Instructions smart Pressure Pump Mode d’emploi smart Pressure Pump Istruzioni per l’uso smart Pressure Pump Gebruiksaanwijzing smart Pressure Pump Bruksanvisning smart tryckpump Bruksanvisning smart trykkpumpe Käyttöohje Älykäs painepumppu Brugsanvisning smarttrykpumpe Návod k obsluze Chytré...
Page 2: Table Of Contents
16 is not recommended. Intended use: The GARDENA smart Pressure Pump is intended for private use around the house and garden. It is primarily intended for operating watering systems and systems in private gardens. The product is correct for conveying rainwater, tap water and chlo- rinated water.
Page 3: Safety
Error diagnosis system: The pump comes with an error diagnosis system which shows differ- ent fault statuses and their remedies via the GARDENA smart App. 2. SAFETY Symbols on the product: Thereby the disconnected socket must be in the visual range.
Page 4 For sandy water, you should additionally use the As an additional safety device an approved safety switch GARDENA pump pre-filter, art. no. 1730 (mesh size can be used. 0.1 mm). v Please ask your electrician for his advice.
Page 5: Installation
• GARDENA Suction Hose sold by the metre and Art. no. 1723/1724 If very fine dirt is present, we recommend the use of: • a GARDENA pump pre filter Art. no. 1730/1731 in addition to the integrated filter. To reduce the pump repriming time, we recommend the use of: •...
Page 6: Operation
Disconnect the product from the mains before you fill the pump. Operation with the GARDENA You can use the GARDENA smart system App to control all smart smart system App: system products from anywhere at any time. You can download the free GARDENA smart system App from the Apple App Store or from the Google Play Store.
Page 7 When using a full suction hose with a check valve, it is not necessary to hold up the pressure hose. The suction process can take up to 6 min. If no water is pumped afterwards, the Pump will stop automatically and the GARDENA smart App displays an Error.
Page 8: Maintenance
WARNING! Electric shock! Risk of injury due to electric shock. v Disconnect the product from the mains before you do maintenance. The GARDENA smart Pressure Pump should not require regular maintenance. To clean the filter: 1. If necessary, close all the shut- off devices on the intake side.
Page 9: Troubleshooting
Disposal: The product must not be added to normal household waste. It must be disposed of in line with local environmental regulations. (in accordance with RL2012/19/EC) IMPORTANT! Make sure that the product is discarded through or via your municipal recycling collection centre. 7.
Page 10 ß ß ErrorLED In the case of an error, the Error-LED shows the corresponding disturbance states through various flashing frequencies, each with a 2 second break. Reset ErrorLED Problem with the initial operation ß flashes 1 time (In case of an error, LED flashes 30 seconds after the Pump starts.
Page 11 Problem Possible Cause Remedy ErrorLED flashes 2 times. During the initial operation, the pump did not suck water for 6 minutes. Pump does not suck water Problem on the suction side. v Immerse suction hose end under water, v eliminate any leak on the suction side, v clean check valve on the suction line and check...
Page 12: Technical Data
Disconnect the pump and con- tact the GARDENA Service. Repairs: Note: For any other malfunctions please contact the GARDENA service department. Repairs must only be done by GARDENA service departments or specialist dealers approved by GARDENA. 8. TECHNICAL DATA smart Pressure Pump Art.
Page 13: Accessories
GARDENA Pump Preliminary Art. No. 1730/1731 Recommended for pumping sandy water. Filter GARDENA Pump Connection Set Connection Set for 1/2" Pressure Hoses. Art. No. 1750 GARDENA Pump Connection Set Connection Set for 3/4" Pressure Hoses. Art. No. 1752 10. SERVICE / WARRANTY Service: Please contact the address on the back page.
Page 14 Leistungskurve: Performance curve: Courbe de performances : Curva di rendimento: Prestatiegrafiek: Kapacitetskurva: Ytelseskurve: Suorituskykykäyrä: Ydelseskurve: Křivka výkonnosti: Krivulja zmogljivosti: Wykres wydajności: 1000 3000 5000...
Page 15 We expressly point out that, in accordance with the product liability law, we are not liable for any damage caused by our products if it is because of improper repair or if parts replaced are not original GARDENA parts or approved parts, and, if the repairs were not done by a GARDENA Service Centre or an approved specialist.
Page 16 Toute modification portée sur ce produit sans l’accord express de GARDENA supprime la validité de ce certificat. Dichiarazione di conformità alle norme UE La sottoscritta Husqvarna AB, 561 82 Huskvarna, Sweden certifica che il prodotto qui di seguito indicato, nei modelli da noi commercia lizzati, è...
Page 17 Ulm, dnia 18.10.2016 Pooblaščeni predstavnik: Zharmonizowane EN: Ulm, 18.10.2016 Autoryzowany przedstawiciel: EN 3014893 V1.6.1 Hinterlegte Dokumentation: Konformitätsbewertungsverfahren: GARDENA Technische Dokumentation, Nach 2000/14/EG M. Kugler, 89079 Ulm Art. 14 Anhang V Deposited Documentation: Conformity Assessment according to: GARDENA Technical Documentation, 2000/14/EC Procedure: M.
Page 18 19080-20.960.01/1016 Temuco, Chile France Consumer Outdoor Products Autoput za Novi Sad bb © GARDENA © GARDENA http : // www.gardena.com / fr Avda. Valparaíso # 01466 Ateities pl. 77C 11273 Belgrade Manufacturing GmbH Manufacturing GmbH Phone: (+56) 45 222 126 N°...
