- Page 1 11000 AS CLEAR Art. 9034 20000 AS DIRT Art. 9044 17000 AS CLEAR Art. 9036 Operator’s Manual Clear Water Submersible Pump / Dirty Water Submersible Pump...
- Page 2 < < Art. 9036 Art. 9034 Art. 9044 ß 1 " ¼ 1" 1 " ½ G1" 1 " ¼ 1 " ½ 2" ß ß G1 " ½ G1 " ½ ß ß ß ß ß ß ß ß...
-
Page 3: Table Of Contents

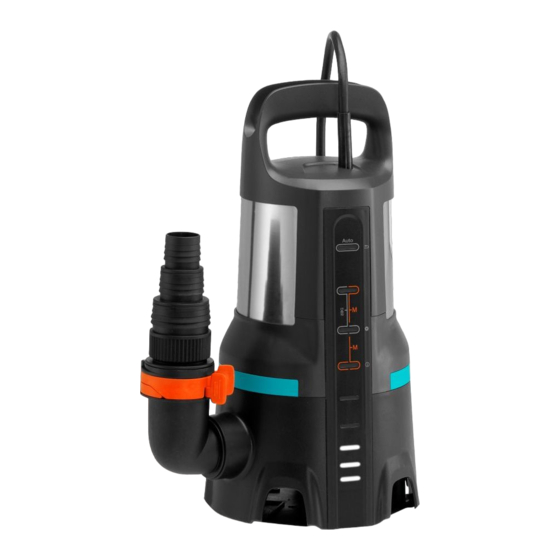

GARDENA Clear Water Submersible Pump 11000 AS CLEAR Art. 9034 / 17000 AS CLEAR Art. 9036 / Dirty Water Submersible Pump 20000 AS DIRT Art. 9044 Intended use: 1. SAFETY ........13 2. -
Page 4: Assembly
[ Fig. A1 ]: Injury when the product starts accidentally. The hose can be connected via the connection nipple v Disconnect the product from the mains before with different hose diameters or the GARDENA Connection you assemble the product. System. -
Page 5: Operation
When using the 38 mm (1 1/2") hose, we recommend the prevents water from flowing back through the hose. The GARDENA Flat Hose Set Art. 5005 with 10 m hose and max. delivery rate is only achieved without the non-return hose clamp. - Page 6 Automatic operation [ Fig. O1 ]: ß If the sensor field is activated several times within In automatic operation the pump switches on automatically a short time by water flowing back from the hose line, when the water level reaches the switch-on level and there is a pause of 10 minutes.
-
Page 7: Maintenance
The manual operation remains active even after discon- After disconnecting the power supply, the pump auto- necting the power supply. matically switches back to automatic operation. To stop manual operation, disconnect the pump from the To return to the automatic mode again, push and hold the ß... -
Page 8: Troubleshooting
NOTE: For any other malfunctions please contact the GARDENA service department. Repairs must only be done by GARDENA service departments or specialist dealers approved by GARDENA. -
Page 9: Technical Data
For 38 mm (1 1/2") hoses via the connection nipple. GARDENA Hose Clamp For 51 mm (2") hoses via the connection nipple. Art. 7196 GARDENA Pump Connection Set Art. 1752 For 19 mm (3/4") hoses via the GARDENA Connection System. -
Page 10: Service / Warranty
GARDENA Manufacturing GmbH grants a warranty for all repair of products in accordance with the abovementioned original GARDENA new products for two years from the conditions. The manufacturer’s warranty does not consti- date of original purchase from the retailer, provided that tute an entitlement to lodge other claims against us as the devices have been for private use only. - Page 11 Pumpen-Kennlinien Características de performance Крива характеристики насоса Performance characteristics Charakterystyka pompy Caracteristică pompă Courbes de performance Szivattyú-jelleggörbe Pompa karakter eğrisi Prestatiegrafiek Charakteristika čerpadla Помпена характеристика Kapacitetskurva Charakteristiky čerpadla Fuqia e pompës Ydelses karakteristika Χαρακτηριστικό διάγραμμα Pumba karakteristik Pumpun ominaiskäyrä Характеристика насоса Siurblio charakteristinė...
