- Page 1 Ver.1.1...
-
Page 2: Before Use
• WinyTechnology shall not be liable for any loss or damage to data or to the product which may be caused by accident or impact. • All rights vested in the design and software of V200HD are the property of Winy Technology Co., Ltd. and protected by the Copyright Law. -
Page 3: Table Of Contents
Contents REC Time Safety Precautions • • Specification Product Feature • • Standard Package • • Warranty Product Parts • • Front Camera Installation • Rear Camera Installation • GPS/TV-OUT Cable Installation • How to record • LED Operation • Voice Guide •... -
Page 4: Safety Precautions
Safety Precautions Operational and Security Precaution • Do not operate the product during driving. It may cause accident. • The product must be installed at a point which would not obstruct the driver’s view. • Do not allow unauthorized disassembly or alteration to the product. It may cause malfunction, and the consequent product damage will not be covered under the warranty. - Page 5 Safety Precautions SD Card Precaution in use • In order to confirm normal operation of the product, please check the image of a SD card and format it on a regular basis. (PC format needed one to two times per month) •...
-
Page 6: Product Feature
Product Feature High Quality Lens and High Image Quality / Resolution support • 2 Mega Pixel image sensor mounting in Front / Rear. • Wide mega lens • HD(1280×720) High Image Quality Resolution and total 30fps(Front 20 + Rear 10). Various Recording Function and Video Data Acknowledgement •... -
Page 7: Standard Package
*Note : Viewer Please save PC Viewer program in advance in the computer, etc. so that the program can’t be deleted. (If the program is lost, please download from Winycam website.) The packaged product picture of the user manual may differ from the actual product. -

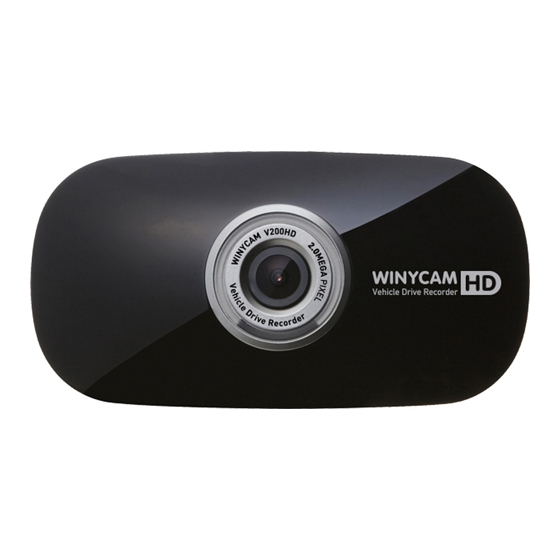

Page 8: Product Parts
Product Parts Power LED Front camera MIC LED 샘플 이미지 SD Card Slot GPS Signal LED Security LED Reset REC Button by manual Microphone GPS Connection TV-OUT DC Jack Rear Camera Connection... - Page 9 V200HD Front Camera Installation Insert Micro SD card to V200HD SD Attach the V200HD in place on Remove the protect sticker. card slot. windshield. (Check the SD card direction) Connect packaged cigar lighter to a cigar Adjust the angle of body and fix it.
- Page 10 Please check the recorded image cable to a rear camera and a If you embed cable to car wall , that is stored in SD card if V200HD TV-Out jack on front camera. please check cable connection. can record properly.
- Page 11 TV-Out to a AV-in jack you car V200HD body. up a cable. jack on a V200HD navigation. body. When connecting to your Car Navigation, GPS module may be affected by main you need an applied Car Navigation video body or by other electronic devices if it is cable.
-
Page 12: How To Record
How to record 1. Record : V200HDis automatically boot at power on, and a constant(normal) recording starts as an initial recording mode. 2. Recording Mode : it is classified into driving recording mode and parking (motion) recording mode 3. Recording Method: it is classified into a Normal recording, event recording, motion recording. ※... -
Page 13: Led Operation
LED Operation PWR LED MIC LED GPS LED Item Front LED (first) (second) (third) Booting Red On FW update Orange On Flashing 3LEDs Red flashing right-left interval interval at 1.5 sec Normal, Event, at 1.5 sec. REC standby Green flashing Flash mid LED as interval at 1.5 sec On/Off... -
Page 14: Voice Guide
Voice Guide Situation Voice Guide Remove SD card / SD card Error “Please check your SD card.” Firmware Update Start “The firmware update is starting.” Firmware Update Completed “The firmware update has been completed.” Constant (Normal) Recording Start “Constant Recording will start.” (In booting) * Event Recording Start (In booting) “Event Recording will start.”... -
Page 15: Lcd Configuration
LCD Configuration All configuration cab be set in LCD menu. Menu Function Playback Playback by setup condition on configuration REC List Display REC list REC Mode Setting Set REC Mode Video Quality REC Video Quality REC Time Set Normal REC Time REC CH Set REC Channel Motion Sensitivity... -
Page 16: Pc Original Viewer Program Installation
Select file location Next Next and click “Next” ※ If viewer program is lost accidentally, please visit our website winycam-eng and download to the SD card Installing Complete installation... -
Page 17: Pc Original Viewer - Screen Configuration
PC Original Viewer – Screen Configuration 2 3 4 5 6 28 29... - Page 18 PC Original Viewer – Screen Configuration Item Function Item Function Fast-Rewind 1CH / 2CH select screen Viewer Configuration Playback or Pause System Configuration Stop Screen Capture Fast-Forward Print File Skip Zoom Control Volume Play List/Map Button Total File Time/Playback Time Playback File Location Brightness/Contrast/Chroma REC file list / Map Display...
-
Page 19: Pc Original Viewer - Viewer Configuration
PC Original Viewer – Viewer Configuration... - Page 20 PC Original Viewer – Viewer Configuration Item Description Set location for captured JPEG image. JPEG stores location Select language. Language Select display channel. Playback mode Select repeated playback. Repeat Select App is always the top of another window. App location Select video reverse.
-
Page 21: Pc Original Viewer - Configuration
PC Original Viewer – Configuration... - Page 22 Select OSD out on LCD Front LED Setting Select front security LED function Apply Time Setting Apply set time to V200HD Standard time Auto-apply an actual location when using GPS SD Card Folder Capacity Adjustment Select the capacity of each recording mode in SD card Camera Sensor Select Brightness, Contrast, Chroma.
-
Page 23: Configuration Default Setting
Configuration Default Setting Item Setting Value Item Setting Value Front Camera Video Mode Setting Normal REC Super High Video Quality Quality REC Time (each file) 1 min Rear Camera Video Quality Super High Video Quality REC Channel 2 CH Motion Sensitive level Voice Guide Volume Parking Mode Change Auto... -
Page 24: Playback
Playback 1. Playback on LCD Item Display Description REC List Icon Display REC List Normal Normal REC file list display tab Event Event REC file list display tab Motion Motion REC file list display tab REC File List List REC File list that is selected tab Video Window Window REC video playback window... - Page 25 (GOM, Quicktimer, Window Media Player) 3) Playback Open a removal disc, you can see each folders. And click 1) Remove a SD Card from V200HD files to playback which is stored in each folders. Open a SD Card slot cover and press softly, then a SD Card can be removed easily.
- Page 26 Click icon for the original viewer. 5) Playback Click 4) Select Product Model N : Normal REC file list Go to Viewer Setting and select “product E : Event REC file list Model” as V200HD. P : Parking REC file list...
- Page 27 4. Playback in a TV/Car Navigation 1) Connect TV Out cable 2) Set the video input mode Connect TV Out cable to TV-OUT terminal on the Set the video input mode on TV/Car navigation product. first and playback video for real-time monitoring. Connect TV Out cable to video input terminal on Real-time recording image ONLY.
-
Page 28: To Save Video File On Your Pc
To save video file on your PC 1. Enter to removal disc after insert SD card to your PC. 2. Go to the folder where recorded video files are stored. 3. Create the new folder in same location. 4. Drag the particular file to the new file to copy. (If you drag a folder, the whole folder will be copied.) -
Page 29: To Separate Recorded Video Files
To separate recorded video files 1. Press “Front & Rear Extract” button on the original PC viewer program. 2. Select a video file to separate and click “OK” button. 3. Stored separated file in “C:\Program Files\Winy\Winy BB Viewer\Video”... -
Page 30: Video File Recovery
Video File Recovery 1. Press the “File Recovery” button on the original PC viewer program. 2. Press “OPEN” button and specify the file to recover. 3. Press “REPAIR” button, the file will be recovered. 4. The recovered file will be stored as file name “Repair.3GP” in same folder as it was located. -
Page 31: Firmware Upgrade
6) During firmware updating, a voice guide will be announced and updating massage will be displayed ion LCD. 7) When the firmware update is completed, V200HD will be initialized and a voice guide will be announced • Manual Firmware Upgrade 1) Insert a SD card which new firmware is stored to V200HD. -
Page 32: Firmware Upgrade - Touch Calibration
Firmware Upgrade – Touch Calibration 1. How to calibrate scree after booting Loading Logo will be up after a Touch a screen in any point. Touch a yellow dot correctly. firmware is completed. Touch a yellow dot correctly. Touch a yellow dot correctly. - OK : Completed calibration and turn to Normal REC mode. -
Page 33: Sd Card Format & Set Breaking Voltage
Menu > System > Cut off voltage cut off constant power. Set a breaking voltage value on V200HD or PC viewer. 2. PC Original Viewer (Please note to set value based on a type of car or Operating Configuration >... -
Page 34: Rec Time
REC Time ▶ Default Setting 16GB 32GB Video Camera Quality Normal Event Motion Normal Event Motion (50%) (30%) (20%) (50%) (30%) (20%) Super High Front High Front Normal Front Front Super High Rear Front High Rear Front Normal Rear (Unit : Minute) By time: When the memory is full, the oldest file will be automatically deleted. -
Page 35: Specification
Specification Specification Item Specification Item Front / Rear Camera 2M Pixels Camera Video Output NTSC / PAL Composite 3D Shock Sensor Built-in high sensitive microphone G-Sensor Voice Recording External GPS Module (Option) Voice Guidance Built-in speaker H.264/AVC Video Compression Recording Media Micro SD Card (SDHC) Audio Compression Power Input... -
Page 36: Faq
※ Remove the Micro SD memory card from V200HD after power OFF, and check for any foreign material or abnormality around the connecting terminal. Format the SD memory card and try again. If the memory card is old, please replace with a new one. -
Page 37: Warranty
Important data shall be backed-up in a safe place and we shall not be responsible for any loss of the data stored in the product. Date : Distributor : Customer Service Manufacture : 303-305, Bucheon Technopark, #365, Samjeong-dong, Ojeong-gu, Bucheon-si, Gyeonggi-do , Korea 421-741 Please download the user manual, program from below website http://winycam-eng.com WinyTechnology Co., Ltd.
