Aqua Science Fleck 5600 SXT Installation Manual

Digital water softener system
Hide thumbs

Advertisement

Quick Links

800-767-8731
www.aquascience.net
Est. 1985

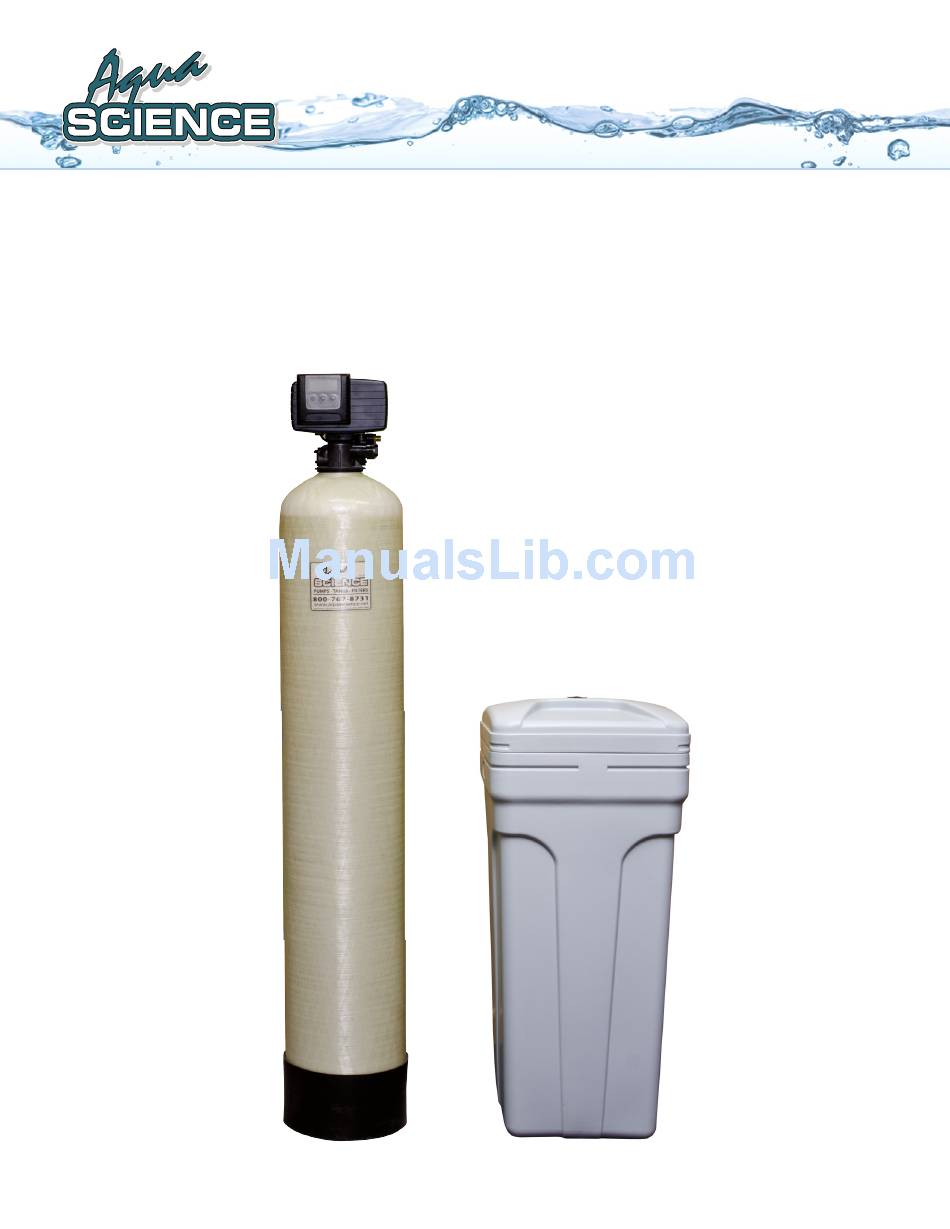

Fleck 5600 SXT Digital
Water Softener System
Installation Manual

Advertisement

loading

  Related Manuals for Aqua Science Fleck 5600 SXT

  Summary of Contents for Aqua Science Fleck 5600 SXT

  • Page 1 800-767-8731 www.aquascience.net Est. 1985 Fleck 5600 SXT Digital Water Softener System Installation Manual...
  • Page 2 Hard water problems can be costly. It shortens the life of all your appliances, the pipes in your home and even your clothes because of mineral build up. Aqua Science’s Water Softening Systems help to remove calcium, magnesium, dissolved iron, dissolved manganese, and other heavy metals from water. After your system is running properly, expect high quality water and efficiency for your home’s needs.
  • Page 3: Parts List

    Fleck 5600 SXT Digital Water Softener System Installation Manual Parts List Note: Softening salt sold separately. Available at most home good stores. We suggest [2 to 3], 40 lb bags. We do sell salt on our website www.aquascience.net if you are having trouble finding it locally.
  • Page 4 Remove the Cap from the Riser Tube after you’re done pouring the Resin into the Tank. Install the Fleck 5600 SXT Digital Control Valve by fitting it onto the top of the tank and that the Riser Tube from the Tank is fitted into the bottom hole of the Control Valve.
  • Page 5 Fleck 5600 SXT Digital Water Softener System Installation Manual Water Softener Tank Assembly and Valve Installation (continued) Water Out Water In Bypass Valve - Top View Next install the Bypass Valve into your existing water lines. 1.) Unscrew the clips from the back of the Control Valve before you move the Control Valve into place with the Make sure that your “Water In”...
  • Page 6 Fleck 5600 SXT Digital Water Softener System Installation Manual Brine Tank Assembly Snap the (4) Legs into the Salt Grid Base. Then insert the Float Tube into the Salt Grid Base. Push it through until it touches the ground. Make sure that the hole in the Float Tube is facing straight outward (See next step).
  • Page 7 Fleck 5600 SXT Digital Water Softener System Installation Manual Brine Tank Assembly (continued) Take the nut that you removed from the top of the float assembly and fit it onto the end of the brine hose. Fit enough so that just a little of the Brine Hose fits through the nut.
  • Page 8 Fleck 5600 SXT Digital Water Softener System Installation Manual Brine Tank Assembly (continued) 1.) Screw the valve connection assembly to the 2.) Snug using an adjustable wrench. control valve. NOTE: If you have to install the disk button, you will need to remove the valve button in order to place the disk button.
  • Page 9 Fleck 5600 SXT Digital Water Softener System Installation Manual Fleck 5600 SXT Digital Programming Step 1 To enter the programming mode you must first set the time to 12:01 PM. To do this use the up arrow or down arrow to change the time. You will see TD in the upper left corner when the time is being set.
  • Page 10 Fleck 5600 SXT Digital Water Softener System Installation Manual Fleck 5600 SXT Digital Programming (continued) Step 6 The next setting you’ll see is C (Capacity). Set to the capacity of your system. Refer to the chart at the bottom of the Parts List page to match tank size to proper filtration media amount.
  • Page 11 Fleck 5600 SXT Digital Water Softener System Installation Manual Fleck 5600 SXT Digital Programming (continued) Step 11 The next setting you’ll see is RT (Regen Time). By default this will be set to 2:00 AM. Customize this time according to your schedule where you won’t be using any water or other system backwashing.
  • Page 12 Fleck 5600 SXT Digital Water Softener System Installation Manual Fleck 5600 SXT Digital Programming (continued) Step 17 While the tank is filling press and hold the cycle button until you see - - - - This will allow the air to escape as the tank is filling. Once you see water coming out of the backwash line you can open the valve all the way and allow the system to go through a full cycle.

This manual is also suitable for:

Fleck 2510 sxt digital
