Aqua Science Brine Tank Installation Manual

Hide thumbs

Advertisement

Quick Links

800-767-8731
www.aquascience.net
Est. 1985
Brine Tank

Installation Manual

Advertisement

loading

  Related Manuals for Aqua Science Brine Tank

  Summary of Contents for Aqua Science Brine Tank

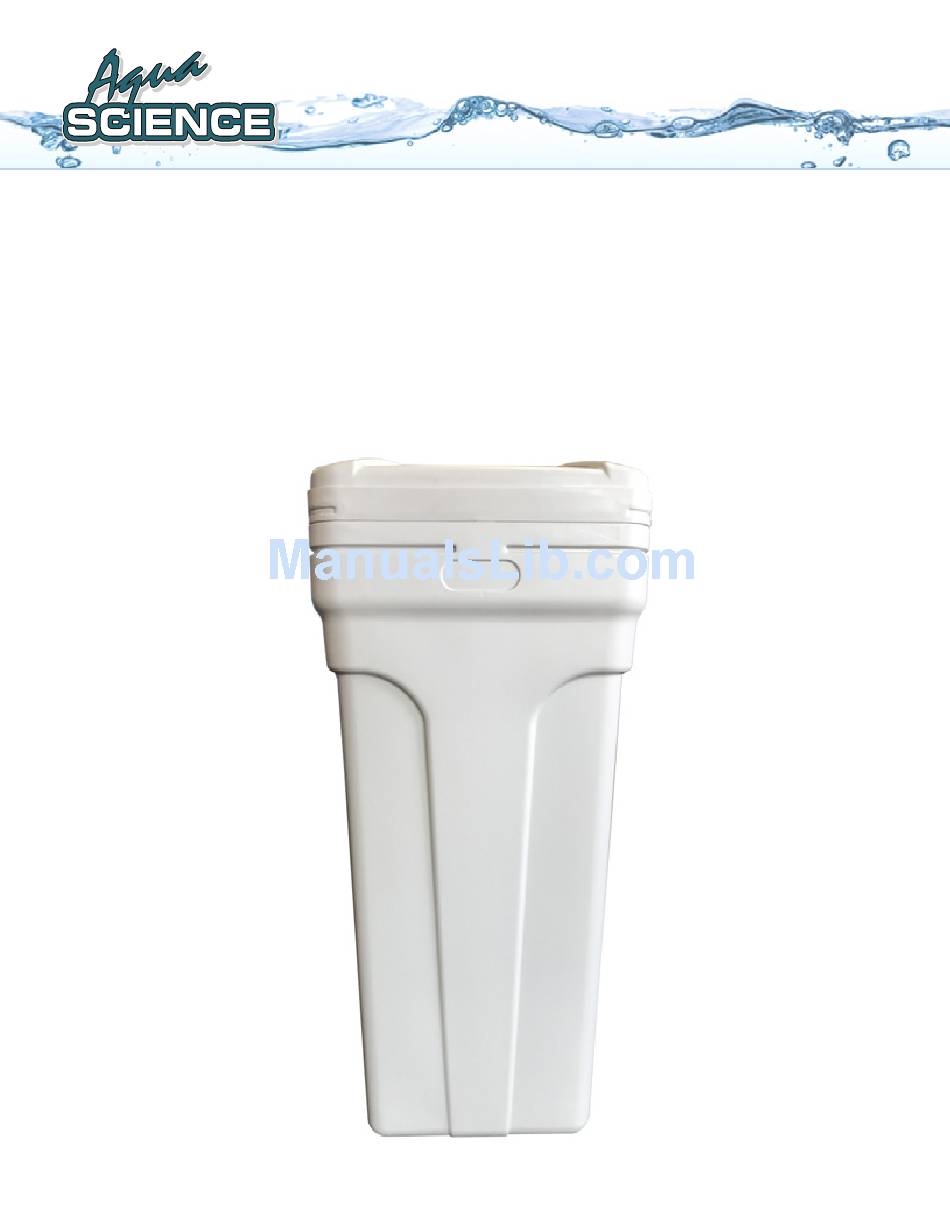

  • Page 1: Installation Manual

    800-767-8731 www.aquascience.net Est. 1985 Brine Tank Installation Manual...
  • Page 2: Parts List

    Brine Tank Installation Manual Parts List Note: Softening salt sold separately. Available at most home good stores. We suggest [2 to 3], 40 lb bags. We do sell salt on our website www.aquascience.net if you are having trouble finding it locally.
  • Page 3 Insert the Salt Grid Base you just assembled into the Brine Tank. Make sure that the hole in the Float Tube lines up with the hole in the Brine Tank. NOTE: You will need to remove the Float Assembly to properly adjust Remove the Nut from the top of the Float Assembly and set aside.
  • Page 4 Hand tighten the nut onto the elbow and place the float tube cap onto the float tube. Next pour two, 40 lb bags of softening salt into your brine tank and place the cover of the brine tank on securely.
  • Page 5 Brine Tank Installation Manual Brine Tank Assembly (Fleck 5600) 1.) Screw the valve connection assembly to the 2.) Snug using an adjustable wrench. control valve. 3.) Insert the backwash line onto the barb. It will be a snug fit. You will have to use a little force to get it all the way on.
  • Page 6 Brine Tank Installation Manual Brine Tank Assembly (Fleck 2510) 1.) Screw the valve connection assembly to the 2.) Snug using an adjustable wrench. control valve. 3.) Insert the backwash line onto the barb. It will be a snug fit. You will have to use a little force to get it all the way on.
