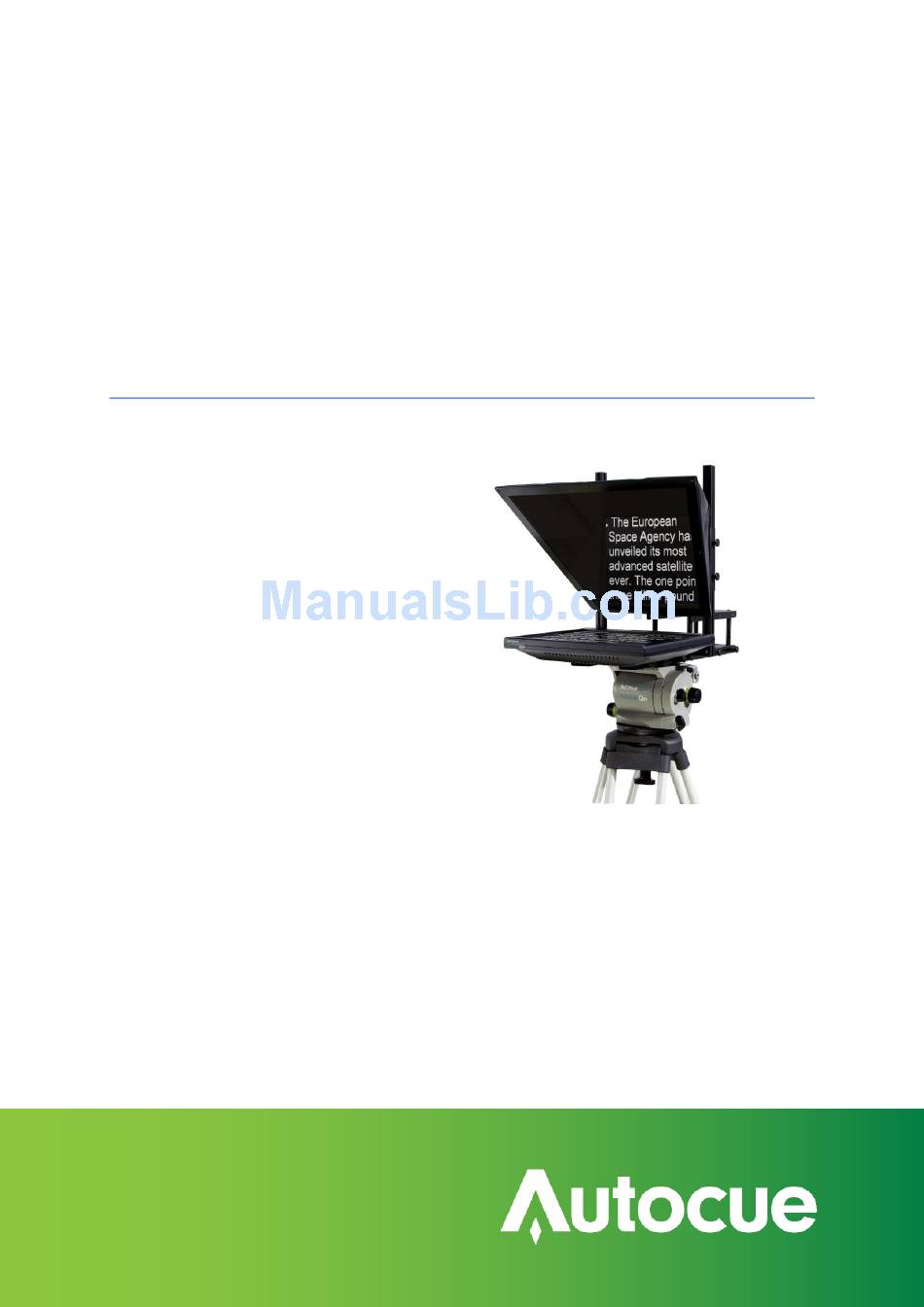

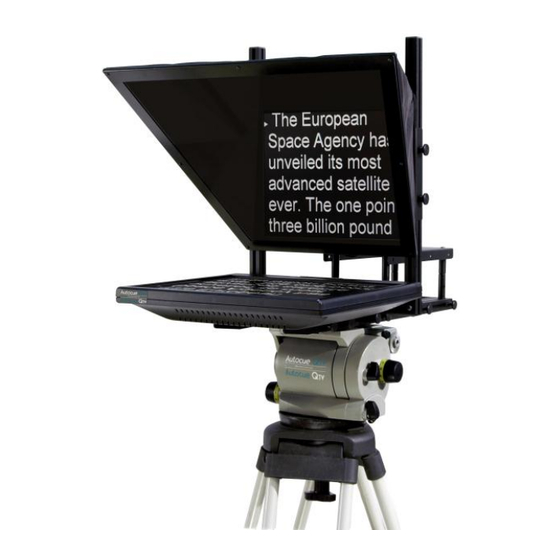

  • Page 1 SSP17 or SSP10 & QStart 17” or 10” Starter Series Prompter Installation and Operation Guide...

  • Page 2: Table Of Contents

    Alternative operating systems you may use ......................23 Use your prompter in different situations ........................24 Upgrading Starter Series Prompter components ...................... 33 If you need to contact Autocue or QTV ........................34 SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.

  • Page 3: Latest Additions

    Any changes since that point have been referenced below. These changes have not been reflected in the rest of the document. Revision history Build number Release date Changes 2006 4 March 2011 New button mapping for the ShuttleXpress SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.

  • Page 4: Getting Started

    Prepare and connect the prompting hardware It is strongly recommended that you view the demonstration video showing the preparation of an Autocue starter series prompter. Click “Play Demonstration Video” on the main menu of the installation CD.
  • Page 5 Note: It is likely that the position of the unit will have to be adjusted after you have mounted your camera so that it is balanced on the tripod. A balanced camera and prompter assembly will make it easier to perform smooth pan and tilt shots. SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.
  • Page 6 The smallest cameras will most likely need the longest pillars. Larger cameras require either no pillars or the shortest ones. Combine raising the camera with adjusting the position of the hood so that the camera lens is centred in the mirrored glass. SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.
  • Page 7  if the camera is to be in one of the raised positions, use the countersunk screws to attach the plate to the tops of the mounting plate pillars SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.

  • Page 8: Install The Qstart Software

    2. Click Install Software on the QStart installation window. 3. The installation wizard will display a screen showing the options available. If this is the first time you have installed QStart, click the Install software button. SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.

  • Page 9: Using Your Starter Series Prompter

    1. Insert the hardware licence dongle into a spare USB port on your computer. 2. Double-click the QStart icon on your computer desktop. 3. Click on the System Options button to access the configuration interface. 4. The Prompt Output tab is displayed. SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.
  • Page 10 Monitor window. When it is first enabled the Prompt Monitor is set to Full Screen mode. Change the size Click on the required thumbnail in the Size of Monitor panel. The value in the Size field automatically changes and the red rectangle changes accordingly. SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.
  • Page 11 1. Click the Import File button. 2. Navigate to select the required file. 3. If requested, select the appropriate file format. 4. The text is inserted at the position of the cursor. Save your script SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.
  • Page 12 6. Use your computer mouse to control the movement of the prompt output. 7. Press the ESC key on the computer keyboard to stop prompting and return to the Script Editor window. SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.

  • Page 13: Make The Most Of Your Prompter

    *.wss Write text directly 1. Start typing your script directly into the Editor window. Import text QStart can import Word files (.doc), Rich Text (.rtf), Text (.txt) 1. Click the Import File button. SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.
  • Page 14 Click the Undo button to remove all unsaved changes made to your script Prompt your script Click the Begin Prompting button to send your completed script to be displayed on the monitor of the SSP. SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.

  • Page 15: Format Your Scripts

    You can add extra space between the lines of the prompt output and also change the colour of the text on the output monitor. Note: Any changes made using these controls do not show up in the Editor window. Click the System Options button and select the Prompt Output Format tab. SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.

  • Page 16: Dividing Long Scripts Or Using Multiple Presenters

    Add markers 1. Position the cursor where you want to add a marker 2. Click the Marker button 3. The Markers list window is displayed SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.
  • Page 17 2 and the previous marker 2 will be renumbered as 3. Note: If you use the same shortcut for two markers, the shortcut will only find the marker with the lowest number. SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.
  • Page 18 Make the required changes to the various fields and click OK. Moving between markers The shortcut keystrokes allow you to jump to the related position in the script in both edit mode and prompt mode. SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.

  • Page 19: Different Ways To Control Scrolling

    Note: The actions of the various keys on the scroll control devices cannot be changed or adjusted using the QStart software. Keyboard number keys Each number gives a faster scroll rate. 1 is the slowest and 9 the fastest 0 stops scrolling Backspace toggles between Forward and Reverse SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.
  • Page 20 Foot controller The pedal of the controller varies the speed at which the text moves up or down the screen. The button on the top of the controller changes the direction of scrolling. SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.

  • Page 21: Improve The Performance Of Your Prompter

    1. Click on the System Options button to access the configuration interface. 2. If you are using a single monitor the Prompt Output tab of the Options interface will look similar to the image below. SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.
  • Page 22 If you are using your computer as the teleprompter or are using it with a conference stand, you can flip the text so that the words are orientated correctly when they are mirrored. Click on the “Click to flip image” button. SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.

  • Page 23: Alternative Operating Systems You May Use

    Special requirement. The software must be run using Windows XP under Bootcamp. Autocue has Starter Series prompting software that runs under native Mac OS. Contact the sales team for details of, or to purchase, this product. Note: The appropriate device drivers for the hardware security dongle are automatically selected during installation.

  • Page 24: Use Your Prompter In Different Situations

    3. Carefully take the monitor off and place on a smooth, flat surface 3. Remove the vertical frame 1. Locate the four thumb screws that attach the vertical frame to the base of the prompter SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.
  • Page 25 6. Securely attach the wide mounting plate Use the four procedures outlined above 1. Remove the hood and mirrored glass 2. Remove the monitor 3. Remove the vertical frame 4. Change the monitor mounting plate SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.
  • Page 26 Use your prompter in different situations when rearranging the components of your prompter into the different configurations described in the following sections. SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.
  • Page 27 6. Loosely screw in four thumb screws 7. Adjust the position of the monitor by sliding it up and down the vertical frame 8. Fasten the monitor in position by tightening the thumb screws fully SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.
  • Page 28 The most common situation for using a straight read monitor is in conjunction with a light-ring for chromakey filming. Note: This is not a recommended configuration for the SSP17 monitor. 1. Mount the prompter unit to the tripod head. 2. Remove the hood and mirrored glass.
  • Page 29 8. Loosely screw in four thumb screws 9. Adjust the position of the monitor by sliding it up and down the vertical frame 10. Fasten the monitor in position by tightening the thumb screws fully SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.
  • Page 30 3. Re-attach the monitor assembly to the underside of the prompter base. 4. Adjust the position of the vertical frame so that the monitor is at the required angle. 5. Secure the vertical frame in position. SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.
  • Page 31 7. Adjust the position of the monitor by sliding it back and forth along the now horizontal frame. 8. Fasten the monitor in position by tightening the thumb screws fully. 9. Attach the conference stand and glass holder to the vertical frame and monitor assembly. SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.
  • Page 32 Use your prompter in different situations 10. Insert glass into the glass holder at the top of the conference stand and adjust the height. (Ensure the blue dot on the glass faces the presenter.) SSP-QStartUserManual.docx 2011-06-15 © 2003-2011 Autocue Group Ltd.

  • Page 33: Upgrading Starter Series Prompter Components

    6. When installation has finished, click OK on the dialog box Upgrade hardware If you wish to upgrade the size of your on-camera unit, contact the Autocue sales team to discuss your requirements. All components are standard so you may only need to replace the monitor.

  • Page 34: If You Need To Contact Autocue Or Qtv

    Disclaimer Autocue Group Ltd reserves the right to revise this publication and to make changes in its content without obligation of Autocue Group Ltd to notify any person or persons of such revision.
