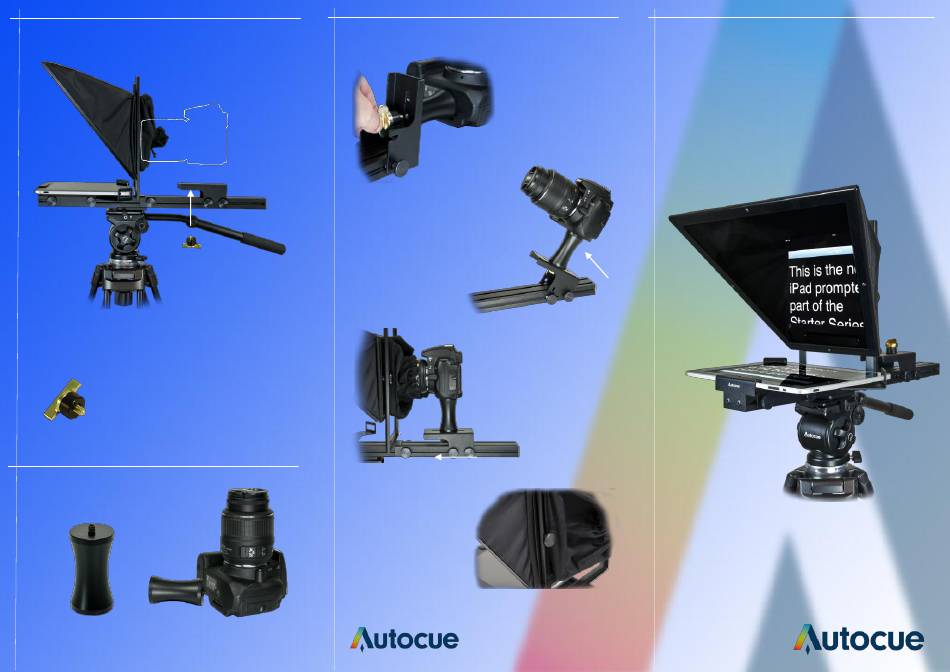

Mounting the Camera
It is important that the camera lens is in the centre of
the aperture at the rear of the hood. This is achieved by
raising and lowering the hood and fitting a camera
riser.
Fix the camera in place
using the camera screw
1/4" BSW
provided.
Camera Screw
Camera Riser
1. Fit camera riser to
the camera.
2. Install camera riser to
the camera mounting
plate using the camera
screw provided
3. Raise the camera to
the vertical position.
Secure by tightening
the four thumb screws.
4. Slide the camera
forward so that the lens
is in the aperture at the
rear of the hood.
5. Centre the lens in the
aperture at the rear of
the hood, by raising or
lowering the hood.
Secure it in place by
tightening the two thumb
screws.
