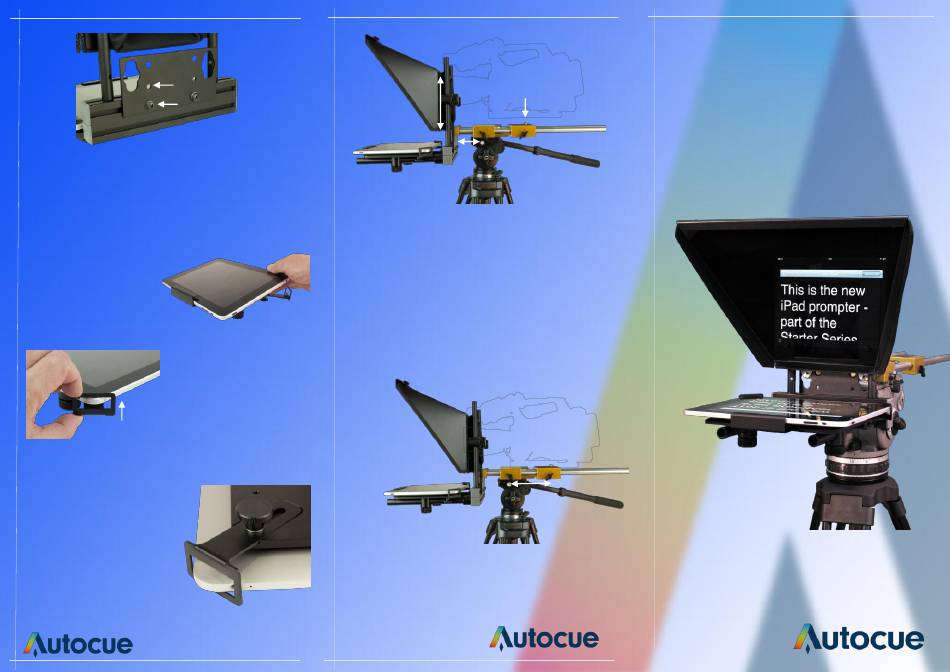

6. If needed the height of the entire bracket assembly can
be adjusted by using the alternative holes in the key hole
plate. Two positions are available. To move the plate
remove the screws and re-fix using the alternative holes.
7. To install the iPad
place the front edge
under the retaining
bracket at the front (A).
A
8. Secure the iPad in place
by using the corner
retaining brackets. (B)
B
9. To secure the corner
retaining bracket in place,
tighten the knobs. (C)
Mount the iPad on the
horizontal mounting bars,
secure in place by
tightening the clamp
knobs.
autocue.com
10. Mount the camera using the camera screw ensuring
that the lens is in the centre of the aperture on the back
of the hood. To adjust the height of the hood loosen the
tube clamps, adjust to the desired height and retighten
to secure. The hood and bracket assembly can be
moved forwards or backwards by loosening the rod
adjustment clamp. Once in the desired position retighten
to secure.
Head Balancing
C
1. To balance the head with the camera mounted
loosen the rod adjustment clamps, the rods will now
slide freely back and forth. When you have achieved a
good balance retighten the knobs, this will secure the
plate in this position.
iPad
Portable
Guide
