INSTRUMENT PANEL AND CONTROLS

B Instrument Panel, Switches and Hand Controls

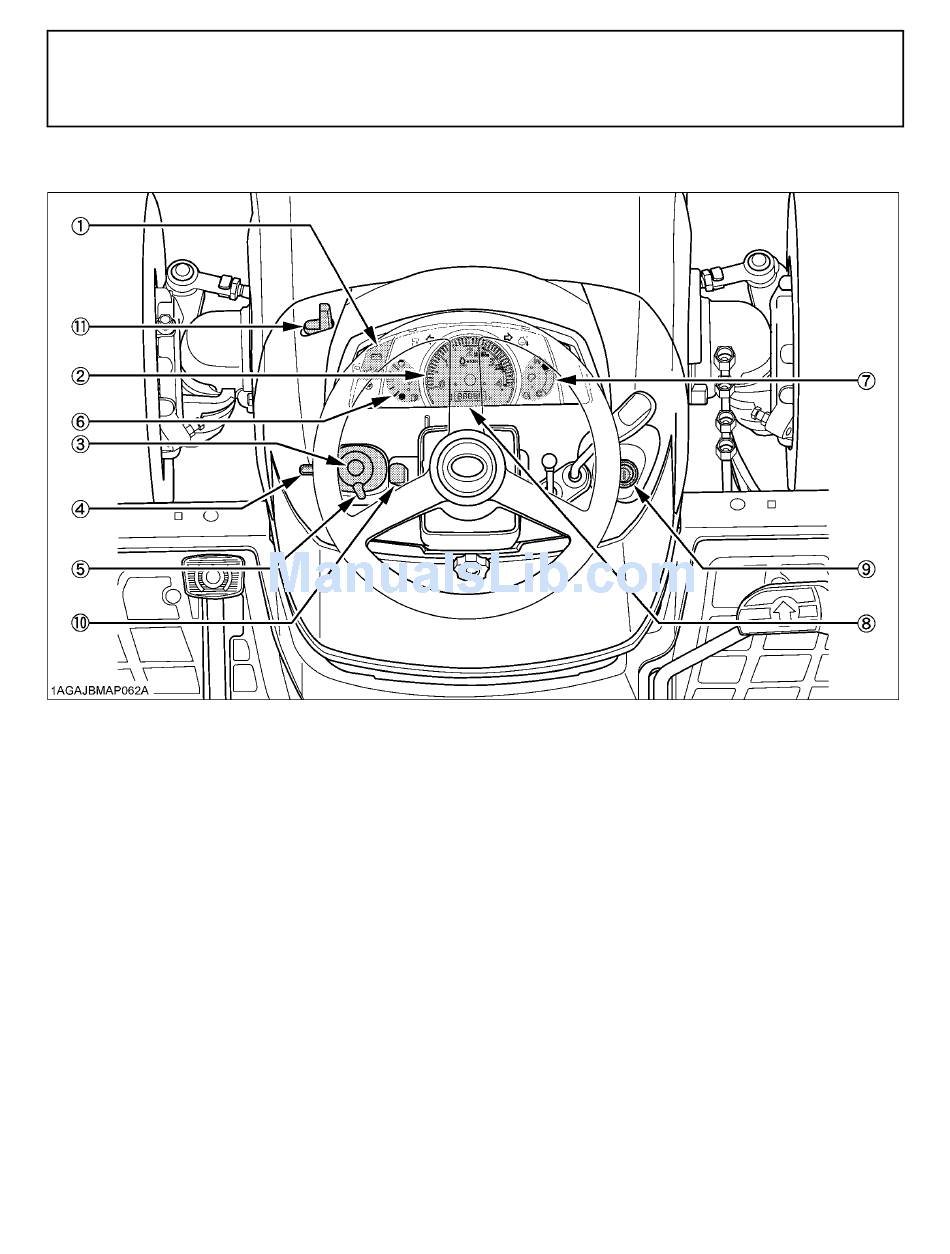

INSTRUMENT PANEL AND CONTROLS
(1) Easy Checker(TM)............................................... 23,38
(2) Tachometer..........................................................
(3) Hazard light switch................................................
(4) Turn signal light switch..........................................
(5) Head light switch...................................................
(6) Fuel gauge...........................................................
(7) Coolant temperature gauge..................................
(8) Hour meter...........................................................
(9) Key switch............................................................
(10) Tilt lever..............................................................
(11) Hood open lever.................................................
ILLUSTRATED CONTENTS
17
39
33
33
32
38
38
39
23
23
85
