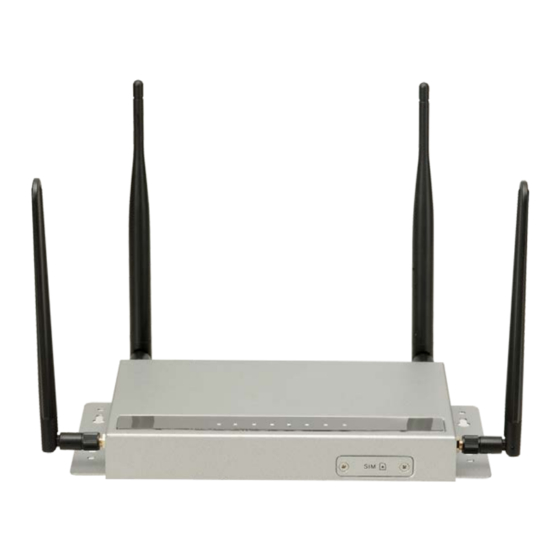

- Page 1 Quick Installation Guide BDG761-0P1 BDG761-0T1 BTG771-0T1 3G/LTE VPN Gateway V1.0_201401...
-
Page 2: Chapter 1 Introduction
3G/LTE VPN Gateway Chapter 1 Introduction Congratulations on your purchase of this outstanding product: 3G/LTE VPN Gateway. This device is specifically designed for SMB mobile office. No matter offices are located at wire unreachable area or on the move, it can connect to Intranet of headquarter instantly. No bother to apply for expensive leased line in advance. - Page 3 3G/LTE VPN Gateway Contents List Items Description Contents Quantity 3G/LTE VPN Gateway 1pcs 3G/4G Antenna 2pcs WiFi Antenna 2pcs Power Adapter 1pcs RJ45 Cable 1pcs 1pcs BDG761/BTG771 Quick Installation Guide...
-
Page 4: Hardware Installation
3G/LTE VPN Gateway 1.2 Hardware Installation 1.2.1 WARNING Do not use the product in high humidity or high temperatures. Only use the power adapter that comes with the package. Using a different voltage rating power adaptor is dangerous and may damage the product. ... -
Page 5: Hardware Configuration
3G/LTE VPN Gateway 1.2.3 Hardware Configuration Rear View: BDG761-0P1 / BDG761-0T1 RS-232 Port Reset Power Button ON/OFF WiFi WiFi Auto MDI/MDIX RJ-45 Ports Switch Antenna Antenna 1x FE WAN to connect Internet, 4x FE LAN to connect local Receptor for Power... - Page 6 3G/LTE VPN Gateway BDG761-0P1 / BDG761-0T1 3G/4G Antenna USIM/SIM Slot 3G/4G Antenna BTG771-0T1 3G/4G Antenna USIM/SIM Slot 3G/4G Antenna USB Port BDG761/BTG771 Quick Installation Guide...
-
Page 7: Led Indication
3G/LTE VPN Gateway 1.2.4 LED Indication BDG761-0P1 / BDG761-0T1 Description OFF: no 3G/4G signal, or not in 3G/4G mode Red and steady on: Connected. Signal strength is in weak level Red in fast flash: roaming alert, and 3G/4G signal strength is in weak level Amber and steady on: Connected. - Page 8 3G/LTE VPN Gateway BTG771-0T1 Description Flash per second: system is powered on, and working normally Green and steady on: a problem occurred with system Status operation OFF: system is powered off, or a problem occurred with system operation OFF: no 3G/4G signal, or not in 3G/4G mode Red and steady on: Connected.
-
Page 9: Chapter 2 Getting Started
3G/LTE VPN Gateway Chapter 2 Getting Started Connect Your Device Before you can use this product, you need to connect your PC or device to this gateway first. You can connect your PC to one of LAN1~LAN4 ports through an Ethernet cable. Otherwise, your device can also connect to it through Wi-Fi. - Page 10 3G/LTE VPN Gateway Select “Wizard” for basic settings in a simple way. Or, you can go to Basic Network / Advanced Network / Applications / System to setup the configuration by your own selection. Press “Next” to start the Setup Wizard. Configure with the Setup Wizard Step 1 You can change the login password of...
- Page 11 3G/LTE VPN Gateway Step 2 Select Time Zone. Step 3 You can select Auto detecting WAN type or setup WAN type manually. Step 4 If selecting Auto Detecting WAN type, the system will start to detect the WAN type automatically. The next page will show result of WAN detection in your environment.
- Page 12 3G/LTE VPN Gateway Step 5-1 Wi-Fi settings. You can change SSID or channel here, or keep them with default settings. SSID is the name that you will see on your PC when doing wireless network scan. Step 5-2 Wi-Fi authentication encryption settings.
