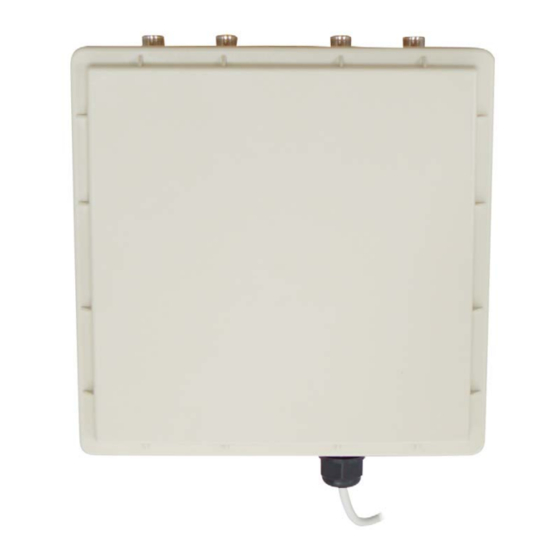

Page 1 Outdoor Cellular Gateway ODG851‐0TCP001 User Manual ...
Page 2: Table Of Contents
Outdoor Cellular Gateway Chapter 1 Introduction ............................7 1.1 Introduction .............................. 7 1.2 Contents List ............................8 1.2.1 Package Contents ........................... 8 1.2.2 Optional Accessories ........................9 1.3 Hardware Configuration ........................10 1.4 LED Indication ............................13 1.5 Installation & Maintenance Notice ......................14 ...
Page 3 Outdoor Cellular Gateway 2.5.1 Configuration ..........................74 2.5.2 Virtual Server & Virtual Computer ..................... 75 2.5.3 DMZ & Pass Through ......................... 81 2.5.4 Special AP & ALG ........................84 2.5.5 IP Translation ..........................88 2.6 Routing ..............................91 2.6.1 Static Routing..........................92 ...
Page 4 Outdoor Cellular Gateway 5.1.2 OpenVPN ..........................167 5.1.3 L2TP ............................180 5.1.4 PPTP ............................188 5.1.5 GRE............................195 5.2 Firewall ..............................199 5.2.1 Packet Filter ..........................199 5.2.2 URL Blocking ........................... 204 5.2.3 MAC Control ..........................208 5.2.4 Content Filter ..........................211 ...
Page 5 Outdoor Cellular Gateway 6.4.1 Diagnostic Tools ........................270 6.4.2 Packet Analyzer ........................271 Chapter 7 Service ............................... 274 7.1 Cellular Toolkit ............................ 274 7.1.1 Data Usage ..........................275 7.1.2 SMS............................278 7.1.3 SIM PIN ............................ 281 7.1.4 USSD ............................285 7.1.5 Network Scan ..........................288 ...
Page 6 Outdoor Cellular Gateway 8.5.5 Portal Usage ..........................325 Appendix A GPL WRITTEN OFFER........................ 326 ...
Page 7: Chapter 1 Introduction
Chapter 1 Introduction 1.1 Introduction Congratulations on your purchase of this outstanding product: ODG851 Outdoor Cellular Gateway. For M2M (Machine to Machine) and IoT (Internet Of Things) applications, AMIT Outdoor Cellular Gateway is absolutely the right choice. With a built‐in world‐class 4G LTE module, you just need to insert SIM card from local mobile carrier to get to Internet. The redundant SIM design provides a more reliable WAN connection for critical applications. By VPN tunneling technology, remote sites easily become a part of Intranet, and all data are ...
Page 8: Contents List
Outdoor Cellular Gateway 1.2 Contents List 1.2.1 Package Contents #Standard Package Items Description Contents Quantity ODG851‐0TCP00A 1 1pcs Outdoor Cellular Gateway CD 2 1pcs (Manual) 3 Mount Kits ‐ Bracket 1pcs Mount Kits ‐ Metal Ring 2pcs Screw M6*L16 Washer ID6.6*OD11.8*T1.5 4pcs Sprlng ID6.4*OD9.6*T1.6 Screw Ø5.9*L24.5 4pcs Plactic Fixing Ø6.7*30.5 4pcs 4 Cable Gland 1pcs ...
Page 9: Optional Accessories
Outdoor Cellular Gateway 1.2.2 Optional Accessories #Optional parts (these parts are sold separately) Items Description Contents Comments 802.3at Compliant PoE Power Injector Standard 802.3 af/at compliant (Gigabit, 30W) Compatible Passive Passive PoE Injector PoE Power Injector AMIT ODG/ODP series only (Gigabit, 30W) These parts are sold separately. If necessary, please contact us via sales@amit.com.tw ...
Page 10: Hardware Configuration
Outdoor Cellular Gateway 1.3 Hardware Configuration  Lower‐side View WiFi‐1 SIM LED Indicators WiFi‐1 2.4G/5GHz Card / Reset Button 2.4G/5GHz Antenna Board Antenna Auto MDI/MDIX RJ45 Port, PoE Input 1x GE LAN to connect local devices ※Reset Button The RESET button provides user with a quick and easy way to resort the default setting. Press the RESET button continuously for 6 seconds, and then release it. The device will reset settings to factory default. ...
Page 11 Outdoor Cellular Gateway  Front View WiFi‐2 LTE (main) LTE (aux) 5GHz Antenna Antenna Antenna ...
Page 12 Outdoor Cellular Gateway  Bottom View Wall Mounting Kit ...
Page 13: Led Indication
Outdoor Cellular Gateway 1.4 LED Indication Cellular WiFi Power LED Color LED Icon Indication Description Steady Green: Cellular‐1 is connected Cellular Cellular Status Green Green and flash: Cellular‐1 Connecting to cellular network OFF: WiFi is disabled Green and Steady ON: WiFi Module‐1(2.4/5GHz) and WiFi Module Green/ 2 (5GHz) are enabled. WiFi WiFi‐1 / WiFI‐2 Status Red/ Red and Steady ON: WiFi Module‐1(2.4/5GHz) is enabled and WiFi Amber Module 2 (5GHz) is disabled. Amber and Steady ON: WiFi Module‐1(2.4/5GHz) is disabled and WiFi Module 2 (5GHz) is ensabled. Steady ON: Device is powered on Power Power Green OFF: Device is powered off ...
Page 14: Installation & Maintenance Notice
Outdoor Cellular Gateway 1.5 Installation & Maintenance Notice 1.5.1 SYSTEM REQUIREMENTS  An Gigabit Ethernet RJ45 cable  3G/4G cellular service subscription Network Requirements  IEEE 802.11 a/b/g/n/ac wireless clients  10/100/1000 Ethernet adapter on PC Computer with the following:  Windows®, Macintosh, or Linux‐based operating system  An installed Ethernet adapter Web-based Configuration Utility Browser Requirements: Requirements  Internet Explorer 6.0 or higher  Chrome 2.0 or higher  Firefox 3.0 or higher  Safari 3.0 or higher 1.5.2 WARNING Only use the PoE Injector that is compliant to the ...
Page 15: Hot Surface Caution
Outdoor Cellular Gateway 1.5.3 HOT SURFACE CAUTION CAUTION: The surface temperature for the metallic enclosure can be very high! Especially after operating for a long time, installed at a close cabinet without air conditioning support, or in a high ambient temperature space. DO NOT touch the hot surface with your fingers while servicing!! ...
Page 16: Product Information For Ce Red Requirements
Outdoor Cellular Gateway 1.5.4 Product Information for CE RED Requirements The following product information is required to be presented in product User Manual for latest CE RED 1 requirements. (1) Frequency Band & Maximum Power 1.a Frequency Band for Cellular Connection Band number Operating Frequency Max output power LTE FDD BAND 1 Uplink: 1920‐1980 MHz Downlink: 2110‐2170 MHz LTE FDD BAND 3 Uplink: 1710‐1785 MHz Downlink: 1805‐1880 MHz LTE FDD BAND 7 Uplink: 2500‐2570 MHz 23 ±2.7 dBm Downlink: 2620‐2690 MHz ...
Page 17 BG CH CY CY DK DE EE EL ES FI FR HR HU IE IT LT LU LV MT NL NO PL SE TR UK (4) DoC Information You can get the DoC information of this product from the following URL: http://www.amit.com.tw/products‐doc/ (5) RF Exposure Statements The antenna of the product, under normal use condition, is at least 20 cm away from the body of user. ...
Page 18: Hardware Installation
Outdoor Cellular Gateway 1.6 Hardware Installation This chapter describes how to install and configure the hardware 1.6.1 Mount the Unit The ODG87A series products can be mounted on a wall or pole. It is designed with wall‐mount bracket for attaching to the wall, or fixing on a pole by metal ring. Metal Ring Wall Mount Bracket for Pole Mount Combined together ...
Page 19: Insert The Sim Card
Outdoor Cellular Gateway 1.6.2 Insert the SIM Card WARNING: BEFORE INSERTING OR CHANGING THE SIM CARD, PLEASE MAKE SURE THE GATEWAY IS POWERED OFF. The SIM card slots are located at the lower side of ODG87A series housing. You need to remove the SIM card cover, and extract the SIM card board first before installing or removing the SIM card. Please follow the instructions to insert or eject a SIM card. After SIM cards are well placed, plug the SIM card board back to its slot and screw back the outer SIM card cover. There are two SIM slots in the SIM card board. The SIM slots in the Bottom side (un‐marked) are for the LTE module, and the SIM slots in the top side (marked as TOP) are reserved, just leave it as. Reserved Slots DO NOT USE! Bottom View (SIM slots for 3G/4G module) Top View (reserved slots, DO NOT USE) Please follow the the instructions to insert SIM cards. ...
Page 20: Connecting Poe Power
Outdoor Cellular Gateway 1.6.3 Connecting PoE Power The ODG87A series product is designed to be powered by IEEE 802.3at compliant PoE Injector, or proprietary passive PoE Injector that is listed in optional parts in Section 1.2.2. Use other 3rd‐party’s passive PoE Injector is dangerous and may cause damage to the device. Please follow instructions below to connect PoE power to this device. Step 1: Step 2: Step 3: Remove RJ45 cover. Plug Ethernet cable into Insert RJ45 Ethernet RJ‐45 connector and cable firmly and settle under the cable gland cable in the fillister Step 4: Step 5: Step 6: Put back cable gland to Connect the other RJ45 plug of Connect the power cord the housing and fasten the Ethernet cable to RJ45 of PoE Injector to an AC cable gland firmly power socket. connector (marked as P+D/OUT) of the PoE Injector. ...
Page 21: Connecting To The Network Or A Host
Outdoor Cellular Gateway 1.6.4 Connecting to the Network or a Host The ODG87A series products provide one Gigabit PoE LAN port to connect to the PoE power supply via a RJ45 cable as described in Section 1.6.3. The PoE LAN port can auto detect the transmission speed on the network and configure itself automatically. The device is powered from the PoE Injector via a RJ45 cable and PoE LAN port. Besides, use another RJ45 cable to connect the Data/IN port of PoE Injector to your computer’s network port. In this way, you can use two RJ45 Ethernet cables to provide power source for the device and connect it to the host PC’s Ethernet port for configuring or troubleshooting the device. 1.6.5 Setup by Configuring WEB UI You can browse web UI to configure the device. Type in the IP Address (http://192.168.123.254) 3 When you see the login page, enter the password ‘admin’ and then click ‘Login’ button. 2 The default LAN IP address of this gateway is 192.168.123.254. If you change it, you need to login by using the new IP address. 3 It’s strongly recommending you to change this login password from default value. ...
Page 22: Chapter 2 Basic Network
Outdoor Cellular Gateway Chapter 2 Basic Network 2.1 WAN & Uplink The gateway provides one WAN interface to let all client hosts in Intranet of the gateway access the Internet via ISP. But ISPs in the world apply various connection protocols to let gateways or user's devices dial in ISPs and then link to the Internet via different kinds of transmit media. So, the WAN Connection lets you specify the WAN Physical Interface and Internet Setup for Intranet to access Internet. For each WAN interface, you must specify its physical interface first and then its Internet setup to connect to ISP. ...
Page 23: Physical Interface
Outdoor Cellular Gateway 2.1.1 Physical Interface The first step to configure one WAN interface is to specify which kind of connection media to be used for the WAN connection, as shown in "Physical Interface" page. In "Physical Interface" page, there are two configuration windows, "Physical Interface List" and "Interface Configuration". "Physical Interface List" window shows all the available physical interfaces. After clicking on the "Edit" button for the interface in "Physical Interface List" window the "Interface Configuration" window will appear to let you configure a WAN interface. Physical Interface: ‧ 3G/4G WAN: The gateway has one built‐in 3G/4G cellular as WAN connection. For each cellular WAN, there are 1 or 2 SIM cards to be inserted for special failover function. ...
Page 24 Outdoor Cellular Gateway Operation Mode: There are three option items “Always on”, “Failover”, and “Disable” for the operation mode setting. However, for the single WAN device, only “Always on” is available. Always on: Set this WAN interface to be active all the time. When two or more WAN are established at "Always on" mode, outgoing data will through these WAN connections base on load balance policies. VLAN Tagging Sometimes, your ISP required a VLAN tag to be inserted into the WAN packets from Gateway for specific services. Please enable VLAN tagging and specify tag in the WAN physical interface. Please be noted that only ...
Page 25 Outdoor Cellular Gateway Interface Configuration: Interface Configuration Item Value setting Description 1. A Must fill setting Select one expected interface from the available interface dropdown list. 2. WAN‐1 is the primary Physical Interface interface and is factory set to Always on. Define the operation mode of the interface. Select Always on to make this WAN always active. Operation Mode A Must fill setting (Note: for WAN‐1, only Always on option is available.) Check Enable box to enter tag value provided by your ISP. Otherwise uncheck the box. VLAN Tagging Optional setting Value Range: 1 ~ 4096. Note: This feature is NOT available for 3G/4G WAN connection. ...
Page 26: Internet Setup
Outdoor Cellular Gateway 2.1.2 Internet Setup After specifying the physical interface for each WAN connection, administrator must configure their connection profile to meet the dial in process of ISP, so that all client hosts in the Intranet of the gateway can access the Internet. In "Internet Setup" page, there are some configuration windows: "Internet Connection List", "Internet Connection Configuration", "WAN Type Configuration" and related configuration windows for each WAN type. For the Internet setup of each WAN interface, you must specify its WAN type of physical interface first and then its related parameter configuration for that WAN type. After ...
Page 27 Outdoor Cellular Gateway Internet Connection – 3G/4G WAN Preferred SIM Card – Dual SIM Fail Over For 3G/4G embedded device, one embedded cellular module can create only one WAN interface. This device has featured by using dual SIM cards for one module with special fail‐over mechanism. It is called Dual SIM Failover. This feature is useful for ISP switch over when location is changed. Within “Dual SIM Failover”, there are various usage scenarios, including "SIM‐A First", "SIM‐B First“ with “Failback” enabled or not, and “SIM‐A Only and “SIM‐B Only”. ...
Page 28 Outdoor Cellular Gateway SIM‐A/SIM‐B only: When “SIM‐A Only” or “SIM‐B Only” is used, the specified SIM slot card is the only one to be used for negotiation parameters between gateway device and cellular ISP. SIM‐A / SIM‐B first without enable Failback By default, “SIM‐A First” scenario is used to connect to cellular ISP for data transfer. In the case of “SIM‐A First” or “SIM‐B First” scenario, the gateway will try to connect to the Internet by using SIM‐A or SIM‐B card first. And when the connection is broken, the gateway will switch to use the other SIM card for an alternate automatically and will not switch back to use original SIM card except current SIM connection is also broken. That ...
Page 29 Outdoor Cellular Gateway Internet Setup Setting Go to Basic Network > WAN > Internet Setup tab. Internet Setup allows user to setup WAN connection of the gateway. Numbers of available WAN Interfaces can be different for the purchased gateway. Internet Connection List shows the basic information of each WAN. Click Edit button to configure. Then follow the following pages for detail settings. Internet Connection List Item Value setting Description Shows the name of WAN interface. Interface Name N/A Physical Interface (i.e. 3G/4G) shows the type of interface configured to Physical Interface N/A map with Interface Name. Operation Mode shows the current setting of Connection Control mode of WAN interface to keep WAN connection. ...
Page 30 Outdoor Cellular Gateway Internet Setup – 3G/4G WAN Configure 3G/4G WAN Setting When Edit button is applied, Internet Connection Configuration, and 3G/4G WAN Configuration screens will appear. 3G/4G Connection Configuration Item Value setting Description 1. A Must filled setting From the dropdown box, select Internet connection method for 3G/4G WAN Type 2. 3G/4G is set by WAN Connection. Only 3G/4G is available. default. Choose which SIM card you want to use for the connection. When SIM‐A First or SIM‐B First is selected, it means the connection is built first by using SIM A/SIM B. And if the connection is failed, it will change to the other SIM card and try to dial again, until the connection is up. When SIM‐A only or SIM‐B only is selected, it will try to dial up only using 1. A Must filled setting the SIM card you selected. 2. By default SIM‐A First When Failback is checked, it means if the connection is dialed‐up not using Preferred SIM Card is selected the main SIM you selected, it will failback to the main SIM and try to 3. Failback is unchecked establish the connection periodically. by default Note_1: For the product with single SIM design, only SIM‐A Only option is available. Note_2: Failback is available only when SIM‐A First or SIM‐B First is selected. ...
Page 31 Outdoor Cellular Gateway Configure SIM‐A / SIM‐B Card Here you can set configurations for the cellular connection according to your situation or requirement. Note_1: Configurations of SIM‐B Card follows the same rule of Configurations of SIM‐A Card, here we list SIM‐ A as the example. Note_2: Both Connection with SIM‐A Card and Connection with SIM‐B Card will pop up only when the SIM‐A First or SIM‐B First is selected, otherwise it only pops out one of them. Connection with SIM‐A/‐B Card Item Value setting Description Select Auto to register a network automatically, regardless of the network type. Select 2G Only to register the 2G network only. 1. A Must filled setting Select 2G Prefer to register the 2G network first if it is available. Network Type 2. By default Auto is Select 3G only to register the 3G network only. selected Select 3G Prefer to register the 3G network first if it is available. Select LTE only to register the LTE network only. Note: Options may be different due to the specification of the module. Specify the type of dial‐up profile for your 3G/4G network. It can be Manual‐configuration, APN Profile List, or Auto. 1. A Must filled setting Select Manual‐configuration to set APN (Access Point Name), Dial Number, Dial‐Up Profile 2. By default Manual‐ Account, and Password to what your carrier provides. Configuration is selected Select APN Profile List to set more than one profile to dial up in turn, until the connection is established. It will pop up a new filed, please go to Basic Network > WAN & Uplink > Internet Setup > SIM‐A APN Profile List for ...
Page 32 Outdoor Cellular Gateway details. Select Auto‐Detection to automatically bring out all configurations needed while dialing‐up, by comparing the IMSI of the SIM card to the record listed in the manufacture’s database. Note_1: You are highly recommended to select the Manual or APN Profile List to specify the network for your subscription. Your ISP always provides such network settings for the subscribers. Note_2: If you select Auto‐detection, it is likely to connect to improper network, or failed to find a valid APN for your ISP. 1. A Must filled setting Enter the APN you want to use to establish the connection. APN 2. String format : any This is a must‐filled setting if you selected Manual‐configuration as dial‐up text profile scheme. Enter the PIN (Personal Identification Number) code if it needs to unlock PIN code String format : interger your SIM card. Select PAP (Password Authentication Protocol) and use such protocol to be authenticated with the carrier’s server. 1. A Must filled setting Select CHAP (Challenge Handshake Authentication Protocol) and use such Authentication ...
Page 33 Outdoor Cellular Gateway When Add button is applied, an APN Profile Configuration screen will appear. SIM‐A/‐B APN Profile Configuration Item Value setting Description 1. By default Profile‐x is Enter the profile name you want to describe for this profile. Profile Name listed 2. String format : any text APN String format : any text Enter the APN you want to use to establish the connection. Enter the Account you want to use for the authentication. Account String format : any text Value Range: 0 ~ 53 characters. Password String format : any text Enter the Password you want to use for the authentication. 1. A Must filled setting Select the Authentication method for the 3G/4G connection. Authentication 2. By default Auto is It can be Auto, PAP, CHAP, or None. selected Enter the value for the dialing‐up order. The valid value is from 1 to 16. It 1. A Must filled setting Priority will start to dial up with the profile that assigned with the smallest number. 2. String format : integer Value Range: 1 ~ 16. The box is checked by Check the box to enable this profile.
Page 34 Outdoor Cellular Gateway Setup 3G/4G Connection Common Configuration Here you can change common configurations for 3G/4G WAN. 3G/4G Connection Common Configuration Item Value setting Description When Auto‐reconnect is selected, it means it will try to keep the Internet connection on all the time whenever the physical link is connected. When Connect‐on‐demand is selected, it means the Internet connection will be established only when detecting data traffic. By default Auto‐ When Connect Manually is selected, it means you need to click the Connection Control reconnect is selected Connect button to dial up the connection manually. Please go to Status > Basic Network > WAN & Uplink tab for details. Note: This field is available only when Basic Network > WAN > Physical Interface > Operation Mode is selected to Always on. Specify the maximum Idle time setting to disconnect the internet 1. An Optional setting connection when the connection idle timed out. Maximum Idle Time 2. By default 600 Value Range: 300 ~ 86400. seconds is filled‐in Note: This field is available only when Connect‐on‐demand or Connect Manually is selected as the connection control scheme. 1. A Must filled setting When (0) Always is selected, it means this WAN is under operation all the Time Schedule 2. By default (0) Always time. Once you have set other schedule rules, there will be other options to is selected select. Please go to Object Definition > Scheduling for details. ...
Page 35 Outdoor Cellular Gateway 2. By default 0 is filled‐in Value Range: 512 ~ 1500, but 0 is for auto. 3. String format : integer When Enable box is checked, it means the device will directly assign the 1. The box is unchecked WAN IP to the first connected local LAN client. by default However, when an optional Fixed MAC is filled‐in a non‐zero value, it IP Pass‐through 2. String format for Fixed means only the client with this MAC address can get the WAN IP address. (Cellular Bridge) MAC: Note_1: This field is only available when 3G/4G‐n is set to WAN‐1. MAC address, e.g. Note_2: When the IP Pass‐through is on, NAT and WAN IP Alias will be 00:50:18:aa:bb:cc unavailable until the function is disabled again. NAT Checked by default Uncheck the box to disable NAT (Network Address Translation) function. When the Network Monitoring feature is enabled, the gateway will use DNS Query or ICMP to periodically check Internet connection –connected or disconnected.  Choose either DNS Query or ICMP Checking to detect WAN link. With DNS Query, the system checks the connection by sending DNS Query packets to the destination specified in Target 1 and Target 2. With ICMP Checking, the system will check connection by sending ICMP request packets to the specified destination.  Loading Check Enable Loading Check allows the router to ignore unreturned DNS Queries or ICMP requests when WAN bandwidth is fully occupied. ...
Page 36: Lan & Vlan
Outdoor Cellular Gateway 2.2 LAN & VLAN This section provides the configuration of LAN and VLAN. VLAN is an optional feature, and it depends on the product specification of the purchased gateway. 2.2.1 Ethernet LAN The Local Area Network (LAN) can be used to share data or files among computers attached to a network. Following diagram illustrates the network that wired and interconnects computers. ...
Page 37 Outdoor Cellular Gateway Click the Undo button to restore what you just configured back to the previous Undo N/A setting. Create / Edit Additional IP This gateway provides the LAN IP alias function for some special management consideration. You can add additional LAN IP for this gateway, and access to this gateway with the additional IP. When Add button is applied, Additional IP Configuration screen will appear. Configuration Item Value setting Description Name .1 An Optional Setting Enter the name for the alias IP address. 1. A Must filled setting Interface Specify the Interface type. It can be lo or br0. 2. lo is set by default 1. An Optional setting IP Address 2. 192.168.123.254 is set by Enter the addition IP address for this device. default Select the subnet mask for this gateway from the dropdown list. Subnet mask defines how many clients are allowed in one network or subnet. 1. A Must filled setting The default subnet mask is 255.255.255.0 (/24), and it means maximum 254 IP Subnet Mask 2. 255.255.255.0 (/24) is set addresses are allowed in this subnet. However, one of them is occupied by LAN by default IP address of this gateway, so there are maximum 253 clients allowed in LAN network. Value Range: 255.0.0.0 (/8) ~ 255.255.255.255 (/32). Save NA ...
Page 38: Vlan
Outdoor Cellular Gateway 2.2.2 VLAN VLAN (Virtual LAN) is a logical network under a certain switch or router device to group client hosts with a specific VLAN ID. This gateway supports both Port‐based VLAN and Tag‐based VLAN. These functions allow you to divide local network into different “virtual LANs”. It is common requirement for some application scenario. ...
Page 39 Outdoor Cellular Gateway Staff) with NAT mode and DHCP‐2 server equipped. At last, administrator also configure Data Center segment with VLAN ID 1. The VLAN group includes Port‐1 with NAT mode to WAN interface as shown in following diagram. Above is the general case for 3 Ethernet LAN ports in the gateway. But if the device just has one Ethernet LAN port, there will be only one VLAN group for the device. Under such situation, it still supports both the NAT and Bridge mode for the Port‐based VLAN configuration.  Tag‐based VLAN Tag‐based VLAN function can group Ethernet ports, Port‐1 ~ Port‐4, and WiFi Virtual Access Points, VAP‐1 ~ VAP‐8, together with different VLAN tags for deploying subnets in Intranet. All packet flows can carry with different ...
Page 40 Outdoor Cellular Gateway For example, in a company, administrator schemes out 3 network segments, Lab, Meeting Rooms, and Office. In a Security VPN Gateway, administrator can configure Office segment with VLAN ID 12. The VLAN group is equipped with DHCP‐3 server to construct a 192.168.12.x subnet. He also configure Meeting Rooms segment with VLAN ID 11. The VLAN group is equipped with DHCP‐2 server to construct a 192.168.11.x subnet for Intranet only. That is, any client host in VLAN 11 group can’t access the Internet. At last, he configures Lab segment with VLAN ID 10. The VLAN group is equipped with DHCP‐1 server to construct a 192.168.10.x subnet. ...
Page 41 Outdoor Cellular Gateway  VLAN Groups Access Control Administrator can specify the Internet access permission for all VLAN groups. He can also configure which VLAN groups are allowed to communicate with each other. VLAN Group Internet Access Administrator can specify members of one VLAN group to be able to access Internet or not. Following is an example that VLAN groups of VID is 2 and 3 can access Internet but the one with VID is 1 cannot access Internet. ...
Page 42 Outdoor Cellular Gateway Inter VLAN Group Routing: In Port‐based tagging, administrator can specify member hosts of one VLAN group to be able to communicate with the ones of another VLAN group or not. This is a communication pair, and one VLAN group can join many communication pairs. But communication pair doesn’t have the transitive property. That is, A can communicate with B, and B can communicate with C, it doesn’t imply that A can communicate with C. An example is shown at following diagram. VLAN groups of VID is 1 and 2 can access each other but the ones between VID 1 and VID 3 and between VID 2 and VID 3 can’t. ...
Page 43 Outdoor Cellular Gateway VLAN Setting Go to Basic Network > LAN & VLAN > VLAN Tab. The VLAN function allows you to divide local network into different virtual LANs. There are Port‐based and Tag‐based VLAN types. Select one that applies. Configuration Item Value setting Description VLAN Type Port‐based is selected by Select the VLAN type that you want to adopt for organizing you local subnets. default Port‐based: Port‐based VLAN allows you to add rule for each LAN port, and you can do advanced control with its VLAN ID. Tag‐based: Tag‐based VLAN allows you to add VLAN ID, and select member and DHCP Server for this VLAN ID. Go to Tag‐based VLAN List table. Save NA ...
Page 44 Outdoor Cellular Gateway Port‐based VLAN Configuration Item Value setting Description 1. A Must filled setting Define the Name of this rule. It has a default text and cannot be modified. Name 2. String format: already have default texts VLAN ID A Must filled setting Define the VLAN ID number, range is 1~4094. The rule is activated according to VLAN ID and Port Members configuration when Enable is selected. Disable is selected by VLAN Tagging default. The rule is activated according Port Members configuration when Disable is selected. NAT / Bridge NAT is selected by default. Select NAT mode or Bridge mode for the rule. These box is unchecked by Select which LAN port(s) and VAP(s) that you want to add to the rule. Port Members default. Note: The available member list can be different for the purchased product. ...
Page 45 Outdoor Cellular Gateway WAN & WAN All WANs is selected by Select which WAN or All WANs that allow accessing Internet. VID to Join default. Note: If Bridge mode is selected, you need to select a WAN and enter a VID. LAN IP Assign an IP Address for the DHCP Server that the rule used, this IP address is a A Must filled setting Address gateway IP. 255.255.255.0(/24) is Select a Subnet Mask for the DHCP Server. Subnet Mask selected by default. Define the DHCP Server type. There are three types you can select: Server, Relay, and Disable. Relay: Select Relay to enable DHCP Relay function for the VLAN group, and you DHCP Server Server is selected by default. only need to fill the DHCP Server IP Address field. /Relay Server: Select Server to enable DHCP Server function for the VLAN group, and you need to specify the DHCP Server settings. Disable: Select Disable to disable the DHCP Server function for the VLAN group. DHCP Server If you select Relay type of DHCP Server, assign a DHCP Server IP Address that IP Address the gateway will relay the DHCP requests to the assigned DHCP server. A Must filled setting (for DHCP Relay only) ...
Page 46 Outdoor Cellular Gateway Besides, you can add some IP rules in the IP Fixed Mapping Rule List if DHCP Server for the VLAN groups is required. When Add button is applied, Mapping Rule Configuration screen will appear. Mapping Rule Configuration Item Value setting Description MAC Address A Must filled setting Define the MAC Address target that the DHCP Server wants to match. Define the IP Address that the DHCP Server will assign. If there is a request from the MAC Address filled in the above field, the DHCP IP Address A Must filled setting Server will assign this IP Address to the client whose MAC Address matched the rule. The box is unchecked by Click Enable box to activate this rule. Enable default. Save NA Click the Save button to save the configuration Note: ensure to always click on Apply button to apply the changes after the web browser refreshed taken you back to the VLAN page. ...
Page 47 Outdoor Cellular Gateway Port‐based VLAN – Inter VLAN Group Routing Click VLAN Group Routing button, the VLAN Group Internet Access Definition and Inter VLAN Group Routing screen will appear. When Edit button is applied, a screen similar to this will appear. Inter VLAN Group Routing Item Value setting Description By default, all boxes are checked means all VLAN ID members are allow to VALN Group access WAN interface. Internet All boxes are checked by If uncheck a certain VLAN ID box, it means the VLAN ID member can’t access Access default. Internet anymore. Definition Note: VLAN ID 1 is available always; it is the default VLAN ID of LAN rule. The other VLAN IDs are available only when they are enabled. Click the expected VLAN IDs box to enable the Inter VLAN access function. By default, members in different VLAN IDs can’t access each other. The gateway Inter VLAN The box is unchecked by supports up to 4 rules for Inter VLAN Group Routing. Group Routing default. For example, if ID_1 and ID_2 are checked, it means members in VLAN ID_1 can access members of VLAN ID_2, and vice versa. Save N/A Click the Save button to save the configuration ...
Page 48 Outdoor Cellular Gateway Tag‐based VLAN – Create/Edit VLAN Rules The Tag‐based VLAN allows you to customize each LAN port according to VLAN ID. There is a default rule shows the configuration of all LAN ports and all VAPs. Also, if your device has a DMZ port, you will see DMZ configuration, too. The router supports up to a maximum of 128 tag‐based VLAN rule sets. When Add button is applied, Tag‐based VLAN Configuration screen will appear. Tag‐based VLAN Configuration Item Value setting Description VALN ID A Must filled setting Define the VLAN ID number, range is 6~4094. Internet ...
Page 49: Dhcp Server
Outdoor Cellular Gateway 2.2.3 DHCP Server  DHCP Server The gateway supports up to 4 DHCP servers to fulfill the DHCP requests from different VLAN groups (please refer to VLAN section for getting more usage details). And there is one default setting for whose LAN IP Address is the same one of gateway LAN interface, with its default Subnet Mask setting as “255.255.255.0”, and its default IP Pool ranges is from “.100” to “.200” as shown at the DHCP Server List page on gateway’s WEB UI. User can add more DHCP server configurations by clicking on the “Add” button behind “DHCP Server List”, or clicking on the “Edit” button at the end of each DHCP Server on list to edit its current settings. Besides, user can select a DHCP Server and delete it by clicking on the “Select” check‐box and the “Delete” button. ...
Page 50 Outdoor Cellular Gateway  Fixed Mapping User can assign fixed IP address to map the specific client MAC address by select them then copy, when targets were already existed in the DHCP Client List, or to add some other Mapping Rules by manually in advance, once the target's MAC address was not ready to connect. ...
Page 51 Outdoor Cellular Gateway DHCP Server Setting Go to Basic Network > LAN & VLAN > DHCP Server Tab. The DHCP Server setting allows user to create and customize DHCP Server policies to assign IP Addresses to . the devices on the local area network (LAN) Create / Edit DHCP Server Policy The gateway allows you to custom your DHCP Server Policy. If multiple LAN ports are available, you can define one policy for each LAN (or VLAN group), and it supports up to a maximum of 4 policy sets. When Add button is applied, DHCP Server Configuration screen will appear. ...
Page 52 Outdoor Cellular Gateway DHCP Server Configuration Item Value setting Description 1. String format can be any DHCP Server text Enter a DHCP Server name. Enter a name that is easy for you to understand. Name 2. A Must filled setting LAN IP 1. IPv4 format. The LAN IP Address of this DHCP Server. Address 2. A Must filled setting 255.0.0.0 (/8) is set by Subnet Mask The Subnet Mask of this DHCP Server. default 1. IPv4 format. The IP Pool of this DHCP Server. It composed of Starting Address entered in this IP Pool 2. A Must filled setting field and Ending Address entered in this field. 1. Numberic string format. The Lease Time of this DHCP Server. Lease Time 2. A Must filled setting Value Range: 300 ~ 604800 seconds. String format can be any Domain Name The Domain Name of this DHCP Server. text Primary DNS IPv4 format The Primary DNS of this DHCP Server. Secondary IPv4 format The Secondary DNS of this DHCP Server. ...
Page 53 Outdoor Cellular Gateway Mapping Rule Configuration Item Value setting Description 1. MAC Address string MAC Address format The MAC Address of this mapping rule. 2. A Must filled setting 1. IPv4 format. IP Address The IP Address of this mapping rule. 2. A Must filled setting The box is unchecked by Rule Click Enable box to activate this rule. default. Save N/A Click the Save button to save the configuration Click the Undo button to restore what you just configured back to the previous Undo N/A setting. When the Back button is clicked the screen will return to the DHCP Server Back N/A Configuration page. View / Copy DHCP Client List When DHCP Client List button is applied, DHCP Client List screen will appear. When the DHCP Client is selected and Copy to Fixed Mapping button is applied. The IP and MAC address of DHCP Client will apply to the Mapping Rule List on specific DHCP Server automatically. ...
Page 54 Outdoor Cellular Gateway Option Meaning 66 TFTP server name [RFC 2132] 72 Default World Wide Web Server [RFC 2132] 114 URL [RFC 3679] Create / Edit DHCP Server Options The gateway supports up to a maximum of 99 option settings. When Add/Edit button is applied, DHCP Server Option Configuration screen will appear. DHCP Server Option Configuration Item Value setting Description 1. String format can be any Enter a DHCP Server Option name. Enter a name that is easy for you to Option Name ...
Page 55 Outdoor Cellular Gateway Each different options has different value types. Single IP Address 66 Dropdown list of DHCP Single FQDN Type server option value’s type 72 IP Addresses List, separated by “,” 114 Single URL Should conform to Type : Type Value 1. IPv4 format 2. FQDN format Single IP Address IPv4 format 66 Value 3. IP list Single FQDN FQDN format 4. URL format 5. A Must filled setting 72 IP Addresses List, separated by “,” IPv4 format, separated by “,” 114 Single URL URL format The box is unchecked by Enable ...
Page 56: Wifi
Outdoor Cellular Gateway 2.3 WiFi The gateway provides WiFi interface for mobile devices or BYOD devices to connect for Internet/Intranet accessing. Wi‐Fi function is usually modulized design in a gateway, and there can be single or dual modules within a gateway. The WiFi system in the gateway complies with IEEE 802.11ac/11n/11g/11b standard in 2.4GHz or 5GHz single band or 2.4G/5GHz concurrent dual bands of operation. There are several wireless operation modes provided by this device. They are: “AP Router Mode”, “WDS Only Mode”, and “WDS Hybrid ...
Page 57: Wifi Configuration
Outdoor Cellular Gateway 2.3.1 WiFi Configuration Due to optional module(s) and frequency band, you need to setup module one by one. For each module, you need to specify the operation mode, and then setup the virtual APs for wireless access. Hereunder are the scenarios for each wireless operation mode, you can get how it works, and what is the difference among them. To connect your wireless devices with the wireless gateway, make sure your application scenario for WiFi network and choose the most adequate operation mode. ...
Page 58 Outdoor Cellular Gateway WDS Only Mode WDS (Wireless Distributed System) Only mode drives a WiFi gateway to be a bridge for its wired Intranet and a repeater to extend distance. You can use multiple WiFi gateways as a WiFi repeater chain with all gateways setup as "WDS Only" mode. All gateways can communicate ...
Page 59 Outdoor Cellular Gateway Multiple VAPs VAP (Virtual Access Point) is function to partition wireless network into multiple broadcast domains. It can simulate multiple APs in one physical AP. This wireless gateway supports up to 8 VAPs. For each VAP, you need to setup SSID, authentication ...
Page 60 Outdoor Cellular Gateway WiFi Configuration Setting The Wi‐Fi configuration allows user to configure 2.4GHz or 5GHz WiFi settings. Go to Basic Network > WiFi > WiFi Module One Tab. If the gateway is equipped with two WiFi modules, there will be another WiFi Module Two. You can do the similar configurations on both WiFi modules. Basic Configuration Basic Configuration Item Value setting Description Specify the intended operation band for the WiFi module. Basically, this setting is fixed and cannot be changed once the module is integrated Operation Band A Must filled setting into the product. However, there is some module with selectable band for user to choose according to his network environment. Under such situation, you can specify which operation band is suitable for the application. Configure WiFi Setting Configuring Wi‐Fi Settings Item Value setting Description The box is checked by Check the Enable box to activate Wi‐Fi function. WiFi Module default Specify the WiFi Operation Mode according to your application. Go to the following table for AP Router Mode, WDS Only Mode, and WDS Hybrid WiFi Operation Mode settings. Mode ...
Page 61 Outdoor Cellular Gateway AP Router Mode For the AP Router mode, the device not only supports stations connection but also the router function. The WAN port and the NAT function are enabled. AP Router Mode Item Value setting Description Select a radio channel for the VAP. Each channel is corresponding to different radio band. The permissible channels depend on the Regulatory Domain. 1. A Must filled setting. There are two available options when Auto is selected:  By AP Numbers Channel 2. Auto is selected be default. The channel will be selected according to AP numbers (The less, the better).  By Less Interference The channel will be selected according to interference. (The lower, the better). Specify the preferred WiFi System. The dropdown list of WiFi system is based on IEEE 802.11 standard. WiFi System A Must filled setting  2.4G Wi‐Fi can select b, g and n only or mixed with each other.  5G Wi‐Fi can select a, n and ac only or mixed with each other. The box is unchecked Check the Enable box to activate Green AP function. Green AP ...
Page 62 Outdoor Cellular Gateway Apply a specific Time Schedule to this rule; otherwise leave it as (0) Always. Object Time Schedule A Must filled setting If the dropdown list is empty ensure Time Schedule is pre‐configured. Refer to Definition > Scheduling > Configuration tab. Enter the SSID for the VAP, and decide whether to broadcast the SSID or not. 1. String format : Any The SSID is used for identifying from another AP, and client stations will associate Network ID text with AP according to SSID. If the broadcast SSID option is enabled, it means the (SSID) 2. The box is checked SSID will be broadcasted, and the stations can associate with this device by by default. scanning SSID. Check the Enable box to activate this function. The box is checked by STA Isolation By default, the box is checked; it means that stations which associated to the same default. VAP cannot communicate with each other. For security, there are several authentication methods supported. Client stations should provide the key when associate with this device. When Open is selected The check box named 802.1x shows up next to the dropdown list.  802.1x (The box is unchecked by default) When 802.1x is enabled, it means the client stations will be authenticated by RADIUS server. RADIUS Server IP (The default IP is 0.0.0.0) RADIUS Server Port (The default value is 1812) RADIUS Shared Key When Shared is selected The pre‐shared WEP key should be set for authenticating. ...
Page 63 Outdoor Cellular Gateway default. selected. None It means that the device is open system without encrypting. WEP Up to 4 WEP keys can be set, and you have to select one as current key. The key type can set to HEX or ASCII. If HEX is selected, the key should consist of (0 to 9) and (A to F). If ASCII is selected, the key should consist of ASCII table. TKIP TKIP was proposed instead of WEP without upgrading hardware. Enter a Pre‐ shared Key for it. The length of key is from 8 to 63 characters. AES The newest encryption system in WiFi, it also designed for the fast 802.11n high bitrates schemes. Enter a Pre‐shared Key for it. The length of key is from 8 to 63 characters. You are recommended to use AES encryption instead of any others for security. TKIP / AES TKIP / AES mixed mode. It means that the client stations can associate with this device via TKIP or AES. Enter a Pre‐shared Key for it. The length of key is from 8 to 63 characters. Save N/A Click the Save button to save the current configuration. Undo N/A Click the Undo button to restore configuration to previous setting before saving. Apply N/A Click the Apply button to apply the saved configuration. WDS Only Mode For the WDS Only mode, the device only bridges the connected wired clients to another WDS‐enabled Wi‐Fi device which the device associated with. That is, it also means the no wireless clients stat can connect to this device while WDS Only Mode is selected. ...
Page 64 Outdoor Cellular Gateway Select a radio channel for the VAP. Each channel is corresponding to different radio band. The permissible channels depend on the Regulatory Domain. 1. A Must filled There are two available options when Auto is selected: setting.  By AP Numbers Channel 2. Auto is selected The channel will be selected according to AP numbers (The less, the better). be default.  By Less Interference The channel will be selected according to interference. (The lower, the better). The box is Check the Enable box to activate Green AP function. Green AP unchecked by default. For security, there are several authentication methods supported. Client stations should provide the key when associate with this device. When Open is selected The check box named 802.1x shows up next to the dropdown list.  802.1x (The box is unchecked by default) When 802.1x is enabled, it means the client stations will be authenticated by RADIUS server. RADIUS Server IP (The default IP is 0.0.0.0) RADIUS Server Port (The default value is 1812) RADIUS Shared Key When Shared is selected The pre‐shared WEP key should be set for authenticating. 1. A Must filled When Auto is selected setting ...
Page 65 Outdoor Cellular Gateway bitrates schemes. Enter a Pre‐shared Key for it. The length of key is from 8 to 63 characters. You are recommended to use AES encryption instead of any others for security. Press the Scan button to scan the spatial AP information, and then select one from Scan Remote AP’s N/A the AP list, the MAC of selected AP will be auto filled in the following Remote AP MAC List MAC table. A Must filled Enter the remote AP’s MAC manually, or via auto‐scan approach, The device will Remote AP MAC 1~4 setting bridge the traffic to the remote AP when associated successfully. Save N/A Click the Save button to save the current configuration. Undo N/A Click the Undo button to restore configuration to previous setting before saving. Apply N/A Click the Apply button to apply the saved configuration. WDS Hybrid Mode For the WDS Hybrid mode, the device bridges all the wired LAN and WLAN clients to another WDS or WDS hybrid enabled Wi‐Fi devices which the device associated with. ...
Page 66 Outdoor Cellular Gateway  5G Wi‐Fi can select a, n and ac only or mixed with each other. Check the Enable box to activate this function. The box is checked by With the function been enabled, the device can auto‐learn WDS peers without Lazy Mode default. manually entering other AP’s MAC address. But at least one of the APs has to fill remote AP MAC addresses. The box is unchecked Check the Enable box to activate Green AP function. Green AP by default. Check the Enable box to activate this function. The box is checked by VAP Isolation By default, the box is checked; it means that stations which associated to different default. VAPs cannot communicate with each other.  Multiple AP Names (VAP) It means multiple SSID feature and the device support up to 8 virtual SSIDs. Select one of VAP to configure its setting at a time.  Enable 1. A Must filled setting Multiple AP 2. VAP1 and VAP8 are Check the enable box to activate the selected VAP. Names  Max. STA activated by default. Limit the maximum number of client station. Check this box and enter a ...
Page 67 Outdoor Cellular Gateway It owns the same encryption system as WPA. The authentication uses pre‐shared key instead of RADIUS server. When WPA2‐PSK is selected It owns the same encryption system as WPA2. The authentication uses pre‐shared key instead of RADIUS server. Select a suitable encryption method and enter the required key(s). The available method in the dropdown list depends on the Authentication you selected. None It means that the device is open system without encrypting. WEP Up to 4 WEP keys can be set, and you have to select one as current key. The key type can set to HEX or ASCII. 1. A Must filled setting. If HEX is selected, the key should consist of (0 to 9) and (A to F). Encryption 2. None is selected be If ASCII is selected, the key should consist of ASCII table. default. TKIP TKIP was proposed instead of WEP without upgrading hardware. Enter a Pre‐ shared Key for it. The length of key is from 8 to 63 characters. AES The newest encryption system in WiFi, it also designed for the fast 802.11n high bitrates schemes. Enter a Pre‐shared Key for it. The length of key is from 8 to 63 characters. You are recommended to use AES encryption instead of any others for security. Save N/A Click the Save button to save the current configuration. Undo N/A Click the Undo button to restore configuration to previous setting before saving. Apply N/A ...
Page 68: Wireless Client List
Outdoor Cellular Gateway 2.3.2 Wireless Client List The Wireless Client List page shows the information of wireless clients which are associated with this device. Go to Basic Network > WiFi > Wireless Client List Tab. Select Target WiFi Target Configuration Item Value setting Description Select the WiFi module to check the information of connected clients. Module Select A Must filled setting. For those single WiFi module products, this option is hidden. Specify the intended operation band for the WiFi module. Basically, this setting is fixed and cannot be changed once the module is integrated into the product. However, there is some module with selectable Operation Band A Must filled setting. band for user to choose according to his network environment. Under such situation, you can specify which operation band is suitable for the application. 1. A Must filled Specify the VAP to show the associated clients information in the following Client List. By default, All VAP is selected. setting. Multiple AP Names 2. All is selected by default. Show Client List The following Client List shows the information for wireless clients that is associated with the selected VAP(s). Target Configuration Item Value setting ...
Page 69 Outdoor Cellular Gateway Mode N/A It shows what kind of Wi‐Fi system the client used to associate with this device. Rate N/A It shows the data rate between client and this device. RSSI0, RSSI1 N/A It shows the RX sensitivity (RSSI) value for each radio path. Signal N/A The signal strength between client and this device. Interface N/A It shows the VAP ID that the client associated with. Refresh N/A Click the Refresh button to update the Client List immediately. ...
Page 70: Advanced Configuration
Outdoor Cellular Gateway 2.3.3 Advanced Configuration This device provides advanced wireless configuration for professional user to optimize the wireless performance under the specific installation environment. Please note that if you are not familiar with the WiFi technology, just leave the advanced configuration with its default values, or the connectivity and performance may get worse with improper settings. Go to Basic Network > WiFi > Advanced Configuration Tab. Select Target WiFi Target Configuration Item Value setting Description Select the WiFi module to check the information of connected clients. Module Select A Must filled setting. For those single WiFi module products, this option is hidden. Specify the intended operation band for the WiFi module. Basically, this setting is fixed and cannot be changed once the module is Operation Band A Must filled setting. integrated into the product. However, there is some module with selectable band for user to choose according to his network environment. Setup Advanced Configuration ...
Page 71 Outdoor Cellular Gateway Advanced Configuration Item Value setting Description The default setting is It limits the available radio channel of this device. Regulatory Domain according to where The permissible channels depend on the Regulatory Domain. the product sale to It shows the time interval between each beacon packet broadcasted. Beacon Interval 100 The beacon packet contains SSID, Channel ID and Security setting. A DTIM (Delivery Traffic Indication Message) is a countdown informing clients of the next window for listening to broadcast message. When the DTIM Interval 3 device has buffered broadcast message for associated client, it sends the next DTIM with a DTIM value. RTS (Request to send) Threshold means when the packet size is over the setting value, then active RTS technique. RTS Threshold 2347 RTS/CTS is a collision avoidance technique. It means RTS never activated when the threshold is set to 2347. Wireless frames can be divided into smaller units (fragments) to improve Fragmentation 2346 performance in the presence of RF interference at the limits of RF coverage. The box is checked by WMM (Wi‐Fi Multimedia) can help control latency and jitter when WMM default transmitting multimedia content over a wireless connection. Short GI (Guard Interval) is defined to set the sending interval between each By default 400ns is ...
Page 72: Ipv6 (Not Supported)
Outdoor Cellular Gateway 2.4 IPv6 (not supported) Not supported feature for the purchased product, leave it as blank. ...
Page 73: Port Forwarding
Outdoor Cellular Gateway 2.5 Port Forwarding Network address translation (NAT) is a methodology of remapping one IP address space into another by modifying network address information in Internet Protocol (IP) datagram packet headers while they are in transit across a traffic routing device. The technique was originally used for ease of rerouting traffic in IP networks ...
Page 74: Configuration
Outdoor Cellular Gateway 2.5.1 Configuration NAT Loopback This feature allows you to access the WAN global IP address from your inside NAT local network. It is useful when you run a server inside your network. For example, if you set a mail server at LAN side, your local devices can access this mail server through gateway’s global IP address when enable NAT loopback feature. On either side are you in accessing the email server, at the LAN side or at the WAN side, you don’t need to change the IP address of the mail server. Configuration Setting Go to Basic Network > Port Forwarding > Configuration tab. The NAT Loopback allows user to access the WAN IP address from inside your local network. Enable NAT Loopback Configuration Item ...
Page 75: Virtual Server & Virtual Computer
Outdoor Cellular Gateway 2.5.2 Virtual Server & Virtual Computer There are some important Pot Forwarding functions implemented within the gateway, including "Virtual Server", "NAT loopback" and "Virtual Computer". It is necessary for cooperate staffs who travel outside and want to access various servers behind office gateway. You can set up those servers by using "Virtual Server" feature. After trip, if want to access those servers from LAN side by global IP, without change original setting, NAT Loopback can achieve it. ...
Page 76 Outdoor Cellular Gateway Virtual Server & NAT Loopback "Virtual Server" allows you to access servers with the global IP address or FQDN of the gateway as if they are servers existed in the Internet. But in fact, these servers are located in the Intranet and are physically behind the gateway. The gateway serves the service requests by port forwarding the requests to the LAN servers and transfers the replies from LAN servers to the requester on the WAN side. As shown in example, an E‐mail virtual server is defined to be located at a server with IP address 10.0.75.101 in the Intranet of Network‐A, including SMTP ...
Page 77 Outdoor Cellular Gateway Virtual Server & Virtual Computer Setting Go to Basic Network > Port Forwarding > Virtual Server & Virtual Computer tab. Enable Virtual Server and Virtual Computer Configuration Item Value setting Description The box is unchecked by Virtual Server Check the Enable box to activate this port forwarding function default The box is checked by Virtual Computer Check the Enable box to activate this port forwarding function default Save N/A Click the Save button to save the settings. Undo N/A Click the Undo button to cancel the settings. Create / Edit Virtual Server The gateway allows you to custom your Virtual Server rules. It supports up to a maximum of 20 rule‐based Virtual Server sets. ...
Page 78 Outdoor Cellular Gateway Virtual Server Rule Configuration Item Value setting Description Define the selected interface to be the packet‐entering interface of the gateway. If the packets to be filtered are coming from WAN‐x then select WAN‐x for this 1. A Must filled setting field. WAN Interface 2. Default is ALL. Select ALL for packets coming into the gateway from any interface. It can be selected WAN‐x box when WAN‐x enabled. Note: The available check boxes (WAN‐1 ~ WAN‐4) depend on the number of WAN interfaces for the product. This field is to specify the IP address of the interface selected in the WAN Server IP A Must filled setting Interface setting above. When “ICMPv4” is selected It means the option “Protocol” of packet filter rule is ICMPv4. Apply Time Schedule to this rule, otherwise leave it as Always. (refer to Scheduling setting under Object Definition) Then check Enable box to enable this rule. When “TCP” is selected It means the option “Protocol” of packet filter rule is TCP. Public Port selected a predefined port from Well‐known Service, and Private Protocol A Must filled setting Port is the same with Public Port number. Public Port is selected Single Port and specify a port number, and Private Port can be set a Single Port number. Public Port is selected Port Range and specify a port range, and Private Port can be selected Single Port or Port Range. Value Range: 1 ~ 65535 for Public Port, Private Port. When “UDP” is selected ...
Page 79 Outdoor Cellular Gateway Port is the same with Public Port number. Public Port is selected Single Port and specify a port number, and Private Port can be set a Single Port number. Public Port is selected Port Range and specify a port range, and Private Port can be selected Single Port or Port Range. Value Range: 1 ~ 65535 for Public Port, Private Port. When “TCP & UDP” is selected It means the option “Protocol” of packet filter rule is TCP and UDP. Public Port selected a predefined port from Well‐known Service, and Private Port is the same with Public Port number. Public Port is selected Single Port and specify a port number, and Private Port can be set a Single Port number. Public Port is selected Port Range and specify a port range, and Private Port can be selected Single Port or Port Range. Value Range: 1 ~ 65535 for Public Port, Private Port. When “GRE” is selected It means the option “Protocol” of packet filter rule is GRE. When “ESP” is selected It means the option “Protocol” of packet filter rule is ESP. When “SCTP” is selected It means the option “Protocol” of packet filter rule is SCTP. When “User‐defined” is selected It means the option “Protocol” of packet filter rule is User‐defined. For Protocol Number, enter a port number. 1. An optional filled setting Apply Time Schedule to this rule; otherwise leave it as (0)Always. (refer to Time Schedule 2. (0)Always Is selected by Scheduling setting under Object Definition) default. 1. An optional filled setting Rule 2.The box is unchecked by ...
Page 80 Outdoor Cellular Gateway Create / Edit Virtual Computer The gateway allows you to custom your Virtual Computer rules. It supports up to a maximum of 20 rule‐based Virtual Computer sets. When Add button is applied, Virtual Computer Rule Configuration screen will appear. Virtual Computer Rule Configuration Item Value setting Description Global IP A Must filled setting This field is to specify the IP address of the WAN IP. Local IP A Must filled setting This field is to specify the IP address of the LAN IP. Enable N/A Then check Enable box to enable this rule. Save N/A Click the Save button to save the settings. ...
Page 81: Dmz & Pass Through
Outdoor Cellular Gateway 2.5.3 DMZ & Pass Through DMZ (De Militarized Zone) Host is a host that is exposed to the Internet cyberspace but still within the protection of firewall by gateway device. So, the function allows a computer to execute 2‐way communication for Internet games, Video conferencing, Internet telephony and other special applications. In some cases when a specific application is blocked by NAT mechanism, you can indicate that LAN computer as a DMZ host to solve this problem. The DMZ function allows you to ask the gateway pass through all normal packets to the DMZ host behind the ...
Page 82 Outdoor Cellular Gateway VPN Pass through Scenario Since VPN traffic is different from that of TCP or UDP connection, it will be blocked by NAT gateway. To support the pass through function for the VPN connections initiating from VPN clients behind NAT gateway, the gateway must implement some kind of VPN pass through function for such application. The gateway support the pass through function for IPSec, PPTP, and L2TP connections, you just have to check the corresponding checkbox to activate it. DMZ & Pass Through Setting Go to Basic Network > Port Forwarding > DMZ & Pass Through tab. The DMZ host is a host that is exposed to the Internet cyberspace but still within the protection of firewall by gateway device. Enable DMZ and Pass Through Configuration ...
Page 83 Outdoor Cellular Gateway It can be selected WAN‐x box when WAN‐x enabled. Note: The available check boxes (WAN‐1 ~ WAN‐4) depend on the number of WAN interfaces for the product. Pass Through Enable The boxes are checked by Check the box to enable the pass through function for the IPSec, PPTP, and default L2TP. With the pass through function enabled, the VPN hosts behind the gateway still can connect to remote VPN servers. Save N/A Click the Save button to save the settings. Undo N/A Click the Undo button to cancel the settings ...
Page 84: Special Ap & Alg
Outdoor Cellular Gateway 2.5.4 Special AP & ALG As a NAT gateway, it doesn't allow an active connection request from outside world. All this kind of requests will be ignored by the NAT gateway. But at the client hosts in the Intranet, users may use applications that need more service ports to be allowed for passing through the NAT gateway. The "Special AP (application)" feature in the gateway can solve this problem. That is, some applications require multiple connections, like Internet games, Video conferencing, Internet telephony, etc. Because of the firewall function, these applications cannot work with a pure NAT gateway. The Special AP feature allows some of these applications to work with this product. Besides, application‐level gateway (ALG) allows customized NAT traversal filters to be plugged into the gateway to support address and port translation for certain application layer "control/data" protocols such as FTP, BitTorrent, SIP, RTSP, file transfer in IM applications, etc. In order for these protocols to work through NAT or a ...
Page 85 Outdoor Cellular Gateway SIP ALG This gateway supports the SIP ALG feature to allow one SIP phone behind the NAT gateway can call another SIP phone in the Internet, even the gateway executes its NAT mechanism between the Intranet and the Internet. The NAT gateway monitors the control traffic and open up port mappings (firewall pinhole) dynamically as required to know about an address/port number combination that allows incoming packets, so it will support address and port translation for SIP application layer "control/data" protocols as shown in following diagram. The NAT Gateway enables the SIP ALG feature, so it will monitor the SIP Phone #1 actions, ...
Page 86 Outdoor Cellular Gateway Special AP & ALG Setting Go to Basic Network > Port Forwarding > Special AP & ALG tab. The Special AP setting allows some applications require multiple connections. The ALG setting allows user to Support some SIP ALG, like STUN. Enable Special AP & ALG Configuration Item Value setting Description Special AP The box is checked by Check the Enable box to activate the Special AP function. default ALG Enable The box is checked by Check the Enable box to activate the SIP ALG function. default Save N/A Click the Save button to save the settings. Undo N/A Click the Undo button to cancel the settings Create / Edit Special AP Rule The gateway allows you to custom your Special AP rules. It supports up to a maximum of 8 rule‐based Special AP sets. When Add button is applied, Special AP Rule Configuration screen will appear. ...
Page 87 Outdoor Cellular Gateway IP Translation Configuration Item Value setting Description WAN Interface 1. A Must filled setting Check the interface box(es) to apply the Special AP rule. 2.All is checked by default. By default, All is checked, and the Special AP rule will be applied to all WAN interfaces. Trigger Port 1. A Must filled setting Enter the expected trigger port (or port range) if User‐defined is selected in 2.User‐defined is selected the dropdown list. by default. If you select other popular application from the dropdown list, the corresponding trigger port(s) and incoming ports will be defined automatically. Value Range: 1 ~ 65535. Incoming Ports 1. A Must filled setting Enter the expected Incoming ports if User‐defined is selected in the Trigger Port dropdown list. If you select other popular application from the dropdown list, the corresponding incoming ports will be defined automatically. Value Range: 1 ~ 65535; It can be a single port, multiple ports separated by “,”, .or port range. Time Schedule 1. An Must filled setting Apply Time Schedule to this rule, otherwise leave it as Always. 2.(0) Always is selected by If the dropdown list is empty ensure Time Schedule is pre‐configured. Refer default. to Object Definition > Scheduling > Configuration tab. Rule The box is unchecked by ...
Page 88: Ip Translation
Outdoor Cellular Gateway 2.5.5 IP Translation IP Translation is slimier to One‐to‐One NAT. it is a feature where you can configure the gateway with multiple IP addresses issued by your Internet Service Provider (ISP) and map them to individual intranet devices with specific IP addresses. That is, configuring the IP Translation feature creates a one‐to‐one mapping between a public IP address and a private IP address of a local host. In addition, admin users also map a private IP address range to a public IP address range of equal instances. This feature offers another way to make systems behind a firewall and configured with private IP addresses appear to have public IP addresses. As shown in above configuration settings for the VPN gateway at Control Center, the Admin user can access the DNS Server with mapped ...
Page 89 Outdoor Cellular Gateway IP Translation Setting Go to Basic Network > Port Forwarding > IP Translation tab. Enable IP Translation Configuration Item Value setting Description IP Translation The box is unchecked by Check the Enable box to activate the IP translation function default Save N/A Click the Save button to save the settings. Create / Edit IP Translation Rule When Add button is applied, IP Translation Configuration screen will appear. IP Translation Configuration Item Value setting Description Mapping Source 1. A Must filled setting Specify the mapped IP / Domain Name that will be issued from the hosts IP/Domain Name 2.IP is selected by default. behind the NAT gateway. The NAT gateway will translate the specified source IP/Domain Name into other real IP / Domain Name that might be in the Internet or Intranet. ...
Page 90 Outdoor Cellular Gateway Mask 1. A Must filled setting Enter the required subnet mask if Source IP is specified above. 2.255.255.255.255(/32) is It can be a single IP with 255.255.255.255 (/32) subnet mask, or an IP group selected by default. limited with proper subnet setting. Mapping 1. A Must filled setting Specify the expected real target IP / Domain Name that will be used to Destination 2.IP is selected by default. replace the original one that is issued by the hosts behind the NAT gateway. IP/Domain Name Mask 1. A Must filled setting Enter the required subnet mask if Destination IP is specified above. 2.255.255.255.255(/32) is It can be a single IP with 255.255.255.255 (/32) subnet mask, or an IP group selected by default. limited with proper subnet setting. Physical Interface 1. A Must filled setting Specify the interface to apply the translation rule. The enabled WAN 2.All is selected by default. Interface will be available in the dropdown list. By default, All is selected, and the translation rule will be applied to the traffics passing through all WAN interfaces. Description An optional setting. Specify a brief description or rule name for this IP Translation rule. Enable The box is unchecked by Check the Enable box to activate the translation rule. default Save N/A Click the Save button to save the settings. Undo ...
Page 91: Routing
Outdoor Cellular Gateway 2.6 Routing If you have more than one router and subnet, you will need to enable routing function to allow packets to find proper routing path and allow different subnets to communicate with each other. Routing is the process of selecting best paths in a network. It is performed for many kinds of networks, like electronic data networks (such as the Internet), by using packet switching technology. The routing process usually directs forwarding on ...
Page 92: Static Routing
Outdoor Cellular Gateway 2.6.1 Static Routing "Static Routing" function lets you define the routing paths for some dedicated hosts/servers or subnets to store in the routing table of the gateway. The gateway routes incoming packets to different peer gateways based on the routing table. You need to define the static routing information in gateway routing rule list. When the administrator of the gateway wants to specify ...
Page 93 Outdoor Cellular Gateway Static Routing Setting Go to Basic Network > Routing > Static Routing Tab. There are three configuration windows for static routing feature, including "Configuration", "Static Routing Rule List" and "Static Routing Rule Configuration" windows. "Configuration" window lets you activate the global static routing feature. Even there are already routing rules, if you want to disable routing temporarily, just uncheck the Enable box to disable it. "Static Routing Rule List" window lists all your defined static routing rule entries. Using "Add" or "Edit" button to add and create one new static routing rule or to modify an existed one. ...
Page 94 Outdoor Cellular Gateway of each static routing rule can let you modify the rule. IPv4 Static Routing Item Value setting Description 1. IPv4 Format Destination IP Specify the Destination IP of this static routing rule. 2. A Must filled setting 255.255.255.0 (/24) is set by Subnet Mask Specify the Subnet Mask of this static routing rule. default 1. IPv4 Format Gateway IP Specify the Gateway IP of this static routing rule. 2. A Must filled setting Select the Interface of this static routing rule. It can be Auto, or the available Interface Auto is set by default WAN / LAN interfaces. 1. Numberic String Format The Metric of this static routing rule. Metric 2. A Must filled setting Value Range: 0 ~ 255. The box is unchecked by Rule Click Enable box to activate this rule. default. Save NA Click the Save button to save the configuration Click the Undo button to restore what you just configured back to the previous Undo NA setting. ...
Page 95: Dynamic Routing
Outdoor Cellular Gateway 2.5.2 Dynamic Routing Dynamic Routing, also called adaptive routing, describes the capability of a system, through which routes are characterized by their destination, to alter the path that the route takes through the system in response to a change in network conditions. This gateway supports dynamic routing protocols, including RIPv1/RIPv2 (Routing Information Protocol), OSPF (Open Shortest Path First), and BGP (Border Gateway Protocol), for you to establish routing table automatically. The feature of dynamic routing will be very useful when there are lots of subnets in your network. ...
Page 96 Outdoor Cellular Gateway RIP Scenario The Routing Information Protocol (RIP) is one of the oldest distance‐vector routing protocols, which employs the hop count as a routing metric. RIP prevents routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The maximum number of hops allowed for RIP is 15. This hop limit, however, also limits the size of networks that RIP can support. A hop count of ...
Page 97 Outdoor Cellular Gateway BGP Scenario Border Gateway Protocol (BGP) is a standard exterior gateway protocol designed to exchange routing and reachability information between autonomous systems (AS) on the Internet. It usually makes routing decisions based on paths, network policies, or rule‐sets. Most ISPs use BGP to establish routing between one another (especially for multi‐homed). Very large private IP networks also use BGP internally. The major BGP gateway ...
Page 98 Outdoor Cellular Gateway Dynamic Routing Setting Go to Basic Network > Routing > Dynamic Routing Tab. The dynamic routing setting allows user to customize RIP, OSPF, and BGP protocol through the router based on their office setting. In the "Dynamic Routing" page, there are several configuration windows for dynamic routing feature. They are the "RIP Configuration" window, "OSPF Configuration" window, "OSPF Area List", "OSPF Area Configuration", "BGP Configuration", "BGP Neighbor List" and "BGP Neighbor Configuration" window. RIP, OSPF and BGP protocols can be configured individually. The "RIP Configuration" window lets you choose which version of RIP protocol to be activated or disable it. The "OSPF Configuration" window can let you activate the OSPF dynamic routing protocol and specify its backbone ...
Page 99 Outdoor Cellular Gateway OSPF Configuration Item Value setting Description OSPF Disable is set by default Click Enable box to activate the OSPF protocol. 1. IPv4 Format Router ID The Router ID of this router on OSPF protocol 2. A Must filled setting The Authentication method of this router on OSPF protocol. Select None will disable Authentication on OSPF protocol. Select Text will enable Text Authentication with entered the Key in this field on Authentication None is set by default OSPF protocol. Select MD5 will enable MD5 Authentication with entered the ID and Key in these fields on OSPF protocol. 1. Classless Inter Domain Routing (CIDR) Subnet Backbone Mask Notation. (Ex: The Backbone Subnet of this router on OSPF protocol. Subnet 192.168.1.0/24) 2. A Must filled setting Create / Edit OSPF Area Rules The gateway allows you to custom your OSPF Area List rules. It supports up to a maximum of 32 rule sets. When Add button is applied, OSPF Area Rule Configuration screen will appear. ...
Page 100 Outdoor Cellular Gateway OSPF Area Configuration Item Value setting Description 1. Classless Inter Domain Routing (CIDR) Subnet Area Subnet Mask Notation. (Ex: The Area Subnet of this router on OSPF Area List. 192.168.1.0/24) 2. A Must filled setting 1. IPv4 Format Area ID The Area ID of this router on OSPF Area List. 2. A Must filled setting The box is unchecked by Area Click Enable box to activate this rule. default. Save N/A Click the Save button to save the configuration ...
Page 101 Outdoor Cellular Gateway BGP Configuration The BGP configuration setting allows user to customize BGP protocol through the router setting. BGP Network Configuration Item Value setting Description BGP The box is unchecked by Check the Enable box to activate the BGP protocol. default ASN 1. Numberic String Format The ASN Number of this router on BGP protocol. 2. A Must filled setting Value Range: 1 ~ 4294967295. Router ID 1. IPv4 Format The Router ID of this router on BGP protocol. 2. A Must filled setting Create / Edit BGP Network Rules The gateway allows you to custom your BGP Network rules. It supports up to a maximum of 32 rule sets. When Add button is applied, BGP Network Configuration screen will appear. Item Value setting Description Network Subnet 1. IPv4 Format The Network Subnet of this router on BGP Network List. It composes of entered ...
Page 102 Outdoor Cellular Gateway 2. A Must filled setting the IP address in this field and the selected subnet mask. The box is unchecked by Network Click Enable box to activate this rule. default. Save N/A Click the Save button to save the configuration Create / Edit BGP Neighbor Rules The gateway allows you to custom your BGP Neighbor rules. It supports up to a maximum of 32 rule sets. When Add button is applied, BGP Neighbor Configuration screen will appear. BGP Neighbor Configuration Item Value setting Description 1. IPv4 Format Neighbor IP The Neighbor IP of this router on BGP Neighbor List. 2. A Must filled setting 1. Numberic String Format The Remote ASN of this router on BGP Neighbor List. Remote ASN 2. A Must filled setting Value Range: 1 ~ 4294967295. The box is unchecked by Neighbor Click Enable box to activate this rule. default. Save N/A Click the Save button to save the configuration ...
Page 103: Routing Information
Outdoor Cellular Gateway 2.6.3 Routing Information . The routing information allows user to view the routing table Go to Basic Network > Routing > Routing Information Tab. Routing Table Item Value setting Description Destination IP N/A Routing record of Destination IP. IPv4 Format. Subnet Mask N/A Routing record of Subnet Mask. IPv4 Format. Gateway IP N/A Routing record of Gateway IP. IPv4 Format. Metric N/A Routing record of Metric. Numeric String Format. Interface N/A Routing record of Interface Type. String Format. ...
Page 104: Dns & Ddns
Outdoor Cellular Gateway 2.7 DNS & DDNS How does user access your server if your WAN IP address changes all the time? One way is to register a new domain name, and maintain your own DNS server. Another simpler way is to apply a domain name to a third‐ party DDNS service provider. The service can be free or charged. If you want to understand the basic concepts of DNS and Dynamic DNS, you can refer to Wikipedia website . 2.7.1 DNS & DDNS Configuration DNS The gateway supports DNS server function for the connected local clients which get the LAN IP from dynamic IP scheme. So, you can create a private host list for easily access the hosts / servers in your intranet with corresponding domain names. As the configuration setting in above diagram, instead of access 10.0.75.2, you can access your File Server with its domain name db.network‐a.b.com in your intranet. ...
Page 105 Outdoor Cellular Gateway Dynamic DNS To host your server on a changing IP address, you have to use dynamic domain name service (DDNS). Therefore, anyone wishing to reach your host only needs to know the domain name. Dynamic DNS will map the name of your host to your current IP address, which changes each time you connect your ...
Page 106 Outdoor Cellular Gateway DNS & DDNS Setting Go to Basic Network > DNS & DDNS > Configuration Tab. The DNS & DDNS setting allows user to create/modify pre‐defined domain name list and setup Dynamic DNS feature. Create / Edit Pre‐defined Domain Name List The gateway allows you to custom your pre‐defined domain name list. It supports up to a maximum of 128 sets. When Add button is applied, Pre‐defined Domain Name Configuration screen will appear. Pre‐defined Domain Name Configuration Item Value setting Description 1. String format can be any Enter a domain name that mapping the IP Address. Domain Name text Value Range: at least 1 character is required. 2. A Must filled setting 1. IPv4 format IP Address Enter a IP Address that mapping the Domain Name. 2. A Must filled setting Definition The box is unchecked by Click Enable box to activate this rule. Enable default. Save N/A Click Save to save the settings ...
Page 107 Outdoor Cellular Gateway Setup Dynamic DNS The gateway allows you to custom your Dynamic DNS settings. DDNS (Dynamic DNS) Configuration Item Value setting Description The box is unchecked by DDNS Check the Enable box to activate this function. default WAN Interface WAN 1 is set by default Select the WAN Interface IP Address of the gateway. DynDNS.org (Dynamic) is Select your DDNS provider of Dynamic DNS. It can be DynDNS.org(Dynamic), Provider set by default DynDNS.org(Custom), NO‐IP.com, etc... 1. String format can be any Your registered host name of Dynamic DNS. Host Name text Value Range: 0 ~ 63 characters. 2. A Must filled setting 1. String format can be any User Name / E‐ text Enter your User name or E‐mail addresss of Dynamic DNS. Mail 2. A Must filled setting 1. String format can be any Password / Key text Enter your Password or Key of Dynamic DNS. 2. A Must filled setting Save ...
Page 108 Outdoor Cellular Gateway Setup DNS Redirect DNS redirect is a special function to redirect certain traffics to a specified host. Administator can manage the internet / intranet traffics that are going to access some restricted DNS and force those traffics to be redirected to a specified host. DNS Redirect Configuration Item Value setting Description The box is unchecked by DNS Redirect Check the Enable box to activate this function. default The box is unchecked by LAN Interface Select the expected source Interface that can be applied with this function. default Save N/A Click Save to save the settings Undo N/A Click Undo to cancel the settings If you enabled the DNS Redirect function, you have to further specify the redirect rules. According to the rules, the gateway can redirect the traffic that matched the DNS to corresponding pre‐defined IP address. When Add button is applied, Redirect Rule screen will appear. ...
Page 109 Outdoor Cellular Gateway Redirect Rule Configuration Item Value setting Description 1. String format can be any Enter a domain name to be redirect. The traffic to specified domain name will Domain Name text be redirect to the following IP address. 2. A Must filled setting Value Range: at least 1 character is required; ‘*’ for any. 1. IPv4 format IP Enter an IP Address as the target for the DNS redirect. 2. A Must filled setting Specify when will the DNS redirect action can be applied. It can be Always, or WAN Block. 1. A Must filled setting Condition 2. Always is selected by Always: The DNS redirect function can be applied to matched DNS all the time. default. WAN Block: The DNS redirect function can be applied to matched DNS only when the WAN connection is disconneced, or un‐reachable. 1. String format can be any Enter a brief description for this rule. Description text Value Range: 0 ~ 63 characters. 2. A Must filled setting The box is unchecked by Enable Click the Enable button to activate this rule. default Save N/A Click Save to save the settings Undo N/A ...
Page 110: Qos
To utilize your network throughput completely, administrator must define bandwidth control rules carefully to balance the utilization of network bandwidth for all users to access. It is indeed required that an access gateway satisfies the requirements of latency‐critical applications, minimum access right guarantee, fair bandwidth usage for same subscribed condition and flexible bandwidth management. AMIT Security Gateway provides a Rule‐based QoS to carry out the requirements. 2.8.1 QoS Configuration This gateway provides lots of flexible rules for you to set QoS policies. Basically, you need to know three parts of information before you create your own policies. First, “who” needs to be managed? Second, “what” kind of ...
Page 111 Outdoor Cellular Gateway In above diagram, a QoS rule is organized by the premise part and the conclusion part. In the premise part, you must specify the WAN interface, host group, service type in the packets, packet flow direction to be watched and the sharing method of group control or individual control. However, in the conclusion part, you must make sure which kind of system resource to distribute and the control function based on the chosen system resource for the rule. ...
Page 112 Outdoor Cellular Gateway For bandwidth resource, control functions include guaranteeing bandwidth and limiting bandwidth. For priority queue resource, control function is setting priority. For DSCP resource, control function is DSCP marking. The last resource is Connection Sessions; the related control function is limiting connection sessions. Individual / Group Control One QoS rule can be applied to individual member or whole group in the target group. This feature depends on model. Outbound / Inbound Control One QoS rule can be applied to the outbound or inbound direction of packet flow, even them both. This feature depends on model. ...
Page 113 Outdoor Cellular Gateway QoS Rule Example #2 – DifferServ Code Points When the administrator of the gateway wants to convert the code point value, "IP Precedence 4(CS4)", in the packets from some client hosts (IP 10.0.75.196~199) to the code value, "AF Class2(High Drop)", he can use the "Rule‐based QoS" function to carry out this rule by defining an QoS rule as shown in above configuration. Under such configuration, all packets from WAN interfaces ...
Page 114 Outdoor Cellular Gateway QoS Configuration Setting Go to Basic Network > QoS > Configuration tab. In "QoS Configuration" page, there are some configuration windows for QoS function. They are the "Configuration" window, “System Resource Configuration” window, "QoS Rule List" window, and "QoS Rule Configuration" window. The "Configuration" window can let you activate the Rule‐based QoS function. In addition, you can also enable the "Flexible Bandwidth Management" (FBM) feature for better utilization of system bandwidth by FBM algorithm. Second, the “System Configuration” window can let you configure the total bandwidth and session ...
Page 115 Outdoor Cellular Gateway Setup System Resource System Resource Configuration Item Value Setting Description Define the system queues that are available for the QoS settings. 1. A Must filled setting. Type of System The supported type of system queues are Bandwidth Queue and Priority 2. Bandwidth Queue, Queue Queues. and 6 are set by default. Value Range: 1 ~ 6. Select the WAN interface and then the following WAN Interface Resource screen will show the related resources for configuration.  Bandwidth of Upstream / Downstream Specify total upload / download bandwidth of the selected WAN. Value Range: WAN‐1 is selected by For Gigabit Ethernet:1~1024000Kbps, or 1~1000Mbps; WAN Interface default. For Fast Ethernet: 1~102400Kbps, or 1~100Mbps; ...
Page 116 Outdoor Cellular Gateway Create / Edit QoS Rules After enabled the QoS function and configured the system resources, you have to further specify some QoS rules for provide better service on the interested traffics. The gateway supports up to a maximum of 128 rule‐ based QoS rule sets. When Add button is applied, QoS Rule Configuration screen will appear. QoS Rule Configuration Item Value setting Description Interface 1. A Must filled Specify the WAN interface to apply the QoS rule. setting. Select All WANs or a certain WAN‐n to filter the packets entering to or leaving 2. All WANs is from the interface(s). selected by default. Group 1. A Must filled Specify the Group category for the QoS rule. It can be Src. MAC Address, IP, or setting. Host Name. 2. Src. MAC Address is selected by default. Select Src. MAC Address to prioritize packets based on MAC; Select IP to prioritize packets based on IP address and Subnet Mask; Select Host Name to prioritize packets based on a group of a pre‐configured group of host from the dropdown list. If the dropdown list is empty, ensure if any ...
Page 117 Outdoor Cellular Gateway Group option become available. Refer to Object Definition > Grouping > Host Grouping. Service 1. A Must filled Specify the service type of traffics that have to be applied with the QoS rule. It setting. can be All, DSCP, TOS, User‐defined Service, or Well‐known Service. 2. All is selected by default. Select All for all packets. Select DSCP for DSCP type packets only. Select TOS for TOS type packets only. You have to select a service type (Minimize‐Cost, Maximize‐Reliability, Maximize‐Throughput, or Minimize‐ Delay) from the dropdown list as well. Select User‐defined Service for user‐defined packets only. You have to define the port range and protocol as well. Select Well‐known Service for specific application packets only. You have to select the required service from the dropdown list as well. Resource, and A Must filled setting Specify the Resource Type and corresponding Control function for the QoS rule. Control Function The available Resource options are Bandwidth, Connection Sessions, Priority Queues, and DiffServ Codepoints. Bandwidth: Select Bandwidth as the resource type for the QoS Rule, and you have to assign the min rate, max rate and rate unit as the bandwidth settings in the Control Function / Set MINR & MAXR field. Connection Sessions: Select Connection Sessions as the resource type for the QoS Rule, and you have to assign supported session number in the Control Function / Set Session Limitation field. ...
Page 118 Outdoor Cellular Gateway setting. selected group. It can be Individual Control or Group Control. 2. Group Control is selected by default. Individual Control: If Individual Control is selected, each host in the group will have his own QoS service resource as specified in the rule. Group Control: If Group Control is selected, all the group hosts share the same QoS service resource. 1. A Must filled Apply Time Schedule to this rule; otherwise leave it as (0) Always. (refer to setting. Object Definition > Scheduling > Configuration settings) Time Schedule 2. (0) Always is selected by default. The box is unchecked Click Enable box to activate this QoS rule. Rule Enable by default. Save N/A Click the Save button to save the settings. ...
Page 119: Chapter 3 Object Definition
Outdoor Cellular Gateway Chapter 3 Object Definition 3.1 Scheduling Scheduling provides ability of adding/deleting time schedule rules, which can be applied to other functionality. 3.1.1 Scheduling Configuration Go to Object Definition > Scheduling > Configuration tab. Button description Item Value setting Description Add N/A Click the Add button to configure time schedule rule Delete N/A Click the Delete button to delete selected rule(s) When Add button is applied, Time Schedule Configuration and Time Period Definition screens will appear. Time Schedule Configuration Item Value Setting Description Rule Name String: any text Set rule name Rule Policy Default Inactivate Inactivate/activate the function been applied to in the time period below ...
Page 120 Outdoor Cellular Gateway Time Period Definition Item Value Setting Description Week Day Select from menu Select everyday or one of weekday Start Time Time format (hh :mm) Start time in selected weekday End Time Time format (hh :mm) End time in selected weekday Save N/A Click Save to save the settings Undo N/A Click Undo to cancel the settings Refresh N/A Click the Refresh button to refresh the time schedule list. ...
Page 121: User
Outdoor Cellular Gateway 3.2 User You can manage user account in this section, including user list, user profile and user group. User List shows out all user accounts, and User Profile can let you add one new account or edit it. User Group offers you to collect several user accounts to one group to own same properties and bound services. Certainly, one individual user account also can be a unique group, like “Administrator” group. User account database is embedded in the device and accessible by the AAA server, like RADIUS, for user authentication. So, it has the following feature set. ...
Page 122 Outdoor Cellular Gateway Edit: Click on the button to edit the user profile. Disable: Click the button to disable the user account. Logout: Click the button to logout the user account. Detail: Click the button to show additional detail information except the ones in User List about the user account, including Last Login Time, Lease Time, Expired Time, Idle Timeout and current Idle Time. Select: Select the user account to delete. When the Add button is applied, User Profile Configuration screen will appear. For the detail about the configuration, please refer to the next section for User Profile. ...
Page 123: User Profile
Outdoor Cellular Gateway 3.2.2 User Profile User Profile supports the adding of one new user account or the editing of existed user profiles. There are some parameters need to be specified in one user profile. They are User Name, Password, User Level, Lease Time, Idle Timeout, Group to, and the user profile enable. Go to Object Definition > User > User Profile tab. User Profile Configuration Item Value setting Description 1. String format can User Name be any text Enter the name of user account. 2. A Must filled setting 1. String format can Password be any text Enter the password of user account. ...
Page 124 Outdoor Cellular Gateway be any integer The device will logout the user account if he is idle for the time longer than the number. Idle Timeout. 2. An Optional setting 1. String format can Group to be any text Enter a group name if you would like to collect the user in a certain user group. 2. An Optional setting 1. The box is checked Profile by default. Check the Enable box to activate the user profile. 2. A Must filled setting Save N/A Click the Save button to save the settings Undo N/A Click the Undo button to cancel the settings ...
Page 125: User Group
Outdoor Cellular Gateway 3.2.3 User Group User Group supports the grouping of several user accounts to be one user group with common properties. There are some parameters need to be specified in one user group. They are Group Name, Group Members, Bound Services, QoS&BWM Property, Policy Routing Property and finally, the user group enable. . Go to Object Definition > User > User Group tab. When the Add button is applied, User Group Configuration screen will appear. User Profile Configuration Item Value setting Description 1. String format can Enter the name of user group. Group Name be any text Value Range: at least 1 character, ‘A’ ~ ’Z’, ‘a’ ~ ’z’, and ‘0’ ~ ’9’ are valid; 2. A Must filled setting Multiple User N/A Click the Choice button to select multiple user accounts to join the group. Members Multiple Bound ...
Page 126 Outdoor Cellular Gateway same QoS service resource. 1. A Must filled setting. Policy Routing Specify the routing interface. All packets from the group members will be routed Property 2. WAN‐1 is selected via the specified interface. by default. 1. The box is checked Group by default. Check the Enable box to activate the user group. 2. A Must filled setting Save N/A Click the Save button to save the settings Undo N/A Click the Undo button to cancel the settings ...
Page 127: Grouping
Outdoor Cellular Gateway 3.3 Grouping The Grouping function allows user to make group for some services. 3.3.1 Host Grouping Go to Object Definition > Grouping > Host Grouping tab. The Host Grouping function allows user to make host group for some services, such as QoS, Firewall, and Communication Bus. The supported service types could be different for the purchased product. When Add button is applied, Host Group Configuration screen will appear. Host Group Configuration Item Value setting Description 1. String format can Group Name be any text ...
Page 128 Outdoor Cellular Gateway 2. A Must filled setting When IP Address‐based is selected, only IP address can be added in Member to Join. When MAC Address‐based is selected, only MAC address can be added in Member to Join. When Host Name‐based is selected, only host name can be added in Member to Join. Add the members to the group in this field. You can enter the member information as specified in the Member Type above, Member to Join N/A and press the Join button to add. Only one member can be add at a time, so you have to add the members to the group one by one. The box is unchecked Check the Enable checkbox to activate the host group rule. So that the group Group by default can be bound to selected service(s) for further configuration. Save N/A Click Save to save the settings Undo N/A Click Undo to cancel the settings ...
Page 129: External Server
Outdoor Cellular Gateway 3.4 External Server Go to Object Definition > External Server > External Server tab. The External Server setting allows user to add external server. Create External Server When Add button is applied, External Server Configuration screen will appear. ...
Page 130 Outdoor Cellular Gateway External Server Configuration Item Value setting Description 1. String format can be Sever Name any text Enter a server name. Enter a name that is easy for you to understand. 2. A Must filled setting Specify the Server Type of the external server, and enter the required settings for the accessing the server. Email Server (A Must filled setting) : When Email Server is selected, User Name, and Password are also required. User Name (String format: any text) Password (String format: any text) RADIUS Server (A Must filled setting) : When RADIUS Server is selected, the following settings are also required. Primary : Shared Key (String format: any text) Authentication Protocol (By default CHAP is selected) Session Timeout (By default 1) The values must be between 1 and 60. Idle Timeout: (By default 1) The values must be between 1 and 15. Secondary : Shared Key (String format: any text) Authentication Protocol (By default CHAP is selected) Session Timeout (By default 1) Server Type A Must filled setting The values must be between 1 and 60. Idle Timeout: (By default 1) The values must be between 1 and 15. Active Directory Server (A Must filled setting) : When Active Directory Server is selected, Domain setting is also required. Domain (String format: any text) LDAP Server (A Must filled setting) : When LDAP Server is selected, the following settings are also required. Base DN (String format: any text) ...
Page 131 Outdoor Cellular Gateway TACACS+ Server (A Must filled setting) : When TACACS+ Server is selected, the following settings are also required. Shared Key (String format: any text) Session Timeout (String format: any number) The values must be between 1 and 60. SCEP Server (A Must filled setting) : When SCEP Server is selected, the following settings are also required. Path (String format: any text, By default cgi‐bin is filled) Application (String format: any text, By default pkiclient.exe is filled) FTP(SFTP) Server (A Must filled setting) : When FTP(SFTP) Server is selected, the following settings are also required. User Name (String format: any text) Password (String format: any text) Protocol (Select FTP or SFTP) Encryprion (Select Plain, Explicit FTPS or Implicit FTPS) Transfer mode (Select Passive or Active) Server IP/FQDN A Must filled setting Specify the IP address or FQDN used for the external server. Specify the Port used for the external server. If you selected a certain server type, the default server port number will be set. For Email Server 25 will be set by default; For Syslog Server, port 514 will be set by default; For RADIUS Server, port 1812 will be set by default; For Active Directory Server, port 389 will be set by default; Server Port A Must filled setting For LDAP Server, port 389 will be set by default; For UAM Server, port 80 will be set by default; For TACACS+ Server, port 49 will be set by default; For SCEP Server, port 80 will be set by default; For FTP(SFTP) Server, port 21 will be set by default; Value Range: 1 ~ 65535. Specify the accounting port used if you selected external RADIUS server. 1. A Must filled setting Account Port 2. 1813 is set by default Value Range: 1 ~ 65535. The box is checked by ...
Page 132: Certificate
Outdoor Cellular Gateway 3.5 Certificate In cryptography, a public key certificate (also known as a digital certificate or identity certificate) is an electronic document used to prove ownership of a public key. The certificate includes information about the key, information about its owner's identity, and the digital signature of an entity that has verified the certificate's contents are genuine. If the signature is valid, and the person examining the certificate trusts the ...
Page 133 Outdoor Cellular Gateway Root CA Certificate Configuration Item Value setting Description 1. String format can be any Name text Enter a Root CA Certificate name. It will be a certificate file name 2. A Must filled setting This field is to specify the key attribute of certificate. Key Type to set public‐key cryptosystems. It only supports RSA now. Key Length to set s the size measured in bits of the key used in a cryptographic Key A Must filled setting algorithm. Digest Algorithm to set identifier in the signature algorithm identifier of certificates This field is to specify the information of certificate. Country(C) is the two‐letter ISO code for the country where your organization is located. State(ST) is the state where your organization is located. Subject Name A Must filled setting Location(L) is the location where your organization is located. Organization(O) is the name of your organization. Organization Unit(OU) is the name of your organization unit. Common Name(CN) is the name of your organization. Email is the email of your organization. It has to be email address style. Validity Period A Must filled setting This field is to specify the validity period of certificate. ...
Page 134 Outdoor Cellular Gateway Setup SCEP SCEP Configuration Item Value setting Description The box is unchecked by SCEP Check the Enable box to activate SCEP function. default When SCEP is activated, check the Enable box to activate this function. Automatically The box is unchecked by re‐enroll aging It will be automatically check which certificate is aging. If certificate is aging, it default certificates will activate SCEP function to re‐enroll automatically. Save N/A Click Save to save the settings Undo N/A Click Undo to cancel the settings ...
Page 135: My Certificate
Outdoor Cellular Gateway 3.5.2 My Certificate My Certificate includes a Local Certificate List. Local Certificate List shows all generated certificates by the root CA for the gateway. And it also stores the generated Certificate Signing Requests (CSR) which will be signed by other external CAs. The signed certificates can be imported as the local ones of the gateway. Self‐signed Certificate Usage Scenario Scenario Application Timing When the enterprise gateway owns the root CA and VPN tunneling function, it can generate its own local certificates by being signed by itself or import any local certificates that are signed by other external CAs. Also import the trusted certificates for other CAs and Clients. In addition, since it has the root CA, it also can sign Certificate Signing Requests (CSR) to form corresponding certificates for others. These certificates can be used for two remote peers to make sure their identity during establishing a VPN tunnel. Scenario Description Gateway 1 generates the root CA and a local certificate (HQCRT) signed by itself. Import a trusted certificate (BranchCRT) –a BranchCSR certificate of Gateway 2 signed by root CA of Gateway 1. Gateway ...
Page 136 Following tables list the parameter configuration as an example for the "My Certificate" function used in the user authentication of IPSec VPN tunnel establishing, as shown in above diagram. The configuration example must be combined with the ones in following two sections to complete the whole user scenario. Use default value for those parameters that are not mentioned in the tables. Configuration Path [My Certificate]‐[Root CA Certificate Configuration] HQRootCA Name Key Type: RSA Key Length: 1024‐bits Key Country(C): TW State(ST): Taiwan Location(L): Tainan Subject Name Organization(O): AMITHQ Organization Unit(OU): HQRD Common Name(CN): HQRootCA E‐mail: hqrootca@amit.com.tw Configuration Path [My Certificate]‐[Local Certificate Configuration] HQCRT Self‐signed: ■ Name Key Type: RSA Key Length: 1024‐bits Key Country(C): TW State(ST): Taiwan Location(L): Tainan Subject Name Organization(O): AMITHQ Organization Unit(OU): HQRD Common Name(CN): HQCRT E‐mail: hqcrt@amit.com.tw Configuration Path [IPSec]‐[Configuration] ■...
Page 137 Following tables list the parameter configuration as an example for the "My Certificate" function used in the user authentication of IPSec VPN tunnel establishing, as shown in above diagram. The configuration example must be combined with the ones in following two sections to complete the whole user scenario. Use default value for those parameters that are not mentioned in the tables. [My Certificate]‐[Local Certificate Configuration] Configuration Path BranchCRT Self‐signed: □ Name Key Type: RSA Key Length: 1024‐bits Key Country(C): TW State(ST): Taiwan Location(L): Tainan Subject Name Organization(O): AMITBranch Organization Unit(OU): BranchRD Common Name(CN): BranchCRT E‐mail: branchcrt@amit.com.tw [IPSec]‐[Configuration] Configuration Path ■ Enable IPSec Configuration Path [IPSec]‐[Tunnel Configuration] ■ Enable Tunnel s2s‐102 Tunnel Name WAN 1 Interface ...
Page 138 Outdoor Cellular Gateway 255.255.255.0 Remote Netmask 203.95.80.22 Remote Gateway [IPSec]‐[Authentication] Configuration Path IKE+X.509 Local Certificate: BranchCRT Remote Certificate: HQCRT Key Management User Name Network‐B Local ID User Name Network‐A Remote ID Configuration Path [IPSec]‐[IKE Phase] Negotiation Mode Main Mode None X‐Auth Scenario Operation Procedure In above diagram, "Gateway 1" is the gateway of Network‐A in headquarters and the subnet of its Intranet is 10.0.76.0/24. It has the IP address of 10.0.76.2 for LAN interface and 203.95.80.22 for WAN‐1 interface. "Gateway 2" is the gateway of Network‐B in branch office and the subnet of its ...
Page 139 Outdoor Cellular Gateway My Certificate Setting Go to Object Definition > Certificate > My Certificate tab. The My Certificate setting allows user to create local certificates. In "My Certificate" page, there are two configuration windows for the "My Certificate" function. The "Local Certificate List" window shows the stored certificates or CSRs for representing the gateway. The "Local Certificate Configuration" window can let you fill required information necessary for corresponding certificate to be generated by itself, or corresponding CSR to be signed by other CAs. Create Local Certificate When Add button is applied, Local Certificate Configuration screen will appear. The required information to be filled for the certificate or CSR includes the name, key and subject name. It is a certificate if the "Self-signed" box is checked;...
Page 140 Outdoor Cellular Gateway Local Certificate Configuration Item Value setting Description Name 1. String format can be any Enter a certificate name. It will be a certificate file name text If Self‐signed is checked, it will be signed by root CA. If Self‐signed is not 2. A Must filled setting checked, it will generate a certificate signing request (CSR). Key A Must filled setting This field is to specify the key attributes of certificate. Key Type to set public‐key cryptosystems. Currently, only RSA is supported. Key Length to set the length in bits of the key used in a cryptographic algorithm. It can be 512/768/1024/1536/2048. Digest Algorithm to set identifier in the signature algorithm identifier of certificates. It can be MD5/SHA‐1. Subject Name A Must filled setting This field is to specify the information of certificate. Country(C) is the two‐letter ISO code for the country where your organization is located. State(ST) is the state where your organization is located. Location(L) is the location where your organization is located. Organization(O) is the name of your organization. Organization Unit(OU) is the name of your organization unit. Common Name(CN) is the name of your organization. Email is the email of your organization. It has to be email address setting only. Extra Attributes A Must filled setting This field is to specify the extra information for generating a certificate. Challenge Password for the password you can use to request certificate revocation in the future. ...
Page 141 Outdoor Cellular Gateway Import Item Value setting Description Import A Must filled setting Select a certificate file from user’s computer, and click the Apply button to import the specified certificate file to the gateway. PEM Encoded 1. String format can be any This is an alternative approach to import a certificate. text You can directly fill in (Copy and Paste) the PEM encoded certificate string, and 2. A Must filled setting click the Apply button to import the specified certificate to the gateway. Apply N/A Click the Apply button to import the certificate. Cancel N/A Click the Cancel button to discard the import operation and the screen will return to the My Certificates page. ...
Page 142: Trusted Certificate
Outdoor Cellular Gateway 3.5.3 Trusted Certificate Trusted Certificate includes Trusted CA Certificate List, Trusted Client Certificate List, and Trusted Client Key List. The Trusted CA Certificate List places the certificates of external trusted CAs. The Trusted Client Certificate List places the others' certificates what you trust. And the Trusted Client Key List places the others’ keys what you trusted. Self‐signed Certificate Usage Scenario Scenario Application Timing (same as the one described in "My Certificate" section) When the enterprise gateway owns the root CA and VPN tunneling function, it can generate its own local certificates by being signed by itself. Also imports the trusted certificates for other CAs and Clients. ...
Page 143 Outdoor Cellular Gateway For Network‐A at HQ Following tables list the parameter configuration as an example for the "Trusted Certificate" function used in the user authentication of IPSec VPN tunnel establishing, as shown in above diagram. The configuration example must be combined with the ones in "My Certificate" and "Issue Certificate" sections to complete the setup for the whole user scenario. [Trusted Certificate]‐[Trusted Client Certificate List] Configuration Path Import Command Button [Trusted Certificate]‐[Trusted Client Certificate Import from a File] Configuration Path ...
Page 144 Outdoor Cellular Gateway Import the obtained BranchCRT certificate (the derived BranchCSR certificate after Gateway 1’s root CA signature) into the "Trusted Client Certificate List" of the Gateway 1 and the "Local Certificate List" of the Gateway 2. For more details, refer to the Network‐B operation procedure in "My Certificate" section of this manual. Gateway 2 can establish an IPSec VPN tunnel with "Site to Site" scenario and IKE and X.509 protocols to Gateway 1. ...
Page 145 Outdoor Cellular Gateway Trusted Certificate Setting Go to Object Definition > Certificate > Trusted Certificate tab. The Trusted Certificate setting allows user to import trusted certificates and keys. Import Trusted CA Certificate When Import button is applied, a Trusted CA import screen will appear. You can import a Trusted CA certificate from an existed certificate file, or directly paste a PEM encoded string as the certificate. Trusted CA Certificate List Item Value setting Description Import from a A Must filled setting Select a CA certificate file from user’s computer, and click the Apply button to File import the specified CA certificate file to the gateway. Import from a ...
Page 146 Outdoor Cellular Gateway Get CA Configuration Item Value setting Description SCEP Server A Must filled setting Select a SCEP Server to identify the SCEP server for use. The server detailed information could be specified in External Servers. Refer to Object Definition > External Server > External Server. You may click Add Object button to generate. CA Identifier 1. String format can be any Fill in optional CA Identifier to identify which CA could be used for signing text certificates. Save N/A Click Save to save the settings. Close N/A Click the Close button to return to the Trusted Certificates page. Import Trusted Client Certificate When Import button is applied, a Trusted Client Certificate Import screen will appear. You can import a Trusted ...
Page 147 Outdoor Cellular Gateway Item Value setting Description Import from a A Must filled setting Select a certificate file from user’s computer, and click the Apply button to import the specified certificate file to the gateway. File Import from a 1. String format can be any This is an alternative approach to import a certificate. You can directly fill in (Copy and Paste) the PEM encoded certificate string, and click the PEM text Apply button to import the specified certificate to the gateway. 2. A Must filled setting Apply N/A Click the Apply button to import certificate. Cancel N/A Click the Cancel button to discard the import operation and the screen will return to the Trusted Certificates page. Import Trusted Client Key When Import button is applied, a Trusted Client Key Import screen will appear. You can import a Trusted Client Key from an existed file, or directly paste a PEM encoded string as the key. ...
Page 148: Issue Certificate
Outdoor Cellular Gateway 3.5.4 Issue Certificate When you have a Certificate Signing Request (CSR) that needs to be certificated by the root CA of the device, you can issue the request here and let Root CA sign it. There are two approaches to issue a certificate. One is from a CSR file importing from the managing PC and another is copy‐paste the CSR codes in gateway’s web‐ based utility, and then click on the "Sign" button. If the gateway signs a CSR successfully, the "Signed Certificate View" window will show the resulted certificate contents. In addition, a "Download" button is available for you to download the certificate to a file in the managing PC. Self‐signed Certificate Usage Scenario Scenario Application Timing (same as the one described in "My Certificate" section) When the enterprise gateway owns the root CA and VPN tunneling function, it can generate its own local certificates by being signed by itself. Also imports the trusted certificates for other CAs and Clients. ...
Page 149 Outdoor Cellular Gateway also imports the certificates of the root CA of the Gateway 1 into the Gateway 2 as the trusted ones. (Please also refer to "My Certificate" and "Trusted Certificate" sections). Establish an IPSec VPN tunnel with IKE and X.509 protocols by starting from either peer, so that all client hosts in these both subnets can communicate with each other. Parameter Setup Example (same as the one described in "My Certificate" section) For Network‐A at HQ Following tables list the parameter configuration as an example for the "Issue Certificate" function used in the user authentication of IPSec VPN tunnel establishing, as shown in above diagram. The configuration example must be combined with the ones in "My Certificate" and "Trusted Certificate" sections to complete the setup for whole user scenario. [Issue Certificate]‐[Certificate Signing Request Import from a File] Configuration Path C:/BranchCSR Browse Sign Command Button [Issue Certificate]‐[Signed Certificate View] Configuration Path Download (default name is "issued.crt") Command Button Scenario Operation Procedure (same as the one described in "My Certificate" section) In above diagram, the "Gateway 1" is the gateway of Network‐A in headquarters and the subnet of its Intranet is 10.0.76.0/24. It has the IP address of 10.0.76.2 for LAN interface and 203.95.80.22 for WAN‐1 interface. The "Gateway 2" is the gateway of Network‐B in branch office and the subnet of ...
Page 150 Outdoor Cellular Gateway Issue Certificate Setting Go to Object Definition > Certificate > Issue Certificate tab. The Issue Certificate setting allows user to import Certificate Signing Request (CSR) to be signed by root CA. Import and Issue Certificate Certificate Signing Request (CSR) Import from a File Item Value setting Description Certificate Signing Select a certificate signing request file you’re your Request (CSR) Import A Must filled setting computer for importing to the gateway. from a File Certificate Signing 1. String format can be any text Enter (copy‐paste) the certificate signing request PEM Request (CSR) Import 2. A Must filled setting encoded certificate to the gateway. from a PEM When root CA is exist, click the Sign button sign and Sign N/A issue the imported certificate by root CA. ...
Page 151: Chapter 4 Field Communication (Not Supported)
Outdoor Cellular Gateway Chapter 4 Field Communication (not supported) Not supported feature for the purchased product, leave it as blank. ...
Page 152: Chapter 5 Security
Outdoor Cellular Gateway Chapter 5 Security 5.1 VPN A virtual private network (VPN) extends a private network across a public network, such as the Internet. It enables a computer to send and receive data across shared or public networks as if it were directly connected to the private network, while benefitting from the functionality, security and management policies of the private network. This is done by establishing a virtual point‐to‐point connection through the use of dedicated connections, ...
Page 153 Outdoor Cellular Gateway Internet Protocol Security (IPSec) is a protocol suite for securing Internet Protocol (IP) communications by authenticating and encrypting each IP packet of a communication session. IPSec includes protocols for establishing mutual authentication between agents at the beginning of the session and negotiation of cryptographic keys to be used during the session. ...
Page 154 Outdoor Cellular Gateway Host to Site: On the contrast, for a single host (or mobile user to) to access the resources located in an intranet, the Host to Site scenario can be applied. Host to Host: Host to Host is a special configuration for building a VPN tunnel between two single hosts. Site to Site with "Full Tunnel" enabled In "Site to Site" scenario, client hosts in remote site can access the enterprise resources in the Intranet of HQ gateway via an established IPSec tunnel, as described above. ...
Page 155 Outdoor Cellular Gateway build multiple tunnels with remote sites, especially for mobile clients with dynamic IP. In this scenario, gateway can only be role of server (responder), and it must have a “Static IP” or “FQDN”. It can allow many VPN clients (initiators) to connect to with various tunnel scenarios. In short, with a simple Dynamic VPN server setting, many VPN clients can connect to the server. But, in comparison to the Hub and Spoke mechanism, it is not allowed to directly communicate between any two clients via the Dynamic VPN server. For the purchased gateway, you can configure one Dynamic VPN server for each WAN interface. ...
Page 156 Outdoor Cellular Gateway IPSec Setting Go to Security > VPN > IPSec tab. The IPSec Setting allows user to create and configure IPSec tunnels. Enable IPSec Configuration Window Item Value setting Description IPsec Unchecked by default Click the Enable box to enable IPSec function. NetBIOS over IPSec Unchecked by default Click the Enable box to enable NetBIOS over IPSec function. NAT Traversal Checked by default Click the Enable box to enable NAT Traversal function. Max. Concurrent Depends on Product The specified value will limit the maximum number of simultaneous IPSec IPSec Tunnels specification. tunnel connection. The default value can be different for the purchased model. Save N/A Click Save to save the settings Undo N/A Click Undo to cancel the settings Create/Edit IPSec tunnel Ensure that the IPSec enable box is checked to enable before further configuring the IPSec tunnel settings. ...
Page 157 Outdoor Cellular Gateway Tunnel Configuration Window Item Value setting Description Tunnel Unchecked by default Check the Enable box to activate the IPSec tunnel 1. A Must fill setting Enter a tunnel name. Enter a name that is easy for you to identify. Tunnel Name 2. String format can be Value Range: 1 ~ 19 characters. any text 1. A Must fill setting Select the interface on which IPSec tunnel is to be established. It can be the Interface 2. WAN 1 is selected available WAN and LAN interfaces. by default Select an IPSec tunneling scenario from the dropdown box for your application. Select Site‐to‐Site, Site‐to‐Host, Host‐to‐Site, or Host‐to‐Host. If LAN interface 1. A Must fill setting is selected, only Host‐to‐Host scenario is available. 2. Site to site is Tunnel Scenario selected by default With Site‐to‐Site or Site‐to‐Host or Host‐to‐Site, IPSec operates in tunnel mode. The difference among them is the number of subnets. With Host‐to‐Host, IPSec operates in transport mode. Select from the dropdown box to setup your gateway for Hub‐and‐Spoke IPSec VPN Deployments. 1. An optional setting Select None if your deployments will not support Hub or Spoke encryption. Hub and Spoke 2. None is set by ...
Page 158 Outdoor Cellular Gateway Local & Remote Configuration Window Item Value setting Description Specify the Local Subnet IP address and Subnet Mask. Click the Add or Delete button to add or delete a Local Subnet. Note_1: When Dynamic VPN option in Tunnel Scenario is selected, there will be A Must fill setting Local Subnet List only one subnet available. Note_2: When Host‐to‐Site or Host‐to‐Host option in Tunnel Scenario is selected, Local Subnet will not be available. Note_3: When Hub and Spoke option in Hub and Spoke is selected, there will be only one subnet available. Click Enable box to activate the Redirect Traffic function. Note: Redirect Traffic is available only for Host‐to‐Site specified in Tunnel Redirect Traffic Unchecked by default Scenario. By default, it is disabled, so it can prevent the un‐expected and dangerous access to the peer subnet. If you enable such function, all the network devices behind the VPN host (actually, it is an NAT gateway) can access to the peer subnet with the host IP. Click Enable box to enable Full Tunnel. Full Tunnel Unchecked by default Note: Full tunnel is available only for Site‐to‐Site specified in Tunnel Scenario. Specify the Remote Subnet IP address and Subnet Mask. Remote Subnet List A Must fill setting Click the Add or Delete button to add or delete Remote Subnet setting. 1. A Must fill setting. Remote Gateway 2. Format can be a ...
Page 159 Outdoor Cellular Gateway Authentication Configuration Window Item Value setting Description Select Key Management from the dropdown box for this IPSec tunnel. IKE+Pre‐shared Key: user needs to set a key (8 ~ 32 characters). 1. A Must fill setting IKE+X.509: user needs Certificate to authenticate. IKE+X.509 will be available Key Management 2. Pre‐shared Key 8 to only when Certificate has been configured properly. Refer to Certificate section 32 characters. of this manual and also Object Definition > Certificate in web‐based utility. Manually: user needs to enter key ID to authenticate. Manual key configuration will be explained in the following Manual Key Management section. Specify the Local ID for this IPSec tunnel to authenticate. Select User Name for Local ID and enter the username. The username may include but can’t be all numbers. Local ID An optional setting Select FQDN for Local ID and enter the FQDN. Select User@FQDN for Local ID and enter the User@FQDN. Select Key ID for Local ID and enter the Key ID (English alphabet or number). Specify the Remote ID for this IPSec tunnel to authenticate. Select User Name for Remote ID and enter the username. The username may include but can’t be all numbers. Select FQDN for Local ID and enter the FQDN. Remote ID An optional setting Select User@FQDN for Remote ID and enter the User@FQDN. Select Key ID for Remote ID and enter the Key ID (English alphabet or number). Note: Remote ID will be not available when Dynamic VPN option in Tunnel Scenario is selected. ...
Page 160 Outdoor Cellular Gateway IKE Phase Window Item Value setting Description 1. A must fill setting Specify the IKE version for this IPSec tunnel. Select v1 or v2 IKE Version 2. v1 is selected by Note: IKE versions will not be available when Dynamic VPN option in Tunnel default Scenario is selected, or AH option in Encapsulation Protocol is selected. Main Mode is set by Specify the Negotiation Mode for this IPSec tunnel. Select Main Mode or Negotiation Mode default default Aggressive Mode. Specify the X‐Auth role for this IPSec tunnel. Select Server, Client, or None. Selected None no X‐Auth authentication is required. Selected Server this gateway will be an X‐Auth server. Click on the X‐Auth None is selected by Account button to create remote X‐Auth client account. X‐Auth default Selected Client this gateway will be an X‐Auth client. Enter User name and Password to be authenticated by the X‐Auth server gateway. Note: X‐Auth Client will not be available for Dynamic VPN option selected in Tunnel Scenario. 1. Checked by default Click Enable box to enable DPD function. Specify the Timeout and Delay time in Dead Peer Detection 2. Default Timeout seconds. (DPD) 180s and Delay 30s Value Range: 0 ~ 999 seconds for Timeout and Delay. 1. A Must fill setting Phase1 Key Life ...
Page 161 Outdoor Cellular Gateway IKE Proposal Definition Window Item Value setting Description Specify the Phase 1 Encryption method. It can be DES / 3DES / AES‐auto / AES‐ 128 / AES‐192 / AES‐256. Specify the Authentication method. It can be None / MD5 / SHA1 / SHA2‐256. IKE Proposal A Must fill setting Definition Specify the DH Group. It can be None / Group1 / Group2 / Group5 / Group14 / Group15 / Group16 / Group17 / Group18. Check Enable box to enable this setting IPSec Phase Window Item Value setting Description 1. A Must fill setting 2. 28800s is set by Specify the Phase2 Key Life Time in second. Phase2 Key Life Time default Value Range: 30 ~ 86400. 3. Max. 86400s ...
Page 162 Outdoor Cellular Gateway IPSec Proposal Definition Window Item Value setting Description Specify the Encryption method. It can be None / DES / 3DES / AES‐auto / AES‐ 128 / AES‐192 / AES‐256. Note: None is available only when Encapsulation Protocol is set as AH; it is not available for ESP Encapsulation. Specify the Authentication method. It can be None / MD5 / SHA1 / SHA2‐256. IPSec Proposal A Must fill setting Note: None and SHA2‐256 are available only when Encapsulation Protocol is set Definition as ESP; they are not available for AH Encapsulation. Specify the PFS Group. It can be None / Group1 / Group2 / Group5 / Group14 / Group15 / Group16 / Group17 / Group18. Click Enable to enable this setting Save N/A Click Save to save the settings Undo N/A Click Undo to cancel the settings Back N/A Click Back to return to the previous page. Manual Key Management When the Manually option is selected for Key Management as described in Authentication Configuration Window, ...
Page 163 Outdoor Cellular Gateway Select Key Management from the dropdown box for this IPSec tunnel. Key Management A Must fill setting In this section Manually is the option selected. Specify the Local ID for this IPSec tunnel to authenticate. Local ID An optional setting Select the Key ID for Local ID and enter the Key ID (English alphabet or number). Specify the Remote ID for this IPSec tunnel to authenticate. Remote ID An optional setting Select Key ID for Remote ID and enter the Key ID (English alphabet or number). Local & Remote Configuration Window Item Value setting Description Local Subnet A Must fill setting Specify the Local Subnet IP address and Subnet Mask. Local Netmask A Must fill setting Specify the Local Subnet Mask. Remote Subnet A Must fill setting Specify the Remote Subnet IP address Remote Netmask A Must fill setting Specify the Remote Subnet Mask. 1. A Must fill setting Remote Gateway 2. An IPv4 address or Specify the Remote Gateway. The Remote Gateway FQDN format Under the Manually Key Management authentication configuration, only one subnet is supported for both Local and Remote IPSec peer. ...
Page 164 Outdoor Cellular Gateway Value Range: 0 ~ FFFF. Specify the Inbound SPI for this IPSec tunnel. Inbound SPI Hexadecimal format Value Range: 0 ~ FFFF. Specify the Encryption Method and Encryption key. Available encryption methods are DES/3DES/AES‐128/AES‐192/AES‐256. 1. A Must fill setting The key length for DES is 16, 3DES is 48, AES‐128 is 32, AES‐192 is 48, and AES‐ Encryption 2. Hexadecimal format 256 is 64. Note: When AH option in Encapsulation is selected, encryption will not be available. Specify the Authentication Method and Authentication key. Available encryptions are None/MD5/SHA1/SHA2‐256. 1. A Must fill setting Authentication The key length for MD5 is 32, SHA1 is 40, and SHA2‐256 is 64. 2. Hexadecimal format Note: When AH option in Encapsulation Protocol is selected, None option in Authentication will not be available. Save N/A Click Save to save the settings Undo N/A Click Undo to cancel the settings Back N/A Click Back to return to the previous page. Create/Edit Dynamic VPN Server List Similar to create an IPSec VPN Tunnel for site/host to site/host scenario, when Edit button is applied a series of ...
Page 165 Outdoor Cellular Gateway Tunnel Configuration Window Item Value setting Description Tunnel Unchecked by default Check the Enable box to activate the Dynamic IPSec VPN tunnel. 1. A Must fill setting Enter a tunnel name. Enter a name that is easy for you to identify. Tunnel Name 2. String format can be Value Range: 1 ~ 19 characters. any text 1. A Must fill setting Interface 2. WAN 1 is selected Select WAN interface on which IPSec tunnel is to be established. by default 1. A Must fill setting Tunnel Scenario 2. Dynamic VPN is The IPSec tunneling scenario is fixed to Dynamic VPN. selected by default 1. A Must fill setting The available operation mode is Always On. Failover option is not available for Operation Mode 2. Alway on is selected the Dynamic IPSec scenario. by default 1. A Must fill setting Encapsulation Select the Encapsulation Protocol from the dropdown box for this IPSec tunnel. 2. ESP is selected by Protocol Available encapsulations are ESP and AH. default ...
Page 166 Outdoor Cellular Gateway 2. Pre‐shared Key 8 to IKE+Pre‐shared Key: user needs to set a key (8 ~ 32 characters). 32 characters. Specify the Local ID for this IPSec tunnel to authenticate. Select User Name for Local ID and enter the username. The username may include but can’t be all numbers. Local ID An optional setting Select FQDN for Local ID and enter the FQDN. Select User@FQDN for Local ID and enter the User@FQDN. Select Key ID for Local ID and enter the Key ID (English alphabet or number). Specify the Remote ID for this IPSec tunnel to authenticate. Select User Name for Remote ID and enter the username. The username may include but can’t be all numbers. Select FQDN for Local ID and enter the FQDN. Remote ID An optional setting Select User@FQDN for Remote ID and enter the User@FQDN. Select Key ID for Remote ID and enter the Key ID (English alphabet or number). Note: Remote ID will be not available when Dynamic VPN option in Tunnel Scenario is selected. For the rest IKE Phase, IKE Proposal Definition, IPSec Phase, and IPSec Proposal Definition settings, they are the same as that of creating an IPSec Tunnel described in previous section. Please refer to the related description. ...
Page 167: Openvpn
Outdoor Cellular Gateway 5.1.2 OpenVPN OpenVPN is an application that implements virtual private network (VPN) techniques for creating secure point‐to‐point or site‐to‐site connections in routed or bridged configurations and remote access facilities. It uses a custom security protocol that utilizes SSL/TLS for key exchange. It is capable of traversing network address translators (NATs) and firewalls. ...
Page 168 Outdoor Cellular Gateway assigned a virtual IP (10.8.0.2) which is belong to a virtual subnet that is different to the local subnet in Control Center. With such connection, the local networked devices will get a virtual IP 10.8.0.x if its traffic goes through the OpenVPN TUN connection when Redirect Internet Traffic settings is enabled; Besides, the SCADA Server in Control Center can access remote attached serial device(s) with the virtual IP address (10.8.0.2). OpenVPN TAP Scenario The term "TAP" is referred to bridge mode and operates with layer 2 packets. In bridge mode, the VPN client is given an IP address on the same subnet as the LAN resided ...
Page 169 Outdoor Cellular Gateway Open VPN Setting Go to Security > VPN > OpenVPN tab. The OpenVPN setting allows user to create and configure OpenVPN tunnels. Enable OpenVPN Enable OpenVPN and select an expected configuration, either server or client, for the gateway to operate. Configuration Item Value setting Description OpenVPN The box is unchecked by Check the Enable box to activate the OpenVPN function. default Server/ Server Configuration is When Server is selected, as the name indicated, server configuration will be Client selected by default. displayed below for further setup. When Client is selected, you can specify the client settings in another client configuration window. ...
Page 170 Outdoor Cellular Gateway As an OpenVPN Server If Server is selected, an OpenVPN Server Configuration screen will appear. OpenVPN Server Configuration window can let you enable the OpenVPN server function, specify the virtual IP address of OpenVPN server, when remote OpenVPN clients dial in, and the authentication protocol. The OpenVPN Server supports up to 4 TUN / TAP tunnels at the same time. OpenVPN Server Configuration ...
Page 171 Outdoor Cellular Gateway Item Value setting Description OpenVPN Server The box is unchecked by Click the Enable to activate OpenVPN Server functions. default. Protocol 1. A Must filled setting Define the selected Protocol for connecting to the OpenVPN Server.  Select TCP , or UDP 2. By default TCP is selected. ‐> The TCP protocol will be used to access the OpenVPN Server, and Port will be set as 4430 automatically.  Select UDP ‐> The UDP protocol will be used to access the OpenVPN Server, and Port will be set as 1194 automatically. Port 1. A Must filled setting Specify the Port for connecting to the OpenVPN Server. 2. By default 4430 is set. Value Range: 1 ~ 65535. Tunnel Scenario 1. A Must filled setting Specify the type of Tunnel Scenario for connecting to the OpenVPN Server. It 2.
Page 172 Outdoor Cellular Gateway Gateway A Must filled setting Specify the Gateway setting for the OpenVPN server. It will be assigned to the connected OpenVPN clients. Note: Gateway will be available only when TAP is chosen in Tunnel Device, and DHCP‐Proxy Mode is unchecked (disabled). Netmask By default ‐ select one ‐ is Specify the Netmask setting for the OpenVPN server. It will be assigned to the selected. connected OpenVPN clients. Value Range: 255.255.255.0/24 (only support class C) Note_1: Netmask will be available when TAP is chosen in Tunnel Device, and DHCP‐Proxy Mode is unchecked (disabled). Note_2: Netmask will also be available when TUN is chosen in Tunnel Device. Redirect Default 1. An Optional setting. Check the Enable box to activate the Redirect Default Gateway function. Gateway 2. The box is unchecked by default. ...
Page 173 Outdoor Cellular Gateway When Advanced Configuration is selected, an OpenVPN Server Advanced Configuration screen will appear. OpenVPN Server Advanced Configuration Item Value setting Description TLS Cipher 1. A Must filled setting. Specify the TLS Cipher from the dropdown list. 2. TLS‐RSA‐WITH‐AES128‐ It can be None / TLS‐RSA‐WITH‐RC4‐MD5 / TLS‐RSA‐WITH‐AES128‐SHA / TLS‐ SHA is selected by default RSA‐WITH‐AES256‐SHA / TLS‐DHE‐DSS‐AES128‐SHA / TLS‐DHE‐DSS‐AES256‐ SHA. Note: TLS Cipher will be available only when TLS is chosen in Authorization Mode. ...
Page 174 Outdoor Cellular Gateway Protocol. Tunnel UDP 1. An Optional setting. Check the Enable box to activate the Tunnel UDP MSS‐Fix Function. MSS‐Fix 2. The box is unchecked by Note: Tunnel UDP MSS‐Fix will be available only when UDP is chosen in default. Protocol. CCD‐Dir Default 1. An Optional setting. Specify the CCD‐Dir Default File. File 2. String format: any text Value Range: 0 ~ 256 characters. Client 1. An Optional setting. Specify the Client Connection Script. Connection 2. String format: any text Value Range: 0 ~ 256 characters. Script Additional 1. An Optional setting. ...
Page 175 Outdoor Cellular Gateway As an OpenVPN Client If Client is selected, an OpenVPN Client List screen will appear. When Add button is applied, OpenVPN Client Configuration screen will appear. OpenVPN Client Configuration window let you specify the required parameters for an OpenVPN VPN client, such as "OpenVPN Client Name", "Interface", "Protocol", "Tunnel Scenario", "Remote IP/FQDN", "Remote Subnet", "Authorization Mode", "Encryption Cipher", "Hash Algorithm" and tunnel activation. ...
Page 176 Outdoor Cellular Gateway OpenVPN Client Configuration Item Value setting Description OpenVPN Client A Must filled setting The OpenVPN Client Name will be used to identify the client in the tunnel list. Name Value Range: 1 ~ 32 characters. Interface 1. A Must filled setting Define the physical interface to be used for this OpenVPN Client tunnel. 2. By default WAN‐1 is selected. Protocol 1. A Must filled setting Define the Protocol for the OpenVPN Client.  Select TCP 2. By default TCP is selected. ‐>The OpenVPN will use TCP protocol, and Port will be set as 443 automatically.  Select UDP ‐> The OpenVPN will use UDP protocol, and Port will be set as 1194 automatically. Port 1. A Must filled setting Specify the Port for the OpenVPN Client to use. 2. By default 443 is Value Range: 1 ~ 65535. set. ...
Page 177 Outdoor Cellular Gateway Note: Remote Endpoint IP Address will be available only when Static Key is chosen in Authorization Mode. Static Key A Must filled setting Specify the Static Key. Note: Static Key will be available only when Static Key is chosen in Authorization Mode. Encryption Cipher By default Blowfish is Specify the Encryption Cipher. selected. It can be Blowfish/AES‐256/AES‐192/AES‐128/None. Hash Algorithm By default SHA‐1 is Specify the Hash Algorithm. selected. It can be SHA‐1/MD5/MD4/SHA2‐256/SHA2‐512/None/Disable. LZO Compression By default Adaptive is Specify the LZO Compression scheme. selected. It can be Adaptive/YES/NO/Default. Persis Key 1. An Optional setting. Check the Enable box to activate the Persis Key function. 2. The box is checked ...
Page 178 Outdoor Cellular Gateway When Advanced Configuration is selected, an OpenVPN Client Advanced Configuration screen will appear. OpenVPN Advanced Client Configuration Item Value setting Description TLS Cipher 1. A Must filled setting. Specify the TLS Cipher from the dropdown list. 2. TLS‐RSA‐WITH‐ It can be None / TLS‐RSA‐WITH‐RC4‐MD5 / TLS‐RSA‐WITH‐AES128‐SHA / TLS‐ AES128‐SHA is selected RSA‐WITH‐AES256‐SHA / TLS‐DHE‐DSS‐AES128‐SHA / TLS‐DHE‐DSS‐AES256‐ by default SHA. Note: TLS Cipher will be available only when TLS is chosen in Authorization Mode. TLS Auth. Key 1. An Optional setting. ...
Page 179 Outdoor Cellular Gateway Note: User Name will be available only when TLS is chosen in Authorization Mode. Bridge TAP to By default VLAN 1 is Specify the setting of “Bridge TAP to” to bridge the TAP interface to a certain selected local network interface or VLAN. Note: Bridge TAP to will be available only when TAP is chosen in Tunnel Scenario and NAT is unchecked. Firewall Protection The box is unchecked by Check the box to activate the Firewall Protection function. ...
Page 180: L2Tp
Outdoor Cellular Gateway 5.1.3 L2TP Layer 2 Tunneling Protocol (L2TP) is a tunneling protocol used to support virtual private networks (VPNs) or as part of the delivery of services by ISPs. It does not provide any encryption or confidentiality by itself. Rather, it relies on an encryption protocol that it passes within the tunnel to provide privacy. This Gateway can behave as a L2TP server and a L2TP client both at the same time. L2TP Server: It must have a static IP or a FQDN for clients to create L2TP tunnels. It also maintains “User Account list” (user name/ password) for client login authentication; There is a virtual IP pool to assign virtual IP to each connected L2TP client. L2TP Client: It can be mobile users or gateways in remote offices with dynamic IP. To setup tunnel, it should get “user name”, “password” and server’s global IP. In addition, it is required to identify the operation mode for each tunnel as main connection, failover for another tunnel, or load balance tunnel to increase overall bandwidth. It needs to decide “Default Gateway” or “Remote Subnet” for packet flow. Moreover, you can also ...
Page 181 Outdoor Cellular Gateway Besides, for the L2TP client peer, a Remote Subnet item is required. It is for the Intranet of L2TP server peer. So, at L2TP client peer, the packets whose destination is in the dedicated subnet will be transferred via the L2TP tunnel. Others will be transferred based on current routing policy of the gateway at L2TP client peer. ...
Page 182 Outdoor Cellular Gateway L2TP Setting Go to Security > VPN > L2TP tab. The L2TP setting allows user to create and configure L2TP tunnels. Enable L2TP Enable L2TP Window Item Value setting Description L2TP Unchecked by default Click the Enable box to activate L2TP function. Specify the role of L2TP. Select Server or Client role your gateway will take. Client/Server A Must filled setting Below are the configuration windows for L2TP Server and for Client. Save N/A Click Save button to save the settings As a L2TP Server When select Server in Client/Server, the L2TP server Configuration will appear. ...
Page 183 Outdoor Cellular Gateway L2TP Server Configuration Item Value setting Description The box is unchecked When click the Enable box L2TP Server by default It will active L2TP server When click the Enable box. The box is unchecked L2TP over IPSec It will enable L2TP over IPSec and need to fill in the Pre‐shared Key (8~32 by default characters). Specify the L2TP server Virtual IP Server Virtual IP A Must filled setting It will set as this L2TP server local virtual IP Specify the L2TP server starting IP of virtual IP pool IP Pool Starting 1. A Must filled setting It will set as the starting IP which assign to L2TP client Address 2. 10 is set by default. Value Range: 1 ~ 254. Specify the L2TP server ending IP of virtual IP pool IP Pool Ending 1. A Must filled setting It will set as the ending IP which assign to L2TP client Address 2. 17 is set by default. Value Range: >= Starting Address, and < (Starting Address + 8) or 254. Select single or multiple Authentication Protocols for the L2TP server with Authentication A Must filled setting which to authenticate L2TP clients. Available authentication protocols are PAP / Protocol ...
Page 184 Outdoor Cellular Gateway User Account List Window Item Value setting Description This is the L2TP authentication user account entry. You can create and add accounts for remote clients to establish L2TP VPN connection to the gateway device. Click Add button to add user account. Enter User name and password. Then Max.of 10 user User Account List check the enable box to enable the user. accounts Click Save button to save new user account. The selected user account can permanently be deleted by clicking the Delete button. Value Range: 1 ~ 32 characters. As a L2TP Client When select Client in Client/Server, a series L2TP Client Configuration will appear. L2TP Client Configuration Item Setting Value setting Description L2TP Client The box is unchecked Check the Enable box to enable L2TP client role of the gateway. by default Save N/A Click Save button to save the settings. Undo N/A Click Undo button to cancel the settings. ...
Page 185 Outdoor Cellular Gateway Create/Edit L2TP Client When Add/Edit button is applied, a series of configuration screen will appear. You can add up to 8 L2TP Clients. L2TP Client Configuration Item Setting Value setting Description Enter a tunnel name. Enter a name that is easy for you to identify. Tunnel Name A Must filled setting Value Range: 1 ~ 32 characters. Interface A Must filled setting Define the selected interface to be the used for this L2TP tunnel ...
Page 186 Outdoor Cellular Gateway (WAN‐1 is available only when WAN‐1 interface is enabled) The same applies to other WAN interfaces (e.g. WAN‐2). 1. A Must filled setting Define operation mode for the L2TP Tunnel. It can be Always On, or Failover. 2. Alwasy on is If this tunnel is set as a failover tunnel, you need to further select a primary Operation Mode selected by default tunnel from which to failover to. Note: Failover mode is not available for the gateway with single WAN. The box is unchecked Check the Enable box to activate L2TP over IPSec, and further specify a Pre‐ L2TP over IPSec by default shared Key (8~32 characters). Remote LNS A Must filled setting Enter the public IP address or the FQDN of the L2TP server. IP/FQDN 1. A Must filled setting Enter the Remote LNS Port for this L2TP tunnel. Remote LNS Port 2. 1701 is set by Value Range: 1 ~ 65535. default Enter the User Name for this L2TP tunnel to be authenticated when connect to User Name A Must filled setting L2TP server. Value Range: 1 ~ 32 characters. Enter the Password for this L2TP tunnel to be authenticated when connect to Password A Must filled setting L2TP server. Tunneling The box is unchecked Enter the Tunneling Password for this L2TP tunnel to authenticate. Password(Optional) by default ...
Page 187 Outdoor Cellular Gateway Value Range: 1 ~ 99999 for Interval Time, 1~999 for Failure Time. Specify the Service Port for this L2TP tunnel to use. It can be Auto, (1701) for Cisco), or User‐defined. Auto: The system determines the service port. Service Port A Must filled setting 1701 (for Cisco): The system use port 1701 for connecting with CISCO L2TP Server. User‐defined: Enter the service port. The default value is 0. Value Range: 0 ~ 65535. Tunnel Unchecked by default Check the Enable box to enable this L2TP tunnel. Save N/A Click Save button to save the settings. Undo N/A Click Undo button to cancel the settings. Back N/A Click Back button to return to the previous page. ...
Page 188: Pptp
Outdoor Cellular Gateway 5.1.4 PPTP Point‐to‐Point Tunneling Protocol (PPTP) is a method for implementing virtual private networks. PPTP uses a control channel over TCP and a GRE tunnel operating to encapsulate PPP packets. It is a client‐server based technology. There are various levels of authentication and encryption for PPTP tunneling, usually natively as standard features of the Windows PPTP stack. The security gateway can play either "PPTP Server" role or "PPTP Client" role for a PPTP VPN tunnel, or both at the same time for different tunnels. PPTP tunnel process is nearly the same as L2TP. PPTP Server: It must have a static IP or a FQDN for clients to create PPTP tunnels. It also maintains “User Account list” (user name / password) for client login authentication; There is a virtual IP pool to assign virtual ...
Page 189 Outdoor Cellular Gateway get “user name”, “password” and server’s global IP. In addition, it is required to identify the operation mode for each tunnel as main connection, failover for another tunnel, or load balance tunnel to increase overall bandwidth. It needs to decide “Default Gateway” or “Remote Subnet” for packet flow. Moreover, you can also define what kind of traffics will pass through the PPTP tunnel in the “Default Gateway / Remote Subnet” parameter. Besides, ...
Page 190 Outdoor Cellular Gateway PPTP Setting Go to Security > VPN > PPTP tab. The PPTP setting allows user to create and configure PPTP tunnels. Enable PPTP Enable PPTP Window Item Value setting Description PPTP Unchecked by default Click the Enable box to activate PPTP function. Specify the role of PPTP. Select Server or Client role your gateway will take. Client/Server A Must fill setting Below are the configuration windows for PPTP Server and for Client. Save N/A Click Save button to save the settings. As a PPTP Server The gateway supports up to a maximum of 10 PPTP user accounts. When Server in the Client/Server field is selected, the PPTP server configuration window will appear. ...
Page 191 Outdoor Cellular Gateway PPTP Server Configuration Window Item Value setting Description PPTP Server Unchecked by default Check the Enable box to enable PPTP server role of the gateway. 1. A Must fill setting Specify the PPTP server Virtual IP address. The virtual IP address will serve as Server Virtual IP 2. Default is the virtual DHCP server for the PPTP clients. Clients will be assigned a virtual IP 192.168.0.1 address from it after the PPTP tunnel has been established. This is the PPTP server’s Virtual IP DHCP server. User can specify the first IP IP Pool Starting 1. A Must fill setting address for the subnet from which the PPTP client’s IP address will be assigned. Address 2. Default is 10 Value Range: 1 ~ 254. This is the PPTP server’s Virtual IP DHCP server. User can specify the last IP IP Pool Ending 1. A Must fill setting address for the subnet from which the PPTP client’s IP address will be assigned. Address 2. Default is 17 Value Range: >= Starting Address, and < (Starting Address + 8) or 254. 1. A Must fill setting Select single or multiple Authentication Protocols for the PPTP server with Authentication 2. Unchecked by which to authenticate PPTP clients. Available authentication protocols are PAP / Protocol default CHAP / MS‐CHAP / MS‐CHAP v2. Specify whether to support MPPE Protocol. Click the Enable box to enable 1. A Must fill setting MPPE and from dropdown box to select 40 bits / 56 bits / 128 bits. ...
Page 192 Outdoor Cellular Gateway User Account List Window Item Value setting Description This is the PPTP authentication user account entry. You can create and add accounts for remote clients to establish PPTP VPN connection to the gateway device. Click Add button to add user account. Enter User name and password. Then Max.of 10 user User Account List check the enable box to enable the user. accounts Click Save button to save new user account. The selected user account can permanently be deleted by clicking the Delete button. Value Range: 1 ~ 32 characters. As a PPTP Client When select Client in Client/Server, a series PPTP Client Configuration will appear. PPTP Client Configuration Item Value setting Description PPTP Client Unchecked by default Check the Enable box to enable PPTP client role of the gateway. Save N/A Click Save button to save the settings. Undo N/A Click Undo button to cancel the settings. ...
Page 193 Outdoor Cellular Gateway PPTP Client Configuration Window Item Value setting Description A Must fill setting Enter a tunnel name. Enter a name that is easy for you to identify. Tunnel Name Value Range: 1 ~ 32 characters. 1. A Must fill setting Define the selected interface to be the used for this PPTP tunnel Interface 2. WAN1 is selected by (WAN‐1 is available only when WAN‐1 interface is enabled) default The same applies to other WAN interfaces (e.g. WAN‐2). 1. A Must fill setting Define operation mode for the PPTP Tunnel. It can be Always On, or Failover. 2. Alwasy on is If this tunnel is set as a failover tunnel, you need to further select a primary Operation Mode selected by default tunnel from which to failover to. Note: Failover mode is not available for the gateway with single WAN. 1. A Must fill setting. Enter the public IP address or the FQDN of the PPTP server. Remote IP/FQDN 2. Format can be a ipv4 address or FQDN A Must fill setting Enter the User Name for this PPTP tunnel to be authenticated when connect to User Name PPTP server. Value Range: 1 ~ 32 characters. A Must fill setting Enter the Password for this PPTP tunnel to be authenticated when connect to Password PPTP server. ...
Page 194 Outdoor Cellular Gateway VPN tunnel. Others will be transferred based on current routing policy of the security gateway at PPTP client peer. If you entered 0.0.0.0/0 in the Remote Subnet field, it will be treated as a default gateway setting for the PPTP client peer, all packets, including the Internet accessing of PPTP Client peer, will go through the established PPTP VPN tunnel. That means the remote PPTP VPN server controls the flow of any packets from the PPTP client peer. Certainly, those packets come through the PPTP VPN tunnel. 1. A Must fill setting Specify one ore multiple Authentication Protocol for this PPTP tunnel. Authentication 2. Unchecked by Available authentication methods are PAP / CHAP / MS‐CHAP / MS‐CHAP v2. Protocol default 1. Unchecked by Specify whether PPTP server supports MPPE Protocol. Click the Enable box to default enable MPPE. MPPE Encryption 2. an optional setting Note: when MPPE Encryption is enabled, the Authentication Protocol PAP / CHAP options will not be available. Auto is set by default Specify the LCP Echo Type for this PPTP tunnel. It can be Auto, User‐defined, or Disable. Auto: the system sets the Interval and Max. Failure Time. LCP Echo Type User‐defined: enter the Interval and Max. Failure Time. The default value for Interval is 30 seconds, and Maximum Failure Times is 6 Times. Disable: disable the LCP Echo. Value Range: 1 ~ 99999 for Interval Time, 1~999 for Failure Time. Tunnel Unchecked by default Check the Enable box to enable this PPTP tunnel. Save N/A ...
Page 195: Gre
Outdoor Cellular Gateway 5.1.5 GRE Generic Routing Encapsulation (GRE) is a tunneling protocol developed by Cisco Systems that encapsulates a wide variety of network layer protocols inside virtual point‐to‐point links over an Internet Protocol internetwork. Deploy a M2M gateway for remote site and establish a virtual private network with control center by using GRE tunneling. So, all client hosts behind M2M gateway can make data communication with server hosts behind control center gateway. GRE Tunneling is similar to IPSec Tunneling, client requesting the tunnel establishment with the server. Both the client and the server must have a Static IP or a FQDN. Any peer gateway can be worked as either a client ...
Page 196 Outdoor Cellular Gateway If the GRE server supports DMVPN Hub function, like Cisco router as the VPN concentrator, the GRE client can active the DMVPN spoke function here since it is implemented by GRE over IPSec tunneling. GRE Setting Go to Security > VPN > GRE tab. The GRE setting allows user to create and configure GRE tunnels. Enable GRE Enable GRE Window Item Value setting Description GRE Tunnel Unchecked by default Click the Enable box to enable GRE function. Max. Concurrent Depends on Product The specified value will limit the maximum number of simultaneous GRE tunnel GRE Tunnels specification. connection. The default value can be different for the purchased model. Save N/A Click Save button to save the settings Undo N/A Click Undo button to cancel the settings Create/Edit GRE tunnel When Add/Edit button is applied, a GRE Rule Configuration screen will appear. ...
Page 197 Outdoor Cellular Gateway GRE Rule Configuration Window Item Value setting Description Enter a tunnel name. Enter a name that is easy for you to identify. Tunnel Name A Must fill setting Value Range: 1 ~ 9 characters. 1. A Must fill setting Select the interface on which GRE tunnel is to be established. It can be the Interface 2. WAN 1 is selected available WAN and LAN interfaces. by default Define operation mode for the GRE Tunnel. It can be Always On, or Failover. 1. A Must fill setting If this tunnel is set as a failover tunnel, you need to further select a primary Operation Mode 2. Alway on is selected tunnel from which to failover to. by default Note: Failover mode is not available for the gateway with single WAN. Tunnel IP An Optional setting Enter the Tunnel IP address and corresponding subnet mask. Enter the Remote IP address of remote GRE tunnel gateway. Normally this is the Remote IP A Must fill setting public IP address of the remote GRE gateway. Enter the Key for the GRE connection. Key An Optional setting Value Range: 0 ~ 9999999999. 1. A Must fill setting Specify TTL hop‐count value for this GRE tunnel. TTL 2. 1 to 255 range ...
Page 198 Outdoor Cellular Gateway default Select Ping IP to keep live and enter the IP address to ping. 2. 5s is set by default Enter the ping time interval in seconds. Value Range: 5 ~ 999 seconds. Specify the remote subnet for this GRE tunnel. The Remote Subnet format must be IP address/netmask (e.g. 10.0.0.2/24). It is for the Intranet of GRE server peer. So, at GRE client peer, the packets whose destination is in the dedicated subnet will be transferred via the GRE tunnel. Others will be transferred based on current routing policy of the security gateway at GRE client peer. Remote Subnet A Must fill setting If you entered 0.0.0.0/0 in the Remote Subnet field, it will be treated as a default gateway setting for the GRE client peer, all packets, including the Internet accessing of GRE client peer, will go through the established GRE tunnel. That means the remote GRE server peer controls the flow of any packets from the GRE client peer. Certainly, those packets come through the GRE tunnel. Specify whether the gateway will support DMVPN Spoke for this GRE tunnel. DMVPN Spoke Unchecked by default Check Enable box to enable DMVPN Spoke. IPSec Pre‐shared Enter a DMVPN spoke authentication Pre‐shared Key (8~32 characters). A Must fill setting Key Note: Pre‐shared Key is available only when DMVPN Spoke is enabled. Check Enable box to enable NAT‐Traversal. IPSec NAT Traversal Unchecked by default Note: IPSec NAT Traversal will not be available when DMVPN is not enabled. Specify IPSec Encapsulation Mode from the dropdown box. There are Transport IPSec Encapsulation mode and Tunnel mode supported. Unchecked by default Mode Note: IPSec Encapsulation Mode will not be available when DMVPN is not ...
Page 199: Firewall
Outdoor Cellular Gateway 5.2 Firewall The firewall functions include Packet Filter, URL Blocking, Content Filter, MAC Control, Application Filter, IPS and some firewall options. The supported function can be different for the purchased gateway. 5.2.1 Packet Filter ...
Page 200 Outdoor Cellular Gateway "Packet Filter" function can let you define some filtering rules for incoming and outgoing packets. So the gateway can control what packets are allowed or blocked to pass through it. A packet filter rule should indicate from and to which interface the packet enters and leaves the gateway, the source and destination IP addresses, and destination service port type and port number. In addition, the time schedule to which the rule will be active. ...
Page 201 Outdoor Cellular Gateway default When Deny those match the following rules is selected, as the name suggest, Deny those match the Black List / packets specified in the rules will be blocked –black listed. In contrast, with following rules is set by White List Allow those match the following rules, you can specifically white list the default packets to pass and the rest will be blocked. The box is unchecked by Log Alert Check the Enable box to activate Event Log. default Save N/A Click Save to save the settings Undo N/A Click Undo to cancel the settings Create/Edit Packet Filter Rules The gateway allows you to customize your packet filtering rules. It supports up to a maximum of 20 filter rule sets. When Add button is applied, Packet Filter Rule Configuration screen will appear. Packet Filter Rule Configuration Item Name Value setting Description Rule Name 1. String format can be Enter a packet filter rule name. Enter a name that is easy for you to remember. ...
Page 202 Outdoor Cellular Gateway any text Value Range: 1 ~ 30 characters. 2. A Must filled setting Define the selected interface to be the packet‐entering interface of the router. If the packets to be filtered are coming from LAN to WAN then select LAN for this field. Or VLAN‐1 to WAN then select VLAN‐1 for this field. Other examples 1. A Must filled setting From Interface 2. By default Any is are VLAN‐1 to VLAN‐2. VLAN‐1 to WAN. selected Select Any to filter packets coming into the router from any interfaces. Please note that two identical interfaces are not accepted by the router. e.g., VLAN‐1 to VLAN‐1. Define the selected interface to be the packet‐leaving interface of the router. If the packets to be filtered are entering from LAN to WAN then select WAN for 1. A Must filled setting this field. Or VLAN‐1 to WAN then select WAN for this field. Other examples are To Interface 2. By default Any is VLAN‐1 to VLAN‐2. VLAN‐1 to WAN. selected Select Any to filter packets leaving the router from any interfaces. Please note that two identical interfaces are not accepted by the router. e.g., VLAN‐1 to VLAN‐1. This field is to specify the Source IP address. Select Any to filter packets coming from any IP addresses. Select Specific IP Address to filter packets coming from an IP address. 1. A Must filled setting Select IP Range to filter packets coming from a specified range of IP address. Source IP 2. By default Any is Select IP Address‐based Group to filter packets coming from a pre‐defined selected group. Note: group must be pre‐defined before this option become available. Refer to Object Definition > Grouping > Host grouping. You may also access to create a group by the Add Rule shortcut button. This field is to specify the Destination IP address. Select Any to filter packets that are entering to any IP addresses. ...
Page 203 Outdoor Cellular Gateway Then for Destination Port, select a predefined port dropdown box when Well‐ known Service is selected, otherwise select User‐defined Service and specify a port range. Value Range: 1 ~ 65535 for Source Port, Destination Port. For Protocol, select ICMPv4 to filter ICMPv4 packets For Protocol, select TCP to filter TCP packets Then for Source Port, select a predefined port dropdown box when Well‐known Service is selected, otherwise select User‐defined Service and specify a port range. Then for Destination Port, select a predefined port dropdown box when Well‐ known Service is selected, otherwise select User‐defined Service and specify a port range. Value Range: 1 ~ 65535 for Source Port, Destination Port. For Protocol, select UDP to filter UDP packets Then for Source Port, select a predefined port dropdown box when Well‐known Service is selected, otherwise select User‐defined Service and specify a port range. Then for Destination Port, select a predefined port dropdown box when Well‐ known Service is selected, otherwise select User‐defined Service and specify a port range. Value Range: 1 ~ 65535 for Source Port, Destination Port. For Protocol, select GRE to filter GRE packets For Protocol, select ESP to filter ESP packets For Protocol, select SCTP to filter SCTP packets For Protocol, select User‐defined to filter packets with specified port number. Then enter a pot number in Protocol Number box. Apply Time Schedule to this rule, otherwise leave it as Always. Time Schedule A Must filled setting If the dropdown list is empty ensure Time Schedule is pre‐configured. Refer to Object Definition > Scheduling > Configuration tab. The box is unchecked by Rule Click Enable box to activate this rule then save the settings. default. Save N/A Click Save to save the settings Undo ...
Page 204: Url Blocking
Outdoor Cellular Gateway 5.2.2 URL Blocking "URL Blocking" function can let you define blocking or allowing rules for incoming and outgoing Web request packets. With defined rules, gateway can control the Web requests containing the complete URL, partial domain name, or pre‐defined keywords. For example, one can filter out or allow only the Web requests based on domain input suffixes like .com or .org or keywords like “bct” or “mpe”. An URL blocking rule should specify the URL, partial domain name, or included keywords in the Web requests from and to the gateway and also the destination service port. Besides, a certain time schedule can be applied to activate the URL Blocking rules during pre‐defined time interval(s). The gateway will logs and displays the disallowed web accessing requests that matched the defined URL blocking rule in the black‐list or in the exclusion of the white‐list. ...
Page 205 Outdoor Cellular Gateway URL Blocking Setting Go to Security > Firewall > URL Blocking Tab. In "URL Blocking" page, there are three configuration windows. They are the "Configuration" window, "URL Blocking Rule List" window, and "URL Blocking Rule Configuration" window. The "Configuration" window can let you activate the URL blocking function and specify to black listing or to white listing the packets defined in the "URL Blocking Rule List" entry. In addition, log alerting can be enabled to record on‐going events for any disallowed Web request packets. Refer to "System Status" in "6.1.1 System Related" section in this user manual for how to view recorded log. The "URL Blocking Rule List" window lists all your defined URL blocking rule entry. And finally, the "URL Blocking Rule Configuration" window can let you define URL blocking rules. The parameters in a rule include the rule name, the Source IP or MAC, the URL/Domain Name/Keyword, the destination service ports, the integrated time schedule rule and the rule activation. ...
Page 206 Outdoor Cellular Gateway When Add button is applied, the URL Blocking Rule Configuration screen will appear. URL Blocking Rules Configuration Value setting Description Item 1. String format can be any Specify an URL Blocking rule name. Enter a name that is easy for you to Rule Name text understand. 2. A Must filled setting This field is to specify the Source IP address.  Select Any to filter packets coming from any IP addresses.  Select Specific IP Address to filter packets coming from an IP address entered in this field. Source IP 1. A Must filled setting  Select IP Range to filter packets coming from a specified range of IP address 2. Any is set by default entered in this field.  Select IP Address‐based Group to filter packets coming from a pre‐defined group selected. Note: group must be pre‐defined before this option become available. Refer to Object Definition > Grouping > Host grouping. This field is to specify the Source MAC address.  Select Any to filter packets coming from any MAC addresses. ...
Page 207 Outdoor Cellular Gateway  Select Any to filter packets going to any Port. Port 2. Any is set by default  Select Specific Service Port to filter packets going to a specific Port entered in this field.  Select Port Range to filter packets going to a specific range of Ports entered in this field. Apply a specific Time Schedule to this rule; otherwise leave it as (0) Always. Time Object A Must filled setting If the dropdown list is empty ensure Time Schedule is pre‐configured. Refer to Schedule Rule Definition > Scheduling > Configuration tab. The box is unchecked by Click the Enable box to activate this rule. Rule default. Save NA Click the Save button to save the settings. Undo NA Click the Undo button to cancel the changes. Back NA Click the Back button to return to the URL Blocking Configuration page. ...
Page 208: Mac Control
Outdoor Cellular Gateway 5.2.3 MAC Control "MAC Control" function allows you to assign the accessibility to the gateway for different users based on device’s MAC address. When the administrator wants to reject the traffics from some client hosts with specific MAC addresses, he can use the "MAC Control" function to reject with the black list configuration. ...
Page 209 Outdoor Cellular Gateway MAC Control Setting Go to Security > Firewall > MAC Control Tab. The MAC control setting allows user to create and customize MAC address policies to allow or reject packets with specific source MAC address. Enable MAC Control Configuration Window Item Value setting Description The box is unchecked by MAC Control Check the Enable box to activate the MAC filter function default When Deny MAC Address Below is selected, as the name suggest, packets Black List / Deny MAC Address Below specified in the rules will be blocked –black listed. In contrast, with Allow MAC White List is set by default Address Below, you can specifically white list the packets to pass and the rest will be blocked. The box is unchecked by Log Alert Check the Enable box to activate to activate Event Log. default Known MAC Select a MAC Address from LAN Client List. Click the Copy to to copy the N/A from LAN PC List selected MAC Address to the filter rule. Save N/A Click Save to save the settings Undo ...
Page 210 Outdoor Cellular Gateway Create/Edit MAC Control Rules The gateway supports up to a maximum of 20 filter rule sets. Ensure that the MAC Control is enabled before we can create control rules. When Add button is applied, Filter Rule Configuration screen will appear. MAC Control Rule Configuration Item Value setting Description 1. String format can be any Rule Name text Enter a MAC Control rule name. Enter a name that is easy for you to remember. 2. A Must fill setting 1. MAC Address string MAC Address (Use: to Format Specify the Source MAC Address to filter rule. Compose) 2. A Must fill setting Apply Time Schedule to this rule; otherwise leave it as (0) Always. Time Schedule A Must fill setting If the dropdown list is empty, ensure Time Schedule is pre‐configured. Refer to Object Definition > Scheduling > Configuration tab The box is unchecked by Enable Click Enable box to activate this rule, and then save the settings. default. Save N/A Click Save to save the settings Undo N/A ...
Page 211: Content Filter
Outdoor Cellular Gateway 5.2.4 Content Filter "Content Filter" function can block HTML requests with some specific extension file names, like ".exe", ".bat" (applications), "mpeg” (video), and so on. It also blocks HTML requests with some script types, like Java Applet, Java Scripts, cookies and Active X. Content Filter Scenario When administrator gateway wants to block the Web requests for dedicated contents or objects, he can use the "Web Content Filters" function to carry out such request blocking. As shown in the diagram, enable the Web content filters function to check and filter out Web requests on Cookie, ...
Page 212 Outdoor Cellular Gateway Content Filter Setting . Go to Security > Firewall > Content Filter Tab There are three configuration windows for the filtering function. They are the "Configuration" window, "Content Filter List" window, and "Content Filter Configuration" window. The "Configuration" window can let you activate the web content filtering function. Besides, some popular script types, like Java Applet, Java Scripts, cookies and Active X are in the window and you can check their boxes to enable the gateway to filter out the web requests with corresponding patterns. ...
Page 213 Outdoor Cellular Gateway When Add button is applied, Content Filter Configuration screen will appear. Content Filter Configuration Item Value setting Description 1. String format can be any Enter a content filter rule name that is easy for you to understand. Rule Name text. 2. A Must filled setting. Specify the Source IP address to apply with the content filter rule. It can be Any, Specific IP Address, IP Range, or IP Address‐based Group. Select Any to filter packets coming from any IP addresses. Select Specific IP Address to filter packets coming from an IP address entered in this field. Select IP Range to filter packets coming from a specified range of IP address 1. A Must filled setting. Source IP 2. Any is selected by entered in this field. default. Select IP Address‐based Group to filter packets coming from a pre‐defined group selected. Note: Group must be pre‐defined before this selection become available. Refer to Object Definition > Grouping > Host Grouping Tab. You may also access to create a group by the Add Rule shortcut button. Setting done through the Add Rule button will also appear in the Host grouping setting screen. Specify the Source MAC address to apply with the content filter rule. Select Any to filter packets coming from any MAC addresses. 1. A Must filled setting. Select Specific MAC Address to filter packets coming from a MAC address Source MAC 2. Any is selected by entered in this field. default. ...
Page 214 Outdoor Cellular Gateway Note: Group must be pre‐defined before this selection become available. Refer to Object Definition > Grouping > Host Grouping Tab. You may also access to create a group by the Add Rule shortcut button. Setting done through the Add Rule button will also appear in the Host grouping setting screen. User‐defined Specify file extension list for the content filter rule. It supports up to a maximum File Extension of 10 file extensions in a rule by using the delimiter “;”. A Must filled setting List (Use ; to If a matching rule is found, the packets with http header will be dropped. Concatenate) Apply Time Schedule to this rule, otherwise leave it as Always. 1. A Must filled setting. Time Schedule 2.(0) Always is selected by If the dropdown list is empty, ensure Time Schedule is pre‐configured. Refer to default Object Definition > Scheduling > Configuration tab. The box is unchecked by Click the Enable box to activate this rule. Rule default. Save N/A Click the Save button to save the configuration. Click the Undo button to restore what you just configured back to the previous Undo N/A setting. When the Back button is clicked, the screen will return to the Content Filter Back N/A Configuration page. ...
Page 215: Application Filter
Outdoor Cellular Gateway 5.2.5 Application Filter Application Filter function can categorize Internet Protocol packets based on their application layer data and allow or deny their passing of gateway. It supports the application filters for various Internet chat software, P2P download, Proxy, and A/V streaming. You can select the applications to be blocked after the function is enabled, and may also specify schedule rule to apply. Application Filter Scenario When the administrator of the gateway wants to block some P2P or Stream applications, he can use the "Application Filters" function. As shown in the diagram, the Gateway is the gateway as a NAT router. Specify IP Range 192.168.123.200~250, and enable the Application ...
Page 216 Outdoor Cellular Gateway Create/Edit Application Filter Rules The gateway supports up to a maximum of 20 filter rule sets. Ensure that the Application Filers is enabled before we can create filter rules. When Add button is applied, Filter Rule Configuration screen will appear. Application Filter Rule Configuration Item Value setting Description 1. String format can be any Enter an application filter rule name that is easy for you to understand. Rule Name text. 2. A Must filled setting. Specify the Source IP address to apply with the application filter rule. It can be Any, Specific IP Address, IP Range, or IP Address‐based Group. Source IP Select Any to filter packets coming from any IP addresses. 1. A Must filled setting. 2. Any is selected by default. Select Specific IP Address to filter packets coming from an IP address entered in this field. Select IP Range to filter packets coming from a specified range of IP address ...
Page 217 Outdoor Cellular Gateway entered in this field. Select IP Address‐based Group to filter packets coming from a pre‐defined group selected. Note: Group must be pre‐defined before this selection become available. Refer to Object Definition > Grouping > Host Grouping Tab. You may also access to create a group by the Add Rule shortcut button. Setting done through the Add Rule button will also appear in the Host grouping setting screen. Specify the Source MAC address to apply with the application filter rule. Select Any to filter packets coming from any MAC addresses. Select Specific MAC Address to filter packets coming from a MAC address entered in this field. Source MAC 1. A Must filled setting. Select MAC Address‐based Group to filter packets coming from a pre‐defined 2. Any is selected by default. group selected. Note: Group must be pre‐defined before this selection become available. Refer to Object Definition > Grouping > Host Grouping Tab. You may also access to create a group by the Add Rule shortcut button. Setting done through the Add Rule button will also appear in the Host grouping setting screen. Check the box(es) to activate the application filter function you want on this All boxes are unchecked by Chat Software rule. default. The available chat applications include QQ, Skype, Facebook, Aliww, and Line. Check the box(es) to activate the application filter function you want on this All boxes are unchecked by rule. P2P Software default. The available P2P applications include BT, eDonkey/eMule, HTTP Multiple Thread Download, Thunder, and Baofeng. Check the box(es) to activate the application filter function you want on this All boxes are unchecked by Proxy rule. default. ...
Page 218: Ips
Outdoor Cellular Gateway 5.2.6 IPS To provide application servers in the Internet, administrator may need to open specific ports for the services. However, there are some risks to always open service ports in the Internet. In order to avoid such attack risks, it is important to enable IPS functions. Intrusion Prevention System (IPS) is network security appliances that monitor network and/or system activities for malicious activity. The main functions of IPS are to identify malicious activity, log information about this activity, attempt to block/stop it and report it. You can enable the IPS function and check the listed intrusion activities when needed. You can also enable the log alerting so that system will record Intrusion events when corresponding intrusions are detected. ...
Page 219 Outdoor Cellular Gateway IPS Setting Go to Security > Firewall > IPS Tab. The Intrusion Prevention System (IPS) setting allows user to customize intrusion prevention rules to prevent malicious packets. Enable IPS Firewall Configuration Window Item Value setting Description The box is unchecked by IPS Check the Enable box to activate IPS function default The box is unchecked by Log Alert Check the Enable box to activate to activate Event Log. default Save N/A Click Save to save the settings Undo N/A Click Undo to cancel the settings Setup Intrusion Prevention Rules The router allows you to select intrusion prevention rules you may want to enable. Ensure that the IPS is enabled before we can enable the defense function. ...
Page 220 Outdoor Cellular Gateway Setup Intrusion Prevention Rules Item Name Value setting Description SYN Flood Click Enable box to activate this intrusion prevention rule and Defense enter the traffic threshold in this field. 1. A Must filled setting UDP Flood 2. The box is unchecked by default. Click Enable box to activate this intrusion prevention rule and Defense 3. Traffic threshold is set to 300 by default enter the traffic threshold in this field. 4. The value range can be from 10 to Click Enable box to activate this intrusion prevention rule and ICMP Flood 10000. enter the traffic threshold in this field. Defense Value Range: 10 ~ 10000. 1. A Must filled setting 2. The box is unchecked by default. Click Enable box to activate this intrusion prevention rule and Port Scan Defection 3. Traffic threshold is set to 200 by default enter the traffic threshold in this field. 4. The value range can be from 10 to Value Range: 10 ~ 10000. 10000. Block Land Attack Block Ping of Death ...
Page 221 Outdoor Cellular Gateway Block Traceroute Block Fraggle Attack 1. A Must filled setting 2. The box is unchecked by default. Click Enable box to activate this intrusion prevention rule and ARP Spoofing 3. Traffic threshold is set to 300 by default enter the traffic threshold in this field. Defence 4. The value range can be from 10 to Value Range: 10 ~ 10000. 10000. Save NA Click Save to save the settings Undo NA Click Undo to cancel the settings ...
Page 222: Options
Outdoor Cellular Gateway 5.2.7 Options There are some additional useful firewall options in this page. “Stealth Mode” lets gateway not to respond to port scans from the WAN so that makes it less susceptible to discovery and attacks on the Internet. ”SPI” enables gateway to record the packet information like IP address, port address, ACK, SEQ number and so on while they pass through the gateway, and the gateway checks every incoming packet to detect if this packet is valid. “Discard Ping from WAN” makes any host on the WAN side can`t ping this gateway. And finally, “Remote Administrator Hosts” enables you to perform administration task from a remote host. If this feature is enabled, only specified IP address(es) can perform remote administration. ...
Page 223 Outdoor Cellular Gateway Enable SPI Scenario As shown in the diagram, Gateway has the IP address of 118.18.81.200 for WAN interface and 192.168.1.253 for LAN interface. It serves as a NAT gateway. Users in Network‐A initiate to access cloud server through the gateway. Sometimes, unknown users will simulate the packets but use different ...
Page 224 Outdoor Cellular Gateway Firewall Options Item Value setting Description The box is unchecked by Stealth Mode Check the Enable box to activate the Stealth Mode function default The box is checked by SPI Check the Enable box to activate the SPI function default Discard Ping The box is unchecked by Check the Enable box to activate the Discard Ping from WAN function from WAN default Define Remote Administrator Host The router allows network administrator to manage router remotely. The network administrator can assign specific IP address and service port to allow accessing the router. Remote Administrator Host Definition Item ...
Page 225 Outdoor Cellular Gateway 1. 80 for HTTP by default This field is to specify a Service Port to HTTP or HTTPS connection. Service Port 2. 443 for HTTPS by Value Range: 1 ~ 65535. default Enabling the The box is unchecked by Click Enable box to activate this rule. rule default. Save N/A Click Enable box to activate this rule then save the settings. Undo N/A Click Undo to cancel the settings ...
Page 226: Authentication
Outdoor Cellular Gateway 5.3 Authentication To approve or confirm the truth of a certain object, you have to configure the required settings in the Authentication page. The supported functions could be Captive Portal and MAC Authentication, and the available function might be different for the purchased gateway. ...
Page 227 Outdoor Cellular Gateway Internal Captive Portal In contrast, for internal captive portal, you will only select “Internal RADIUS Server” option for user authentication. The user account database can be an embedded database, an external AD database or an external LDAP database. However, the UAM server is not necessary for this case and that the captive portal Web site is embedded in the device. Before enabling internal Captive Portal function, please go to [Object Definition]‐[External Server] to define some external server objects, like LDAP server or AD server if necessary. Then return to configure Captive Portal function back in this page to specific WAN Interface, select “Internal ...
Page 228 Outdoor Cellular Gateway Captive Portal Setting Go to Security > Authentication > Captive Portal tab. The gateway supports the Captive Portal function to ask connecting users to pass the authentication process before they can surf the Internet via the gateway. The Captive Portal will re‐direct user to a login page when user try to access the Internet. Captive Portal Configuration Item Value setting Description Captive Portal The box is unchecked by Check the Enable box to activate the Captive Portal function. default WAN Interface 1. A Must filled setting. Specify a WAN Interface for the authenticated clients or hosts. 2. WAN‐1 is selected by All the traffics coming from the hosts will be directed to the specified WAN default. interface. LAN Subnet 1. A Must filled setting. Specify the LAN subnet which is to be bound with captive portal function. 2. DHCP‐1 is selected by It can be DHCP‐1 ~ DHCP‐4, if you configured the corresponding DHCP servers in ...
Page 229 Outdoor Cellular Gateway default. Basic Network > LAN & VLAN > DHCP Server. If DHCP‐1 is selected, users connected to the physical LAN port which bound the DHCP‐1 server, will be re‐directed to a login page when accessing the Internet. Web Portal 1. A Must filled setting. Specify which kind of authentication server is to be used for captive portal 2. The default setting function. It can be Internal or External, and depends on the product depends on the product specification. Not all products with internal option, some model ONLY has specification. It can be external option. Internal or External. When External is selected, there is no Customize login page to be configured, but user must specify external UAM Server and Authentication Server for authentication. When Internal is selected, user just needs to specify an Authentication Server and the portal login page can be edited in Customize login page. Customize login N/A Click the Download Default CSS and Logo button to download the default CSS page file and Logo of login page for the internal authentication server. Click the Download Current CSS and Logo button to download the current CSS file and Logo of login page for the internal authentication server. User can edit the CSS file or Logo downloaded from above buttons and upload them by Upload CSS and Logo files button. MAC Whitelist Optional setting Specify a MAC whitelist for the client devices that will not be subjected to the (Separated by,) captive portal authentication function. The MAC(s) filled in this field can access Internet directly, instead of been re‐ direct to the login page. Walled‐Garden ...
Page 230: Mac Authentication
Outdoor Cellular Gateway 5.3.2 MAC Authentication For some application, a RADIUS server is used to authenticate the Internet accessing permission. For those authorized devices (MACs), they are allowed to access internet, and on the other hand, for those not authorized devices, the internet accessing traffics will be blocked. This gateway supports such MAC authentication function, the administrator has to configure the settings and create a permissible user account list for those authorized devices. When the MAC Authentication function is enabled, the traffics from the specified interface(s) will be applied with the MAC Authentication process transparently. ...
Page 231 Outdoor Cellular Gateway User List Item Value setting Description Nickname N/A It displays the nickname for a user. User Name It displays the MAC address for a user. N/A Password It displays the password for a user. N/A Add N/A Add information of new device authentication Delete N/A Delete information of exists device authentication Filter N/A Search information of exists device authentication Previous N/A Navigation Button of authentication list Next N/A Navigation Button of authentication list When Add button is applied, User Configuration screen will appear. User List Item Value setting Description Nickname 1. A Must filled setting. Enter a nickname for the user that is easy for you to understand. ...
Page 232: Chapter 6 Administration
Outdoor Cellular Gateway Chapter 6 Administration 6.1 Configure & Manage Configure & Manage refers to enterprise‐wide administration of distributed systems including (and commonly in practice) computer systems. Centralized management has a time and effort trade‐off that is related to the size of the company, the expertise of the IT staff, and the amount of technology being used. This device supports many system management protocols, such as Command Script, TR‐069, SNMP, and Telnet with CLI. You can setup those configurations in the "Configure & Manage" section. ...
Page 233: Command Script
Outdoor Cellular Gateway 6.1.1 Command Script Command script configuration is the application that allows administrator to setup the pre‐defined configuration in plain text style and apply configuration on startup. Go to Administration > Command Script > Configuration Tab. Enable Command Script Configuration Configuration Item Value setting Description The box is unchecked by Configuration Check the Enable box to activate the Command Script function. default Click the Via Web UI or Via Storage button to backup the existed command Backup Script N/A script in a .txt file. Click the Via Web UI or Via Storage button to Upload the existed command Upload Script N/A script from a specified .txt file. ...
Page 234 Outdoor Cellular Gateway Backup NA Backup and download configuration. Save NA Save configuration The supported plain text configuration items are shown in the following list. For the settings that can be executed with standard Linux commands, you can put them in a script file, and apply to the system configure with STARTUP command. For those configurations without corresponding Linux command set to configure, you can configure them with proprietary command set. ...
Page 235 Outdoor Cellular Gateway PPP_PING_INTVL seconds Specify the time interval for between two DNS Query or ICMP checking packets. STARTUP Script file For the configurations that can be configured with standard Linux commands, you can put them in a script file, and apply the script file with STARTUP command. For example, STARTUP=#!/bin/sh STARTUP=echo “startup done” > /tmp/demo Plain Text System Configuration with Telnet In addition to the web‐style plain text configuration as mentioned above, the gateway system also allow the configuration via Telnet CLI. Administrator can use the proprietary telnet command “txtConfig” and related action items to perform the plain system configuration. The command format is: txtConfig (action) [option] Action Option Description clone Output file Duplicate the configuration content from database and stored as a configuration file. (ex: txtConfig clone /tmp/config) The contents in the configuration file are the same as the plain text commands mentioned above. This action is exactly the same as performing the “Backup” plain text configuration. commit a existing file Commit the configuration content to database. ...
Page 236: Tr-069
Outdoor Cellular Gateway 6.1.2 TR‐069 TR‐069 (Technical Report 069) is a Broadband Forum technical specification entitled CPE WAN Management Protocol (CWMP). It defines an application layer protocol for remote management of end‐user devices, like this gateway device. As a bidirectional SOAP/HTTP‐based protocol, it provides the communication between customer‐premises equipment (CPE) and Auto Configuration Servers (ACS). The Security Gateway is such CPE. TR‐069 is a customized feature for ISP. It is not recommend that you change the configuration for this. If you have any problem in using this feature for device management, please contact with your ISP or the ACS provider for help. At the right upper corner of TR‐069 Setting screen, one “[Help]” command let you see the ...
Page 237 Outdoor Cellular Gateway Following tables list the parameter configuration as an example for the Gateway 1 in above diagram with "TR‐069" enabling. Use default value for those parameters that are not mentioned in the tables. [TR‐069]‐[Configuration] Configuration Path ■ Enable TR‐069 ACS URL http://qaamit.acslite.com/cpe.php ACSUserName ACS User Name ACSPassword ACS Password 8099 ConnectionRequest Port ConnectionRequest User Name ConnReqUserName ConnectionRequest Password ConnReqPassword ■ Enable Interval 900 Inform Scenario Operation Procedure In above diagram, the ACS server can manage multiple gateways in the Internet. The "Gateway 1" is one of them and has 118.18.81.33 IP address for its WAN‐1 interface. When all remote gateways have booted up, they will try to connect to the ACS server. Once the connections are established successfully, the ACS server can configure, upgrade with latest FW and monitor these gateways. Remote gateways inquire the ACS server for jobs to do in each time period. If the ACS server needs some urgent jobs to be done by the gateways, it will issue the "Connection Request" command to those gateways. And those gateways make immediate connections in response to the ACS server’s immediate connection request for executing the urgent jobs. ...
Page 238 Outdoor Cellular Gateway TR‐069 Setting Go to Administration > Configure & Manage > TR‐069 tab. In "TR‐069" page, there is only one configuration window for TR‐069 function. In the window, you must specify the related information for your security gateway to connect to the ACS. Drive the function to work by specifying the URL of the ACS server, the account information to login the ACS server, the service port and the account information for connection requesting from the ACS server, and the time interval for job inquiry. Except the inquiry time, there are no activities between the ACS server and the gateways until the next inquiry ...
Page 239 Outdoor Cellular Gateway Select the TR‐069 dat model for the remote management. Standard : the ACS Server is a standard one, which is fully comply with TR‐ Standard is selected by Data Model 069. default. AMIT’s ACS Data Model : Select this data model if you intend to use AMIT’s Cloud ACS Server to managing the deployed gateways. ACS URL A Must filled setting You can ask ACS manager provide ACS URL and manually set ACS Username A Must filled setting You can ask ACS manager provide ACS username and manually set ACS Password A Must filled setting You can ask ACS manager provide ACS password and manually set You can ask ACS manager provide ACS ConnectionRequest Port and manually ConnectionRequest 1. A Must filled setting. set Port 2. By default 8099 is set. Value Range: 0 ~ 65535. ConnectionRequest You can ask ACS manager provide ACS ConnectionRequest Username and A Must filled setting UserName manually set ConnectionRequest You can ask ACS manager provide ACS ConnectionRequest Password and A Must filled setting Password manually set 1. The box is checked by When the Enable box is checked, the gateway (CPE) will periodicly send default. Inform ...
Page 240: Snmp
(such as type and description of the variable), are described by Management Information Bases (MIBs). The device supports several public MIBs and one private MIB for the SNMP agent. The supported MIBs are as follow: MIB-II (RFC 1213, Include IPv6), IF-MIB, IP-MIB, TCP-MIB, UDP-MIB, SMIv1 and SMIv2, SNMPv2-TM and SNMPv2-MIB, and AMIB (AMIT Private MIB) SNMP Management Scenario Scenario Application Timing ...
Page 241 Outdoor Cellular Gateway the Intranet and manage all devices that support SNMP protocol in the Intranet. Another one is the Remote NMS to manage some devices whose WAN interfaces are connected together by using a switch or a router with UDP forwarding. If you want to manage some devices and they all have supported SNMP protocol, use either one application scenario, especially the management of devices in the Intranet. In managing devices in the Internet, the TR‐069 is the better solution. Please ...
Page 242 Outdoor Cellular Gateway At first stage, the NMS manager prepares related information for all managed devices and records them in the NMS system. Then NMS system gets the status of all managed devices by using SNMP get commands. When the manager wants to configure the managed devices, the NMS system allows him to do that by using SNMP set commands. The "UserName1" account is used if the manager uses SNMPv3 protocol for configuring the "Gateway 1". Only the "UserName1" account can let the "Gateway 1" accept the configuration from the NMS since the authority of the account is "Read/Write". Once a managed device has an urgent event to send, the device will issue a trap to the Trap Event Receivers. The NMS itself could be one among them. If you want to secure the transmitted SNMP commands and responses between the NMS and the managed devices, use SNMPv3 version of protocol. The remote NMS without privilege IP address can't manage the "Gateway 1", since "Gateway 1" allows only the NMS with privilege IP address can manage it via its WAN interface. ...
Page 243 Outdoor Cellular Gateway SNMP Setting Go to Administration > Configure & Manage > SNMP tab. The SNMP allows user to configure SNMP relevant setting which includes interface, version, access control and trap receiver. Enable SNMP SNMP Item Value setting Description Select the interface for the SNMP and enable SNMP functions. When Check the LAN box, it will activate SNMP functions and you can access 1.The boxes are SNMP Enable SNMP from LAN side; unchecked by default When Check the WAN box, it will activate SNMP functions and you can access SNMP from WAN side. Select the version for the SNMP When Check the v1 box. 1.The v1 box is It means you can access SNMP by version 1. ...
Page 244 Outdoor Cellular Gateway Create/Edit Multiple Community The SNMP allows you to custom your access control for version 1 and version 2 user. The router supports up to a maximum of 10 community sets. When Add button is applied, Multiple Community Rule Configuration screen will appear. Multiple Community Rule Configuration Item Value setting Description 1. Read Only is Specify this version 1 or version v2c user’s community that will be allowed Read selected by default Only (GET and GETNEXT) or Read‐Write (GET, GETNEXT and SET) access Community 2. A Must filled setting respectively. 3. String format: any The maximum length of the community is 32. text 1.The box is checked Enable Click Enable to enable this version 1 or version v2c user. by default Click the Save button to save the configuration. But it does not apply to SNMP Save N/A functions. When you return to the SNMP main page. It will show “Click on save button to apply your changes” remind user to click main page Save button. Undo N/A Click the Undo button to cancel the settings. Back N/A Click the Back button to return to last page. ...
Page 245 Outdoor Cellular Gateway Create/Edit User Privacy The SNMP allows you to custom your access control for version 3 user. The router supports up to a maximum of 128 User Privacy sets. When Add button is applied, User Privacy Rule Configuration screen will appear. User Privacy Rule Configuration Item Value setting Description User Name 1. A Must filled setting Specify the User Name for this version 3 user. 2. String format: any Value Range: 1 ~ 32 characters. text Password 1. String format: any When your Privacy Mode is authNoPriv or authPriv, you must specify the text Password for this version 3 user. Value Range: 8 ~ 64 characters. Authentication 1. None is selected by When your Privacy Mode is authNoPriv or authPriv, you must specify the default Authentication types for this version 3 user. Selected the authentication types MD5/ SHA‐1 to use. Encryption 1. None is selected by When your Privacy Mode is authPriv, you must specify the Encryption default protocols for this version 3 user. Selected the encryption protocols DES / AES to use. Privacy Mode 1. noAuthNoPriv is ...
Page 246 Outdoor Cellular Gateway selected by default Selected the noAuthNoPriv. You do not use any authentication types and encryption protocols. Selected the authNoPriv. You must specify the Authentication and Password. Selected the authPriv. You must specify the Authentication, Password, Encryption and Privacy Key. Privacy Key 1. String format: any When your Privacy Mode is authPriv, you must specify the Privacy Key (8 ~ 64 text characters) for this version 3 user. Authority 1. Read is selected by Specify this version 3 user’s Authority that will be allowed Read Only (GET and default GETNEXT) or Read‐Write (GET, GETNEXT and SET) access respectively. OID Filter Prefix 1. The default value is The OID Filter Prefix restricts access for this version 3 user to the sub‐tree 1 rooted at the given OID. 2. A Must filled setting Value Range: 1 ~2080768. 3. String format: any legal OID Enable 1.The box is checked Click Enable to enable this version 3 user. by default Save N/A Click the Save button to save the configuration. But it does not apply to SNMP functions. When you return to the SNMP main page. It will show “Click on save button to apply your changes” remind user to click main page Save button. Undo N/A Click the Undo button to cancel the settings Back ...
Page 247 Outdoor Cellular Gateway When you selected v2c, the configuration screen is exactly the same as that of v1, except the version. When you selected v3, the configuration screen will provide more setting items for the version 3 Trap. Trap Event Receiver Rule Configuration Item Value setting Description 1. A Must filled setting Specify the trap Server IP. Server IP 2. String format: any The DUT will send trap to the server IP. Ipv4 address 1. String format: any Specify the trap Server Port. port number You can fill in any port number. But you must ensure the port number is not to Server Port 2. The default SNMP be used. trap port is 162 Value Range: 1 ~ 65535. 3. A Must filled setting SNMP Version 1. v1 is selected by Select the version for the trap ...
Page 248 Outdoor Cellular Gateway default Selected the v1. The configuration screen will provide the version 1 must filled items. Selected the v2c. The configuration screen will provide the version 2c must filled items. Selected the v3. The configuration screen will provide the version 3 must filled items. 1. A v1 and v2c Must filled setting Specify the Community Name for this version 1 or version v2c trap. Community Name 2. String format: any Value Range: 1 ~ 32 characters. text 1. A v3 Must filled setting Specify the User Name for this version 3 trap. User Name 2. String format: any Value Range: 1 ~ 32 characters. text 1. A v3 Must filled When your Privacy Mode is authNoPriv or authPriv, you must specify the setting Password Password for this version 3 trap. 2. String format: any Value Range: 8 ~ 64 characters. text Specify the Privacy Mode for this version 3 trap. Selected the noAuthNoPriv. 1. A v3 Must filled You do not use any authentication types and encryption protocols. setting Privacy Mode Selected the authNoPriv. 2. noAuthNoPriv is You must specify the Authentication and Password. selected by default ...
Page 249 Outdoor Cellular Gateway Edit SNMP Options If you use some particular private MIB, you must fill the enterprise name, number and OID. Options Item Value setting Description 1. The default value is AMIT Specify the Enterprise Name for the particular private MIB. Enterprise Name 2. A Must filled setting Value Range: 1 ~ 10 characters, and only string with A~Z, a~z, 0~9, ’–‘, ‘_’. 3. String format: any text The default value is 12823 (AMIT Enterprise Specify the Enterprise Number for the particular private MIB. Enterprise Number Number) Value Range: 1 ~2080768. 2. A Must filled setting 3. String format: any number 1. The default value is 1.3.6.1.4.1.12823.4.4.9 Specify the Enterprise OID for the particular private MIB. (AMIT Enterprise OID) The range of the each OID number is 1‐2080768. Enterprise OID 2. A Must filled setting The maximum length of the enterprise OID is 31. 3. String format: any The seventh number must be identical with the enterprise number. legal OID ...
Page 250: Telnet With Cli
Outdoor Cellular Gateway 6.1.4 Telnet with CLI A command‐line interface (CLI), also known as command‐line user interface, and console user interface are means of interacting with a computer program where the user (or client) issues commands to the program in the form of successive lines of text (command lines). The interface is usually implemented with a command line shell, which is a program that accepts commands as text input and converts commands to appropriate operating system functions. Programs with command‐line interfaces are generally easier to automate via scripting. ...
Page 251 Outdoor Cellular Gateway utility. Parameter Setup Example Following table lists the parameter configuration as an example for the Gateway in above diagram with "Telnet with CLI" enabling at LAN and WAN interfaces. Use default value for those parameters that are not mentioned in the table. [Telnet with CLI]‐[Configuration] Configuration Path LAN: ■ Enable WAN: ■ Enable Telnet with CLI Telnet: Service Port 23 ■ Enable Connection Type SSH: Service Port 22 ■ Enable Scenario Operation Procedure In above diagram, "Local Admin" or "Remote Admin" can manage the "Gateway" in the Intranet or Internet. The "Gateway" is the gateway of Network‐A, and the subnet of its Intranet is 10.0.75.0/24. It has the IP address of 10.0.75.2 for LAN interface and 118.18.81.33 for WAN‐1 interface. It serves as a NAT gateway. The "Local Admin" in the Intranet uses "Telnet" utility with privileged account to login the Gateway. Or the "Remote Admin" in the Internet uses "SSH" utility with privileged account to login the Gateway. ...
Page 252 Outdoor Cellular Gateway Telnet with CLI Setting Go to Administration > Configure & Manage > Telnet with CLI tab. The Telnet with CLI setting allows administrator to access this device through the traditional Telnet program. Before you can telnet (login) to the device, please configure the related settings and password with care. The password management part allows you to set root password for logging telnet and SSH. Configuration Item Value setting Description Telnet with CLI 1. The LAN Enable box is Check the Enable box to activate the Telnet with CLI function for connecting from WAN/LAN interfaces. checked by default. 2. The WAN Enable box is unchecked by default. Connection Type 1. The Telnet Enable box Check the Telnet Enable box to activate telnet service. Check the SSH Enable box to activate SSH service. You can set which number of Service Port you want to provide for ...
Page 253 Outdoor Cellular Gateway Configuration Item Value setting Description root 1. String: any text but no Type old password and specify new password to change root password. Note: You are highly recommended to change the default telnet password with yours blank character before the device is deployed. 2. The default password for telnet is ‘m2mamit’. Save N/A Click Save to save the settings Undo N/A Click Undo to cancel the settings ...
Page 254: System Operation
Outdoor Cellular Gateway 6.2 System Operation System Operation allows the network administrator to manage system, settings such as web‐based utility access password change, system information, system time, system log, firmware/configuration backup & restore, and reset & reboot. 6.2.1 Password & MMI Go to Administration > System Operation > Password & MMI tab. Change Password Change password screen allows network administrator to change the web‐based MMI login password to access gateway. ...
Page 255 Outdoor Cellular Gateway is disabled, the system won’t logout the administrator automatically. Web UI Item Value Setting Description Enter the login trial counting value. Value Range: 3 ~ 10. If someone tried to login the web GUI with incorrect password for more than Login 3 times is set by default the counting value, an warning message “Already reaching maximum Password‐Guessing times, please wait a few seconds!” will be displayed and ignore the following login trials. Check the Enable box to activate the auto logout function, and specify the The Enable box is Login Timeout maximum idle time as well. unchecked by default Value Range: 30 ~ 65535. GUI Access http/https is selected by Select the protocol that will be used for GUI access. It can be http/https, http Protocol default. only, or https only. Save N/A Click Save button to save the settings Undo N/A Click Undo button to cancel the settings ...
Page 256: System Information
The display also shows the current System time. It is particularly useful when firmware has been upgraded and system configuration file has been loaded. Go to Administration > System Operation > System Information tab. System Name Item Value Setting Description 1. an optional item Enter the system name for identification purpose. System Name 2. AMIT is set by default. It can be the manufacture, or any name for a device deployment. System Information Item Value Setting Description WAN Type N/A It displays the WAN Type of WAN‐1 Interface Internet connection configured. Display Time N/A ...
Page 257: System Time
Outdoor Cellular Gateway 6.2.3 System Time The gateway provides manually setup and auto‐synchronized approaches for the administrator to setup the system time for the gateway. The time supported synchronization methods can be Time Server, Manual, and PC. Select the method first, and then configure rest settings. Instead of manually configuring the system time for the gateway, there are two simple and quick solutions for you to set the correct time information and set it as the system time for the gateway. The first one is “Sync with Timer Server”. Based on your selection of time zone and time server in above time information configuration window, system will communicate with time server by NTP Protocol to get system date and time after you click on the Synchronize immediately button. The second one is “Sync with my PC”. Select the method and the system will synchronize its date and time to the time of the administration PC. Go to Administration > System Operation > System Time tab. Synchronize with Time Server System Time Information Item Value Setting Description 1. A Must‐filled item. Synchronization 2. Time Server is Select the Time Server as the synchronization method for the system time. method selected by default. 1. A Must‐filled item. Time Zone 2. GMT+00 :00 is Select a time zone where this device locates. selected by default. ...
Page 258 Outdoor Cellular Gateway default. one. Check the Enable button to activate the daylight saving function. Daylight Saving 1. It is an optional item. When you enabled this function, you have to specify the start date and end date Time 2. Un‐checked by default for the daylight saving time duration. Synchronize Click the Active button to synchronize the system time with specified time N/A immediately server immediately. Save N/A Click the Save button to save the settings. Refresh N/A Click the Refresh button to update the system time immediately. Note: Remember to select a correct time zone for the device, otherwise, you will just get the UTC (Coordinated Universal Time) time, not the local time for the device. ...
Page 259 Outdoor Cellular Gateway Synchronize with PC System Time Information Item Value Setting Description 1. A Must‐filled item. Synchronization Select PC as the synchronization method for the system time to let system 2. Time Server is method synchronize its date and time to the time of the administration PC. selected by default. Synchronize Click the Active button to synchronize the system time with specified time N/A immediately server immediately. Save N/A Click the Save button to save the settings. Refresh N/A Click the Refresh button to update the system time immediately. ...
Page 260: System Log
Outdoor Cellular Gateway 6.2.4 System Log System Log screen contains various event log tools facilitating network administrator to perform local event logging and remote reporting. Go to Administration > System Operation > System Log tab. View & Email Log History View button is provided for network administrator to view log history on the gateway. Email Now button enables administrator to send instant Email for analysis. View & Email Log History Item Value setting Description View button N/A Click the View button to view Log History in Web Log List Window. Email Now ...
Page 261 Outdoor Cellular Gateway Web Log List Window Item Value Setting Description Time column N/A It displays event time stamps Log column N/A It displays Log messages Web Log List Button Description Item Value setting Description Previous N/A Click the Previous button to move to the previous page. Next N/A Click the Next button to move to the next page. First N/A Click the First button to jump to the first page. Last N/A Click the Last button to jump to the last page. Download N/A Click the Download button to download log to your PC in tar file format. Clear N/A Click the Clear button to clear all log. Back N/A Click the Back button to return to the previous page. ...
Page 262 Outdoor Cellular Gateway Web Log Type Category Setting Window Item Value Setting Description System Checked by default Check to log system events and to display in the Web Log List window. Attacks Checked by default Check to log attack events and to display in the Web Log List window. Drop Checked by default Check to log packet drop events and to display in the Web Log List window. Login message Checked by default Check to log system login events and to display in the Web Log List window. Debug Un‐checked by default Check to log debug events and to display in the Web Log List window. Email Alert Email Alert screen allows network administrator to select the type of event to log and be sent to the destined Email account. Email Alert Setting Window Item Value Setting Description Check Enable box to enable sending event log messages to destined Email Enable Un‐checked by default account defined in the E‐mail Addresses blank space. Select one email server from the Server dropdown box to send Email. If none has been available, click the Add Object button to create an outgoing Email Server N/A server. ...
Page 263 Outdoor Cellular Gateway Syslogd Syslogd screen allows network administrator to select the type of event to log and be sent to the designated Syslog server. Syslogd Setting Window Item Value Setting Description Enable Un‐checked by default Check Enable box to activate the Syslogd function, and send event logs to a syslog server Select one syslog server from the Server dropdown box to sent event log to. If none has been available, click the Add Object button to create a system log server. Server N/A You may also add an system log server from the Object Definition > External Server > External Server tab. Log type Select the type of event to log and be sent to the destined syslog server. Available Un‐checked by default category events are System, Attacks, Drop, Login message, and Debug. ...
Page 264: Backup & Restore
Outdoor Cellular Gateway 6.2.5 Backup & Restore In the Backup & Restore window, you can upgrade the device firmware when new firmware is available and also backup / restore the device configuration. In addition to the factory default settings, you can also customize a special configuration setting as a customized default value. With this customized default value, you can reset the device to the expected default setting if needed. Go to Administration > System Operation > Backup & Restore tab. FW Backup & Restore Item Value Setting Description If new firmware is available, click the FW Upgrade button to upgrade the device firmware via Web UI, or Via Storage. Via Web UI is selected by After clicking on the “FW Upgrade” command button, you need to specify the FW Upgrade default file name of new firmware by using “Browse” button, and then click “Upgrade” button to start the FW upgrading process on this device. If you want to upgrade ...
Page 265: Reboot & Reset
Outdoor Cellular Gateway 6.2.6 Reboot & Reset For some special reason or situation, you may need to reboot the gateway or reset the device configuration to its default value. In addition to perform these operations through the Power ON/OFF, or pressing the reset button on the device panel, you can do it through the web GUI too. Go to Administration > System Operation > Reboot & Reset tab. In the Reboot & Reset window, you can reboot this device by clicking the “Reboot” button, and reset this device to default settings by clicking the “Reset” button. System Operation Window Item Value Setting Description Chick the Reboot button to reboot the gateway immediately or on a pre‐defined ...
Page 266: Ftp
Outdoor Cellular Gateway 6.3 FTP The File Transfer Protocol (FTP) is a standard network protocol used to transfer computer files between a client and server on a computer network. FTP is built on a client‐server model architecture and uses separate control and data connections between the client and the server. FTP users may authenticate themselves with a clear‐text sign‐in protocol, normally in the form of a username and password, but can connect anonymously if the server is configured to allow it. For secure transmission that protects the username and password, and encrypts the content, FTP is often secured with SSL/TLS (FTPS). Besides, SSH File Transfer Protocol (SFTP) is sometimes also used instead, but is technologically different. ...
Page 267: Server Configuration
Outdoor Cellular Gateway 6.3.1 Server Configuration This section allows user to setup the embedded FTP and SFTP server for retrieving the interested fog files. Go to Administration > FTP > Server Configuration tab. Enable FTP Server Configuration Item Value setting Description Check Enable box to activate the embedded FTP Server function. With the FTP Server enabled, you can retrieve or delete the stored log files via The box is unchecked by FTP FTP connection. default. Note: The embedded FTP Server is only for log downloading, so no any write permission is implemented for user file upload to the storage. Specify a port number for FTP connection. The gateway will listen for incoming FTP Port Port 21 is set by default FTP connections on the specified port. Value Range: 1 ~ 65535. 300 seconds is set by Specify the maximum timeout interval for the FTP connection. Supported range Timeout default. is 60 to 7200 seconds. Max. Specify the maximum number of clients from the same IP address for the FTP 2 Clients are set by Connections per ...
Page 268 Outdoor Cellular Gateway Check the Enable box to activate the support of PASV mode for a FTP PASV Mode Optional setting connection from FTP clients. Port Range of Port 50000 ~ 50031 is set Specify the port range to allocate for PASV style data connection. PASV Mode by default. Value Range: 1024 ~ 65535. Auto Report Check the Enable box to activate the support of overriding the IP address External IP in Optional setting advertising in response to the PASV command. PASV Mode ASCII Transfer Check the Enable box to activate the support of ASCII mode data transfers. Optional setting Mode Binary mode is supported by default. FTPS (FTP over Check the Enable box to activate the support of secure connections via SSL/TLS. Optional setting SSL/TLS) Enable SFTP Server ...
Page 269: User Account
Outdoor Cellular Gateway 6.3.2 User Account This section allows user to setup user accounts for logging to the embedded FTP and SFTP server to retrieve the interested fog files. Go to Administration > FTP > User Account tab. Create/Edit FTP User Accounts When Add button is applied, User Account Configuration screen will appear. Configuration Item Value setting Description User Name String : non‐blank string Enter the user account for login to the FTP server. Value Range: 1 ~ 15 characters. Password String : no blank Enter the user password for login to the FTP server. Directory N/A Select a root directory after user login. Permission Read/Write is selected by Select the Read/write permission. default. Note: The embedded FTP Server is only for log downloading, so no any write permission is implemented for user file upload to the storage, even Read/Write option is selected. Enable The box is checked by Check the box to activate the FTP user account. ...
Page 270: Diagnostic
Outdoor Cellular Gateway 6.4 Diagnostic This gateway supports simple network diagnosis tools for the administrator to troubleshoot and find the root cause of the abnormal behavior or traffics passing through the gateway. There can be a Packet Analyzer to help record the packets for a designated interface or specific source/destination host, and another Ping and Tracert tools for testing the network connectivity issues. 6.4.1 Diagnostic Tools The Diagnostic Tools provide some frequently used network connectivity diagnostic tools (approaches) for the network administrator to check the device connectivity. Go to Administration > Diagnostic > Diagnostic Tools tab. Diagnostic Tools Item Value setting Description This allows you to specify an IP / FQDN and the test interface (LAN, WAN, or Ping Test Optional Setting Auto), so system will try to ping the specified device to test whether it is alive after clicking on the Ping button. A test result window will appear beneath it. command is a network diagnostic tool for displaying the Trace route (tracert) route (path) and measuring transit delays of packets across an IP network. Trace route proceeds until all (three) sent packets are lost for more than twice, then the connection is lost and the route cannot be evaluated. Tracert Test Optional setting First, you need to specify an IP / FQDN, the test interface (LAN, WAN, or Auto) and the protocol (UDP or ICMP), and by default, it is UDP. Then, system will try to trace the specified host to test whether it is alive after clicking on Tracert button. A test result window will appear beneath it. Wake on LAN (WOL) is an Ethernet networking standard that allows a computer to be turned on or awakened by a network message. You can Wake on LAN ...
Page 271: Packet Analyzer
Outdoor Cellular Gateway 6.4.2 Packet Analyzer The Packet Analyzer can capture packets depend on user settings. User can specify interfaces to capture packets and filter by setting rule. Ensure the log storage is available (either embedded SD‐Card or external USB Storage), otherwise Packet Analyzer cannot be enabled. Go to Administration > Diagnostic > Packet Analyzer tab. Configuration Item Value setting Description Check Enable box to activate the Packet Analyzer function. The box is unchecked by If you cannot enable the checkbox, please check if the storage is available Packet Analyzer default. or not. Plug in the USB storage and then enable the Package Analyzer function. 1. An optional setting Enter the file name to save the captured packets in log storage. 2. Blank is set by default, and ...
Page 272 Outdoor Cellular Gateway  VAP: This means the virtual AP. When WiFi and VAP are enabled, it can be selected here. Save N/A Click the Save button to save the configuration. Click the Undo button to restore what you just configured back to the Undo N/A previous setting. Once you enabled the Packet Analyzer function on specific Interface(s), you can further specify some filter rules to capture the packets which matched the rules. Capture Fitters Item Value setting Description Filter Optional setting Check Enable box to activate the Capture Filter function. Source MACs ...
Page 273 Outdoor Cellular Gateway packets. Packets which match the rule will be captured. Up to 10 IPs are supported, but they must be separated with “;”, e.g. 192.168.1.1; 192.168.1.2 The packets will be captured when match any one IP in the rule. Source Ports Optional setting Define the filter rule with Source Ports, which means the source port of packets. The packets will be captured when match any port in the rule. Up to 10 ports are supported, but they must be separated with “;”, e.g. 80; 53 Value Range: 1 ~ 65535. Destination MACs Optional setting Define the filter rule with Destination MACs, which means the destination MAC address of packets. Packets which match the rule will be captured. Up to 10 MACs are supported, but they must be separated with “;”, e.g. AA:BB:CC:DD:EE:FF; 11:22:33:44:55:66 The packets will be captured when match any one MAC in the rule. Destination IPs Optional setting Define the filter rule with Destination IPs, which means the destination IP address of packets. Packets which match the rule will be captured. Up to 10 IPs are supported, but they must be separated with “;”, e.g. 192.168.1.1; 192.168.1.2 The packets will be captured when match any one IP in the rule. Destination Ports Optional setting Define the filter rule with Destination Ports, which means the destination port of packets. ...
Page 274: Chapter 7 Service
Outdoor Cellular Gateway Chapter 7 Service 7.1 Cellular Toolkit Besides cellular data connection, you may also like to monitor data usage of cellular WAN, sending text message through SMS, changing PIN code of SIM card, communicating with carrier/ISP by USSD command, or doing a cellular network scan for diagnostic purpose. ...
Page 275: Data Usage
Outdoor Cellular Gateway 7.1.1 Data Usage Most of data plan for cellular connection is with a limited amount of data usage. If data usage has been over limited quota, either you will get much lower data throughput that may affect your daily operation, or you will get a ‘bill shock’ in the next month because carrier/ISP charges a lot for the over‐quota data usage. With help from Data Usage feature, device will monitor cellular data usage continuously and take actions. If data usage reaches limited quota, device can be set to drop the cellular data connection right away. Otherwise, if secondary SIM card is inserted, device will switch to secondary SIM and establish another cellular data connection with secondary SIM automatically. If Data Usage feature is enabled, all history of cellular data usage can be viewed at Status > Statistics & Reports > Cellular Usage tab. ...
Page 276 Outdoor Cellular Gateway Data Usage Setting Go to Service > Cellular Toolkit > Data Usage tab. Before finished settings for Data Usage, you need to know bill start date, bill period, and quota limit of data usage according to your data plan. You can ask this information from your carrier or ISP. Create / Edit 3G/4G Data Usage Profile When Add button is applied, 3G/4G Data Usage Profile Configuration screen will appear. You can create up to four data usage profiles, one profile for each SIM card used in the Gateway. 3G/4G Data Usage Profile Configuration Item Setting Value setting Description SIM Select 3G/4G‐1 and SIM A by Choose a cellular interface (3G/4G‐1 or 3G/4G‐2), and a SIM card bound to the default. selected cellular interface to configure its data usage profile. Note: 3G/4G‐2 is only available for for the product with dual cellular module. Carrier Name It is an optional item. Fill in the Carrier Name for the selected SIM card for identification. Cycle Period Days by default The first box has three types for cycle period. They are Days, Weekly and Monthly. Days: For per Days cycle periods, you have to further specify the number of days in the second box. Value Range: 1 ~ 90 days. Weekly, Monthly: The cycle period is one week or one month. Start Date N/A ...
Page 277 Outdoor Cellular Gateway incorrect. Data Limitation N/A Specify the allowable data limitation for the defined cycle period. Connection Un‐Checked by default. Check the Enable box to activate the connection restriction function. Restrict During the specified cycle period, if the actual data usage exceeds the allowable data limitation, the cellular connection will be forced to disconnect. Enable Un‐Checked by default. Check the Enable box to activate the data usage profile. ...
Page 278: Sms
Outdoor Cellular Gateway 7.1.2 SMS Short Message Service (SMS) is a text messaging service, which is used to be widely‐used on mobile phones. It uses standardized communications protocols to allow mobile phones or cellular devices to exchange short text messages in an instant and convenient way. SMS Setting Go to Service > Cellular Toolkit > SMS tab With this gateway device, you can send SMS text messages or browse received SMS messages as you usually do on a cellular phone. Setup SMS Configuration Configuration Item Value setting Description Choose a cellular interface (3G/4G‐1 or 3G/4G‐2) for the following SMS function Physical The box is 3G/4G‐1 by configuration. Interface default Note: 3G/4G‐2 is only available for for the product with dual cellular module. The box is checked by This is the SMS switch. If the box checked that the SMS function enable, if the SMS default box unchecked that the SMS function disable. SIM Status N/A Depend on currently SIM status. The possible value will be SIM_A or SIM_B. The box is SIM Card Only SMS Storage This is the SMS storage location. Currently the option only SIM Card Only. by default ...
Page 279 Outdoor Cellular Gateway SMS Summary Show Unread SMS, Received SMS, Remaining SMS, and edit SMS context to send, read SMS from SIM card. SMS Summary Item Value setting Description If SIM card insert to router first time, unread SMS value is zero. When received the Unread SMS N/A new SMS but didn’t read, this value plus one. This value record the existing SMS numbers from SIM card, When received the new Received SMS N/A SMS, this value plus one. This value is SMS capacity minus received SMS, When received the new SMS, this Remaining SMS N/A value minus one. Click New SMS button, a New SMS screen appears. User can set the SMS setting New SMS N/A from this screen. Refer to New SMS in the next page. Click SMS Inbox button, a SMS Inbox List screen appears. User can read or delete SMS Inbox N/A SMS, reply SMS or forward SMS from this screen. Refer to SMS Inbox List in the next page. Refresh N/A Click the Refresh button to update the SMS summary immediately. New SMS You can set the SMS setting from this screen. ...
Page 280 Outdoor Cellular Gateway New SMS Item Value setting Description Write the receivers to send SMS. User need to add the semicolon and compose Receivers N/A multiple receivers that can group send SMS. Write the SMS context to send SMS. The router supports up to a maximum of Text Message N/A 1023 character for SMS context length. Send N/A Click the Send button, above text message will be sent as a SMS. If SMS has been sent successfully, it will show Send OK, otherwise Send Failed Result N/A will be displayed. SMS Inbox List You can read or delete SMS, reply SMS or forward SMS from this screen. SMS Inbox List Item Value setting Description ID N/A The number or SMS. From Phone N/A What the phone number from SMS Number Timestamp N/A What time receive SMS ...
Page 281: Sim Pin
Outdoor Cellular Gateway 7.1.3 SIM PIN With most cases in the world, users need to insert a SIM card (a.k.a. UICC) into end devices to get on cellular network for voice service or data surfing. The SIM card is usually released by mobile operators or service providers. Each SIM card has a unique number (so‐called ICCID) for network owners or service providers to identify each subscriber. As SIM card plays an important role between service providers and subscribers, some security mechanisms are required on SIM card to prevent any unauthorized access. Enabling a PIN code in SIM card is an easy and effective way of protecting cellular devices from unauthorized ...
Page 282 Outdoor Cellular Gateway SIM PIN Setting Go to Service > Cellular Toolkit > SIM PIN Tab With the SIM PIN Function window, it allows you to enable or disable SIM lock (which means protected by PIN code), or change PIN code. You can also see the information of remaining times of failure trials as we mentioned earlier. If you run out of these failure trials, you need to get a PUK code to unlock SIM card. Select a SIM Card Configuration Window Item Value setting Description Physical The box is 3G/4G‐1 by Choose a cellular interface (3G/4G‐1 or 3G/4G‐2) to change the SIM PIN setting Interface default for the selected SIM Card. ...
Page 283 Outdoor Cellular Gateway Enable / Change PIN Code Enable or Disable PIN code (password) function, and even change PIN code function. SIM function Window Item Setting Value setting Description SIM lock Depend on SIM card Click the Enable button to activate the SIM lock function. For the first time you want to enable the SIM lock function, you have to fill in the PIN code as well, and then click Save button to apply the setting. Remaining times Depend on SIM card Represent the remaining trial times for the SIM PIN unlocking. Save N/A Click the Save button to apply the setting. Change PIN Code N/A Click the Change PIN code button to change the PIN code (password). If the SIM Lock function is not enabled, the Change PIN code button is disabled. In the case, if you still want to change the PIN code, you have to enable the SIM Lock function first, fill in the PIN code, and then click the Save button to enable. After that, You can click the Change PIN code button to change the PIN code. ...
Page 284 Outdoor Cellular Gateway specified in the Basic Network > WAN & Uplink > Internet Setup > Connection with SIM Card page. Otherwise, it may result in wrong SIM PIN trials with invalid (old) PIN code. Unlock with a PUK Code The PUK Function window is only available for configuration if that SIM card is locked by PUK code. It means that SIM card is locked and needs additional PUK code to unlock. Usually it happens after too many trials of incorrect PIN code, and the remaining times in SIM Function table turns to 0. In this situation, you need to contact your service provider and request a PUK code for your SIM card, and try to unlock the locked SIM card ...
Page 285: Ussd
Outdoor Cellular Gateway 7.1.4 USSD Unstructured Supplementary Service Data (USSD) is a protocol used by GSM cellular telephones to communicate with the service provider's computers. USSD can be used for WAP browsing, prepaid callback service, mobile‐money services, location‐based content services, menu‐based information services, and as part of configuring the phone on the network. ...
Page 286 Outdoor Cellular Gateway USSD Setting Go to Service > Cellular Toolkit > USSD tab. In "USSD" page, there are four windows for the USSD function. The "Configuration" window can let you specify which 3G/4G module (physical interface) is used for the USSD function, and system will show which SIM card in the module is the current used one. The second window is the "USSD Profile List" and it shows all your defined USSD profiles that store pre‐commands for activating an USSD session. An "Add" button in the window can let you add one new USSD profile and define the command for the profile in the third window, the "USSD Profile Configuration". When you want to start the activation of an USSD connection session to the USSD server, select the USSD profile or type in the correct pre‐command, and then click on the "Send" button for the session. ...
Page 287 Outdoor Cellular Gateway When Add button is applied, USSD Profile Configuration screen will appear. USSD Profile Configuration Item Value setting Description Profile Name N/A Enter a name for the USSD profile. Enter the USSD command defined for the profile. Normally, it is a command string composed with numeric keypad “0~9”, “*”, USSD Command N/A and “#”. The USSD commands are highly related to the cellular service, please check with your service provider for the details. Comments N/A Enter a brief comment for the profile. Send USSD Request When send the USSD command, the USSD Response screen will appear. When click the Clear button, the USSD Response will disappear. USSD Request Item Value setting Description USSD Profile N/A Select a USSD profile name from the dropdown list. USSD Command N/A The USSD Command string of the selected profile will be shown here. Click the Send button to send the USSD command, and the USSD Response USSD Response N/A ...
Page 288: Network Scan
Outdoor Cellular Gateway 7.1.5 Network Scan "Network Scan" function can let administrator specify the device how to connect to the mobile system for data communication in each 3G/4G interface. For example, administrator can specify which generation of mobile system is used for connection, 2G, 3G or LTE. Moreover, he can define their connection sequence for the gateway device to connect to the mobile system automatically. Administrator also can scan the mobile systems in the air manually, select the target operator system and apply it. The manual scanning approach is ...
Page 289 Outdoor Cellular Gateway Save N/A Click Save to save the settings The second window is the "Network Provider List" window and it appears when the Manually Scan Approach is selected in the Configuration window. By clicking on the "Scan" button and wait for 1 to 3 minutes, the found mobile operator system will be displayed for you to choose. Click again on the "Apply" button to drive system to connect to that mobile operator system for the dedicated 3G/4G interface. ...
Page 290: Event Handling
Outdoor Cellular Gateway 7.2 Event Handling Event handling is the application that allows administrator to setup the pre‐defined events, handlers, or response behavior with individual profiles. With properly configuring the event handling function, administrator can easily and remotely obtain the status and information via the purchased gateway. The supported events are categorized into two groups: the managing events and notifying events. The managing events are the events that are used to manage the gateway or change the setting / status of the specific functionality of the gateway. On receiving the managing event, the gateway will take action to change the functionality, and collect the required status for administration simultaneously. The notifying events are the events that some related objects have been triggered and take corresponding actions ...
Page 291: Configuration
Outdoor Cellular Gateway 7.2.1 Configuration Go to Service > Event Handling > Configuration Tab. Event handling is the service that allows administrator to setup the pre‐defined events, handlers, or response behavior with individual profiles. Enable Event Management Configuration Item Value setting Description Event The box is unchecked by Check the Enable box to activate the Event Management function. Management default Enable SMS Management To use the SMS management function, you have to configure some important settings first. SMS Configuration Item Value setting Description Message Prefix The box is unchecked Click the Enable box to enable the SMS prefix for validating the received SMS. by default Once the function is enabled, you have to enter the prefix behind the checkbox. The received managing events SMS must have the designated prefix as an initial identifier, then corresponding handlers will become effective for further ...
Page 292 Outdoor Cellular Gateway Physical Interface Choose a cellular interface (3G/4G‐1 or 3G/4G‐2) to configure the SMS The box is 3G/4G‐1 by management setting. default. Note: 3G/4G‐2 is only available for for the product with dual cellular module. SIM Status N/A Show the connected cellular service (identified with SIM_A or SIM_B). Delete Managed The box is unchecked Check the Enable box to delete the received managing event SMS after it has SMS after by default been processed. Processing Create / Edit SMS Account Setup the SMS Account for managing the gateway through the SMS. It supports up to a maximum of 5 accounts. ...
Page 293 Outdoor Cellular Gateway Create / Edit Email Service Account Setup the Email Service Account for event notification. It supports up to a maximum of 5 accounts. You can click the Add / Edit button to configure the Email account. Email Service Configuration Item Value setting Description Email Server ‐‐‐ Option ‐‐‐ Select an Email Server profile from External Server setting for the email account setting. Email 1. Internet E‐mail address Specify the Destination Email Addresses. Addresses format 2. A Must filled setting Enable The box is unchecked by Click Enable box to activate this account. default. Save NA Click the Save button to save the configuration ...
Page 294: Managing Events
Outdoor Cellular Gateway 7.2.2 Managing Events Managing Events allow administrator to define the relationship (rule) among event trigger, handlers and response. Go to Service > Event Handling > Managing Events Tab. Enable Managing Events Configuration Item Value setting Description Managing The box is unchecked by Check the Enable box to activate the Managing Events function. Events default Create / Edit Managing Event Rules Setup the Managing Event rules. It supports up to a maximum of 128 rules. When Add button is applied, the Managing Event Configuration screen will appear. Managing Event Configuration Item ...
Page 295 Outdoor Cellular Gateway Note: The available Event Type could be different for the purchased product. Description String format : any text. Enter a brief description for the Managing Event. Action All box is unchecked by Specify Network Status, or at least one rest action to take when the expected default. event is triggered. Network Status: Select Network Status Checkbox to get the network status as the action for the event; LAN&VLAN: Select LAN&VLAN Checkbox and the interested sub‐items (Port link On/Off), the gateway will change the settings as the action for the event; WiFi: Select WiFi Checkbox and the interested sub‐items (WiFi radio On/Off), the gateway will change the settings as the action for the event; NAT: Select NAT Checkbox and the interested sub‐items (Virtual Server Rule On/Off, DMZ On/Off), the gateway will change the settings as the action for the event; Firewall: Select Firewall Checkbox and the interested sub‐items (Remote Administrator Host ID On/Off), the gateway will change the settings as the action for the event; VPN: Select VPN Checkbox and the interested sub‐items (IPSec Tunnel ON/Off, PPTP Client On/Off, L2TP Client On/Off, OpenVPN Client On/Off), the gateway will change the settings as the action for the event; GRE: Select GRE Checkbox and the interested sub‐items (GRE Tunnel On/Off), the gateway will change the settings as the action for the event; System Manage: Select System Manage Checkbox and the interested sub‐items (WAN SSH Service On/Off, TR‐069 On/Off), the gateway will change the settings as the action for the event; Administration: Select Administration Checkbox and the interested sub‐items (Backup Config, Restore Config, Reboot, Save Current Setting as Default), the gateway will change the settings as the action for the event; Note: The available Event Type could be different for the purchased product. Managing The box is unchecked by Click Enable box to activate this Managing Event setting. Event default. ...
Page 296: Notifying Events
Outdoor Cellular Gateway 7.2.3 Notifying Events Go to Service > Event Handling > Notifying Events Tab. Notifying Events Setting allows administrator to define the relationship (rule) between event trigger and handlers. Enable Notifying Events Configuration Item Value setting Description Notifying Events The box is unchecked by Check the Enable box to activate the Notifying Events function. default Create / Edit Notifying Event Rules Setup your Notifying Event rules. It supports up to a maximum of 128 rules. When Add button is applied, the Notifying Event Configuration screen will appear. ...
Page 297 Outdoor Cellular Gateway Notifying Event Configuration Item Value setting Description Event Digital Input (or WAN) by Specify the Event type and corresponding event configuration. The supported default Event Type could be: WAN: Select WAN and a trigger condition to specify a certain WAN Event; LAN&VLAN: Select LAN&VLAN and a trigger condition to specify a certain LAN&VLAN Event; WiFi: Select WiFi and a trigger condition to specify a certain WiFi Event; DDNS: Select DDNS and a trigger condition to specify a certain DDNS Event; Administration: Select Administration and a trigger condition to specify a certain Administration Event; Data Usage: Select Data Usage, the SIM Card (Cellular Service) and a trigger condition to specify a certain Data Usage Event; Note: The available Event Type could be different for the purchased product. Description String format : any text. Enter a brief description for the Notifying Event. Action All box is unchecked by Specify at least one action to take when the expected event is triggered. default. SMS: Select SMS, and the gateway will send out a SMS to all the defined SMS accounts as the action for the event; Syslog: Select Syslog and select/unselect the Enable Checkbox to as the action for the event; SNMP Trap: Select SNMP Trap, and the gateway will send out SNMP Trap to the defined SNMP Event Receivers as the action for the event; Email Alert: Select Email Alert, and the gateway will send out an Email to the defined Email accounts as the action for the event; Note: The available Event Type could be different for the purchased product. ...
Page 298: Chapter 8 Status
Outdoor Cellular Gateway Chapter 8 Status 8.1 Dashboard 8.1.1 Device Dashboard The Device Dashboard window shows the current status in graph or tables for quickly understanding the operation status for the gateway. They are the System Information, System Information History, and Network Interface Status. The display will be refreshed once per second. From the menu on the left, select Status > Dashboard > Device Dashboard tab. System Information Status The System Information screen shows the device Up‐time and the resource utilization for the CPU, Memory, and Connection Sessions. ...
Page 299 Outdoor Cellular Gateway System Information History The System Information History screen shows the statistic graphs for the CPU and memory. Network Interface Status The Network Interface Status screen shows the statistic information for each network interface of the gateway. The statistic information includes the Interface Type, Upload Traffic, Download Traffic, and Current Upload / Download Traffic. ...
Page 300: Basic Network
Outdoor Cellular Gateway 8.2 Basic Network 8.2.1 WAN & Uplink Status Go to Status > Basic Network > WAN & Uplink tab. The WAN & Uplink Status window shows the current status for different network type, including network configuration, connecting information, modem status and traffic statistics. The display will be refreshed on every five seconds. WAN interface IPv4 Network Status ...
Page 301 Outdoor Cellular Gateway Renew button allows user to force the device to request an IP address from the DHCP server. Note: Renew button is available when DHCP WAN Type is used and WAN connection is disconnected. Release button allows user to force the device to clear its IP address setting to disconnect from DHCP server. Note: Release button is available when DHCP WAN Type is used and WAN connection is connected. Connect button allows user to manually connect the device to the Internet. Note: Connect button is available when Connection Control in WAN Type setting is set to Connect Manually (Refer to Edit button in Basic Network > WAN & Uplink > Internet Setup) and WAN connection status is disconnected. Disconnect button allows user to manually disconnect the device from the Internet. Note: Connect button is available when Connection Control in WAN Type setting is set to Connect Manually (Refer to Edit button in Basic Network > WAN & Uplink > Internet Setup) and WAN connection status is connected. WAN interface IPv6 Network Status WAN interface IPv6 Network Status screen shows status information for IPv6 network. WAN interface IPv6 Network Status Item Value setting Description ID N/A It displays corresponding WAN interface WAN IDs. It displays the type of WAN physical interface. Interface N/A Depending on the model purchased, it can be Ethernet, 3G/4G, etc... It displays the method which public IP address is obtained from your ISP. WAN WAN Type N/A ...
Page 302 Outdoor Cellular Gateway LAN Interface Network Status LAN Interface Network Status screen shows IPv4 and IPv6 information of LAN network. LAN Interface Network Status Item Value setting Description It displays the current IPv4 IP Address of the gateway IPv4 Address N/A This is also the IP Address user use to access Router’s Web‐based Utility. IPv4 Subnet Mask N/A It displays the current mask of the subnet. IPv6 Link‐local It displays the current LAN IPv6 Link‐Local address. N/A Address This is also the IPv6 IP Address user use to access Router’s Web‐based Utility. It displays the current IPv6 global IP address assigned by your ISP for your IPv6 Global Address N/A Internet connection. This area provides functional buttons. Edit IPv4 Button when press, web‐based utility will take you to the Ethernet Action N/A LAN configuration page. (Basic Network > LAN & VLAN > Ethernet LAN tab). Edit IPv6 Button when press, web‐based utility will take you to the IPv6 configuration page. (Basic Network > IPv6 > Configuration.) 3G/4G Modem Status 3G/4G Modem Status List screen shows status information for 3G/4G WAN network(s). ...
Page 303 Outdoor Cellular Gateway Disconnecting, and Disconnected. Signal N/A It displays the 3G/4G wireless signal level. Strength Network N/A It displays the name of the service network carrier. Name Refresh N/A Click the Refresh button to renew the information. This area provides functional buttons. Detail Button when press, windows of detail information will appear. They are the Action N/A Modem Information, SIM Status, and Service Information. Refer to next page for more. When the Detail button is pressed, 3G/4G modem information windows such as Modem Information, SIM Status, Service Information, and Signal Strength / Quality will appear. Interface Traffic Statistics ...
Page 304: Lan & Vlan Status
Outdoor Cellular Gateway 8.2.2 LAN & VLAN Status Go to Status > Basic Network > LAN & VLAN tab. Client List The Client List shows you the LAN Interface, IP address, Host Name, MAC Address, and Remaining Lease Time of each device that is connected to this gateway. The display will be refreshed on every five seconds. LAN Client List Item Value setting Description LAN Interface N/A Client record of LAN Interface. String Format. Client record of IP Address Type and the IP Address. Type is String Format and IP Address N/A the IP Address is IPv4 Format. Host Name N/A Client record of Host Name. String Format. MAC Address N/A Client record of MAC Address. MAC Address Format. Remaining Lease N/A Client record of Remaining Lease Time. Time Format. Time ...
Page 305: Wifi Status
Outdoor Cellular Gateway 8.2.3 WiFi Status Go to Status > Basic Network > WiFi tab. The WiFi Status window shows the overall statistics of WiFi VAP entries. WiFi Virtual AP List The WiFi Virtual AP List shows all of the virtual AP information. The Edit button allows for quick configuration changes. WiFi Virtual AP List Item Value setting Description Op. Band N/A It displays the Wi‐Fi Operation Band (2.4G or 5G) of VAP. ID N/A It displays the ID of VAP. WiFi Enable N/A It displays whether the VAP wireless signal is enabled or disabled. The Wi‐Fi Operation Mode of VAP. Depends of device model, modes are AP Op. Mode N/A Router, WDS Only and WDS Hybrid, Universal Repeater and Client. SSID N/A It displays the network ID of VAP. Channel N/A It displays the wireless channel used. WiFi System N/A The WiFi System of VAP. Auth. & Security ...
Page 306 Outdoor Cellular Gateway WiFi WDS Status The WiFi Traffic Statistic shows all the received and transmitted packets on WiFi network. WiFi IDS Status Item Value setting Description SSID N/A It displays the network ID of VAP. Remote AP MAC N/A It displays the the Remote AP MAC list for the WDS peers. Channel N/A It displays the wireless channel used. Security N/A It displays the authentication and encryption setting for the WDS connection. RSSI0, RSSI1 N/A It displays the Rx sensitivity on each radio path.. Click the Edit button to make a quick access to the WiFi configuration page. (Basic Action N/A Network > WiFi > Configuration tab) ...
Page 307 Outdoor Cellular Gateway Ensure WIDS function is enabled Go to Basic Network > WiFi > Advanced Configuration tab Note that the WIDS of 2.4G or 5G should be configured separately. WiFi Traffic Statistic The WiFi Traffic Statistic shows all the received and transmitted packets on WiFi network. WiFi Traffic Statistic Item Value setting Description Op. Band N/A ...
Page 308: Ddns Status
Outdoor Cellular Gateway 8.2.4 DDNS Status Go to Status > Basic Network > DDNS tab. The DDNS Status window shows the current DDNS service in use, the last update status, and the last update time to the DDNS service server. DDNS Status DDNS Status Item Value Setting Description Host Name N/A It displays the name you entered to identify DDNS service provider Provider N/A It displays the DDNS server of DDNS service provider Effective IP N/A It displays the public IP address of the device updated to the DDNS server Last Update ...
Page 309: Security
Outdoor Cellular Gateway 8.3 Security 8.3.1 VPN Status Go to Status > Security > VPN tab. The VPN Status widow shows the overall VPN tunnel status. The display will be refreshed on every five seconds. IPSec Tunnel Status IPSec Tunnel Status windows show the configuration for establishing IPSec VPN connection and current connection status. ...
Page 310 Outdoor Cellular Gateway Click on Edit Button to change IPSec setting, web‐based utility will take you Edit Button N/A to the IPSec configuration page. (Security > VPN > IPSec tab) OpenVPN Server Status According to OpenVPN configuration, the OpenVPN Server/Client Status shows the status and statistics for the OpenVPN connection from the server side or client side. OpenVPN Server Status Item Value setting Description User Name It displays the Client name you have entered for identification. Remote It displays the public IP address (the WAN IP address) of the connected IP/FQDN OpenVPN Client Virtual IP/MAC It displays the virtual IP/MAC address assigned to the connected OpenVPN client. Conn. Time ...
Page 311 Outdoor Cellular Gateway ...
Page 312 Outdoor Cellular Gateway L2TP Server/Client Status LT2TP Server/Client Status shows the configuration for establishing LT2TP tunnel and current connection status. L2TP Server Status Item Value setting Description User Name N/A It displays the login name of the user used for the connection. It displays the public IP address (the WAN IP address) of the connected L2TP Remote IP N/A client. Remote Virtual IP N/A It displays the IP address assigned to the connected L2TP client. Remote Call ID N/A It displays the L2TP client Call ID. Conn. Time N/A It displays the connection time for the L2TP tunnel. It displays the Status of each of the L2TP client connection. The status Status ...
Page 313 Outdoor Cellular Gateway PPTP Server/Client Status PPTP Server/Client Status shows the configuration for establishing PPTP tunnel and current connection status. PPTP Server Status Item Value setting Description User Name N/A It displays the login name of the user used for the connection. It displays the public IP address (the WAN IP address) of the connected PPTP Remote IP N/A client. Remote Virtual IP N/A It displays the IP address assigned to the connected PPTP client. Remote Call ID N/A It displays the PPTP client Call ID. Conn. Time N/A It displays the connection time for the PPTP tunnel. It displays the Status of each of the PPTP client connection. The status Status N/A displays Connected, Disconnect, and Connecting. Click on Edit Button to change PPTP server setting, web‐based utility will Edit Button N/A take you to the PPTP server page. (Security > VPN > PPTP tab) PPTP Client Status Item Value setting Description Client Name ...
Page 314: Firewall Status
Outdoor Cellular Gateway 8.3.2 Firewall Status Go to Status > Security > Firewall Status Tab. The Firewall Status provides user a quick view of the firewall status and current firewall settings. It also keeps the log history of the dropped packets by the firewall rule policies, and includes the administrator remote login settings specified in the Firewall Options. The display will be refreshed on every five seconds. By clicking the icon [+], the status table will be expanded to display log history. Clicking the Edit button the screen will be switched to the configuration page. Packet Filter Status Packet Filter Status Item Value setting Description Activated Filter N/A This is the Packet Filter Rule name. Rule ...
Page 315 Outdoor Cellular Gateway Blocked URL N/A This is the logged packet information. IP N/A The Source IP (IPv4) of the logged packet. The Date and Time stamp of the logged packet. Date & time format. ("Month" Time N/A "Day" "Hours":"Minutes":"Seconds") Note: Ensure URL Blocking Log Alert is enabled. Refer to Security > Firewall > URL Blocking tab. Check Log Alert and save the setting. Web Content Filter Status Web Content Filter Status Item Value setting Description Activated Filter N/A Logged packet of the rule name. String format. Rule Detected N/A Logged packet of the filter rule. String format. Contents IP N/A Logged packet of the Source IP. IPv4 format. Logged packet of the Date Time. Date time format ("Month" "Day" Time N/A "Hours":"Minutes":"Seconds") Note: Ensure Web Content Filter Log Alert is enabled. Refer to Security > Firewall > Web Content Filter tab. Check Log Alert and save the setting. ...
Page 316 Outdoor Cellular Gateway MAC Control Status MAC Control Status Item Value setting Description Activated N/A This is the MAC Control Rule name. Control Rule Blocked MAC N/A This is the MAC address of the logged packet. Addresses IP N/A The Source IP (IPv4) of the logged packet. The Date and Time stamp of the logged packet. Date & time format. ("Month" Time N/A "Day" "Hours":"Minutes":"Seconds") Note: Ensure MAC Control Log Alert is enabled. Refer to Security > Firewall > MAC Control tab. Check Log Alert and save the setting. Application Filters Status Application Filters Status Item Value setting Description Filtered Application N/A The name of the Application Category being blocked. Category Filtered Application ...
Page 317 Outdoor Cellular Gateway IPS Status IPS Firewall Status Item Value setting Description Detected N/A This is the intrusion type of the packets being blocked. Intrusion IP N/A The Source IP (IPv4) of the logged packet. The Date and Time stamp of the logged packet. Date & time format. ("Month" "Day" Time N/A "Hours":"Minutes":"Seconds") Note: Ensure IPS Log Alert is enabled. Refer to Security > Firewall > IPS tab. Check Log Alert and save the setting. Firewall Options Status Firewall Options Status Item Value setting Description Enable or Disable setting status of Stealth Mode on Firewall Options. Stealth Mode N/A String Format: Disable or Enable Enable or Disable setting status of SPI on Firewall Options. SPI N/A String Format : Disable or Enable Enable or Disable setting status of Discard Ping from WAN on Firewall Discard ...
Page 318: Administration
Outdoor Cellular Gateway 8.4 Administration 8.4.1 Configure & Manage Status Go to Status > Administration > Configure & Manage tab. The Configure & Manage Status window shows the status for managing remote network devices. The type of management available in your device is depended on the device model purchased. The commonly used ones are the SNMP, TR‐069, and UPnP. The display will be refreshed on every five seconds. SNMP Linking Status SNMP Link Status screen shows the status of current active SNMP connections. SNMP Link Status Item Value setting Description It displays the user name for authentication. This is only available for SNMP User Name N/A version 3. IP Address N/A It displays the IP address of SNMP manager. It displays the port number used to maintain connection with the SNMP Port N/A manager. Community N/A It displays the community for SNMP version 1 or version 2c only. Auth. Mode N/A It displays the authentication method for SNMP version 3 only. Privacy Mode N/A It displays the privacy mode for version 3 only. SNMP Version ...
Page 319 Outdoor Cellular Gateway TR‐069 Status TR‐069 Status screen shows the current connection status with the TR‐068 server. TR‐069 Status Item Value setting Description It displays the current connection status with the TR‐068 server. The connection Link Status N/A status is either On when the device is connected with the TR‐068 server or Off when disconnected. ...
Page 320: Log Storage Status
Outdoor Cellular Gateway 8.4.2 Log Storage Status Go to Status > Administration > Log Storage tab. The Log Storage Status screen shows the status for selected device storage. Log Storage Status Log Storage Status screen shows the status of current the selected device storage. The status includes Device Select, Device Description, Usage, File System, Speed, and status . ...
Page 321: Statistics & Report
Outdoor Cellular Gateway 8.5 Statistics & Report 8.5.1 Connection Session Go to Status > Statistics & Reports > Connection Session tab. Internet Surfing Statistic shows the connection tracks on this router. Internet Surfing Statistic Item Value setting Description Previous N/A Click the Previous button; you will see the previous page of track list. Next N/A Click the Next button; you will see the next page of track list. First N/A Click the First button; you will see the first page of track list. Last N/A Click the Last button; you will see the last page of track list. Export (.xml) N/A Click the Export (.xml) button to export the list to xml file. Export (.csv) N/A Click the Export (.csv) button to export the list to csv file. Refresh N/A Click the Refresh button to refresh the list. ...
Page 322: Network Traffic
Outdoor Cellular Gateway 8.5.2 Network Traffic Go to Status > Statistics & Reports > Network Traffic tab. Network Traffic Statistics screen shows the historical graph for the selected network interface. You can change the interface drop list and select the interface you want to monitor. . ...
Page 323: Device Administration
Outdoor Cellular Gateway 8.5.3 Device Administration Go to Status > Statistics & Reports > Device Administration tab. Device Administration shows the login information. Device Manager Login Statistic Item Value setting Description Previous N/A Click the Previous button; you will see the previous page of login statistics. Next N/A Click the Next button; you will see the next page of login statistics. First N/A Click the First button; you will see the first page of login statistics. Last N/A Click the Last button; you will see the last page of login statistics. Export (.xml) N/A Click the Export (.xml) button to export the login statistics to xml file. Export (.csv) N/A Click the Export (.csv) button to export the login statistics to csv file. Refresh N/A Click the Refresh button to refresh the login statistics. ...
Page 324: Cellular Usage
Outdoor Cellular Gateway 8.5.4 Cellular Usage Go to Status > Statistics & Reports > Cellular Usage tab. Cellular Usage screen shows data usage statistics for the selected cellular interface. The cellular data usage can be accumulated per hour or per day. ...
Page 325 Outdoor Cellular Gateway 8.5.5 Portal Usage Go to Status > Statistics & Reports > Portal Usage tab. Portal Usage shows the information about internal Captive Portal user login statistics. Device Manager Login Statistic Item Value setting Description It displays the User Name of user account created in Object Define > User > User Name N/A User Profile. It displays the Status of user account about logging captive portal. Status Online for the user logined to the captive portal; N/A Offline for the user already logouted. It displays the Create Time that user account created. Create Time N/A It displays the Remaining Lease Time of the user account. If the remaining time is zero, the corresponding user account can’t be use for login captive portal Remaining Lease anymore. N/A Time If the Lease Time of user account is empty, the remaining lease time field is shown empty. It means that the user account can be used all the time. ...
Page 326 Outdoor Cellular Gateway Appendix A GPL WRITTEN OFFER This product incorporates open source software components covered by the terms of third party copyright notices and license agreements contained below. GPSBabel Version 1.4.4 Copyright (C) 2002-2005 Robert Lipe<robertlipe@usa.net> GPL License: https://www.gpsbabel.org/ Curl Version 7.19.6 Copyright (c) 1996-2009, Daniel Stenberg, <daniel@haxx.se>. MIT/X derivate License: https://curl.haxx.se/ OpenSSL...
Page 327 Outdoor Cellular Gateway socat - Multipurpose relay Version: 2.0.0-b8 GPLv2 http://www.dest-unreach.org/socat/ LibModbus Version: 3.0.3 LGPL v2 http://libmodbus.org/news/ LibIEC60870 GPLv2 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111- 1307 USA https://sourceforge.net/projects/mrts/ Openswan Version: v2.6.38 GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc.
Page 328 Outdoor Cellular Gateway Copyright (C) 1989, 1991 Free Software Foundation, Inc. 675 Mass Ave, Cambridge, MA 02139, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. http://pptpclient.sourceforge.net/ PPTPServ Version: 1.3.4 GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc.
Page 329 Outdoor Cellular Gateway CoovaChilli is an open-source software access controller for captive portal (UAM) and 802.1X access provisioning. Version: 1.3.0 Copyright: (C) 2007-2012 David Bird (Coova Technologies) <support@coova.com> Krb5: Kerberos is a network authentication protocol. It is designed to provide strong authentication for client/server applications by using secret-key cryptography.
Page 330 Outdoor Cellular Gateway Version: 20080615 Copyright (C) 1998-2004 WIDE Project. BSD License: https://sourceforge.net/projects/wide-dhcpv6/ ...
