IMPORTANT:
THESE INSTRUCTIONS ARE TO
REMAIN WITH THE HOMEOWNER.
SAVE THESE INSTRUCTIONS
SAFETY NOTICE
Please read this entire manual
before installation and use of this
pellet fuel-burning room heater.
Failure to follow these instructions
could result in property damage,
bodily injury or even death.
Contact your local building or re of cials
regarding permits and any information on
installation and inspection requirements in
your area.
TESTED and LISTED to ASTM 1509-12,
CAN/ULC S627 AND UL 1482-11
Visit www. truenorthstoves.com for the most up-to-date version of this manual
131016-32
Wood Energy
Technical Training
www.wettinc.ca
TN40
INSTALLATION
AND OPERATING
INSTRUCTIONS

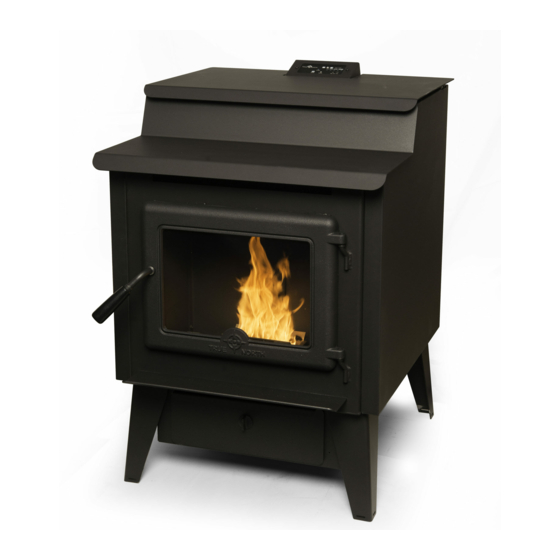

FREESTANDING
WOOD PELLET STOVE
MODEL: TN40
SERIES: A
5055.536-A
Advertisement
Table of Contents
Related Manuals for True North TN40
Summary of Contents for True North TN40
-
Page 1: Safety Notice
WOOD PELLET STOVE your area. TESTED and LISTED to ASTM 1509-12, CAN/ULC S627 AND UL 1482-11 MODEL: TN40 SERIES: A Wood Energy Technical Training www.wettinc.ca Visit www. truenorthstoves.com for the most up-to-date version of this manual... -
Page 2: Table Of Contents
Power Outage ............. 10 COMPONENTS LIST ............. 30 Thermostat Operation (Optional) ........ 11 RATING LABEL .............. 31 • Manual Mode ............11 WARNING HOT GLASS WILL CAUSE BURNS. DO NOT TOUCH GLASS UNTIL COOLED. NEVER ALLOW CHILDREN TO TOUCH GLASS. TN40 5055.536-A_131016-32... -
Page 3: Introduction
This stove can be operated manually or with an optional low voltage wall thermostat (not provided). Electrical Generator Operation Your True North TN40 stove may be able to operate with power from a portable generator. However, the generator’s electrical regulator may not be compatible with the stove’s electronics. The higher the quality of the generator, (smoother the output sine wave) the greater the chance that it is compatible with the stove. -
Page 4: Specifications
Your True North TN40 Pellet stove may be able to operate with power from a portable generator. However, the generator’s electrical regulator may not be compatible with the stove’s electronics. The higher the qual- ity of the generator, (smoother the output sine wave) the greater the chance that it is compatible with the stove. -
Page 5: Warnings
Do not cut or remove the grounding prong from this plug. Do not route power cord under or in front of appliance. The power supply cord must be routed to avoid contact with any of the hot or sharp exterior surface areas of the stove. 5055.536-A_131016-32 TN40... -
Page 6: Negative Pressure Warning
Also, some parts of the appliance may be lightly coated with machining oil. During the rst rings, the paint and oil may give off unpleasant odors. Open the windows to ventilate the room. TN40 5055.536-A_131016-32... -
Page 7: Pellet Fuel Specifications
BTU (heat value) content may range from just under 7,000 to almost 9,000 Btu/lb., depending upon species and region of the country and other variables. The use of Cord wood is Prohibited. Do not burn garbage, rubber, plastics or flammable fluids such as gasoline, naphtha or engine oil. 5055.536-A_131016-32 TN40... -
Page 8: Controls
• Fault code, #3 light flashing: - Stove did not light / Fire went out / Stove went cold while in operation. • Fault code, #4 light flashing: - Hi limit switch is open / Stove over heated. See trouble shooting section for causes and solutions ON/OFF 5050.8319-A Figure 1: Control panel. TN40 5055.536-A_131016-32... -
Page 9: Operation
Normal - To turn the stove off, press the ON/OFF button. The Power light will turn orange and the control panel lights will go out. The Auger will stop running but the fans will continue to operate until the exhaust temperature drops to a safe temperature and the control board completes the shut down cycle. 5055.536-A_131016-32 TN40... -
Page 10: Convection Blower Operation
Combustion Blower Voltage you will effect the lowest four heat output combustion blower settings. To adjust hold down the hidden button under the TH in "True North" on the controls and use the Heat Level buttons to adjust up or down the same way as the Auger Feed Trim. The factory setting is position number Normal Operating Sounds As the True North TN40 stove is burning, a number of normal operational sounds may be heard. -
Page 11: Thermostat Operation (Optional)
If the stove continually builds up with ash/clinkers in the liner the damper may need to be opened slightly for more air ow through the liner. 5055.536-A_131016-32 TN40... -
Page 12: Routine Checks And Maintenance
The liner should be inspected daily to ensure the holes are clear of any build up. The Burn-Pot should be checked/cleaned out after burning about 5 - 10 bags of pellets. When the stove is cool, open the door then lift up on the Burn Pot Liner to remove. Using a suitable vacuum TN40 5055.536-A_131016-32... -
Page 13: Cleaning Glass
Liner back in the Burn Pot against the ignitor tube to create a seal for the ignitor. Tighten Burn Pot mounting screws if required. Burn-Pot Liner Burn-Pot mount Figure 2: TN40 Burn Pot Mount. Figure 3: Leg Ash drawer open. Cleaning Glass CAUTION: Do not clean glass when hot. Do not open the front door when the stove is hot. -
Page 14: Inspect Gaskets
Don’t forget to clean up around the heat exchanger by using the vacuum on the openings above the door opening. Once the passage is SCREWS clear of ash build-up, reinstall the Firebox Liners. Figure 5: Firebox Liner removal. TN40 5055.536-A_131016-32... -
Page 15: Cleaning The Vent Pipe
Place the motor back on the fan housing (motor down) and rotate clockwise to lock the ange, tighten the four screws with a Phillips screwdriver. screws screws Figure 8: Combustion blower cleaning. 5055.536-A_131016-32 TN40... -
Page 16: Cleaning The Convection Blower
To reinstall the door, repeat the steps in reverse order. Back Grill Removal To remove the back grill, loosen the three screws securing the grill to the chassis. The back can now be pulled up and off of the stove. Installation is the reverse. TN40 5055.536-A_131016-32... -
Page 17: Basic Troubleshooting
Check venting for ash build-up. Clean venting as required. Stove won’t turn off after Exhaust Temp. Switch dirty or damaged Contact Dealer/Service Shutdown period (unit may take up to 20 min to cool, depending on operating temp. at time of shutdown.) 5055.536-A_131016-32 TN40... -
Page 18: Stove Dimensions
Hopper Capacity - up to 80 pounds (36 Kg.) Results will vary based on fuel density. 24" 24" [610mm] [610mm] 27 -1/4" [692mm] 16 -1/2" 6 -3/16" [419mm] [157mm] 33-1/8" 34 -1/4" 34-1/4" [870mm] [870mm] [841mm] 16 -1/2" [419mm] 6 - 3/16" [157mm] Figure 11: TN40 Dimensions. TN40 5055.536-A_131016-32... -
Page 19: Installation
Proximity to Combustibles • Location of Air for Combustion • Electrical Outlet • Pellet Fuel Storage Caution: DO NOT CONNECT TO OR USE IN CONJUNCTION WITH ANY AIR DISTRIBUTION DUCT WORK. THIS UNIT IS NOT APPROVED FOR SUCH INSTALLATIONS. 5055.536-A_131016-32 TN40... -
Page 20: Ember Protection
Figure 12: TN40 Hearth Protection. Outside Air Connecting the True North TN40 stove to outside combustion air is optional, except in mobile home installations and when required by local building codes. The stove’s internal air intake will accept 2”(51mm) ID non combustible pipe to accommodate outside air installations. The air intake on the exterior of the home should always be located substantially below the ue termination and terminate with a screen cover to keep out weather and pests. -
Page 21: Clearances To Combustibles
[152mm] [914mm] C). Right wall - vertical vent D). Alcove installation Figure 13: TN40 Wall Clearances. Corner Installations Refer to (Figure 13) for minimum clearances. Alcove Installations Minimum alcove height is 7 ft. (2.13 m), minimum width is 36 in. (92 cm) and maximum depth is 36in. (92 cm), (Figure 13). -
Page 22: Vent Terminal Minimum Clearances
^ a vent shall not terminate directly above a side-walk or paved driveway which is located between two single family dwellings and serves both dwellings* ** only permitted if veranda, porch, deck, or balcony is fully open on a minimum of 2 sides beneath the oor* * Note: local Codes or Regulation may require different clearances TN40 5055.536-A_131016-32... -
Page 23: Vent Termination Requirement
Rain cap Storm collar Roof ashing Recommended Recommended 5ft (150cm) rise CAUTION This installation may cause problems during adverse weather or Recommended Use existing power failure wood vent Hooded vent Figure 15: TN40 Vent installed into wood stove pipe. 5055.536-A_131016-32 TN40... -
Page 24: Venting
The chimney may incorporate an offset. Follow the pellet venting manufacturer's instructions. The chimney must be suitably supported by the chimney manufacturer's listed offset support. Venting into a Wood Stove Pipe Your pellet stove can be vented into existing 6”(152mm) inside diameter approved wood stove pipe using approved adapter. TN40 5055.536-A_131016-32... -
Page 25: Installing Into A Masonry Chimney
It is important that you use all speci ed components. WARNING: DO NOT INSTALL THIS STOVE IN A SLEEPING ROOM IN A MANUFACTURED HOME. CAUTION: THE STRUCTURAL INTEGRITY OF THE MANUFACTURED HOME FLOOR, WALL AND CEILING/ROOF MUST BE MAINTAINED. 5055.536-A_131016-32 TN40... - Page 26 Installer Information Chimney Recommended Recommended Chimney Connector Caution: This con guration may not be allowed in some areas. Check with local authorities. Figure 17: TN40 Vent installed into existing chimney. TN40 5055.536-A_131016-32...
-
Page 27: Setting The Damper
0.10-0.11n.w.c. • To increase the vacuum in the rebox, pull the damper out towards the outside of the stove See"Figure 18: TN40 Damper." and push it in to reduce the vacuum. Reinstall the left side shield. Figure 18: TN40 Damper. -
Page 28: Optional Thermostat Installation
• Radiant heat from the stove, sun or other heat sources. • Drafts or dead spots behind doors or in corners. • Hot or cold air from ducts. Figure 20: Thermostat screw location. Figure 19: Main board location. TN40 5055.536-A_131016-32... -
Page 29: Wiring Diagram
Installer Information Wiring Diagram Fuses EXHAUST BLOWER IGNITER CONVECTION AUGER BLOWER MOTOR USED 2 A. 2 A. 3 A. 5 A. 5055.536-A_131016-32 TN40... -
Page 30: Components List
1 TN40.RP752557 ..............LEG ASH/BLOWER BOX 1 TN40.RP752539 ................SIDE PANEL, RHS 1 TN40.RP752528 ................SIDE PANEL, LHS 1 TN40.RP5027171 ..........120 F - N/O Temp Switch, Proof of Fire 1 TN40.RP5024503 ............COMBUSTION BLOWER - SIT 1 TN40.RP2095 ..........1/8" x 1/2" FIBERGLASS ROPE W PSA 1 TN40.RP752540 ..................HOPPER LID... -
Page 31: Rating Label
à une bonne distance du poêle • Utilisez seulement les composants spécifi és dans les instructions d’installation de TN40. és dans les instructions d’installation de TN40. és dans les instructions d’installation de TN40. - Page 32 © 2016 Copyright Paci c Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. 2975 Allenby Rd., Duncan, B.C. V9L 6V8 For technical support, please contact your retailer. Web site: www.truenorthstoves.com Printed in Canada...
