B+B SmartWorx UR5i v2 User Manual

Hspa+ industrial router
Hide thumbs Also See for UR5i v2:
Table of Contents

Advertisement

Quick Links

Download this manual

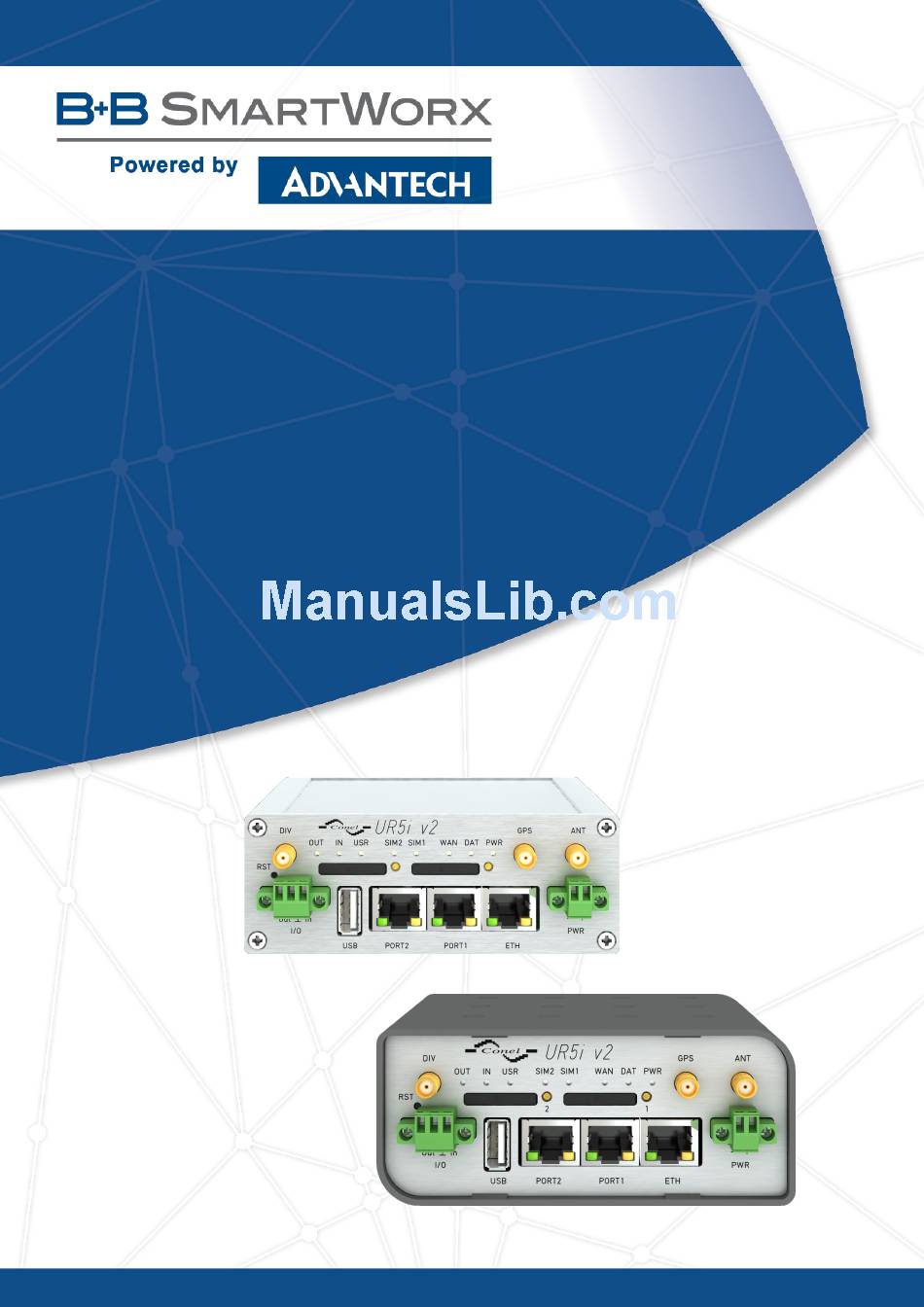

HSPA+ Industrial Router
UR5i v2
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UR5i v2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for B+B SmartWorx UR5i v2

Summary of Contents for B+B SmartWorx UR5i v2

  • Page 1 HSPA+ Industrial Router UR5i v2 USER’S MANUAL...
  • Page 2 GPL licence Source codes under GPL licence are available free of charge by sending an email to: cellularsales@advantech-bb.com. Advantech B+B SmartWorx s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Manual Rev. 1 released in CZ, July 25, 2016...

  • Page 3: Table Of Contents

    CONTENTS Contents 1 Safety Instruction 2 WEEE directive 3 Router Description 4 Contents of Package 5 Router Design 5.1 Router versions ........5.2 Delivery identification .
  • Page 4 CONTENTS 7.1 Basic parameters ........7.2 Standards and regulations .
  • Page 5 LIST OF FIGURES List of Figures Contents of package ....... . . Front panel UR5i v2B .
  • Page 6 LIST OF TABLES List of Tables Router versions ........Delivery identification .

  • Page 7: Safety Instruction

    1. SAFETY INSTRUCTION 1. Safety Instruction Please, observe the following instructions: The router must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the router in prescribed applications and environments. To prevent possible injury and damage to appliances and to ensure compliance with all relevant provisions, use only the original accessories.

  • Page 8: Weee Directive

    2. WEEE DIRECTIVE 2. Product Disposal Instructions The WEEE (Waste Electrical and Electronic Equipment: 2002/96/EC) directive has been introduced to ensure that electrical/electronic products are recycled using the best available recovery techniques to minimize the impact on the environment. This product contains high quality materials and components which can be recycled.

  • Page 9: Router Description

    (ATM) and other self-service terminals, etc. As a standard, this exceptionally fast 3G router UR5i v2 is equipped with one Ethernet 10/100, one USB Host port, one binary input/output (I/O) port and one SIM card. To save and backup communication data a version with two SIM cards is available.

  • Page 10: Contents Of Package

    4. CONTENTS OF PACKAGE 4. Contents of Package Basic delivered set of router includes: router, power supply, crossover UTP cable, up to three external antennas, clip for the DIN rail, paper start guide. Figure 1: Contents of package Temperature range for power supply is reduced to 0 C to +40 C! As optional accessories can also be supplied the following expansion ports (one for Basic version or two for Full version): RS232, RS485/422, MBUS, ETHERNET, CNT, SWITCH, WIFI, WMBUS or SDH.

  • Page 11: Router Design

    5. ROUTER DESIGN 5. Router Design 5.1 Router versions UR5i v2 router is supplied in the following versions (see table below). All versions are available in plastic or metal box according to customer requirements. Router versions Router Box UR5i v2B...

  • Page 12: Label Ur5I V2B

    5. ROUTER DESIGN 5.2 Delivery identification Trade name Type name Other UR5i v2B UR-5i-v2 Basic version UR5i v2B SL UR-5i-v2 Basic version in the metal box UR5i v2F UR-5i-v2 Full version UR5i v2F SL UR-5i-v2 Full version in the metal box Table 2: Delivery identification Figure 8: Label UR5i v2F Figure 6: Label UR5i v2B...

  • Page 13: Ordering Codes For Basic Versions

    5. ROUTER DESIGN 5.3 Order codes 5.3.1 Basic versions Expansion port Ordering code Version without expansion port UR5i v2B set Version with Ethernet expansion port UR5i v2B ETH set Version with RS232 expansion port UR5i v2B RS232 set Version with RS485 expansion port UR5i v2B RS458 set Version with MBUS expansion port UR5i v2B MBUS set...

  • Page 14: Basic Dimensions Of Plastic Box (Bottom And Front View)

    5. ROUTER DESIGN 5.4 Basic dimensions of the router box 5.4.1 Plastic box Figure 10: Basic dimensions of plastic box (bottom and front view) 5.4.2 Metal box Figure 11: Basic dimensions of metal box (bottom and front view)

  • Page 15: Space Around Antennas (Plastic)

    5. ROUTER DESIGN 5.5 Mounting recommendations possibility to be put on a work surface, DIN rail EN 60715 with included clip CPD2 (or CKD2 for metal version). For the most of applications with a built-in router in a switch board it is possible to recognize two kinds of environments: no public and industry environment of low voltage with high interference, public environment of low voltage without high interference.

  • Page 16: Cable Routing (Plastic)

    5. ROUTER DESIGN For every cables we recommend to bind the bunch, we recommend for this use: – Length of the bunch (combination of power supply and data cables) can be maxi- mum 1.5 m. If the length of data cables exceeds 1.5 m or in the event of, the cable leads towards the switch –...

  • Page 17: Default Position Of Din Holder

    5. ROUTER DESIGN 5.6 Removing from the DIN rail DIN holder is suitable for DIN rail according to EN 60715 standard only. Default position of CPD2 holder (or CKD2 for metal version), which is used for mounting the router on a DIN rail, is shown in the following figure: Figure 18: Default position of DIN holder For removing from the DIN rail it is necessary to lightly push upward the router so that the...

  • Page 18: Front Panel Ur5I V2F

    5. ROUTER DESIGN 5.7 Description of the front panel On the front panel is the following: Caption Connector Description 2-pin Connector for the power supply. RJ45 Connector for connection into the local computer network. PORT1 RJ45 Connector for expansion port RS232, RS458/422, MBUS, ETHERNET, CNT or SWITCH.

  • Page 19: Status Indication

    5. ROUTER DESIGN 5.7.1 Status indication About router status inform eight LED indicators on the front panel. ETH port, PORT1 and PORT2 have two additional LEDs that provide information about port status. Caption Color State Description Green Blinking Router is ready Starting of the router Fast blinking Updating firmware...

  • Page 20: Power Connector

    5. ROUTER DESIGN 5.7.2 Power connector PWR Panel socket 2-pin. Pin number Signal mark Description VCC(+) Positive pole of DC supply voltage (+9 to +36 V DC) GND(-) Negative pole of DC supply voltage Table 7: Connection of power connector Figure 21: Power connector Power supply for router is required between +9 V to +36 V DC supply.

  • Page 21: Connecting Of The Antenna

    5. ROUTER DESIGN 5.7.3 Antenna connector ANT, DIV and GPS (alternatively WIFI or WMBUS) Main and diversity antennas are connected to the router using the SMA connector on the front panel. Full version of the router also contains the third SMA antenna connector, through which the additional antenna can be connected (if WIFI expansion port is used, this connector is reverse –...

  • Page 22: Ejected Sim Holder

    5. ROUTER DESIGN 5.7.4 SIM card reader The SIM card reader for 3 V and 1,8 V SIM cards is placed on the front panel of the router. For getting the router to work is necessary to insert an activated SIM card with an unblocked PIN code.

  • Page 23: Ethernet Connector

    5. ROUTER DESIGN 5.7.5 Ethernet Port ETH Panel socket RJ45. Signal mark Description Data flow direction TXD+ Transmit Data – positive pole Input/Output TXD- Transmit Data – negative pole Input/Output RXD+ Receive Data – positive pole Input/Output — — — —...

  • Page 24: Port1 Cable Connection

    5. ROUTER DESIGN 5.7.6 PORT1 The PORT1 is equipped on customer’s request with one of the offered expansion ports: RS232 MBUS RS485 RS422 SWITCH (together with PORT2) ETHERNET Description and examples of expansion ports connection can be found in user’s guide for corresponding expansion port.

  • Page 25: Port2 Cable Connection

    5. ROUTER DESIGN Plug cable for the second expansion port into the RJ45 connector labeled as PORT2 (see figure below). Figure 28: PORT2 cable connection 5.7.8 USB Port Panel socket USB-A. Signal mark Description Data flow direction +5 V Positive pole of 5 V DC supply voltage, 0.5 A USB data - USB data signal –...

  • Page 26: O Connector

    5. ROUTER DESIGN Figure 30: I/O connector I/O user interface is designed for processing of binary input and control (setting) binary output. Binary output is not switched to ground in the default configuration. Maximum load binary output is 30 V / 100 mA. The constant current supplied by the binary input is 3 mA. Connect I/O cable into the I/O connector on the front panel of the router and tighten locking screws (see figure below).

  • Page 27: Router Reset

    5. ROUTER DESIGN 5.7.10 Reset When PWR LED starts flashing on the front panel, it is possible to restore the default con- figuration of the router by pressing the RST button on the front panel. After pressing this button the default configuration is restored and then router reboots (green LED will be on). For pressing the RST button could be used a narrow screwdriver.

  • Page 28: First Use

    6. FIRST USE 6. First Use 6.1 Connecting the router before first use Before putting the router into operation it is necessary to connect all components which are required to run your applications. Don’t forget to insert SIM card. The router can not operate without connected antenna, SIM card and power supply. If the antenna is not connected, router can be damaged.

  • Page 29: Entering The Ip Address Of The Router

    6. FIRST USE 6.2 Start The router is put into operation when the power supply is connected to this router. By default, the router will automatically start to log on to the default APN. DHCP server will start to assign addresses for devices on the Ethernet port ETH0. Router behavior can be changed via the web interface.

  • Page 30: Router Web Interface

    6. FIRST USE After successfully entering login information user gains access to the router via his internet browser. Figure 37: Router web interface A detailed description of the router settings via the Web interface can be found in the document Configuration manual for v2 routers.

  • Page 31: Technical Parameters

    51 x 87 x 116 mm (DIN 35 mm) Metal box 42 x 87 x 113 mm (DIN 35 mm) Weight UR5i v2 – 150 g UR5i v2 SL – 280 g Antenna connector 3x SMA – 50 Ohm User interface Ethernet (10/100 Mbit/s) USB 2.0...

  • Page 32: Technical Parameters Of Module

    7. TECHNICAL PARAMETERS 7.3 Technical parameters of module HSPA+ module HSPA+ parameters Bit rate 14,4 Mbps (DL) / 5,76 Mbps (UL) 3GPP rel. 6/7 standard Data compress 3GPP UMTS parameters Bit rate 384 kbps (DL) / 384 kbps (UL) 3GPP rel. 4 standard GPRS/EDGE parameters EDGE bit rate 237 kbps (DL) / 237 kbps (UL) GPRS bit rate 85,6 kbps (DL) / 85,6 kbps (UL)

  • Page 33: Technical Parameters Of Processor

    7. TECHNICAL PARAMETERS 7.5 Technical parameters of processor 32b ARM microprocessor Memory 512 Mb DDR SDRAM 128 Mb FLASH 1 Mb MRAM Interface Serial interface RS232 Ethernet interface 10/100 Mbit/s USB 2.0 interface Table 16: Technical parameters of processor 7.6 Technical parameters of I/O port Binary input and output Input/Output Binary input...

  • Page 34: Recommended Literature

    8. RECOMMENDED LITERATURE 8. Recommended Literature Advantech B+B SmartWorx: Start Guide for v2 routers, Advantech B+B SmartWorx: Configuration Manual for v2 Routers, Advantech B+B SmartWorx: User’s manual – Expansion port RS232, Advantech B+B SmartWorx: User’s manual – Expansion port RS485/422, Advantech B+B SmartWorx: User’s manual –...

  • Page 35: Troubleshooting

    9. TROUBLESHOOTING 9. Troubleshooting If you can not connect to the router from your PC, your network card may be configured the way it is not possible to connect to the router. Take one or more of the following steps to solve the problem: Select the communication rate 10 MB/s in the properties of your network card.
  • Page 36 9. TROUBLESHOOTING Ethernet connection fails or isn’t establishing. It is possible to turn auto negotiation off and set a rate and duplex manually on the Ethernet interface of the router. DynDNS doesn’t function. With private APN this is not functional. If the same IP address is recorded in your canonic name as dynamically assigned address, it means that the operator is using NAT or firewall.

  • Page 37: Customers Support

    During cleaning of the router do not use aggressive chemicals, solvents and abrasive cleaners! Advantech B+B SmartWorx s.r.o. hereby declares that the router narrated in this user’s guide fits all basic demands of directive 1999/5/EC (R&TTE). Router fits values of coefficient SAR defined by association ICNIRP and values of "About protection of health before non-ionized radiation".
