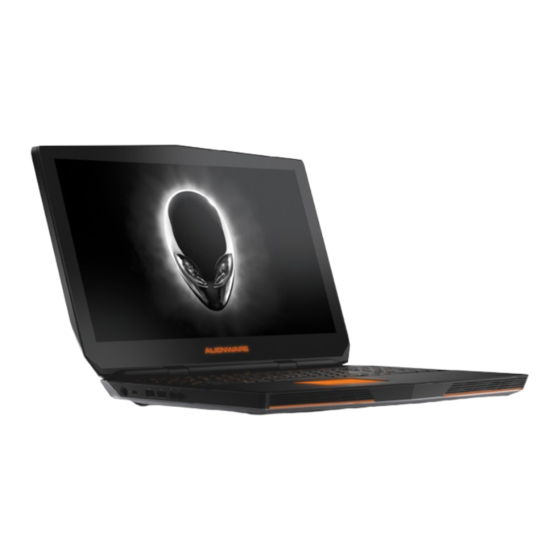

Dell and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies. 2016 ‑ 09 Rev. A01 Regulatory model: P43F | Type: P43F001 Computer model: Alienware 17 R2...
Views Specifications Back Back Left Right External graphics port HDMI port Base Connect an Alienware Graphics Amplifier. Connect a TV or another HDMI‑in enabled device. Provides video and audio output. Mini DisplayPort Connect an external display or a projector. Display...
Page 3
Views Specifications Left Back Left Right Power-adapter port USB 3.0 port Connect a power adapter to provide power to your Connect peripherals such as storage devices, printers, and computer and charge the battery. so on. Provides data transfer speeds up to 5 Gbps. Security-cable slot Microphone/Headphone port Connect a security cable to prevent unauthorized...
Views Specifications Right Back Left Right Media-card reader Network port Base Reads from and writes to media cards. Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or internet access. USB 3.0 ports (2) The two lights next to the connector indicate the Connect peripherals such as storage devices, printers, and connectivity status and network activity.
Page 5
Views Specifications Base Back Left Right Hard-drive activity light Power button/Power-status light Turns on when the computer reads from or writes to the Press to turn on the computer if it is turned off or in Sleep hard drive. state. Base Press to put the computer in Sleep state if it is turned on.
Page 6
Views Specifications Display Back Left Right Left digital-array microphone Camera-status light Base Provides high‑quality digital sound input for audio Turns on when the camera is in use. recording, voice calls, and so on. Right digital-array microphone Camera Provides high‑quality digital sound input for audio Allows you to video chat, capture photos, and record recording, voice calls, and so on.
Page 7
Specifications Views Dimensions and Weight Width 430 mm (16.93 in) Depth 292 mm (11.50 in) Height 34.40 mm (1.35 in) Weight (maximum): Non Touch 3.68 kg (8.11 lb) Touch 3.88 kg (8.56 lb) NOTE: The weight of your laptop varies depending on the configuration ordered and the manufacturing variability.
Specifications Views System Information Computer model Alienware 17 R2 Processor Generation Intel Core i7 L3 cache up to 6 MB Dimensions and System Ports and Memory Communications Video Audio Storage Weight Information Connectors Media-Card Computer Display Keyboard Camera Touchpad Battery...
Page 9
Specifications Views Memory Slot Two SODIMM slots Type DDR3L Speed 1600 MHz Configurations supported 8 GB, 12 GB, and 16 GB Dimensions and System Ports and Memory Communications Video Audio Storage Weight Information Connectors Media-Card Computer Display Keyboard Camera Touchpad Battery Power Adapter Reader...
Page 10
Specifications Views Ports and Connectors External: Network One RJ45 port • One USB 3.0 port with PowerShare • Three USB 3.0 ports Audio/video • One HDMI port • One headphone and microphone combo (headset) port • One microphone/headphone retaskable port •...
Page 11
Specifications Views Communications Ethernet 10/100/1000 Mbps Ethernet controller integrated on system board Wireless • Wi‑Fi 802.11a/b/g/n/ac • Bluetooth 4.0 • Wireless display (WiDi) • Miracast (Windows 8.1) Dimensions and System Ports and Memory Communications Video Audio Storage Weight Information Connectors Media-Card Computer Display Keyboard...
Page 12
Specifications Views Video Controller • Intel HD Graphics 4600 • Intel Iris Pro Graphics 5200 Memory Shared system memory Discrete: Controller • NVIDIA GeForce GTX 970M • NVIDIA GeForce GTX 980M Memory up to 4 GB GDDR5 Dimensions and System Ports and Memory Communications...
Page 13
Specifications Views Audio Controller Creative Sound Core 3D with SBX Pro Studio Speakers Speaker output: Average 1.5 W Peak Subwoofer Subwoofer output: Average Peak 2.5 W Microphone Digital array‑microphones Volume controls Media‑control shortcut keys Dimensions and System Ports and Memory Communications Video Audio...
Page 14
Specifications Views Storage Interface • SATA 6 Gbps (SSD Slot 1 to slot 3) • SATA 3 Gbps (SSD Slot 4) Hard drive One 2.5‑inch drive Solid‑state drive Four M.2 drives Dimensions and System Ports and Memory Communications Video Audio Storage Weight Information...
Page 15
Specifications Views Media-Card Reader Type One 3‑in‑1 slot Cards supported • SD card • SD High‑Capacity (SDHC) card • SD Extended Capacity (SDXC) card Dimensions and System Ports and Memory Communications Video Audio Storage Weight Information Connectors Media-Card Computer Display Keyboard Camera Touchpad...
Page 16
Specifications Views Display Type • 17.3‑inch Full HD • 17.3‑inch Full HD with Touch Resolution (maximum) 1920 x 1080 Dimensions: Height 245.50 mm (9.67 in) Width 400 mm (15.75 in) Diagonal 439.42 mm (17.3 in) Pixel pitch 0.252 mm x 0.252 mm...
Page 17
Specifications Views Keyboard Type Backlit keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key.
Keyboard Shortcut Keys Allows to disconnect Alienware Graphics Amplifier Disable/Enable wireless Mute audio Macro keys NOTE: You can configure modes and assign multiple tasks for the macro keys on the keyboard. Decrease volume Increase volume Switch to external display Decrease brightness...
Page 19
Specifications Views Camera Resolution: Still image 2.07 megapixel Video 1920 x 1080 (Full HD) at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Video Audio Storage Weight Information Connectors Media-Card Computer Display Keyboard Camera Touchpad Battery...
Page 20
Specifications Views Touchpad Resolution: Horizontal 1727 dpi Vertical 1092 dpi Dimensions: Width 100 mm (3.94 in) Height 56 mm (2.20 in) Dimensions and System Ports and Memory Communications Video Audio Storage Weight Information Connectors Media-Card Computer Display Keyboard Camera Touchpad Battery Power Adapter Reader...
Page 21
Specifications Views Battery Type 8 cell Lithium‑ion 92 WHr Dimensions: Width 383.20 mm (15.09 in) Depth 79.05 mm (3.11 in) Height 19.80 mm (0.78 in) Weight (maximum) 0.516 kg (1.14 lb) Voltage 14.8 VDC Charging time when the Within 4 hours computer is off (approximate) Operating time Varies depending on operating conditions and can significantly reduce under certain...
Specifications Views Power Adapter Type 180 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current 2.34 A/2.50 A Output current 9.23 A Rated output voltage 19.50 VDC Temperature range: Operating 0°C to 40°C (32°F to 104°F) Storage –40°C to 70°C (–40°F to 158°F) Dimensions and...
Specifications Views Computer Environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Relative humidity (maximum) 10% to 90% (non‑condensing) 0% to 95% (non‑condensing) Vibration (maximum)* 0.66 GRMS 1.30 GRMS Shock (maximum)
