INSTRUCTION MANUAL
'92H' SERIES RTR BRUSHLESS EP RACING BOAT
THESE INSTRUCTIONS SHOULD BE READ BY A SUPERVISING ADULT, IN CONJUNCTION
WITH THE SEPARATELY INCLUDED RADIO CONTROL INSTRUCTIONS
Super X-Blaze RTR
B-JS-9201H/2-4G
Super Surge Crusher RTR
B-JS-9203H/2-4G

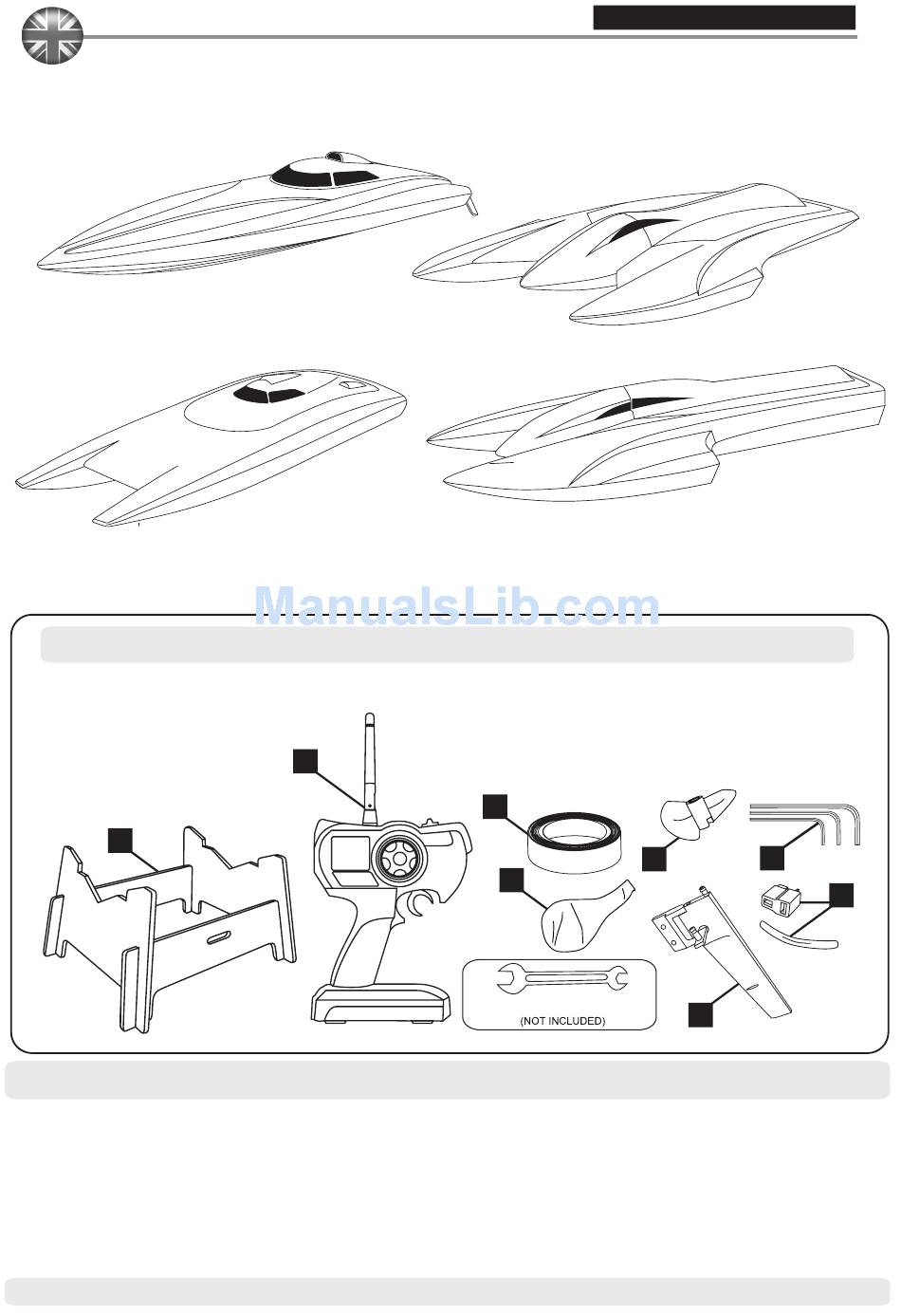

CONTENTS OF SET
1) Transmitter
2) Boat Stand
3) Waterproofing Tape
4) Propeller (x2)
5) Allen Key (x3)
2
REQUIRED FOR (NOT INCLUDED)
1) 2 x 11.1V, 4000mAh (or greater) 20C Li-Po battery pack
2) Li-Po Battery Charger
3) 5.5 and 7mm Nut Drivers
4) 8 x AA Batteries (for Transmitter) 4 x AA Batteries (for Receiver)
Note: Li-Po batteries should have Deans-type connectors fitted. If not supplied with Li-Po batteries, solder
included Dean connectors to Li-Po battery wires noting correct polarity (+/-).
1
Super Sea Fire RTR
B-JS-9202H/2-4G
1
'92H' Series RTR Brushless EP Racing Boat
THIS MODEL IS NOT A TOY!
Sea Drifter RTR
B-JS-9206/2-4G
6) Deans Connectors w/Heatshrink - Fit to Li-Po
batteries if not already fitted
7) Aluminium Rudder & Support
8) Rubber Bag (For Receiver)
3
4
8
7mm & 5.5mm Spanner
5
6
7
Advertisement
Table of Contents
Related Manuals for Ripmax Super X-Blaze RTR
Summary of Contents for Ripmax Super X-Blaze RTR
-
Page 1: Instruction Manual
THIS MODEL IS NOT A TOY! ‘92H’ SERIES RTR BRUSHLESS EP RACING BOAT THESE INSTRUCTIONS SHOULD BE READ BY A SUPERVISING ADULT, IN CONJUNCTION WITH THE SEPARATELY INCLUDED RADIO CONTROL INSTRUCTIONS Super X-Blaze RTR Super Sea Fire RTR B-JS-9201H/2-4G B-JS-9202H/2-4G... -
Page 2: Assembling The Boat Stand
IMPORTANT Before using this ‘92H’ series model and its radio control system, and to ensure the safety of yourself and others, it is very important that you read these instructions thoroughly and understand them. ‘92H’ series models are capable of speeds in excess of 85km/h! Care should be taken to avoid the possibility of injury and/or property damage. - Page 3 ADJUSTING THE REAR SHAFT STRUT The position of the rear shaft strut to the hull will have an effect on the way your boat performs. The illustrations below show standard factory settings that are good for most applications. Adjusting the rear strut to a higher position will increase top-end speed, but reduce steering response and could cause cavitation (unwanted vibration) if excessivley adjusted, which can cause harm to the motor and ESC.
- Page 4 LUBRICATING THE PROPELLER SHAFT Lubricating the ‘92H’ series model’s flexible propeller shaft is vital to its smooth operation and lifespan. The lubricant also acts as a water seal, helping to prevent water from entering the hull via the propeller tube. It is recommended that you lubricate the propeller shaft and tube every 2~3 hours of operation.
- Page 5 HOW TO CONTROL/OPERATE YOUR ‘92H’ SERIES BOAT 1) Forward Throttle Trigger Your ‘92H’ series model can be driven forward by pulling the throttle trigger. Release the trigger and the model will stop. 2) Left/Right Steering Wheel The steering wheel controls the ‘92H’ series model’s left and right movement. Turn the wheel to the left to steer to the left.
-
Page 6: After Use
GETTING READY TO USE YOUR ‘92H’ SERIES MODEL (Model should be placed on its supplied boat stand) 1) Check that the turn fins are adjusted correctly (for Super X-Blaze). 2) Switch ‘ON’ the transmitter. Check that the transmitter’s power LED glows. 3) Plug the Li-Po batteries into the ESC - you will hear three continuous audible beeps. -
Page 7: Specification
IF THE ‘92H’ SERIES MODEL DOES NOT RUN IN A STRAIGHT LINE If your ‘92H’ series model does not run in a straight line when not being steered, you can adjust it by using the steering trim located on the transmitter. 1) Run your ‘92H’... -
Page 8: During Operation
CAUTION! Please observe the following warnings DURING OPERATION • Ensure that all batteries are correctly installed and that the Li-Po battery packs are fully charged. • Do not operate your ‘92H’ series model in areas with strong currents, in salt water or areas of water with large waves. •... -
Page 9: Troubleshooting
TROUBLE SHOOTING Check using the chart below before returning your '92H' series model for repair as many problems can be easily solved. PROBLEM CAUSE REMEDY Model will not move No batteries in transmitter/model Install batteries Battery installation is incorrect Install batteries correctly, checking polarity (+/-) Weak batteries in transmitter Replace/recharge batteries... - Page 10 ITEM NO. ITEM NAME PHOTO 92003 Water Cooling Jacket for B3656 & B3660 Motor 92007 Flex Shaft with coupler 92009 Rudder and Support Set 92010 Rear Shaft Strut Support Set 92011 X-Blaze Turn Fins and Stands 92013 Rear Shaft Strut Support Set (Long) 93016 Knurled Brass Fixing Knob (Pk2) - 92 Series 93017...
- Page 11 92H03 90A Water Cooling Brushless ESC w/o BEC Distributed in the UK/Europe by; Ripmax Ltd., 241 Green Street, Enfield, EN3 7SJ This instruction manual and its contents may be subject to change without notice. ‘92H’ Series RTR Brushless EP Racing Boat...
