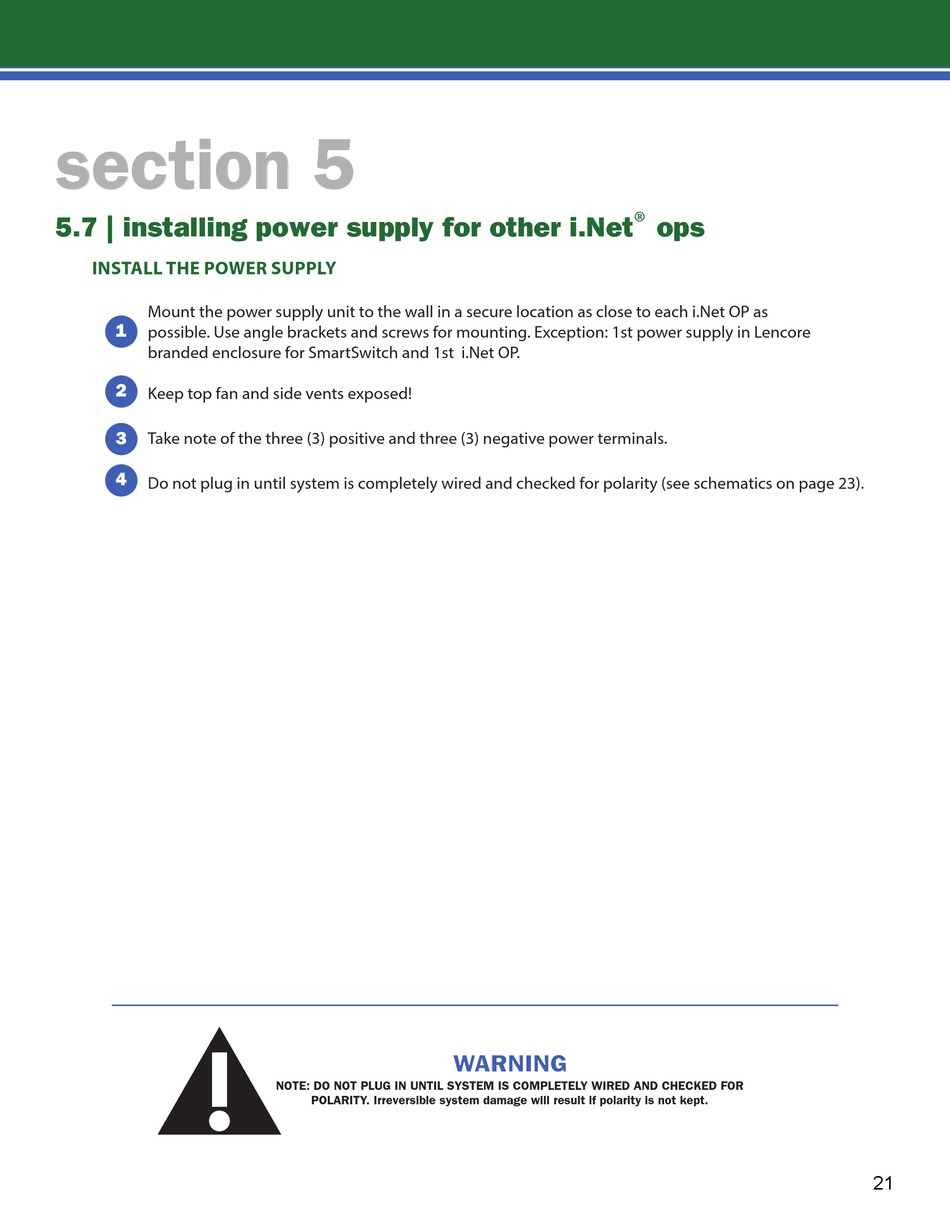

section 5
5.7 | installing power supply for other i.Net
INSTALL THE POWER SUPPLY
Mount the power supply unit to the wall in a secure location as close to each i.Net OP as
1
possible. Use angle brackets and screws for mounting. Exception: 1st power supply in Lencore
branded enclosure for SmartSwitch and 1st i.Net OP.
2
Keep top fan and side vents exposed!
3
Take note of the three (3) positive and three (3) negative power terminals.
4
Do not plug in until system is completely wired and checked for polarity (see schematics on page 23).
WARNING
NOTE: DO NOT PLUG IN UNTIL SYSTEM IS COMPLETELY WIRED AND CHECKED FOR
POLARITY. Irreversible system damage will result if polarity is not kept.
®
