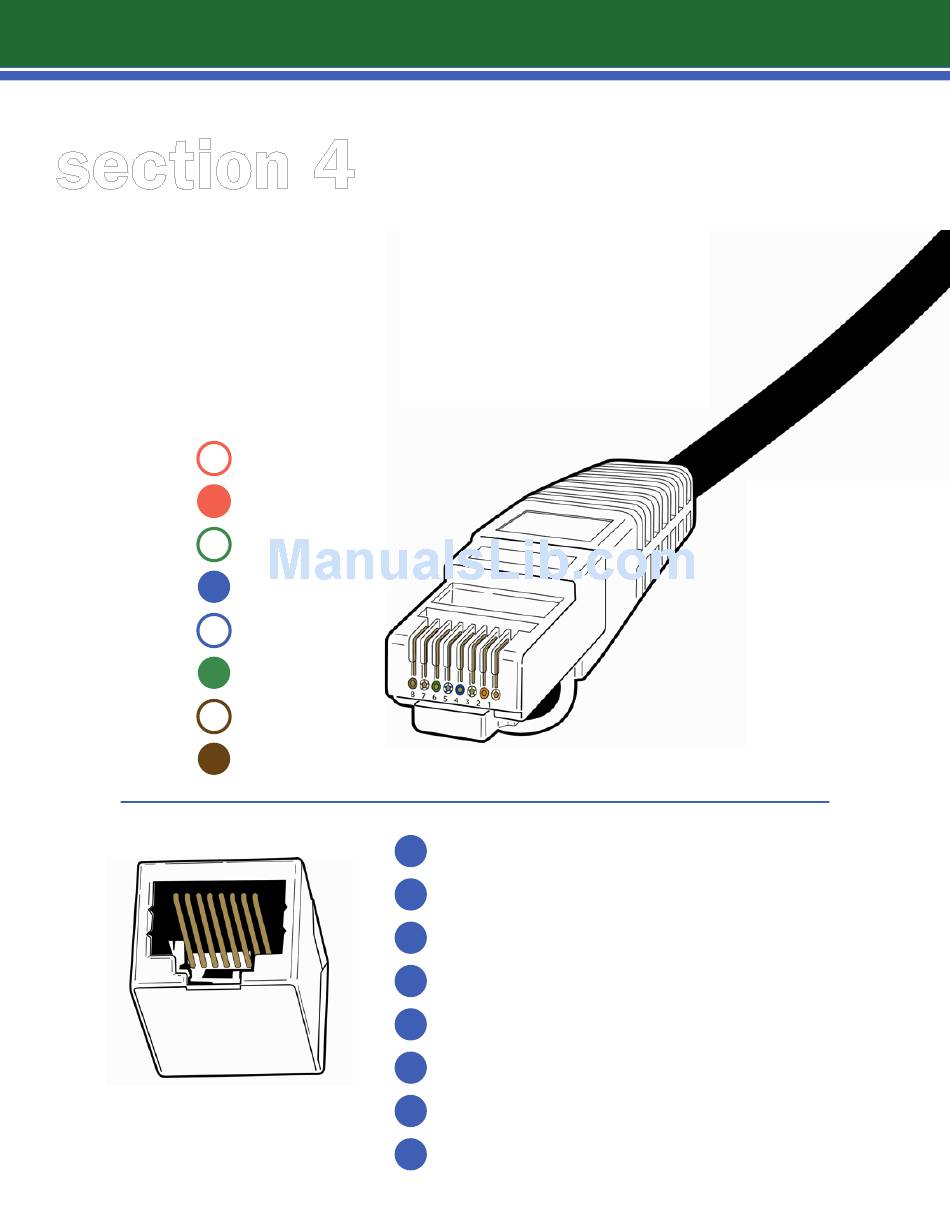

4.1 | speaker cable (RJ45) 568B
Speaker Cable connections are from i.Net OP to Speakers and from
Speaker to Speaker.
The pin out on the RJ45 is 568B.
The RJ45 connectors for the SPEAKER cables are non-shielded.
1
2
3
4
5
6
7
8
speaker
PINS - 568 B
ORANGE|WHITE
ORANGE
GREEN|WHITE
BLUE
BLUE|WHITE
GREEN
BROWN|WHITE
BROWN
1
2
3
4
5
6
7
8
AUDIO (+)
AUDIO (+)
AUDIO (+)
AUDIO (+)
AUDIO (-)
AUDIO (-)
AUDIO (-)
AUDIO (-)
