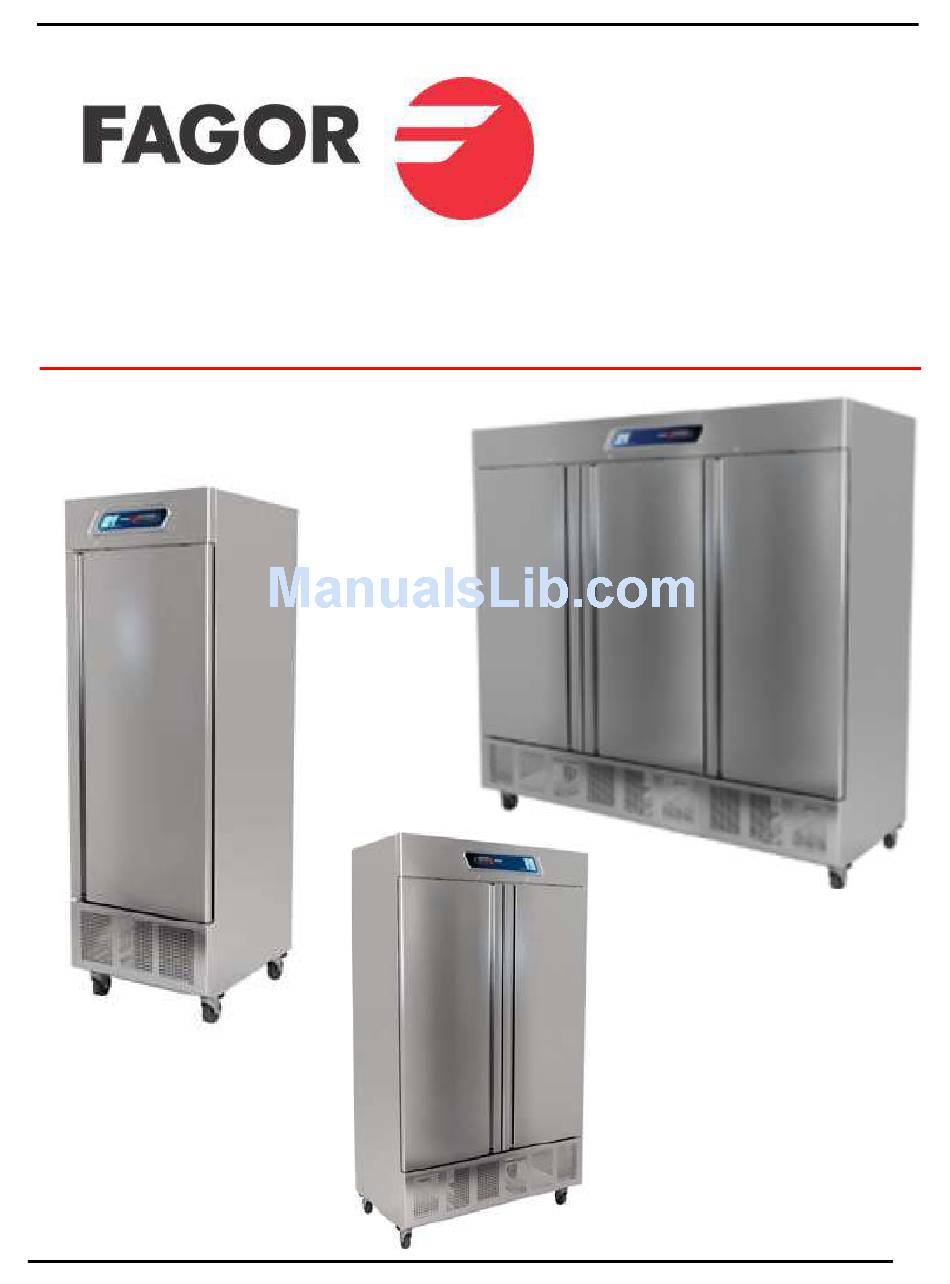

- Page 1 REFRIGERATORS AND FREEZERS Manual for installation, use, and maintenance...
-
Page 2: Table Of Contents
REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 Contents RECEIVING AND INSPECTING THE EQUIPMENT ..................3 SPECIFICATIONS ............................ 4 INSTALLATION ............................6 UN CRATING ..........................6 LOCATION ............................6 DATA PLATE ........................... 7 INSTALLATION OF CASTORS OR OPTIONAL LEGS ................7 LEVELING ............................ -
Page 3: Receiving And Inspecting The Equipment
A NOTE FROM OUR QUALITY CONTROL MANAGER CONGRATULATIONS ON YOUR NEW PURCHASE. WE WOULD LIKE TO WELCOME YOU TO THE FAGOR TEAM. THE UNIT IN FRONT OF YOU IS A GREAT PIECE OF EQUIPMENT THAT WILL BECOME ONE OF YOUR MOST RELAIBLE TOOLS IN YOUR... -
Page 4: Specifications
REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 SPECIFICATIONS REACH IN REFRIGERATORS AND FREEZERS, GENERAL SPECS Capac. # of Charge Ship Model BTU'S/Hr Ref. (Cu.Ft.) Shvls Onz. Weight QR-1 1666 11.3 R-134a QR-2 2104 13.4 R-134a QF-1 2493 16.6 R-404A QF-2 3644 21.5... - Page 5 100 ft 120 ft 140 ft 5-15P 15 amp 14 AWG 14 AWG 12 AWG 12 AWG 12 AWG 10 AWG QR-1 2P+TT 10 amp 14 AWG 14 AWG 14 AWG 14 AWG 14 AWG 12 AWG 5-15P 15 amp...
-
Page 6: Installation
REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 INSTALLATION UN CRATING Remove the outer packaging. Cut the 4 clamps that hold the refrigerator to the skid. Lift the unit off the skid. If machine was laid down during this operation, remember to leave the cabinet up right for 24 hours before connecting to power source. -
Page 7: Data Plate
REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 Outside cabinet: Be sure that the unit has access to ample air to breathe. Avoid hot corners and locations near stoves and ovens. It is recommended the unit be installed no closer than 3” from any wall. The place where the refrigerator is placed must be open and clean. - Page 8 REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 Slide out unit until castor holes are exposed. CASTORS WITH BRAKES MUST BE INSTALLED IN THE FRONT OF THE UNIT Carefully, lift the unit high enough to install the casters. Repeat the same operation to install the remaining castors. CAUTION! NEVER LAY MACHINE ON ITS BACK! IF NEEDED, LEAVE THE CABINET UP RIGHT FOR 24 HOURS BEFORE CONNECTING TO POWER SOURCE.
-
Page 9: Leveling
Electrical Code to be sure unit is connected to the proper power source. Verify correct incoming voltage according to the Data Plate information. Do not, under any circumstances, cut or remove the ground prong from the power cord. Fagor units must be properly grounded. -
Page 10: Shelving Installation
REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 installation. SHELVING INSTALLATION Hook shelf rails onto shelf pilasters Position all shelf rails equal in distance from the floor for level shelves Wire shelves are oriented so that cross support bars are facing down Note: Single door Reach-in include an air flow guard on the rear of the shelves as well as a lip to maintain an air space at the rear of the cabinet Place shelves on shelf clips, making sure all corners are seated properly... - Page 11 REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 www.Fagorcommercial.com PAGE 11...
- Page 12 REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 Description of Buttons on the Controller increase Point Temperature turn t h e u n i t ON/OFF without unplugging the equipment (press and hold 3 seconds) To Change the set point To access programming mode decrease Point Temperature...
- Page 13 REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 2. Press the up and down arrows to increase or decrease the set temperature. Then press the set button to save the new set point. Note: The maximum value you can set in the controller is: For refrigerators: 5°C (40°F) For freezers: -16°C (2°F) 3.
-
Page 14: Other Functions
REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 Freezer equipment can be used like a refrigerator by selecting the value of the parameter “EZY” according to the chart above. Refrigerators must never be used like a freezer. After you chose the value for the “EZY” parameter, press and hold the SET button for 5 seconds. - Page 15 REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 CAREL CONTROL (IR33+) The operating parameters can be modified using the front keypad. Access differs depending on the type: set point, frequently-used parameters (F) and configuration parameters (C). The type of parameter is specified in the table of parameters.
- Page 16 REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 Setting type C parameters Type C parameters include the type F parameters plus all the other control parameters. Procedure: 1. Press Prg/Mute one or more times to return to the standard display; 2. Press Prg/Mute for more than 3 seconds (if an alarm is active, the Buzzer is muted): the display will show the code PS (Password) and The number 0;...
-
Page 17: Maintenance
REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 MAINTENANCE Stainless Steel Care and Cleaning Proper cleaning of stainless steel requires soft cloths or plastic scouring pads. Never use steel pads, wire brushes, or scrapers! Cleaning solutions need to be alkaline or non-chloride cleaners. Any cleaner containing chlorides will damage the protective film of the stainless steel. -
Page 18: Gasket
REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 Never use high pressure water for cleaning the condenser coil. Water can damage the electrical components located near or at the condenser coil. Do not place filter material in front of condenser coil. This material blocks air-flow to the coil similar to having a dirty coil! If you keep the Condenser clean, you will minimize your service expense and lower your electrical costs. -
Page 19: Drain
REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 DRAIN Each unit comes equipped with a drain pan located outside the unit. The drain pan catches the condensation produced inside the evaporator coil. If the drain hose become loose or disconnected from moving or bumping the unit, you may find a puddle of water inside/outside of the unit. -
Page 20: Trouble Shooting
REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 TROUBLE SHOOTING Follow the next steps before requesting warranty service. Failure to do so, may result in service charges for you and may void your warranty: 1) Refrigerator doesn’t work: a. Check that the machine is still connected. b. -
Page 21: Wiring Diagrams
REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 WIRING DIAGRAMS QR 1 – QVR 1 www.Fagorcommercial.com PAGE 21... - Page 22 REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 QF1 – QVF 1 www.Fagorcommercial.com PAGE 22...
- Page 23 REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 QR2 – QVR 2 www.Fagorcommercial.com PAGE 23...
- Page 24 REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 QR 1G – QVR 1G www.Fagorcommercial.com PAGE 24...
-
Page 25: Warranty
User manual supplied with each Fagor unit. The obligation of this warranty is covered by Fagor for a period of three (3) years from the date of installation (Warranty commencement date), but in no event to exceed thirty-nine (39) months from the date of shipment from Fagor. Warranty is Not Transferable. - Page 26 Notwithstanding the foregoing , any claim with reference to the Equipment or any parts therefore for any cause shall be deemed waived unless submitted by the User to Fagor within (30) days after the date the User discovered, or should have discovered, the claim. In connection with all claims under this Warranty, Fagor will have the right, at its own expense, to have its representatives inspect the Equipment at the User’s premises and to request all of the User’s records pertaining to the Equipment to determine...
- Page 27 Taxes: This price list does not include any Federal, State, City or Local taxes, which may apply and are subject thereto. Shipment: Requested carrier will be used upon request. Fagor has the right to ship via any responsible carrier if requested carrier is unavailable. Shipping charges are payable by consignee and any claims arising as such charges shall be resolved between the carrier and the consignee.
- Page 28 REACH-INS OPERATIONAL SERVICE MANUAL / Rev.JUN. 2015 Fagor Commercial, Inc. 13105NW 47thAve Miami, Fl. 33054 Tel:(305) 7790170 Fax:(305)7790173 1-866-GO-FAGOR www.fagorcommercial.com www.Fagorcommercial.com PAGE 28...
