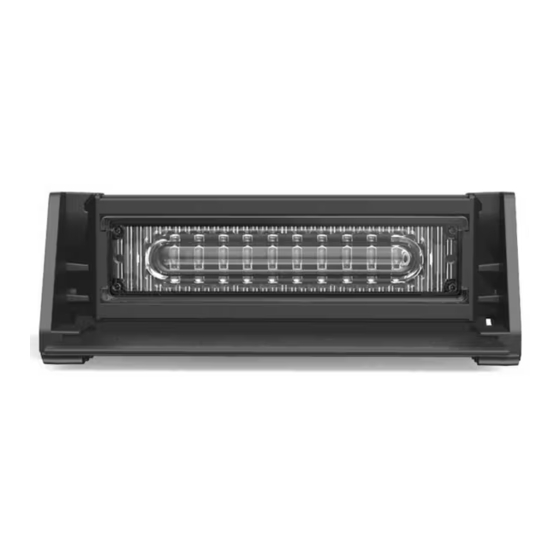

STL Virtue-1® Linear Interior LED Dash Light
Operation Manual and Instructions
Congratulations, you are the owner of a STL Virtue-1® Linear Interior LED Dash Light! Your bar
is equipped with the latest technology and features at the best value found industry wide,
GUARANTEED. In addition to that, your purchase comes with the STL 3 Year Warranty against
any manufacture defects that may occur with your bar. So please read this document carefully
and call Customer Service at 800-757-2581 Monday - Friday 8:30 AM - 4:30 PM central time if
you need assistance. We are available and happy to help!
Warnings and Notices for Users and Installers
This document must be delivered to and read by the end user and installer as it serves to
provide you with the required information for proper and safe use of your STL product. Before
operating this or any STL products the user and installer must read this manual all the way
through. You will find important information in this manual that could prevent property damage
and/or serious injury to the user and installer.
STL products are intended to alert pedestrians and other operators of the presence of
personnel, the operation of emergency vehicles, an emergency site, and any warning needs. This
does not ensure that pedestrians or drivers will react, heed, or observe emergency warning
signals. Nor does the use of emergency signals grant or ensure you the right of way. It is your
responsibility to make sure you can proceed safely before driving against traffic, entering an
intersection, responding at a high rate of speed, or walking on or around traffic lanes.
Your STL emergency vehicle devices should be tested daily to insure the device and all its
functions are operating correctly. If you experience a malfunction contact STL's Customer
Service immediately for troubleshooting options, or a warranty or service claim. You must
ensure sure that the projection of the visual and audible signal is not blocked by vehicle
components (i.e.: open trunks, visors, compartment doors), vehicles, other obstructions, or
people.
This is professional grade equipment and is intended for strict use by authorized personnel only.
It is the user's responsibility to understand and obey all laws regarding emergency warning
devices. You must know and be familiar with all applicable city, state, and federal laws and
regulations prior to the use of emergency vehicle warning devices.
1
(c) 2016 SpeedTech Lights, Inc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Virtue-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for STL Virtue-1

  • Page 1 STL Virtue-1® Linear Interior LED Dash Light Operation Manual and Instructions Congratulations, you are the owner of a STL Virtue-1® Linear Interior LED Dash Light! Your bar is equipped with the latest technology and features at the best value found industry wide, GUARANTEED.
  • Page 2 The effectiveness of your STL equipment is highly dependent upon correct mounting and wiring. Improper wiring and mounting of the warning device will reduce the output and performance of the equipment.
  • Page 3 - Never take any lights through a car wash. Use only water to clean the outer body/lens of your equipment. - Never use a pressure washer to clean any STL products. Inspect and test your product daily to insure it operates properly and is mounted correctly.
  • Page 4 SUMMARY OF THE VIRTUE-1® LINEAR INTERIOR LED DASH LIGHT: The Virtue-1® Linear Interior LED dash light includes powerful LINEAR optics and 6 3-watt MaxGen™ LEDs with 18 watts per module. This SpeedTech Lights LED dash light puts out an intense flash from such a small package.
  • Page 5 Positive *Black Negative How the Cigarette Lighter Plug Switch Operates Your STL Light bar Left On/Off Switch On Position: Turns on all the LED Modules in your light bar Off Position: Turns off all the LED Modules in your light bar Flash Pattern Button Button cycles to the next flash pattern with each press.
  • Page 6 To protect against short circuits, a fuse is included by STL for all products. Do NOT use a fuse with a higher amp rating than the initial fuse included. Do NOT use Circuit Breaks with STL Products. Ground terminations should only be made directly to the battery.
  • Page 7 Route the cable along the factory wiring harness towards the battery.  Wire your power cables (Red with In Line Fuse (STL Supplied) and Black cable) to your  battery to power up your light bar.
  • Page 8: Maintenance

    Maintenance While STL's light bars are very durable, there are some things you need to keep in mind and practice to preserve the longevity and function of your bar. Never take any STL Light bars through a car wash, such as a pressure washer, automatic ...
  • Page 9: Troubleshooting

    218 Trademark Dr • Buda • Texas •78610 • • Phone 800.757.2581 Fax 844.894.2652 Email customerservice@speedtechlights.com Problem Scenarios Possible Cause Trouble Shooting Warning LED Are all the LED module has one Diodes out? or all diodes out If at least one LED diode is Call Customer Service to make a warranty claim for a new out, the LED Module needs to be replaced.
  • Page 10 Move the ground to proper location and see if this fixes the issue. A New PCB may be required. Pressing buttons Does the STL Logo on the Switch on the Grand Box but light bar Control Box light up...
  • Page 11 Thank you for giving STL the opportunity to earn your business ®! and trust. Visit www.SpeedTechLights.com for any additional information and services regarding STL Warranty, Return Policy, Videos, or any other Customer Service needs you deem necessary. Shop with Confidence with SpeedTech Lights! ®...
