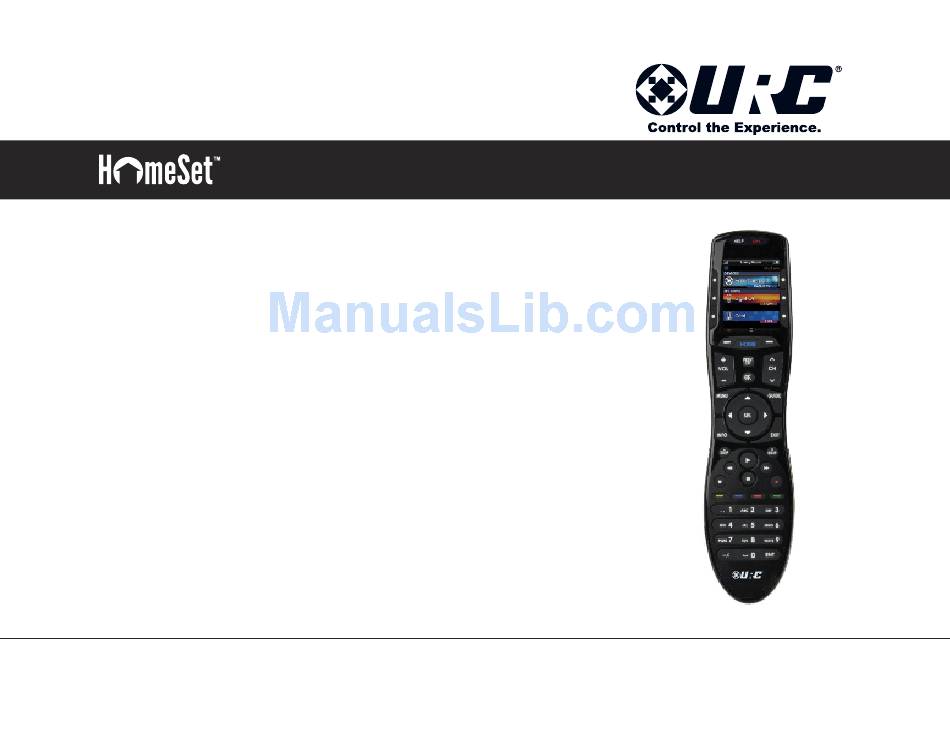

R100
REMOTE CONTROL
Owner's Manual
U n i v e r s a l R e m o t e C o n t r o l , I n c .
www.UniversalRemote.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R100 and is the answer not in the manual?

Questions and answers

Related Manuals for URC R100

Summary of Contents for URC R100

  • Page 1 R100 REMOTE CONTROL Owner’s Manual U n i v e r s a l R e m o t e C o n t r o l , I n c . www.UniversalRemote.com...
  • Page 2 R100 Owner’s Manual...
  • Page 3 Safety Precautions HomeSet R100 Owner’s Manual Safety Precautions For your safety, do not attempt to disassemble the R100 Remote © 2016 Universal Remote Control, Inc. All rights reserved. The Control. There are no user-serviceable parts inside. Use only the information in this manual is copyright protected. No part of this...
  • Page 4 HomeSet system by your smart home professional. The R100 is a Wi-Fi based Remote and does not use “line of sight” infrared (IR) or low frequency RF. It’s the perfect accessory companion for your TV room or bedroom.

  • Page 5: R100 Remote Control

    R100 Introduction R100 Remote Control By using the R100, you gain two-way control of your connected devices. “Two-way” means that in addition to data being sent to an electronic component (such as a Nest Thermostat), data is also returned to your remote so you can see graphical information of current status, including the current temperature in the home and more.

  • Page 6: Features And Benefits

    R100 Introduction Features and Benefits Quick Connect Wi-Fi When picked up, the R100 connects to Wi-Fi within moments to control your home Audio/Video (A/V) systems and smart home devices. Control Smart Home Products with Ease HomeSet R100 provides an elegant way to control entertainment products plus smart home devices in and around your home.
  • Page 7 R100 Introduction What s Included in the Box: ’ 1. R100 Remote Control 2. AC Power Adapter 3. Rechargeable Lithium Polymer Battery...

  • Page 8: Before Getting Started

    Before Getting Started Designed for use on your local wireless network The HomeSet R100 Remote Control is designed for use on your local wireless network similar to how your phone, tablets or computers work. Used in conjunction with a HomeSet C100 Base Station, the R100 can also control your home’s A/V devices.
  • Page 9 A battery is included in the box. Place the battery into the battery compartment, making sure to align the contacts on the battery to the contacts on the R100. The battery snaps into place when aligned properly. Replace the cover.
  • Page 10 R100 Installing Setup and Using the R100 The R100 Remote’s Home Menu pages have buttons that allow you to navigate menus to perform setup of HomeSet and the R100 Remote. While this section goes into the Professional Installer’s setup, many of the same buttons are used for daily operation.

  • Page 11: Displaying The Settings Screen

    To go back a step or to get screen out of the Settings menu, press the Home button. Shown below is the expanded view of R100 Settings Menu, showing all available Setup Menu options. Note: Not all options on this image are available on the screen at...

  • Page 12: Network Settings

    R100 Installing Network Settings C100 Control Hub/Base Station Setup The screen displays network information about your R100 and the After connecting the HomeSet C100 Control Hub to the local wireless network where it is connected. In this screen you’re able network, select the “Base Station”...
  • Page 13 Accessory Account info item allows the entry of an TRF-ZW Z-Wave Your HomeSet system also includes the ability to add an optional account username and password. The R100 provides a two-way URC TRF-ZW Z-Wave Gateway. This enables control of Z-Wave interface to these devices over the local wireless Ethernet network enabled products such as lights, thermostats, door locks and more.

  • Page 14: Sleep Timers

    R100 Installing Sleep Timers You can adjust the amount of time the LCD remains ON when the Selecting an item on this screen allows for the setting of each remote is not in use. The time can be set independently based on Sleep Timer value.

  • Page 15: System Information

    Brightness System Information Selecting Brightness results in the display of a screen that allows The System information screen displays data about your R100’s for setting brightness of the R100’s LCD Screen. Operating System and Memory, along with other information. Press More button to view further system information. Pressing Go Adjust screen brightness by pressing the adjacent hard buttons to ack exists to the remote’s Settings Menu.

  • Page 16: Button Light

    You can adjust the brightness of the LEDs that backlight the LCD You can display the remaining battery level by selecting Power. screen buttons of the R100. This can save R100 power. Press the You can also adjust when the Low Battery warning screen appears.
  • Page 17 Pickup You can adjust button sounds of the R100. Press the adjacent hard You can set the R100 to turn on when the remote is picked up. buttons to increase/decrease button volume level. Once sound is Simply select Low, Med, or High (Turn ON) or Off. After Pickup has adjusted, press Save.

  • Page 18: Firmware Update

    (if necessary). If a firmware update is available, the below screen is displayed. Selecting Yes starts the firmware update process. Selecting No results in display of the R100 System Menu. If a firmware update is not available, the screen below displays.

  • Page 19: Factory Default

    When you’ve finished adjusting Settings, simply press Exit to re- HS-R100 to factory settings. ll programming will be lost! Selecting turn to normal operation. Yes sets the R100 to factory default. Selecting No returns the R100 to the Setup Menu screen.
  • Page 20 This Limited Warranty is valid only in the United States of America. Any URC/HomeSet equipment that is purchased from an unauthorized source will not be eligible for a) tech support or support of any kind from URC/HomeSet and b) any warranty by URC/HomeSet.

  • Page 21: Specifications

    HomeSet installer/ programmer. Features may vary between customized software and URC software releases. To find out more, please contact your custom installation professional with questions. All information, features, benefits and user screens are subject to change without notice.

  • Page 22: Federal Communication Commission (Fcc) Interference Statement

    R100 Additional Information Federal Communication Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 23: Fcc Caution

    R100 Additional Information Warning! Changes/modifications not expressly approved by URC could void user’s authority to operate the equipment. URC is not responsible for any Radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
  • Page 24 R100 Additional Information Your HomeSet R100 Notes Page This rea Intentionally Left Blank for Notes Custom Installer/Programmer Company Name, Email & Contact Info: HomeSet R100 Serial Number: Date of Installation/Programming Completion: 500 Mamaroneck Avenue, Harrison, NY 10528 Toll Free: (800) 901-0800 Main: (914) 835-4484 www.HomeSetHome.com...
