Quick Start Guide

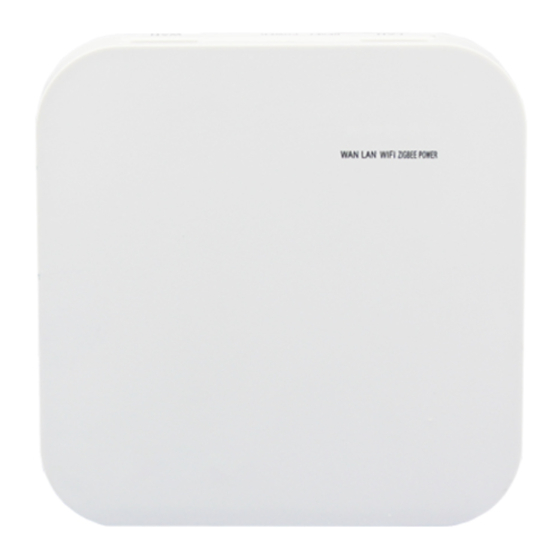

Model: SLG410
Version: 1.0
WAN LAN WIFI ZIGBEE POWER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLG410 and is the answer not in the manual?

Questions and answers

Related Manuals for ZKTeco SLG410

Summary of Contents for ZKTeco SLG410

  • Page 1 Quick Start Guide Model: SLG410 Version: 1.0 WAN LAN WIFI ZIGBEE POWER...
  • Page 2 Configuring the SLG410 gateway Connect the power cable to the gateway. Connect PC with gateway LAN port by network cable and WAN port with the router, respectively. Both the LAN and WAN LED will blink on the gateway. Configure your PC to Obtain an IP address automatically in TCP/IPv4 setting.
  • Page 3 After login, the following page shows up: Select the WAN Setting option to configure a network IP to provide a network to gateway, then follow the step as below: (1) Choose the “Static IP” option in WAN Type, then fill out the appropriate IP address which is able to access internet.
  • Page 4 Click OK to save. After a successful connection, the gateway configures automatically, and the Router Status page changes as shown below. Select Administrator option, to configure Remote IP and server port. The IP is the local IP address of client’s PC in which the ZKBioHLMS software is installed.
  • Page 5 Login to the ZKBioHLMS to add the gateway to the platform. Click Hotel->Device Mgnt->Device->Search. Click Search button to search the gateway and add the configured one. Edit the Gateway Name and click OK. Then click Refresh, the gateway will appear on the page.
  • Page 6 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2020 ZKTECO CO., LTD. All Rights Reserved.
