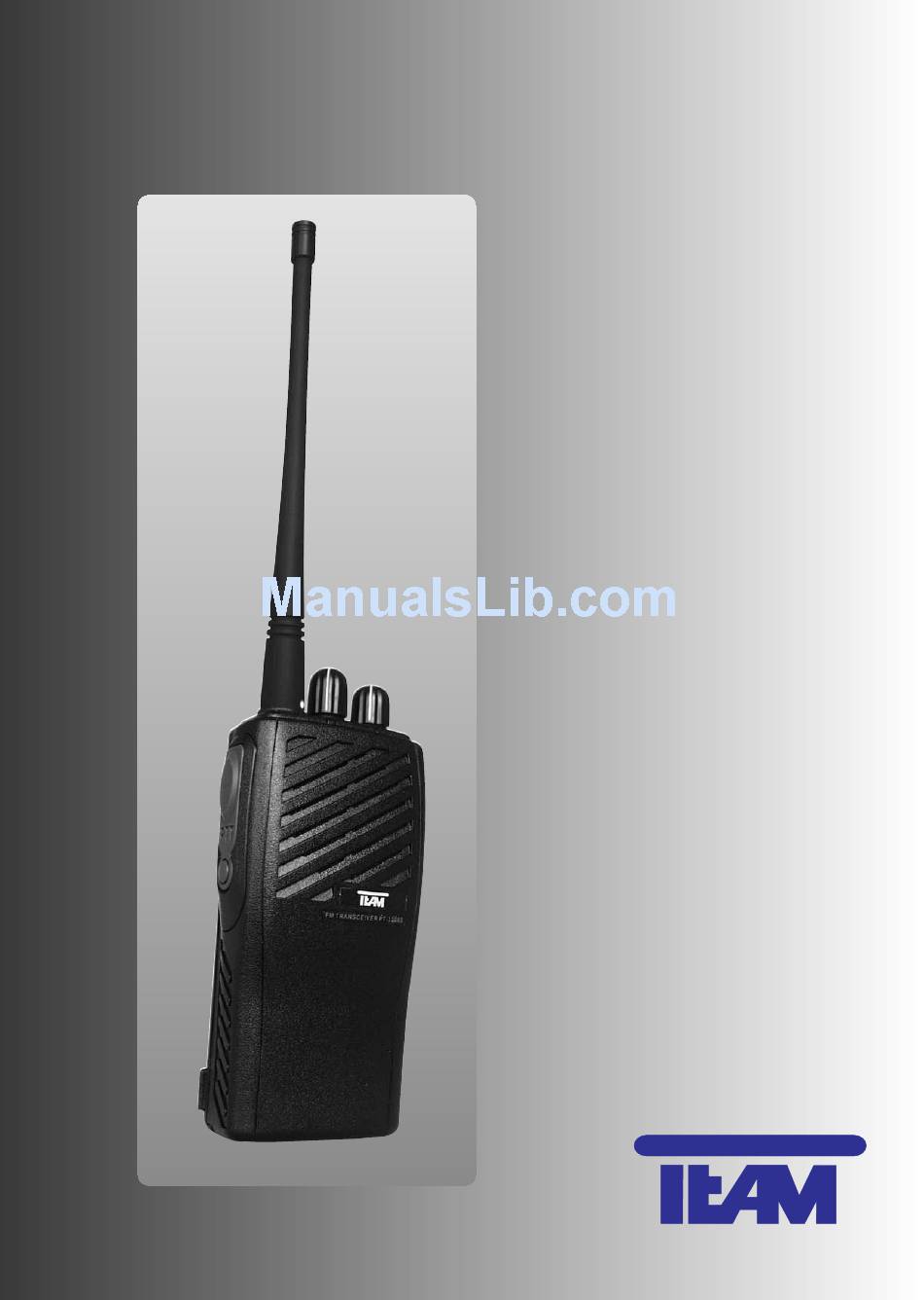

- Page 1 TEAM PT-2208S Freenet- & optional erweiterbares VHF- Betriebsfunkgerät Bedienungsanleitung Manual Mode d’emploi electronic...
- Page 2 TEAM PT-2208S Bedienungsanleitung Seite 3 - 10 Manual page 11 - 18 Mode d’emploi Page 19 - 26 Anzeige- und Bedienelemente: abnehmbare Antenne / SMA-Anschluß Kontrolllampe Kanaldrehwahlschalter, 16stufig [1 – 15, S] Lautstärkeregler, kombiniert mit Ein-/Aus-Schalter [VOLUME/OFF] PTT-Taste [PTT] Monitor-Taste Doppelbuchse Ø...
-
Page 3: Table Of Contents
Transmission Reception Sockets for External Speaker-Microphone Charging of the Accumulator Low Power Indicator Scan Function of the TEAM PT-2208S Start of Scan Function End of Scan Function Restart of the Scan Function Transmission during activated Scan Function Auxiliary Functions of the TEAM PT-2208S... -
Page 4: Setting Up The Team Pt-2208S
ENGLISH Setting up the TEAM PT-2208S Unpack carefully your UHF radio PT-2208S. Please check whether the supplied material matches with the positions listed below. In case of loss or damage of a part contact your carrier at once. manual Declaration... -
Page 5: Operation Of The Team Pt-2208S
3) Channel selection The TEAM PT-2208S has maximal 16 channels available. To select another channel turn the rotary channel selector [1-15, S] ( 3 ). According to the programming of the channels, which has been made by your dealer, the unit will call up those transmit and reception frequencies which correspond to the actual position 1 –... -
Page 6: Sockets For External Speaker-Microphone
PTT key and pressing it once again now, the unit will not transmit any more. Now it is time to recharge the accumulator. Scan function of the TEAM PT-2208S The scan function must be installed into your transceiver by your dealer, before you can use it. -
Page 7: Start Of Scan Function
After you have released the PTT key the unit will still stay for a dealer-set dwell time between 0.5 and 5 s on this channel, before the channel scanning is restarted again. Auxiliary functions of the TEAM PT-2208S These functions must be installed into your transceiver by your dealer, before you can use them. -
Page 8: Busy Channel Lockout Function
ENGLISH 2) Busy channel lockout function The lockout function for busy channels has the effect to prevent the unit from interfering with oth- er stations. If there is a signal on the actual channel at the moment when you press the PTT key, the transmitter will not be switched on. -
Page 9: General
In the event a defect becoming apparent, contact a properly equipped and authorised TEAM dealer or TEAM directly. 3) Conformity The transceiver TEAM PT-2208S complies with the rules of the European Directive R&TTE and meets the European Telecommunication Standards EN 300 086-2, EN 301 489-1/-5 and EN 60065. -
Page 10: Technical Data
ENGLISH Transmit Channel during Active Channel Scan Function Selected Channel Selected Channel or Prior Channel Prior Channel or actual Channel actual Channel Function of the Monitor Key Out of Function Stopping briefly Stopping Stopping briefly CTCSS & DCS CTCSS & DCS Noise Squelch in toggle mode CTCSS &... - Page 11 CTCSS-Töne • CTCSS tones • Fréquences des tons CTCSS : Code Frequ. (Hz) Code Frequ. (Hz) Code Frequ. (Hz) Code Frequ. (Hz) Code Frequ. (Hz) 67,0 94,8 123,0 162,2 218,1 71,9 97,4 127,3 167,9 225,7 74,4 100,0 131,8 173,8 233,6 77,0 103,5 136,5...
- Page 12 TEAM PT-2208S für den Vertrieb und Betrieb als Freenet/Betriebsfunkgerät in Deutschland, Für den Vertrieb und Betrieb als Betriebsfunkgerät in : Team Electronic GmbH Bolongarostrasse 88 65929 Frankfurt am Main Tel. 069 - 30 09 50 - 0 Fax 069 - 31 43 82 eMail team-electronic@t-online.de...
