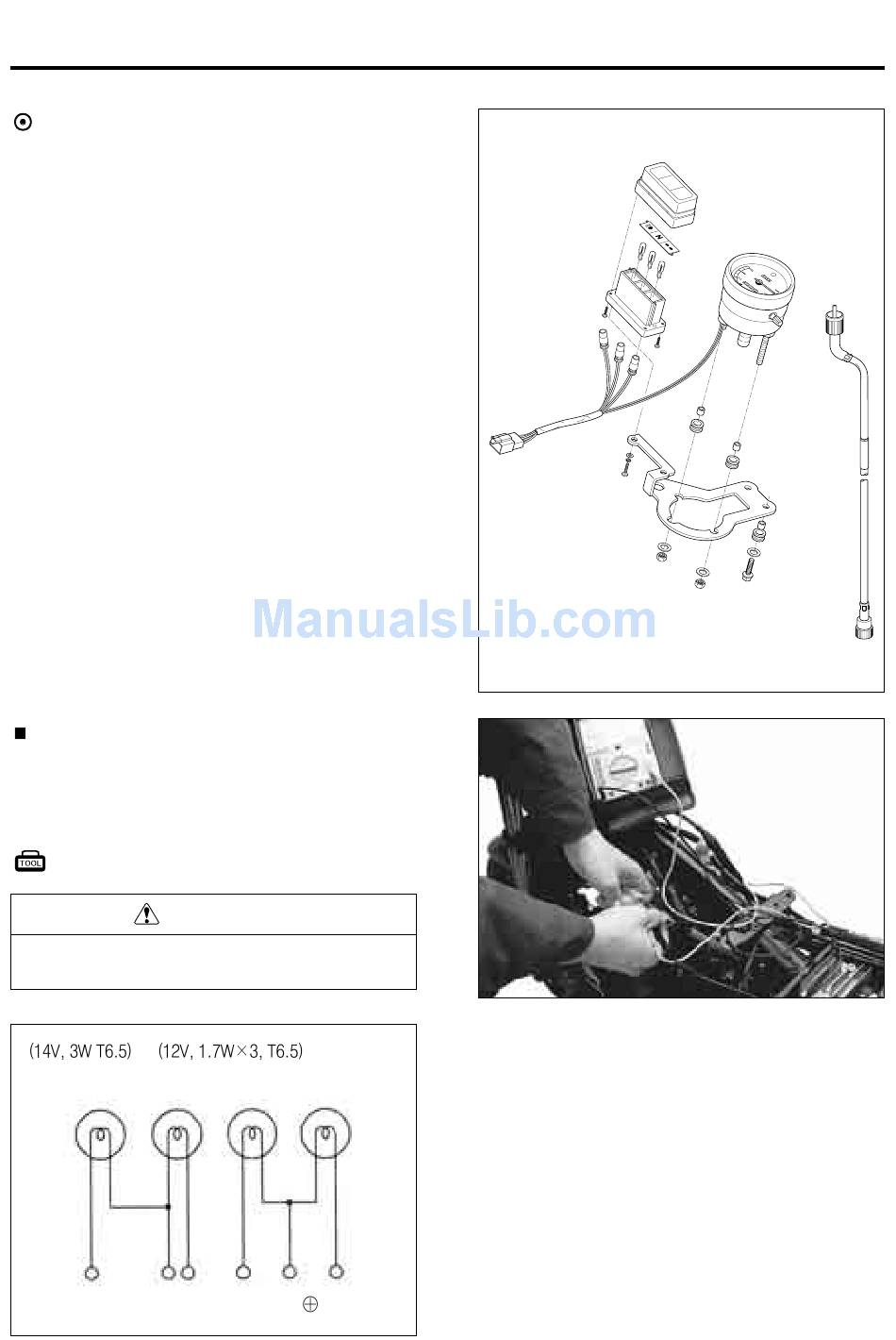

COMBINATION METER

Remove the combination meter.
Disassemble the combination meter as shown in the
illustration.
INSPECTION
Using the pocket tester, check the continuity between
lead wires in the following illustration.
If the continuity measured incorrect, replace the respec-
tive part.
Pocket tester : 09900 - 25002
CAUTION
When making this test, it is not necessary to
remove the combination meter.
HIGH
BEAM NEUTUAL TURN
ILLU.
Gr
BW(GND)
BR BG(TURN)
BY
B(IG )
ELECTRICAL SYSTEM
5-12
