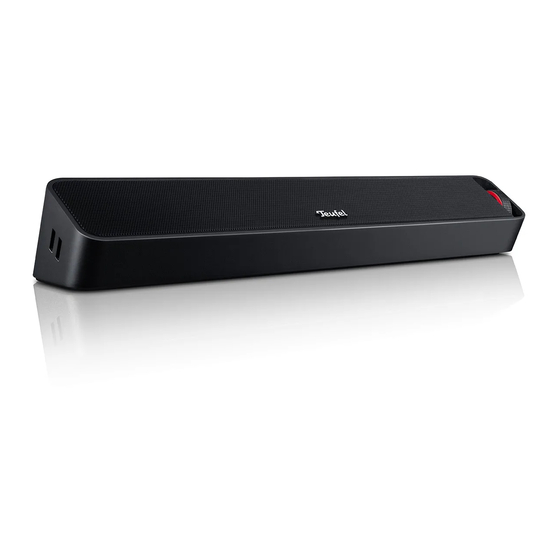

Mobile active bluetooth speaker

Advertisement

Technical Description
And User Manual
BAMSTER
Mobile active
Bluetooth
®
speaker

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BAMSTER and is the answer not in the manual?

Questions and answers

Summary of Contents for Teufel BAMSTER

  • Page 1 Technical Description And User Manual BAMSTER Mobile active ® Bluetooth speaker...
  • Page 2: Table Of Contents

    General Notes and Information ....3 For Your Safety ........5 Pack Contents ........9 Control Elements and Connections ... 10 LED Status Indicators......11 Operation ..........12 Care and Cleaning ......17 Protecting the Environment ....18 Technical Data ........19 • BAMSTER...
  • Page 3: General Notes And Information

    No part of this user manual may be re- produced in any form or be broadcasted in any way electronically, mechanically, by photocopy or recording without the written permission of Lautsprecher Teufel GmbH. © Lautsprecher Teufel GmbH Version 1.1 August 2016 Trademarks ®...
  • Page 4 Thank you for your support! Contact Please contact our customer service with any questions, suggestions or criticism: Lautsprecher Teufel GmbH BIKINI Berlin, Budapester Str. 44 10787 Berlin (Germany) Phone 00800 - 200 300 40 (toll-free) Fax +49 (0)30 / 300 930 930 E-mail: service@teufelaudio.com...
  • Page 5: For Your Safety

    For Your Safety Proper use The BAMSTER is designed to play back music and speech from an external player. Devices can be connected via ® Bluetooth or AUX cable. Only use the BAMSTER as described in this user manual. Any other use will be...
  • Page 6 – Follow all instructions. WARNING Danger of explosion: Rechargeable batteries (particularly lithium batter- ies) can explode if used improperly. – Keep the BAMSTER away from heat sources (e.g. ovens, radiators, ampli- fiers etc.). Do not expose the BAMSTER to direct sunlight.
  • Page 7 – Only operate the BAMSTER under the following ambient conditions: • Max. ambient temperature of 40 °C • Max. 2,000 m above sea level.
  • Page 8 This may have psy- chological consequences and also cause physical injury. Children and pets are particularly at risk. Set your signal source device volume control to a low setting before turning on the power. • BAMSTER...
  • Page 9: Pack Contents

    Pack Contents 1 × BAMSTER 1 × USB charging cable 1 × audio cable with a 3.5 mm jack plug • Check that all items have been deliv- ered and that nothing is damaged. If necessary, please contact our service team (see “Contact”).
  • Page 10: Control Elements And Connections

    3.5 mm jack plug. ④ Establishing or terminating a Blue- tooth connection (push and hold for 3 seconds). Only in Bluetooth mode: Interrupt ( ) or continue (►) playback, answer/end a call. ⑤ On/Off switch. • BAMSTER...
  • Page 11: Led Status Indicators

    LED Status Indicators BAMSTER Status LED Lights Turned off or asleep Off Battery charging Pulsing Energy-saving mode Dimly lit Turned on and Steadily lit conncted to source device Turned on and not Blinking slowly connected to source device Bluetooth pairing...
  • Page 12: Operation

    ① will be illuminated. It will go out in standby mode and after the device has been switched off. Tip: You should always deactivate the BAMSTER when it is not in use to save battery power. Automatic energy-saving If the BAMSTER does not play back...
  • Page 13 (1) or push button  ④ . If no charger is connected, the BAMSTER will switch to standby mode after another 20 minutes in the absence of an audio signal or button activity and the LED indi- cator on the volume dial ①...
  • Page 14 “0000” set by factory default. 5. Pairing is now complete and your BAMSTER is linked to the external play- er. The BAMSTER will now play back all sounds that would otherwise be played by your external player. To terminate the Bluetooth connection, switch the Bluetooth®...
  • Page 15 If two Bluetooth sources are registered with the BAMSTER at the same time, the LED indicator on the volume dial  ① will blink in alternation for 2 seconds. Restoring the connection with a...
  • Page 16 Connection via AUX ® As an alternative to Bluetooth , you can also connect your BAMSTER to the headphone jack of the external player via an audio cable with 3.5 mm jack plugs for example. Select the cable connection if you do not wish or are not allowed to use the Bluetooth function.
  • Page 17: Care And Cleaning

    – Do not in any case use solvents or abrasive cleaners. To clean your BAMSTER • Turn the BAMSTER off and remove all cable connections before you start cleaning. • Ideally, you can remove any dust or light dirt with a dry microfibre cloth.
  • Page 18: Protecting The Environment

    Please only turn in batteries and re- chargeable batteries which are empty! *) labelled with: Cd = cadmium, Hg = mercury, Pb = lead • BAMSTER...
  • Page 19: Technical Data

    You can find further technical data on our website. Technical changes reserved! Lautsprecher Teufel GmbH hereby de- clares that the “BAMSTER” radio system complies with the Directives 2014/53/ EU, 2014/30/EU and 2014/35/EU. The full text of the EU declaration of conform-...
  • Page 20 Please contact our customer service with any questions, suggestions or criticism: Lautsprecher Teufel GmbH BIKINI Berlin Budapester Str. 44 10787 Berlin (Germany) Phone: 00800 - 200 300 40 (toll-free) Fax: +49 (0)30 - 300 930 930 www.teufelaudio.com No responsibility is assumed for the correctness of this information.
