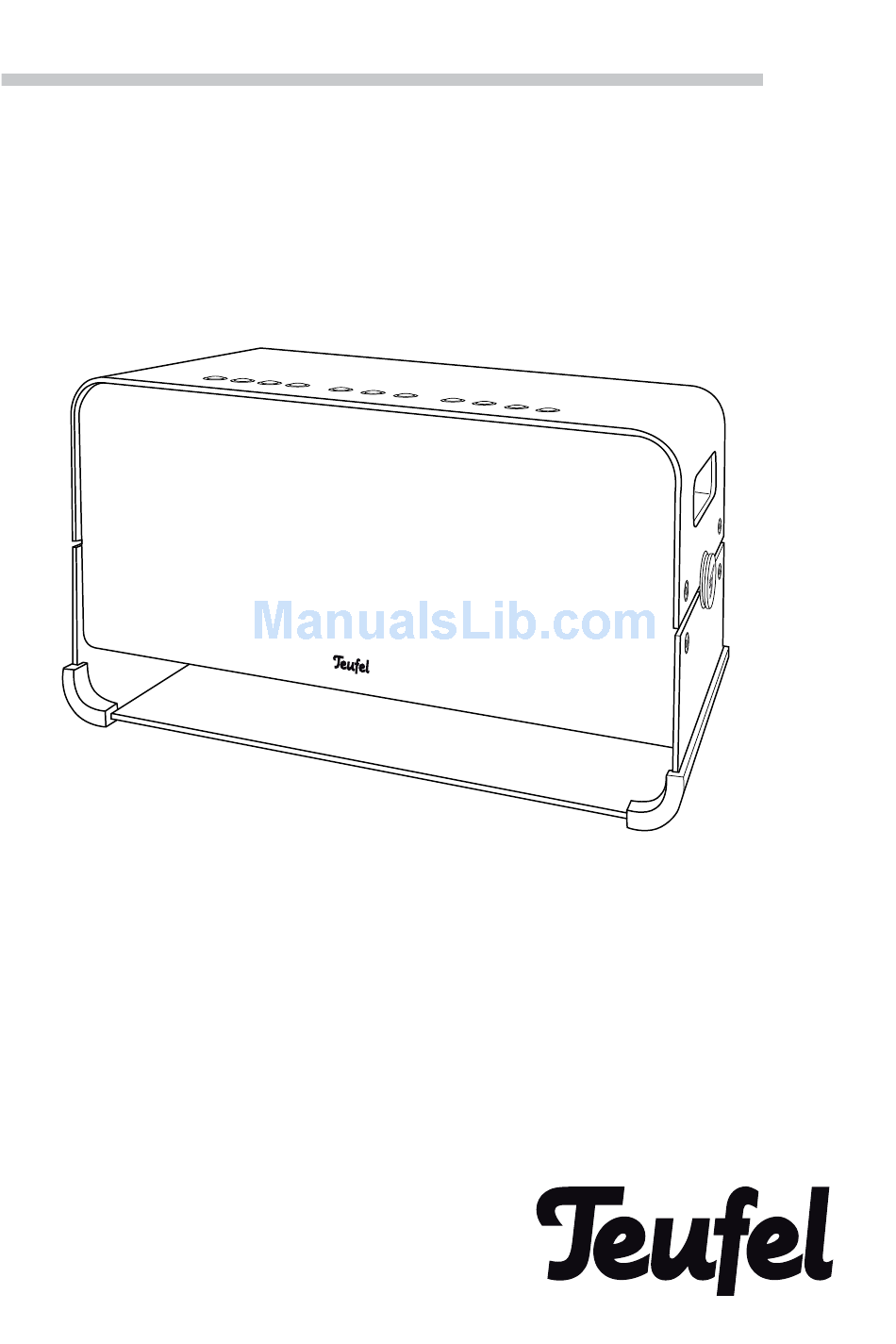

- Page 1 Technical Description and Operating Instructions BOOMSTER XL ® Mobile active Bluetooth speaker with integrated FM radio...
-
Page 2: Table Of Contents
Power supply ........10 USB ..........23 AC power ........10 Remote Control .........24 Battery pack....... 10 Pairing the “Teufel Puck” ....24 External 12 volt source ..... 12 Functions ........24 Attaching the carrying strap ..12 Changing the batteries ....25 Operation .......... -
Page 3: General Notes And Information
Lautsprecher Teufel GmbH. packaging. We can only accept the return of the speakers WITH THE No part of this user manual may be ORIGINAL PACKAGING. -
Page 4: Contact
The manufacturer accepts no liability for damage caused by improper use. The speaker is only intended for private use. • BOOMSTER XL... -
Page 5: For Your Safety
• Check the device regularly for If water or other debris ends up damage. penetrating the housing, immediately Immediately disconnect the mains pull the mains plug and take out any plug and do not operate the device if batteries/rechargeable batteries. • BOOMSTER XL... - Page 6 • You must not heat or short circuit transmission is allowed. batteries and rechargeable batteries or dispose of them in a fire. • Do not expose batteries and rechargeable batteries to direct sunlight. • BOOMSTER XL...
- Page 7 This may have psychological consequences and also cause physical injury. Children and pets are particularly at risk. Set your signal source device volume control to a low setting before turning on the power. • BOOMSTER XL...
-
Page 8: Overview
Danger of suffocation. Carefully open the box and carefully lift the BOOMSTER XL with the EPE foam parts out without touching the diaphragms of the bass speaker on the bottom of the device. -
Page 9: Operational Controls And Connections
13 Mains jack 14 Rechargeable battery switch 15 Input jack for external mains adapter, e.g. car adapter (not included in the product contents) 16 AUX input jack 17 USB jack (power supply for external players) 18 Dipole FM antenna • BOOMSTER XL... -
Page 10: Preparation
Preparation Power supply The BOOMSTER XL offers three power supply options: • Mains current • Rechargeable battery • External 12 volt source AC power For stationary operation, insert the enclosed mains cord into the mains jack (13) and connect it to a mains socket. - Page 11 3 times every 5 seconds. In this case, replace the batteries or connect the mains cord. The enclosed Li-ion battery pack will be charged as soon as the BOOMSTER XL is connected to the mains and the rechargeable battery switch (14) is switched on (“I” position).
-
Page 12: External 12 Volt Source
(e.g. a car battery) to jack (15). The rechargeable battery will not be charged via this connection. Attaching the carrying strap Hook the strap (3) in the brackets (a). CAUTION – Do not use the carrying strap as a climbing aid. • BOOMSTER XL... -
Page 13: Operation
This may have psychological consequences and also cause physical injury. Children and pets are particularly at risk. Set your signal source device volume control to a low setting before turning on the power. • BOOMSTER XL... -
Page 14: Turning On And Off
Turning on • Push the button (6) for approx. one second to turn on the BOOMSTER XL. When the device is turned on, all of the LEDs will light up. • If you would like to turn off all of the... -
Page 15: Selecting A Source
The current setting is indicated by the volume LEDs (10). 2. As long as the BASS button (4) is lit, you can use the –/+ buttons (5) to change the volume of the subwoofer in 14 stages. • BOOMSTER XL... -
Page 16: Setting The Treble Tones
Memory button 3 – Outdoor: the outdoor setting is optimized for use outdoors, without wall reflections. Here, the high tones are raised and the low • BOOMSTER XL... -
Page 17: Saving Personal Sound Configurations
BT or AUX mode. Access is not possible in radio mode (FM) because the memory buttons act as station buttons here. In this case, briefly switch to another source (e.g. AUX), access the tone configuration there and switch back to • BOOMSTER XL... -
Page 18: Radio
Radio The BOOMSTER XL is equipped with an FM radio. Three memory slots are available for your favourite stations. The integrated dipole FM antenna ensures good reception. Selecting the radio • Open the antenna compartment and unwind the dipole FM antenna (18). -
Page 19: Aux
2. Start playback on your external player. The volume setting of the external player affects the volume of the BOOMSTER XL. The sound can be set exclusively to your BOOMSTER XL. 3. Use your external player to control all other playback functions. -
Page 20: Bluetooth
Bluetooth ® Via Bluetooth , you can establish a wireless connection between a compatible external player and the BOOMSTER XL. The audio output of your external player is then emitted by the BOOMSTER XL. NOTICE ® Only use the Bluetooth... -
Page 21: Manual Pairing
“BOOMSTER XL” should also appear in the list of detected devices following the scan. 4. Select “BOOMSTER XL” from the list of detected devices. Pairing is now complete and your BOOMSTER XL will now act as a ®... -
Page 22: Pairing Via Nfc
After a short time, you will be asked to allow the NFC connection. 3. Confirm the request on your external player. Pairing is now complete and your BOOMSTER XL will now act as a ® Bluetooth playback device. The BOOMSTER XL will now play back... -
Page 23: Terminating The Connection
The USB connector (17) is used to supply power and recharge the source devices such as smartphones, tablets or MP3 players. Charging with the BOOMSTER XL however, can take longer than with the appropriate power adapter. NOTICE Please note that charging... -
Page 24: Remote Control
Remote Control You can use the “Teufel Puck” remote control as an optional accessory. Available in our webshop. Pairing the “Teufel Puck” 1. Switch the BOOMSTER XL on. 2. Position the “Teufel Puck” at a distance of no more than 25 cm to the BOOMSTER XL. -
Page 25: Changing The Batteries
– Do not allow battery acid to come into contact with skin, eyes or mucous membranes. In the event of contact with acid, immediately flush the applicable areas with plenty of clean water and consult a physician if necessary. • BOOMSTER XL... -
Page 26: Cleaning & Maintenance
Leaking surfaces off with a soft cloth without batteries may damage the applying pressure. device. – If possible, only use plain water without any additives. In case of stubborn marks, a mild soap solution may be used. • BOOMSTER XL... -
Page 27: Troubleshooting
“BOOMSTER XL” as the ® Bluetooth output device. ® Bluetooth connection impaired Set up the BOOMSTER XL and/ by another radio system (e.g. or external player in another cordless telephone, Wi-Fi). location. Move to another room to test. Playback is... -
Page 28: Protecting The Environment
Please only turn in batteries and environment. rechargeable batteries which are For this reason, electrical equipment is empty! marked with the adjacent symbol. * labelled with: Cd = cadmium, Hg = mercury, Pb = lead • BOOMSTER XL... -
Page 29: Technical Data
510 x 257 x 210 mm Weight: 9.85 kg Mains connection: 230 V~; 50/60 Hz; 150 W Rechargeable battery: 12 V Li-ion; 8000 mAh; 88.8 Wh You can find further technical data on our website. Technical changes reserved! • BOOMSTER XL... -
Page 30: Declaration Of Conformity
DIN EN 60065: 2011 DIN EN 62133: 2013 DIN EN 62321: 2009 ETSI EN 301489-1 ETSI EN 301489-09 ETSI EN 300328 V 1.8.1: Verordnung 1275/2008 Verordnung 0278/2009 UN38.3 Edgar van Velzen Geschäftsführer 03. September 2015 Ausstellungsdatum / Date of issue: • BOOMSTER XL... - Page 31 • BOOMSTER XL...
- Page 32 Please contact our customer service with any questions, suggestions or comments: Lautsprecher Teufel GmbH Phone: 00800 - 200 300 40 (toll-free) BIKINI Berlin Fax: +49 (0)30 - 300 930 930 Budapester Str. 44 www.teufelaudio.com 10787 Berlin (Germany) No responsibility is assumed for the correctness of this information.
