Technical Description and Operating Instructions
iTeufel
Air Blue
®
Stereo speaker with AirPlay and Bluetooth

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iTeufel Air Blue and is the answer not in the manual?

Questions and answers

Summary of Contents for Teufel iTeufel Air Blue

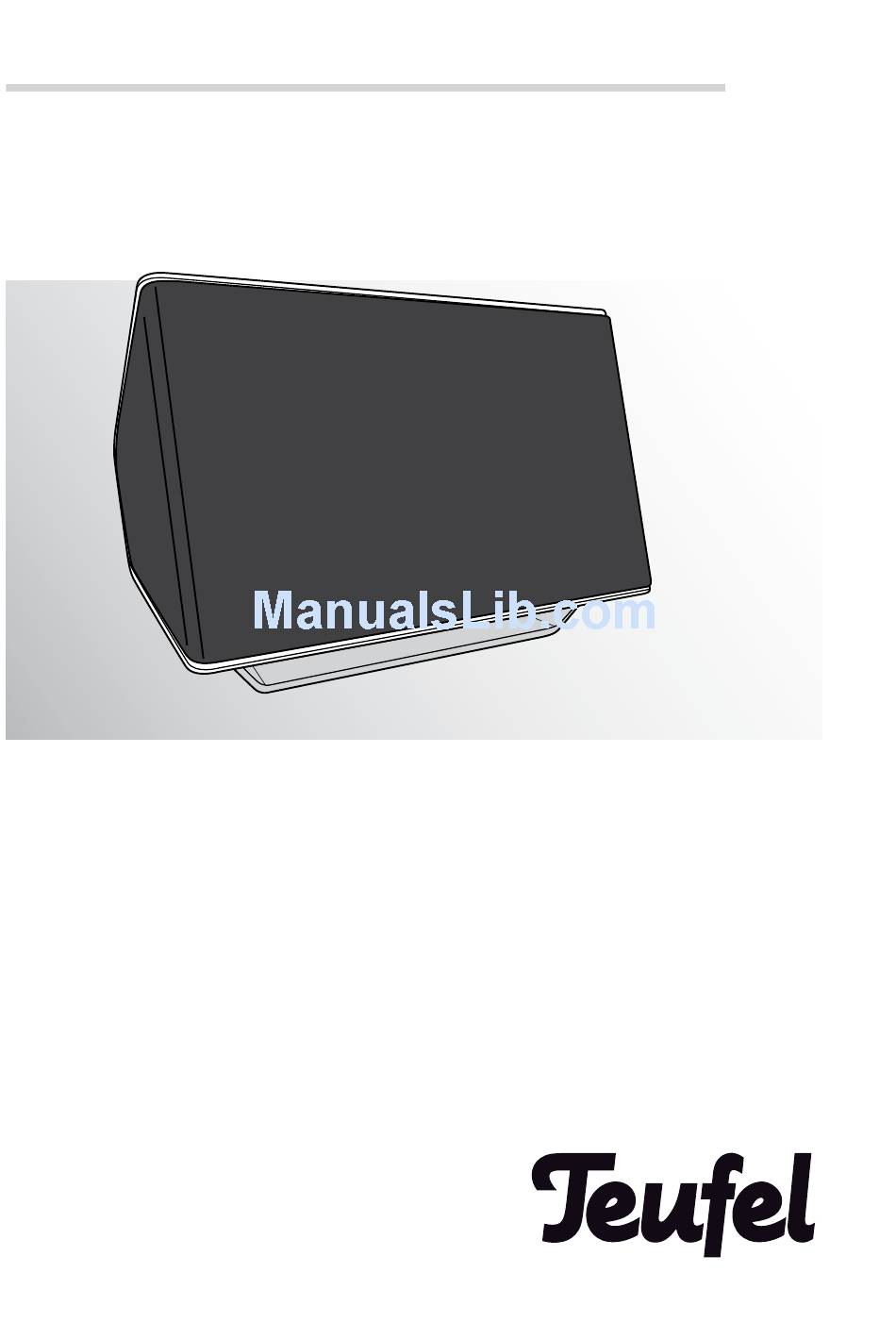

  • Page 1 Technical Description and Operating Instructions iTeufel Air Blue ® Stereo speaker with AirPlay and Bluetooth...
  • Page 2: Table Of Contents

    Contents General notes and information ................3 Safety notes ......................4 Control elements and connections ................6 Product contents ......................7 Setup and connection ....................7 Basic functions ......................8 Activating/standby mode ................8 Sleep mode....................8 Control LED ....................8 Volume .......................9 Audio input ....................9 Bluetooth operation ....................10 Bluetooth pairing ..................
  • Page 3: General Notes And Information

    For questions, suggestions or any other is- ed in any way electronically, mechanical- sues please contact our customer service ly, by photocopy or recording without the department: written permission of Lautsprecher Teufel Lautsprecher Teufel GmbH GmbH. Gewerbehof Buelowbogen Buelowstrasse 66 ©...
  • Page 4: Safety Notes

    Safety notes Caution icons • Never open the unit’s housing. Repairs may only be carried out by an You will find the following caution icons in authorised specialist workshop. Only these instructions: parts which conform with the original unit specifications may be used in this Danger High risk! case.
  • Page 5 Danger to hearing! Attention Fire hazard! Extended listening at high vol- Improper use may lead to dam- umes may lead to hearing age or fire. loss. • Do not place open flames such as burn- There is a potential risk of sudden very ing candles or similar on the unit.
  • Page 6: Control Elements And Connections

    Control elements and connections LINE IN RESET SETUP 220V-240V AC 50HZ 120W LINE IN RESET SETUP 230V-240V AC 50HZ 120W Name Meaning/function – Decrease the volume On/Standby button Increase the volume Connector jack for power cord Line In 3.5 mm jack plug audio input Reset Reset push button Setup...
  • Page 7: Product Contents

    Product contents Check to be sure • Check that all items have been deliv- ered and that nothing is damaged. a 1 x iTeufel Air Blue ® b 1 x power cord • If the delivery is incomplete or exhibits transport damage, please contact our service department (see page 3).
  • Page 8: Basic Functions

    Basic functions Activating/standby mode Control LED • Activating The signals of the control LED 8 have the Push the On/Standby button following meaning. briefly. Control LED Meaning The control LED 8 blinks quickly in pur- ple. Illuminates in Standby mode If your iTeufel Air Blue has already ®...
  • Page 9: Volume

    Volume Audio input You can connect almost any audio source to the 3.5 mm Line In 5 jack plug such as a computer, MP3 player (with/without a dock), video game system, television etc. The source device must have an out- Use the volume buttons 1 and 3 to adjust put with a line control.
  • Page 10: Bluetooth Operation

    A2DP standard. The range amounts to approx. 10 meters, which is, however, af- Activate Bluetooth on the uppermost line and select “iTeufel Air Blue” from the list. fected by walls and furniture. Mac OS X 10.8 computer: Bluetooth pairing Open Settings and select “Blue-...
  • Page 11: Playback

    ® switch on the audio playback via Blue- tooth and enjoy the powerful sound of iTeufel. Select “iTeufel Air Blue” from the list and 1. Start your playback software such as then click “Next”. iTunes, Media Center or Music. A message indicating that the devices 2.
  • Page 12 4. Start playback. All audible sounds will now be played back via your iTeufel Air Blue. ® Please note that simultaneous playback from multiple source devices is not possi- ble. Double-click „iTeufel Air Blue“. • iTeufel Air Blue ®...
  • Page 13: Airplay Operation

    3. Push and hold the Setup 7 push button If your wireless router has a WPS func- until the control LED 8 begins to blink tion, proceed as follows: slowly in white. Your Teufel Air Blue ® has now set up an open wireless net-...
  • Page 14 1. Establish an ad-hoc network as described in “Logging on without WPS” on page 13 2. Click on the wireless symbol on the menu bar: 3. iTeufel Air Blue should be shown in the list now. Select this network. Note: It may take up to 10 seconds for the iTeufel Air Blue to show up in the net- ®...
  • Page 15 2. Click on the wireless symbol on the task bar (see arrow): Note: It may take up to 10 sec for the device to show up. 3. Click “iTeufel Air Blue” in the list to establish a connection. Note: It may take up to 10 seconds for the iTeufel Air Blue to show up in the net- ®...
  • Page 16 Connecting the iTeufel Air Blue with a wireless network ® After the wireless connection has been established between your iTeufel Air Blue and ® your computer, open your browser (e.g. Safari) and enter the IP address of the iTeufel ® Air Blue in the address bar: 192.168.1.1 The window shown here should now be visible.
  • Page 17: Playback

    Playback which you can open by swiping from the bottom edge of the screen to the After the connection has been established middle of it: between your iTeufel Air Blue and your ® wireless router, you can use it for AirPlay playback on these devices: −...
  • Page 18: Other Functions

    Airplay button. time. There you will also find detailed in- stallation instructions: When operating in Bluetooth mode it is not possible to acutate multiple speakers. German website: www.teufel.de/iteufel-air-blue- update Reset LINE IN RESET SETUP English website: 220V-240V AC www.teufelaudio.com/iteufel-air-blue-update...
  • Page 19: Care And Cleaning

    Care and cleaning Clean the device regularly with a soft, Attention Risk of damage! damp microfibre cloth Please be absolute- Using the wrong cleaning ly sure to observe the following notes in agent may damage the sensi- the process: tive surface of the case. •...
  • Page 20: Troubleshooting

    Troubleshooting The following advice should help you to solve problems. If this does not help, you will find useful information in the detailed FAQs on our website. Otherwise, please contact our hotline (see page 3). Take note of the warranty instructions. Problem Possible cause Solution...
  • Page 21: Technical Data

    Technical data Operating voltage: 220 V - 240 V~ / 50 Hz Dimensions (W x H x D): 440 x 260 x 195 mm Net weight: 5.4 kg You will find more technical data in the This product complies with product description on our website at the directives of the Council www.teufelaudio.com.
  • Page 22 • iTeufel Air Blue ®...
  • Page 23 • iTeufel Air Blue ®...
  • Page 24 For questions, suggestions or any other issues please contact our customer service de- partment: Lautsprecher Teufel GmbH Gewerbehof Buelowbogen - Aufgang D1 Buelowstr. 66 10783 Berlin (Germany) Phone: 00800 - 200 300 40 (toll-free) Fax: +49 (0)30 - 300 930 930 www.teufelaudio.com...
