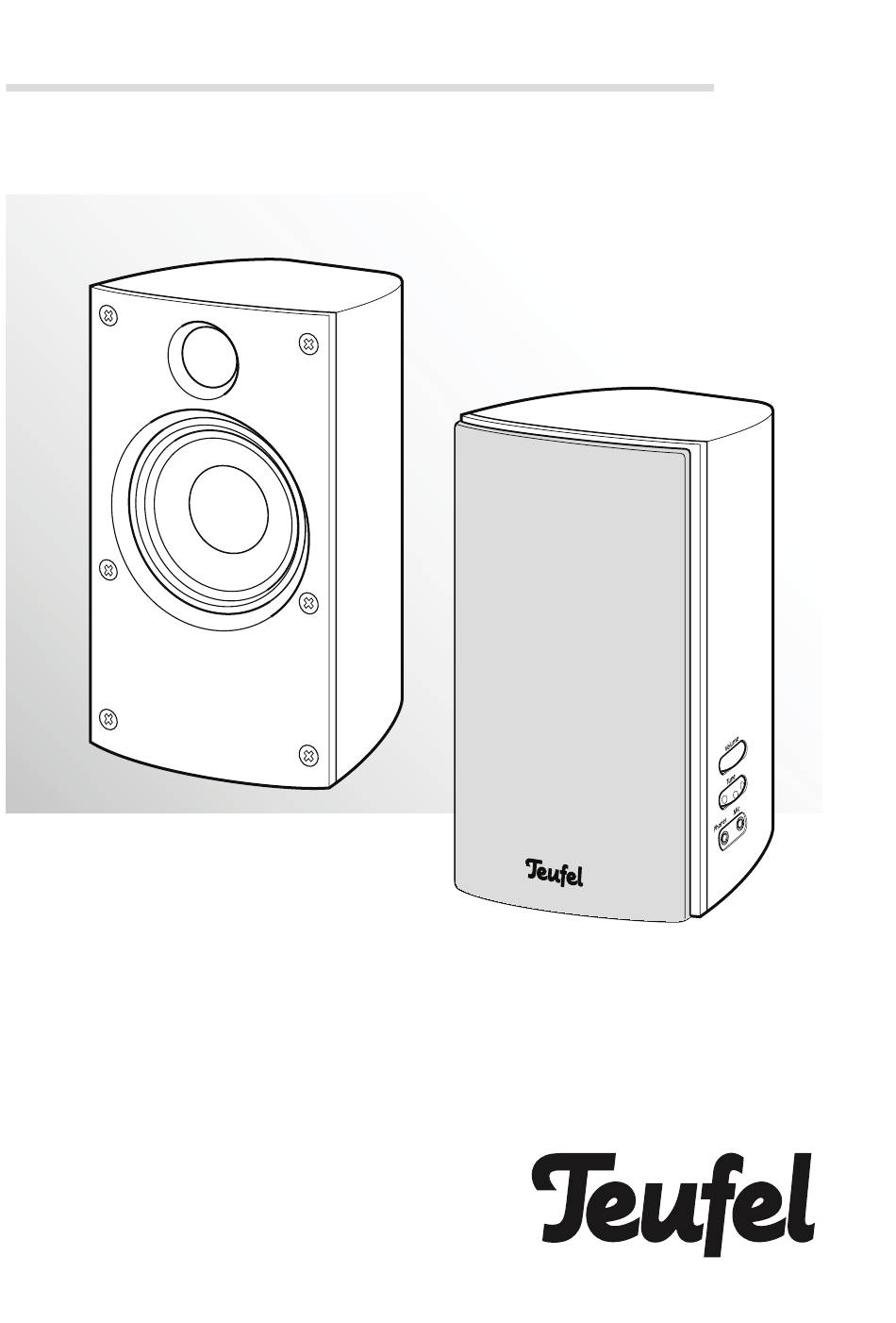

- Page 1 Technical description and operating instructions gb was here Concept B 20 2.0 PC Speakers...
-
Page 2: Table Of Contents
Contents General notes and information ................3 Safety notes ......................4 Product contents ......................6 Control elements......................7 Connecting and setting up the speakers ..............8 Use ........................10 Protecting the environment ..................11 • Concept B 20... -
Page 3: General Notes And Information
For questions, suggestions or criticism ly, by photocopy or recording without the please contact our customer service de- written permission of Lautsprecher Teufel partment: GmbH. Lautsprecher Teufel GmbH Gewerbehof Buelowbogen ©... -
Page 4: Safety Notes
• Check the unit regularly for damage. you can quickly disconnect it from the power supply in the event of faults. • Immediately pull the mains adapter out of the socket if the casing is defec- tive or exhibits other visible damages. • Concept B 20... - Page 5 Selecting an incorrect location may result in damages. • Never use the speakers unmounted in vehicles, in unstable locations, on wobbly tripods or furniture, on insuffi - ciently dimensioned brackets etc. The speakers could tip or fall down and • Concept B 20...
-
Page 6: Product Contents
1 connector cable with 3.5 mm stereo jack plugs • If the delivery is incomplete or you fi nd damage sustained in transit, do not operate the speakers, instead contact our service department (see page 3). • Concept B 20... -
Page 7: Control Elements
Microphone output jack Mic out Connector jack for the left speaker To Left Speaker Input jack for the mains adapter DC 17 V 2.3 A Audio input jack Audio In Connector cable for the right speaker • Concept B 20... -
Page 8: Connecting And Setting Up The Speakers
4. If you would like to use a headset, connect the jack Mic Out (5) with the micro- phone input jack of your PC/notebook. For this, you will need a cable with a 3.5 mm stereo jack plug (not included in the product contents) . • Concept B 20... - Page 9 Using a headset/headphones If you would like to use a headset, you can connect it to the jacks (3) and (4) of the right speaker. Phones = headphones Mic = microphone • Concept B 20...
-
Page 10: Use
• Turn it forward for more treble. • Turning the speakers off/decreasing the volume: Turn the dial Volume (1) forward. To turn off the speakers, turn the dial against the resistance until it locks into place and the blue light turns off. • Concept B 20... -
Page 11: Protecting The Environment
