Summary of Contents for Teufel concept b 200

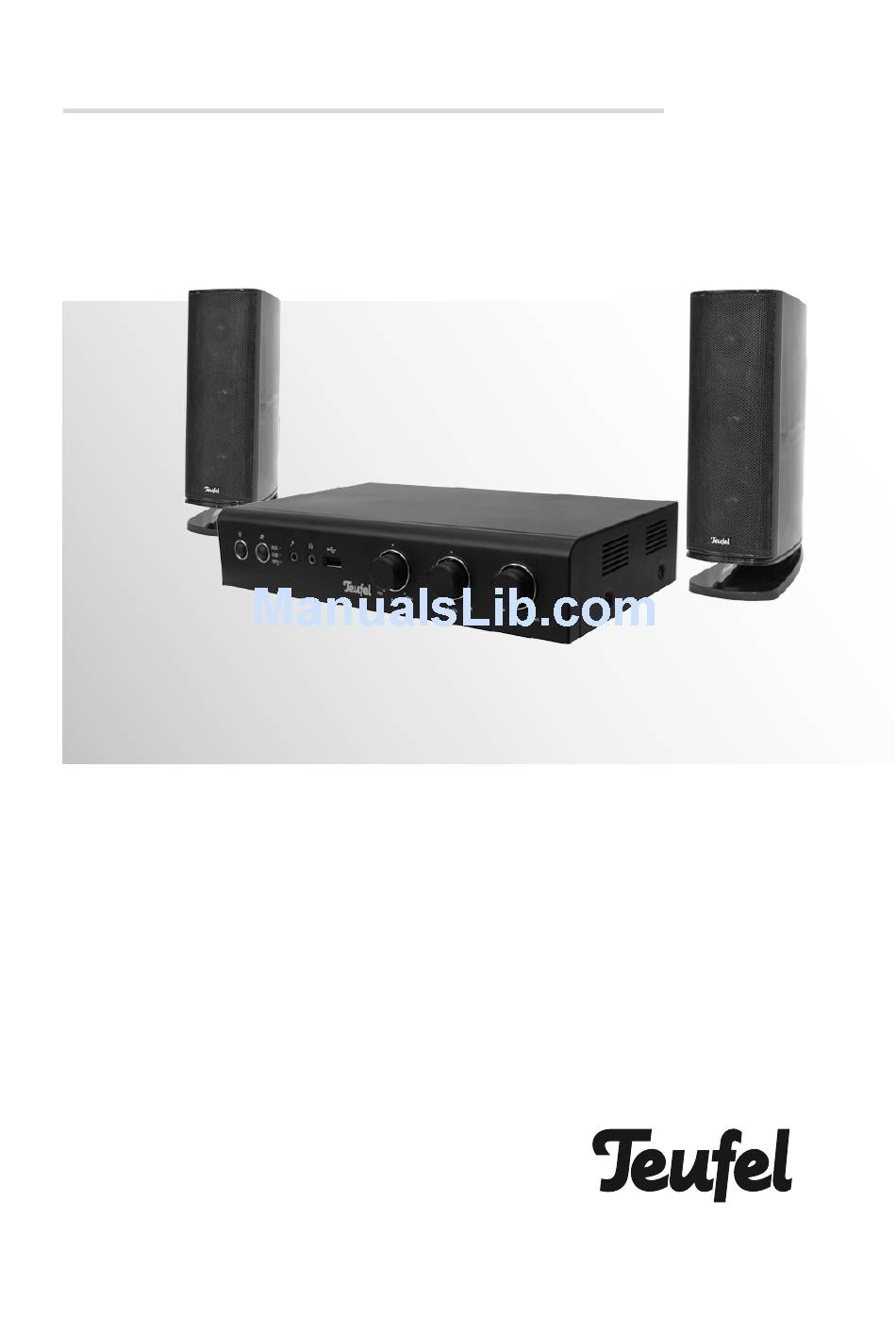

- Page 1 Technical Description and Operating Instructions Concept B 200 Active 2.0 Multimedia Speaker System...
-
Page 2: Table Of Contents
Mains connection ............................7 Basic functions ................................8 Activating and deactivating ..........................8 Selecting a source............................8 Setting the volume 8 Setting the sound ............................8 Care and cleaning .................................9 Troubleshooting ................................9 Protecting the environment ............................10 Technical data ................................10 • Concept B 200... -
Page 3: General Notes And Information
For questions, suggestions or other issues please contact out prior notice and in no way constitutes any liability on our customer service department: the part of Lautsprecher Teufel GmbH. Lautsprecher Teufel GmbH No part of these instructions may be reproduced in any Gewerbehof Buelowbogen form or be broadcasted in any way electronically, mech... -
Page 4: Safety Notes
If water or other foreign bodies should enter the case, disconnect it immediately from the mains power supply and remove any batteries. Send the unit to our service address. • Concept B 200... -
Page 5: Overview
• Check whether the product contents are complete and free of damages. • If the delivery is incomplete or you find damage sus tained in transit, do not operate the unit but contact our service department (see page 3). • Concept B 200... -
Page 6: Controls And Connections
USB jacks Aux R/L audio source Speaker R/L Speaker connector jacks 3.5 mm minijack for connecting Power Mains switch to an audio source – Mains connector jack with mains USB port for connecting to the PC fuse • Concept B 200... -
Page 7: Setup And Connection
3.5 mm minijack (turn it all counterclockwise until it has reached the 11 “MP3”. minimum position). • Connect the mains jack 16 with a mains socket using the mains cord d. • Concept B 200... -
Page 8: Basic Functions
Basic functions Activating and deactivating • With the mains switch 11 “Power” you can turn your Concept B 200 on and off. After being activated, the device is first in standby mode. • By pressing the button 1 “ ”, you switch your amplifier unit to operational or standby mode. -
Page 9: Care And Cleaning
Cleaning and care Clean your Concept B 200 regularly with a soft, damp Attention Risk of damage! microfiber cloth. Please be absolutely sure to follow the Using the wrong cleaning materials may dam notes below: age the delicate surface of the case. -
Page 10: Protecting The Environment
For this reason, electrical equipment is labeled with the symbol shown on the left. Technical data Amplifier unit Concept B 200 Power consumption max: 120 W in standby mode < 0.5 W Operating voltage: 220–240 V~, 50/60 Hz... - Page 11 Notes • Concept B 200...
- Page 12 For questions, suggestions or other issues please contact our customer service department: Lautsprecher Teufel GmbH Tel.: 00800 200 300 40 (tollfree) No liability is accepted for the Gewerbehof Buelowbogen Aufgang D1 Fax: +49 (0)30 300 930 930 accuracy of this information. Tech...
