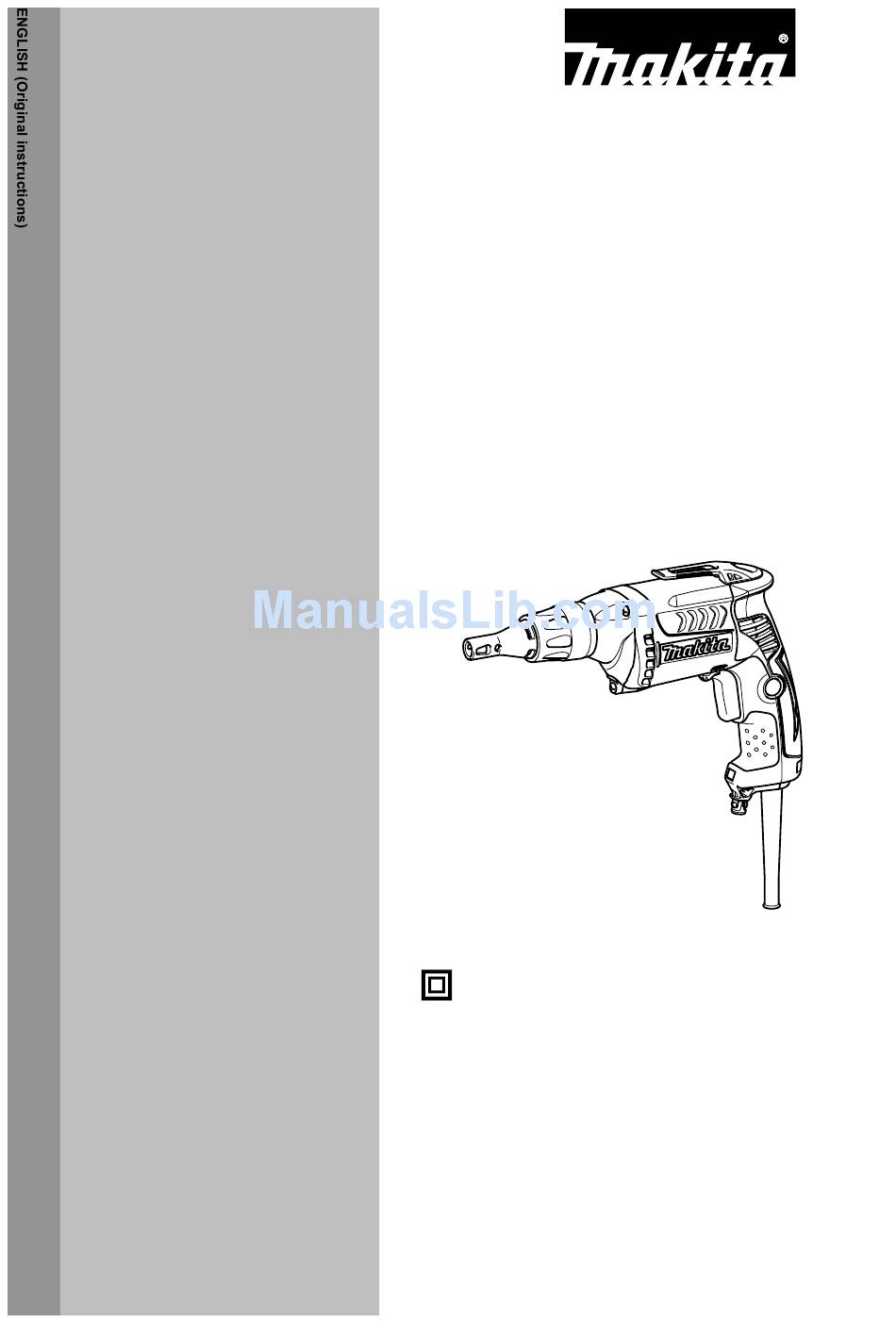

- Page 1 INSTRUCTION MANUAL Drywall Screwdriver FS4000 FS4000X FS4200 FS4300 FS4300A FS4300X FS6200 FS6300 FS6300A FS6300R FS6300X 009959 DOUBLE INSULATION IMPORTANT: Read Before Using.
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS FS4300/ FS6300/ Model FS4000 FS4000X FS4200 FS4300X FS6200 FS6300R FS6300X FS4300A FS6300A Self drilling 6 mm screw Capacities Drywall 5 mm 4 mm screw No load speed (min 0 - 4,000 0 - 6,000 Overall length... - Page 3 Unmodified plugs and matching outlets will EC Declaration of Conformity reduce risk of electric shock. Avoid body contact with earthed or grounded Makita declares that the following Machine(s): surfaces such as pipes, radiators, ranges and Designation of Machine: refrigerators. There is an increased risk of Drywall Screwdriver electric shock if your body is earthed or grounded.
-
Page 4: Screwdriver Safety Warnings
GEB017-4 16. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves SCREWDRIVER SAFETY away from moving parts. Loose clothes, jewellery WARNINGS or long hair can be caught in moving parts. 17. If devices are provided for the connection of Hold power tool... -
Page 5: Functional Description
One full turn of the lock ring equals 2.0 mm change in depth. Before plugging in the tool, always check to see • For model FS4000X, FS4300X, FS6300X that the switch trigger actuates properly and returns to the "OFF" position when released. - Page 6 Hook 1. Hook 010095 For model FS4000X, FS4300X, FS6300X To remove the bit, first pull the locator out of the locking sleeve. Then grasp the bit with a pair of pliers and pull the bit out of the magnetic bit holder. Sometimes, it helps to wiggle the bit with the pliers as you pull.
- Page 7 Removing removable cord adapter 1. Locator 2. Bit 1. Lock button 3. Magnetic bit holder 002661 Installing removable cord adapter 004181 For Model FS6300R Rotate the removable cord adapter counterclockwise until it stops while pressing the lower part of the lock button.
-
Page 8: Operation
If you need any assistance for more details regarding these accessories, ask your local Makita Service Center. 009966 Fit the screw on the point of the bit and place the point of Phillips Insert bits •... - Page 12 Makita Jan-Baptist Vinkstraat 2, 3070, Belgium Makita Corporation Anjo, Aichi, Japan www.makita.com 884894F225...
