For the installation, operation and service of

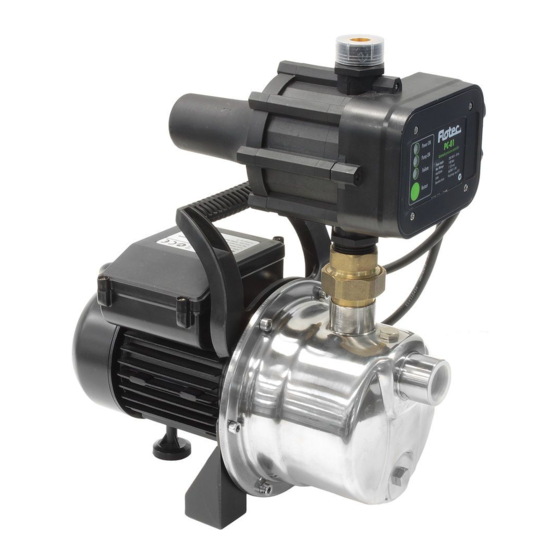

AUTOJET &
MULTIMAX
STAINLESS STEEL JET PUMPS
• Autojet60 • Autojet80 • Multimax120
We recommend, for additional protection, the pump to be supplied from
socket outlet protected by a residual current device – RCD (also known
as an Earth Leakage Circuit Breaker – ELCB) with a maximum rated
residual current of 30mA.
Should you the installer or owner be unfamiliar with the correct installation or
operation of this type of equipment you should contact the distributor/manufacturer
for the correct advice before proceeding with the installation or operation of this
product.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Flotec Autojet60
Summary of Contents for Flotec Autojet60

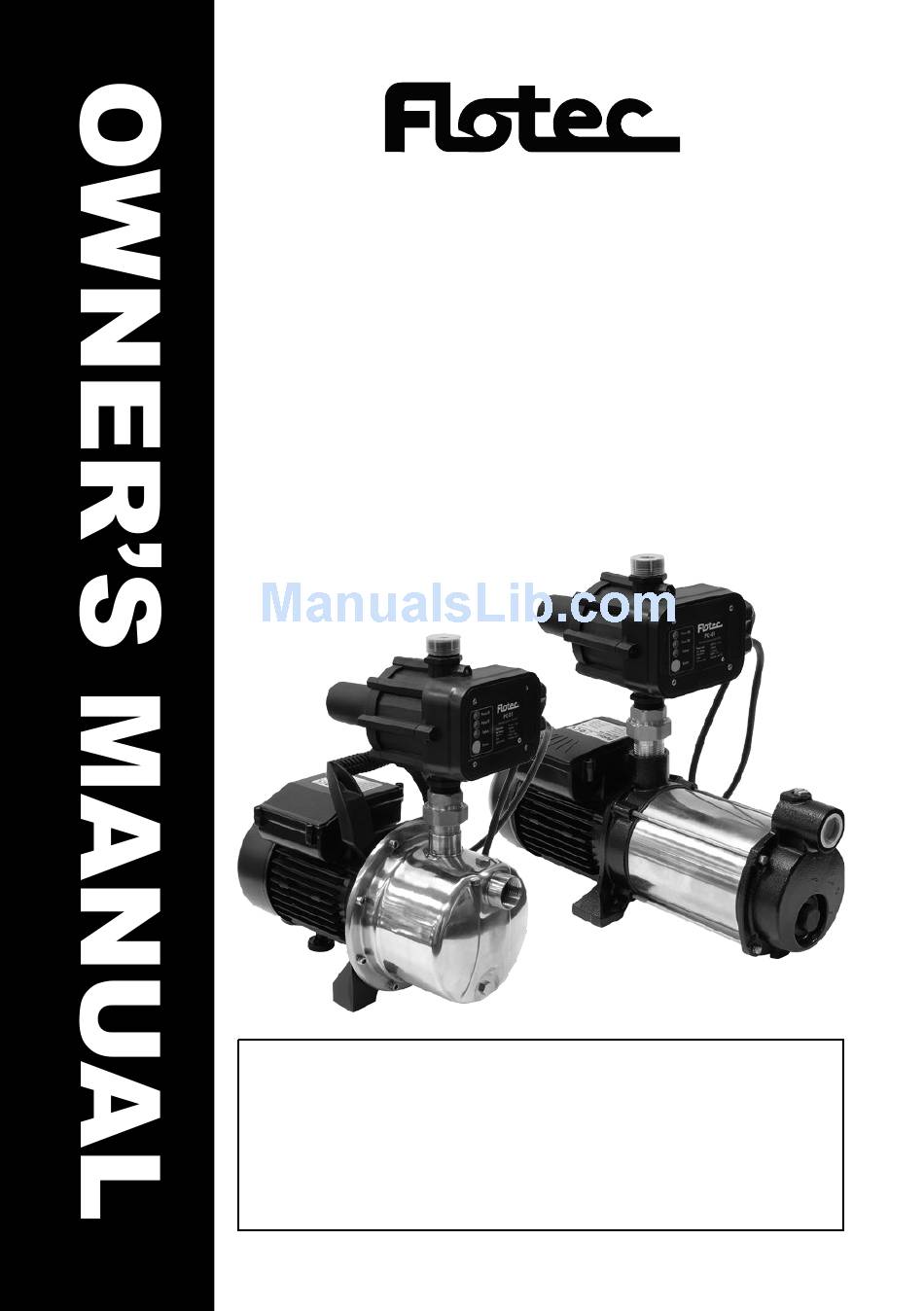

- Page 1 AUTOJET & MULTIMAX STAINLESS STEEL JET PUMPS • Autojet60 • Autojet80 • Multimax120 We recommend, for additional protection, the pump to be supplied from socket outlet protected by a residual current device – RCD (also known as an Earth Leakage Circuit Breaker – ELCB) with a maximum rated residual current of 30mA.
-
Page 2: Table Of Contents
Table of Contents Page Model Data Application Installation Operation Service and Maintenance Trouble Shooting Warranty L100235 - Autojet & Multimax Owner’s manual | Copyright© Pentair Australia Pty Ltd 2017... -
Page 3: Model Data
Model Data Motor Model AJP60 AJP80 1100 MMP1200 1100 Technical Information 1” BSPF Inlet (Suction): 1” BSPF Outlet (Discharge): 1º - 40ºC Water Temperature Range: IPX4/F IP Rating: 230V, 50Hz Electrical Supply: single phase 40 ºC Maximum Ambient temperature: L100235 - Autojet & Multimax Owner’s manual | Copyright© Pentair Australia Pty Ltd 2017... -
Page 4: Application
Application Flotec AJ & MM Series pumps are suitable for pumping clean water in a domestic water system, small irrigation applications, and as pressure booster pumps. The strength of the stainless steel pump casing coupled with the impervious nature of the technopolymer impeller and diffuser make it ideally suited for most potable water pumping applications. -
Page 5: Installation
Installation We strongly recommend this product be installed by a suitably qualified person. The electrical installation shall be in accordance with the national wiring rules (AS/NZS 3000) for class 1, IPX4 rated products. These instructions are a guide only. Users not familiar with pumping equipment should seek advice from people experienced in pump equipment and installation. - Page 6 1. Preparation for Installation Inspect your pump for shipping damage. Report any damage to place of purchase. We strongly recommend this product be installed by a suitably qualified person. Make sure the suction piping is free of air leaks and is laid so that there can be no airlocks.
- Page 7 6. Suction This is the most important part of the installation as errors will cause significant problems for the system in performance and longevity. IMPORTANT: A gate valve must be installed at the tank outlets. Installations where the tank base is below the pump Installations where the tank base is level with the pump L100235 - Autojet &...
-
Page 8: Pump Priming
To maintain optimum performance from your pump, the suction pipe should be: Kept to the shortest distance practical, but not shorter than the recommended length. Re-enforced crush resistant (non-collapsable) hose or pipe. All fittings should be air tight. Pipes should be equal to or larger than the diameter of the suction/inlet port. - Page 9 Fig.1 Priming Plug 9. Electrical The pump is supplied with a interconnection appliance coupler and standard Australian 10 Ampere plug and cord. Connection to the power supply is a matter of inserting the plug into the suitable socket outlet. Before plugging the power supply cord into the socket outlet, connect the pump to it using the provided IEC appliance connectors on the end of the interconnection cords.
-
Page 10: Operation
Operation 1. Start-up / Operation Ensure you have primed the pump correctly. (Instructions on priming the pump can be found in the installation section under Point 8. Priming Pump). The MM Series pump is not self-priming and must be primed prior to use. The AJ Series pumps are self priming therefore it is possible to start them without filing the suction pipe with water. -
Page 11: Service And Maintenance
Water may be HOT, release pressure with care before servicing. 1. General Care and Maintenance Under normal conditions the Flotec AJ & MM series of pumps requires only minimal attention. In order to prevent possible failures, it is advisable to periodically check the pressure supplied and power absorption. -
Page 12: Troubleshooting
Troubleshooting Symptom Cause Remedy No Electricity. Verify presence of electricity. Pump does not operate and Not Plugged in correctly. Ensure pump is connected properly. motor does not run. Circuit breaker activated. Reset circuit breaker. Clean suction pipe and foot valve/strainer. Clean the pump by flushing with water. -
Page 13: Warranty
WARRANTY Pentair Australia Pty Ltd ACN 004 856 204 and its related entities (“Pentair”) warrants that, subject to the terms and condi- tions below, when it’s products are used for the purpose for which they were designed, they will be free of material and manufacturing defects at the time of the original purchase. - Page 14 WARRANTY Exclusion of damages To the extent permitted by law, Pentair liability is limited to the cost of the repair or replacement of the product. Pentair will not be liable for: Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference of business relationships, or other commercial loss, even if advised of the possibility of such damage.
- Page 15 Notes ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................L100235 - Autojet & Multimax Owner’s manual | Copyright© Pentair Australia Pty Ltd 2017...
- Page 16 AUTOJET & MULTIMAX STAINLESS STEEL JET PUMPS IMPORTANT Please attach your sales invoice/docket here as proof of purchase should warranty service be required. Please do not return warranty form to Pentair Australia - Retain for your records. Purchased from :..........................Purchase date :........
