mensor CPC3000 User Manual page 6

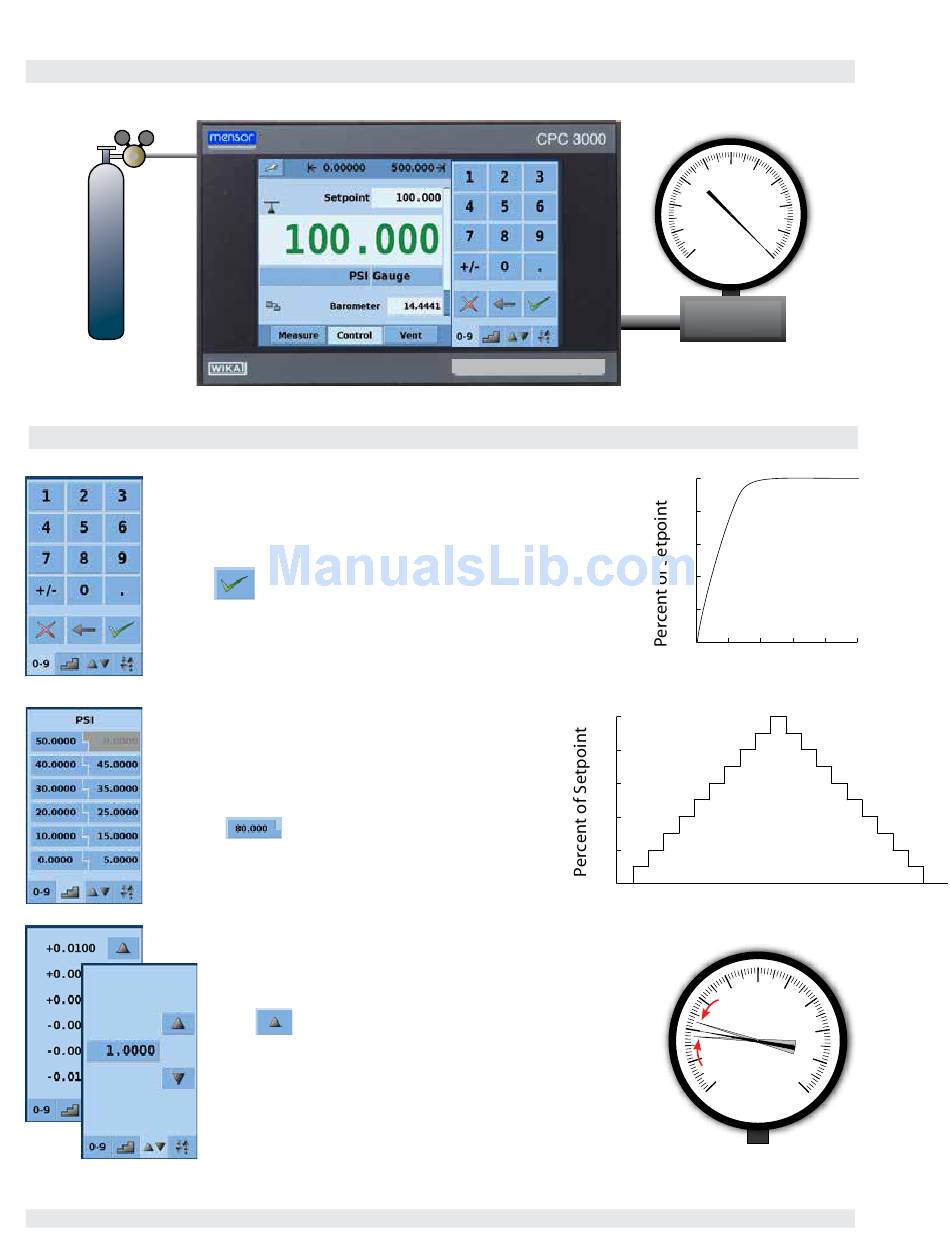

Application — Typical Setup
Clean, dry
pressure supply
Application — Setpoint entry options and function
Page 6 of 8
Direct entry of setpoint using the numeric
keypad: enter the setpoint value and press
. The controller will then ramp up the
setpoint.
Setpoint entry using the step keypad:step
changes, automatically calculated as a
percent of the user defined full scale limit,
and indicated in percent FS or pressure
units can be entered by pressing step keys
( ) in any sequence.
Setpoint entry using jog keypads:
setpoint can be increased or decreased
in small or large steps using the jog
keys to reach a cardinal point on
a dial gauge or step through a calibra-
tion sequence.
Range : 0 ... 500 psig S/N: 811000
100
80
60
40
20
0
50
40 60
30 70
20 80
10 90
PSI
0 100
Device Under Test
100
80
60
40
20
0
0 1 2 3 4
Time (s)
Steps changed at operator discretion
250
200 300
150 350
100 400
50 450
PSI
0 500
