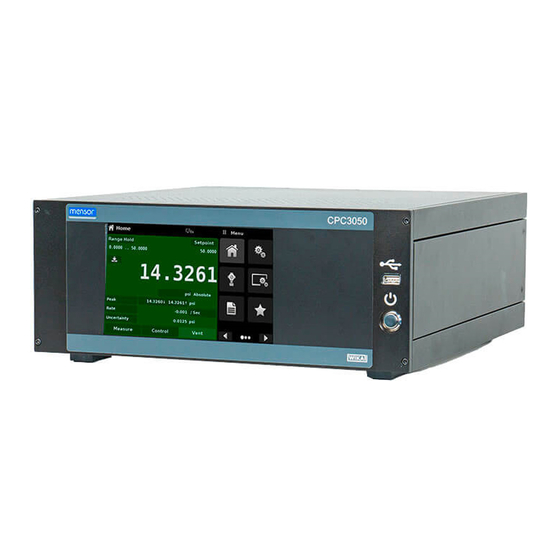

mensor CPC3050 Operating Instructions Manual

High-speed pressure controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions
High-Speed Pressure Controller
CPC3050
High-Speed Pressure Controller CPC3050
PN 0020806001A • 03/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPC3050 and is the answer not in the manual?

Questions and answers

Related Manuals for mensor CPC3050

Summary of Contents for mensor CPC3050

  • Page 1 Operating Instructions High-Speed Pressure Controller CPC3050 High-Speed Pressure Controller CPC3050 PN 0020806001A • 03/2022...
  • Page 2 This Caution symbol indicates danger for the system and material if the respective safety precautions are not taken. Caution This Notice symbol does not indicate safety notices but information for a better understanding of the facts. Notice Operating Instructions - CPC3050...

  • Page 3: Table Of Contents

    3.5.1 Control Module 3.6 Electrical Block Diagram 4. Specifications 4.1 Measure Specification 4.2 Base Instrument 4.3 Approvals and Certificates 5. Installation 5.1 Unpacking the Instrument 5.2 Dimensions (mm)/ inches 5.3 Mounting 5.4 Rear Panel 5.4.1 Pressure Connections Operating Instructions - CPC3050...
  • Page 4 6.4.2.2 Brightness 6.4.2.3 Volume 6.4.2.4 User Base Units / Base Units Multiplier 6.4.2.5 Barometer Units 6.4.2.6 Configuration 6.4.3 Control Settings Application 6.4.3.1 Control Behavior 6.4.3.2 Stability Parameters 6.4.3.3 Control Volume 6.4.3.4 Control Limits 6.4.3.5 Detection Flags Operating Instructions - CPC3050...
  • Page 5 7.6.1 SCPI Commands and Queries 7.6.2 Error Messages 7.7 DPI 510 Emulation Command Set 7.7.1 DPI 510 Supported Commands and Queries 7.7.2 DPI 510 Unsupported Commands and Queries 7.7.3 DPI 510 Measurement Units 7.8 GE PACE (SCPI) Emulation Command Set Operating Instructions - CPC3050...
  • Page 6 8.8 Pressure Booster 9. Maintenance 9.1 Beyond the Warranty 9.2 Spare Parts 9.3 Transducer Removal 9.3.1 Barometric Reference Removal 10. Calibration 10.1 Calibration Services by Mensor or WIKA worldwide 10.2 Environment 10.3 Pressure Standards 10.4 Media Operating Instructions - CPC3050...
  • Page 7 Head Pressure 11. Technical Assistance 11.1 Options 11.2 Logging 11.2.1 Remote Logging 11.2.2 Pressure Logging 11.3 Touchscreen Calibration 11.4 Usage 12. Appendix 12.1 Measurement Units 12.2 Conversion Factors, PSI 12.3 Conversion Factors, Millitorr 12.4 Conversion Factors, Pascal Operating Instructions - CPC3050...

  • Page 8: General Information

    Mensor, this warranty does not apply. The judgment of Mensor will be final as to all matters con- cerning condition of the product, the cause and nature of a defect, and the necessity or manner of repair.

  • Page 9: Ce Emission Notice

    Notice Mensor and its suppliers shall not be held to any liability for any damages suffered or incurred by the end user (including, but not limited to, general, special, consequential or incidental damages including dam- ages for loss of business profits, business interruption, loss of business information and the like), arising from or in connection with the delivery, use or performance of the software program.

  • Page 10: Safety Notices

    Extreme care must be taken with pressure connections when using hazardous or toxic media. Repairs must only be performed by authorized service personnel. Additional safety notices are found throughout this manual. Notice Operating Instructions - CPC3050...

  • Page 11: Warnings And Caution Notices

    CAUTION: ESD PROTECTION REQUIRED. The proper use of grounded work surfaces and personal wrist straps are required when coming into contact with exposed circuits (printed circuit boards) to prevent static discharge to sensitive electronic components. Additional Warning and Caution notices are found throughout this manual. Operating Instructions - CPC3050...

  • Page 12: General Description

    The CPC3050 can have up to two highly stable precision transducers and an optional barometric reference. The CPC3050 is available as a desktop or a rack mountable instrument.

  • Page 13: Turning On

    CPC3050 Turning On You can confirm that your CPC3050 is operational right now. Apply power to the power connector on the rear of the instrument with the included power cord, remove any plastic plugs from the rear panel pres- sure ports, and press the power switch to ON. The system will go through an initialization process, which takes about 30 seconds, and then a display will appear similar to the screen shown below.

  • Page 14: Front Panel

    CPC3050 Front Panel The CPC3050 front panel includes a 7” color LCD with touch screen. Operator input is accomplished by pressing the words or symbols and the App icons presented on the display. There is a single discrete on/ off button and a USB port on the right hand side. The front panel also shows the model number designa- tion and brand logos.

  • Page 15: Display

    Buttons, Labels and Windows: The CPC3050 touch screen has many buttons with relevant graphic icons or text which, when pressed, will open a related window where changes can be made or informa- tion viewed.

  • Page 16: Chassis Assembly

    The chassis assembly is the housing for the system. The transducers are self-contained inside the chas- sis and can be replaced at a Mensor approved service center. Figure 3.5 shows the top view of the chas- sis with the cover removed.

  • Page 17: Electrical Block Diagram

    High-Speed Pressure Controller CPC3050 Electrical Block Diagram Figure 3.6 – Electrical Block Diagram Operating Instructions - CPC3050...

  • Page 18: Specifications

    ISO Guide to the Expression of Uncertainty in Measurement (GUM). The calibration program at Mensor is accredited by the American Association of Laboratory Accreditation (A2LA) as complying with both the ISO/IEC 17025:2005 and the ANSI/NCSL Z540-1-1994 standards. If there is an exception to the requirements and recommendations of Z540 during a calibration the excep- tion is noted on the individual calibration certificate.

  • Page 19: Base Instrument

    Test volume 0 ... 1,000 cc Communication Interface Standard: Ethernet, IEEE-488, USB, RS-232. Command sets Mensor, WIKA SCPI, PACE, other options Update time approx. 30 ms Internal program up to 24 sequences of 99 steps each Operating Instructions - CPC3050...

  • Page 20: Approvals And Certificates

    Warning! This is class A equipment for emissions and is intended for use in industrial environments. In other environments, e.g. residential or commercial installations, it can intefere with other equipment under certain conditions. In such circumstances the operator is expected to take the appropriate measures. Calibration in a horizontal position/operating position. Operating Instructions - CPC3050...

  • Page 21: Installation

    • CPC3050 High-Speed Pressure Controller • Power Cord • Fitting adapters ordered • Any accessories ordered • An envelope containing the calibration certificate(s) • A Quick Start Guide for all Mensor products • A USB drive containing all Mensor manuals Operating Instructions - CPC3050...

  • Page 22: Dimensions (Mm)/ Inches

    High-Speed Pressure Controller CPC3050 Dimensions (mm)/ inches Front view Side view 19” rack mount Rear Panel Operating Instructions - CPC3050...

  • Page 23: Mounting

    CPC3050 (see Section 5.2 Dimensions and Section 8, Options). The special transducers used in the CPC3050 are relatively insensitive to tilt and vibration. However to further assure stability and accuracy, avoid mounting the instrument on surfaces subject to excessive mo- tor or machinery vibration.
  • Page 24 Allow at least 15 minutes of warm up before performing critical pressure measurements. Do not position the equipment so that it is difficult to remove the power cord. The instrument is not intended for connection of long-distance lines, i.e. lines within a building that are longer than 30 m, or that leave the building (including lines of outdoor installations). Operating Instructions - CPC3050...
  • Page 25 (Peak, Rate, Uncertainty, Units, Temperature or Barometer) will appear in the Home App if activated. All of the CPC3050 screen features are described in more detail throughout this manual. The active App is represented in a lighter gray color as compared to the other Apps.
  • Page 26 App buttons. This gives access to the second page of the App selection area. Press the Information App button [ ] to display Mensor contact, installed transducers, installed regulator along with instrument and software version information. Figure 6.2.1 – Information 6.2.2 Language Selection...
  • Page 27 App selection menu, simply press the Menu button [ ] above the input area. The purpose and use of each selection and menu is intuitively apparent and will become second nature with minimal exposure to the menu structure. Menu Button Input Title App Title Operating Instructions - CPC3050...
  • Page 28 If a barometric reference is installed, the Mode but- ton, described below, will toggle from Gauge to Absolute mode when pressed. Figure 6.4.1-A – Basic Home App Figure 6.4.1-B – Single Channel Display Figure 6.4.1-C – Pressure Units Operating Instructions - CPC3050...
  • Page 29 These methods can be accessed by the user by pressing the “Setpoint” button and the various setpoint entry methods can be navigated with the Next Page [ and Previous Page [ ] buttons. Setpoint button Figure 6.4.1.2 – Setpoint Button Operating Instructions - CPC3050...
  • Page 30 If the Enter button is pressed the newly entered value will register as a new setpoint value on the Home Screen rather than a step value. Figure 6.4.1.2.2 – Numeric Keypad with Step Increments Operating Instructions - CPC3050...
  • Page 31 Step Settings App (figure 6.4.1.2.3-C) which is explained in Section 6.4.10, Step Settings. Button for Step Settings Figure 6.4.1.2.3-A – DUT Percentage Entry Figure 6.4.1.2.3-B – DUT Pressure Value Entry Figure 6.4.1.2.3-C - Step Settings App Operating Instructions - CPC3050...
  • Page 32 6.4.1.2.5 Program Data Entry The fifth entry method is through the automated Programs stored in the CPC3050 memory. The Program Player allows the user to select one of the stored Programs and use it for setpoint entry. A Program can...
  • Page 33 Home App. The Home App can have up to three auxiliary displays which can be chosen by clicking on each button and then selecting the display item from the menu on the right side of the screen (figure 6.4.1.5-B). Figure 6.4.1.5-A – Home App with Auxiliary Displays Operating Instructions - CPC3050...
  • Page 34 Pressing any of these units will change the auxiliary units to that chosen unit. Barometer: Displays the reading of the optional barometric reference in current pressure units Temperature: Displays the reading of the active transducer. Temperature units can be Celsius, Kelvin, or Fahrenheit. Operating Instructions - CPC3050...
  • Page 35 Pressing the tare button again will deactivate the tare and change the pressure indication back to the reading corresponding to the calibrated output of the transducer. An active tare will revert to a deacti- vated state after a power cycle. Operating Instructions - CPC3050...
  • Page 36 CPC3050 6.4.1.7 Operating Mode Selection The operating modes are permanently displayed on bottom of the Home App. The CPC3050 has three operating modes: Measure, Control and Vent. After the system has switched on, the instrument will au- tomatically be placed in Vent mode. The user can switch from one mode to the other by using the mode...
  • Page 37 (.) to a comma (,) depending on the language chosen. More languages can be ac- cessed by navigating to the next page of the language selection menu on the right side of the screen. Figure 6.4.2.1 – Languages Operating Instructions - CPC3050...
  • Page 38 After the setting is made and your finger is removed from the screen the menu will show the brightness percent selected. Figure 6.4.2.2 – Brightness 6.4.2.3 Volume The Volume setting provides a way to turn on or off the touch screen audio feedback. Figure 6.4.2.3 – Volume Operating Instructions - CPC3050...
  • Page 39 Any of these units can be chosen from this list for the barometric readout that can be seen on the bottom right of the Home App. Figure 6.4.2.5 – Barometer units Operating Instructions - CPC3050...
  • Page 40 (High Speed, Industrial, Custom), control behavior, command set, and termination character. Operating Instructions - CPC3050...
  • Page 41 Control Settings App. Figure 6.4.3-C shows the first page of the Control Settings App in “High- Speed” control modes. Figure 6.4.3-A – Control Settings App Figure 6.4.3-B – Control Setting App Figure 6.4.3-C – High Speed control mode Operating Instructions - CPC3050...
  • Page 42 The Stable Delay button lets the user add a desired delay until the pressure value is considered stable while being in the stable window. Stability Parameters Figure 6.4.3.2 – Stability Parameters Operating Instructions - CPC3050...
  • Page 43 The Control Volume button in the Control Settings App allows the user to control pressure volume in “cc”, cubic centimeters. The CPC3050 is capable of automatically identifying the control pressure volume and adjusting the control parameters based on it. By default this button is set on “Auto”. Figure 6.4.3.4 dis- plays the control volume setting for the instrument.
  • Page 44 Figure 6.4.3.4 – Control limits 6.4.3.5 Detection Flags The CPC3050 High-Speed Pressure Controller is equipped with a detection flag that can be enabled or disabled by the user as needed. This detection flag appears in the Control Settings App. The primary purpose of this detection flag is to protect the instrument and to ensure desired operation.
  • Page 45 Turn off the Filter by selecting “Off”, select varying degrees of filtering for the current units by selecting “Low”, “Normal” or “High”. Figure 6.4.4.1 – Reading Filter Selection Operating Instructions - CPC3050...
  • Page 46 The Cal Function presents a choice of None or Tare. Choosing Tare will enable the Tare Button [ ] in the Home App. See section 6.4.1.6 Tare button in the Home App (main screen). Figure 6.4.4.3 – Cal Function Operating Instructions - CPC3050...
  • Page 47 The Programs Application is used to create, view and edit programs that are used to automati- cally run a sequence of commands within the CPC3050. The Programs App screen displays the contents of the first written program in read only mode by default (figure 6.4.5-A). User can load, edit and delete other saved and predefined programs by clicking on the title of the current program and then selecting the desired program sequence from the sidebar (figure 6.4.5-B).
  • Page 48 Increases or decreases the current setpoint by the percent full scale specified STEP Increases or decreases the current setpoint in current units (Nu- merical Entry) SEQSTART Starts the sequence from the beginning (None) RUNITS Sets the rate denominator time unit (min or sec) Operating Instructions - CPC3050...
  • Page 49 Figure 6.4.6 – Favorites Application 6.4.7 Information Application The Information Application displays information about the instrument, including: • Mensor address, and email • Model number, serial number and operating software version. • Regulator model number, serial number and software version.
  • Page 50 Pressing this error button from any screen will open the Troubleshoot application where the error can be viewed. Figure 6.4.8-A – Error indication Figure 6.4.8-B – Troubleshoot error screen Figure 6.4.8-C – Troubleshoot remote screen Operating Instructions - CPC3050...
  • Page 51 Figure 6.4.9 – Remote Application 6.4.9.1 Remote Command Set The remote command set parameter provides a choice of the Mensor command set or the WIKA SCPI / DPI command set (Figure 6.4.9.1 -A). Both sets of commands are listed in Section 7, Remote Operation.
  • Page 52 If DHCP is enabled, the IP address, Netmask and Gateway are greyed out and locked, these are controlled by the DHCP server. Radio button selection Figure 6.4.9.2-A – Remote Communication Settings Operating Instructions - CPC3050...
  • Page 53 High-Speed Pressure Controller CPC3050 A successful communication link between the instrument and the various interfaces is indicated by a Remote Settings Icon at the top of the screen (figure 6.4.9.2-B). Figure 6.4.9.2-B – Remote Settings Icon Operating Instructions - CPC3050...
  • Page 54 5% over the range of the device under test limits by entering the overrange percentage (figure 6.4.10-B). CPC3050 automatically calculates the pressure value of the setpoint based on this selection. The user can be directed to this application from the setpoint entry menu in the Home App (section 6.4.1.2).
  • Page 55 For example if the user needs 5 distinct points along the DUT range then enter 5 in the numeric keypad and press Enter [ ] button. CPC3050 will create setpoints at 20%, 40%, 60%, 80% and 100% of the DUT range. The user also has the option of changing these percentage values as per his/ her desire by clicking on the individual Percentage button on the Step Settings app.
  • Page 56 Dwell Time, and indicate a “passed” test. See Figure 6.4.11-A for examples of a failed and a passed test. Figure 6.4.11 – Leak Test Figure 6.4.11-A – Leak test fail (left) & Leak test pass (right) Operating Instructions - CPC3050...
  • Page 57 Enter password and press the check mark [ ] to unlock the Service Application. Figure 6.4.12-B – Service Application (Enter Password) Note: After entering the default password for the first time, the password can be changed. Operating Instructions - CPC3050...
  • Page 58 The Unlocked Service Application is the access point to all calibration screens described in Section 10 of this manual or all the technical screens described in Section 11 of this manual. Note: Recommended calibration setup and explanation of calibration screen applica- tions is covered in Section 10 of this manual. Operating Instructions - CPC3050...
  • Page 59 The Ethernet function allows the user to set the following by inputting a numeric value in each separate field: • IP • Netmask • Gateway • Port • DHCP settings Set the Ethernet communication parameters as described in Section 6.4.9. Operating Instructions - CPC3050...
  • Page 60 Does not support Power Over Ethernet. Caution The Ethernet communication port allows the CPC3050 to communicate with computers using 10/100Based-T specifications. Before using Ethernet communication, four parameters must be set up: IP, Netmask, Gateway, and Port. Operating Instructions - CPC3050...
  • Page 61 1 stop bit, no parity, and no echo. If echo is ON, the CPC3050 will immediately echo back characters sent over the serial port. The Serial function allows the user to set the RS-232 serial port settings by selecting from the choices provided: •...
  • Page 62 Mensor Command Set This Mensor command set is the default on the CPC3050. For queries (ending with a ?), the Data column represents the response of the CPC3050. All response strings begin with a space character or an “E” rep- resenting that there is an error in the error queue.
  • Page 63 High-Speed Pressure Controller CPC3050 When a valid query is received, the CPC3050 will return {data} terminated by the current termination characters. Floating point data is returned in exponential format. 7.5.3 Output Formats Pressure readings are returned in exponential notation in a format according to the OUTFORM command as follows.
  • Page 64 <n>. If <n> is left out, de- faults to index 0. Baro? <sp>+n.nnnnnE+nn<cr><lf> Returns reading from barometric transducer or “NO BAROMETER” if one isn’t installed Barounits units code or text in table below Sets the barometer pressure units Operating Instructions - CPC3050...
  • Page 65 PIC and FPGA, each sensor’s serial CHANNEL A: <REG A ID number and version, and a list of all String><FPGA version><cr><lf> enabled options <Channel A Primary sensor ID String><cr><lf> <Channel A Secondary sensor ID String><cr><lf> Control Instrument placed in Control Mode Operating Instructions - CPC3050...
  • Page 66 Sets the Ethernet gateway address Gateway? <sp>nnn.nnn.nnn.nnn<cr><lf> Gets the Ethernet gateway address HeadHeight Value Sets the head pressure height in ac- tive head pressure length units. Height? <sp>+n.nnnnnE+nn<cr> Gets the head pressure height active <lf> head pressure length units. Operating Instructions - CPC3050...
  • Page 67 ISBreakpt <sp>+n.nnnnnE+nn<cr><lf> Returns the intelliscale breakpoint in pressure, where the accuracy chang- es from %FS to %Reading Keylock YES or NO Locks or unlocks the entire touch screen Keylock? <sp>(YES or NO)<cr><lf> Returns Yes or No Operating Instructions - CPC3050...
  • Page 68 Leak_Initial? <sp>+n.nnnnnE+nn<cr> Returns the leak test initial pressure Leak_Final? <sp>+n.nnnnnE+nn<cr> Returns the leak test final pressure Leak_Pass? <sp>(YES or NO)<cr><lf> Returns if the leak test passed based on the change in pressure and the delta limit. Operating Instructions - CPC3050...
  • Page 69 YES. List? <sp>Pri,1;Sec,1;Bar,1<cr><lf> Returns list of available transducers and turndowns. Turndowns are un- available for CPC3050 but returns 1 for backwards compatibility. Listall? Model, serial number, date of manufac- Returns all instrument, channel and ture, software version, OS version, GPIB...
  • Page 70 <sp>n.nnnnnE+nn<cr> Returns the minimum pressure since <lf> peakreset was sent. Peakreset None Resets the peak values. Port nnnnnn Sets the Ethernet port of the instru- ment Port? <sp>nnnnn<cr><lf> Returns the Ethernet port of the in- strument Operating Instructions - CPC3050...
  • Page 71 Resets the instrument’s time on coun- time_on ter. See usage application for more details Reset_instrument_ Resets the instrument’s time on coun- control_time_on ter. See usage application for more details Resolution <n> Sets the number of significant digits. (see decpt) Operating Instructions - CPC3050...
  • Page 72 Returns the serial and USB parity Srqmask Stable,Error or both Sets the CPC 3050 to issue a service request(SRQ) over the IEEE when the pressure Control is stable, or an error occurs. These are 80 hex and 40 hex respec- tively Operating Instructions - CPC3050...
  • Page 73 CR, LF, CRLF, DEFAULT, EOI, NONE Termchar? Returns the termination character setting Touchcal Initiates a touchscreen calibration. Transfer_factory_to_ Copy factory linearity coefficients to linearity customer Units units code or text in table below Sets the instrument engineering units Operating Instructions - CPC3050...
  • Page 74 Returns the exponential filter window <lf> for the active transducer Zero desired pressure or ? Sets zero to set pressure or for ?, clears previous value. CALDISABLE must be OFF/NO. Zero? <sp>n.nnnnnE+nn<cr> Returns zero offset for active trans- <lf> ducer Operating Instructions - CPC3050...
  • Page 75 @ 0°C MHG0C Metric hectopascals Metric megapascals Metric millimeters of water @ 20°C MMH2O20C Metric centimeters of water @ 20C CMH2O20C Metric meters of water @ 20°C MH2O20C Metric User unit 1 USER1 User unit 2 USER2 Operating Instructions - CPC3050...
  • Page 76 CPC3050 Error Messages All remote commands sent to the CPC3050 are shown in the Trouble Shooting App, under the “Remote” button. If there is a syntax error, an error message will appear below the errant command. Local errors and remote command errors will appear under the “Error” button. Maximum of 100 errors are stored and can be retrieved.
  • Page 77 High-Speed Pressure Controller CPC3050 Table 7.6.1 - CPC3050 SCPI Command Set Command Response/Function STATus :OPERation :CONDition? Returns an integer value representing instrument status that can be decoded. Bit 0: Zeroing active Bit 1: Control Setpoint has not been reached. Bit 2: Reserved 0.
  • Page 78 :[PRESsure] bar | mbar | Pa | psi Sets the pressure units :[PRESsure]? Returns the pressure units :NAME<n>? Returns the units string for units code <n> :FACTor <n>? Returns the units conversion for units code <n> :INDEX <n> Sets the index number. Operating Instructions - CPC3050...
  • Page 79 Returns the mode string :STABle? Returns 1 if stable 0 if not :AUTOvent ON | OFF | 1 | 0 Autovent is always true on CPC3050 :AUTOvent? Returns the state of the Vent mode :AUTORange ON | OFF | 1 | 0...
  • Page 80 Set the maximum control limit 7.6.2 Error Messages All remote commands sent to the CPC3050 are shown in the Trouble Shooting App, under the “Remote” button. If there is a syntax error, an error message will appear below the errant command. Local errors and remote command errors will appear under the “Error”...
  • Page 81 CPC3050 DPI 510 Emulation Command Set The CPC3050 will accept and respond to Druck Model DPI 510 remote commands over a GPIB as listed below. These commands can be sent individually, or ganged together. Delimiters (separators) between commands are not required.
  • Page 82 X = the unit number (ex. U16 = psi) case ‘V’: /*Variable_Rate_Mode*/ usage “VXXXXX” X = the desired control rate setting (ex. V1) case ‘W’: /*Wait_Value_Mode*/ usage “WXXX” X = the desired stable delay setting in seconds (ex. W005 = 5 sec) Operating Instructions - CPC3050...
  • Page 83 “I3” does nothing usage “I4” does nothing usage “I5” does nothing usage “I6” does nothing UNITNO 7 (kg/m2) does nothing UNITNO 10 (mHg) does nothing UNITNO 17 (lb/ft2) does nothing UNITNO 21 (Special) does nothing Operating Instructions - CPC3050...
  • Page 84 Table 7.7.3 - DPI 510 Measurement units Druck Unitno Units Comments mbar kg/cm2 kg/m2 not supported mmHg cmHg not supported mmH2O cmH2O mH2O 20c torr 1b/ft2 not supported inHg “H2O 04c ‘H2O 04c Special not supported “H2O 20c ‘H2O 20c Operating Instructions - CPC3050...
  • Page 85 CPC3050 GE PACE (SCPI) Emulation Command Set The CPC3050 will accept and respond to the SCPI remote commands of GE PACE 5000/6000 remote commands using the option SCPI_GE. Section 11, Technical Assistance explains the process of en- abling the SCPI GE command set. Table 7.8.1 shows a complete list of supported commands.
  • Page 86 Returns the sensor calibration date in the format YYYY, MM, DD :FULLscale? Returns the sensor maximum pressure, minimum pressure in active units :NEGCal? Returns 1. Negative calibration support is always available :SN? Returns the sensor serial number Operating Instructions - CPC3050...
  • Page 87 LEAK/LEAKTEST – loads leak test application PRE/PRES/PRESET – loads step settings ap- plication SWI/SWITCH/SWITCHTEST – loads switch test application PROG/TEST/TESTPROGRAM – loads the pro- grams application :UNIT? Returns the active units string. Ex// INST:UNIT? :INST:UNIT PSI Operating Instructions - CPC3050...
  • Page 88 0 otherwise :STATe ON | OFF | 1 | 0 ON or 1 puts in Control mode , OFF or 0 puts in Measure mode [:STATe]? Returns 1 if in Control mode, 0 otherwise SENSe[x] [x]=x=1=Channel A Operating Instructions - CPC3050...
  • Page 89 Returns if the filter is enabled (0 is off, 1 is on) :STATe ON | OFF | 1 | 0 Set the filter enable :BAND? Returns the filter window :BAND <f> Set the filter window :FREQuency? Returns the filter frequency :FREQuency <f> Set the filter frequency Operating Instructions - CPC3050...
  • Page 90 Returns LIN otherwise. :MODe <CCC> Set the control mode by putting in either High- speed or Custom mode. Note: the overshoot flag and control mode are not independent in Mensor products. :OVERshoot? Returns 1 if the channel’s control behavior is >50.
  • Page 91 Returns the stable window * :TOLerance<n> Sets the stable window * :COMPensate? Returns 0.0. Note: Mensor products do not have a source pressure sensor. † :EFFort? Returns the current channel’s regulator output, which is a number between -100 to +100 indicat- ing how much % effort the regulator is using to achieve the setpoint.
  • Page 92 Returns the GPIB address :SET? Returns VENT, 0.0 :SET Only accepts Vent, 0. Not allowed to boot up a Mensor product in any mode except vent mode with a setpoint of 0 for safety reasons. UNIT :[PRESsure][U] Returns the pressure units string :[PRESsure] <c>...
  • Page 93 Index N is 1 or 2 7.8.2 Error Messages All remote commands sent to the CPC3050 are shown in the Trouble Shooting App, under the “Remote” button. If there is a syntax error, an error message will appear below the errant command. Local errors and remote command errors will appear under the “Error”...
  • Page 94 Mensor website onto a USB thumb drive. The instrument software is device specific and the software for any other instrument apart from the CPC3050 is not accepted by the instrument. The user can then plug the USB device to the USB port on the front panel of the instrument for an easy upgrade.
  • Page 95 • Pressure Booster Barometric Reference (CPX-A-C4-6) The CPC3050 can be ordered with a barometric reference transducer. It is a very stable, absolute pres- sure transducer used to accurately measure local atmospheric pressure. It is used to display the baro- metric pressure (reading appears on the bottom right side of the display) or as a barometric reference for gauge or absolute emulation.
  • Page 96 Rack Mount Kit (CPX-A-C4-R) A rack mount kit allows the customer to install a CPC3050 into a standard 19” instrument rack. It includes a tray and a cover panel for the front. The instrument will rest on the tray and be retained by the panel.
  • Page 97 8.5.1 Barometric Reference Calibration Sled (CPX-A-C4-5) The CPC3050 Calibration Sled Kit is available to provide a way to calibrate the barometric reference re- motely. Calibration of the Barometric Reference can be performed remotely using the Cal sled, a PC and the software provided.
  • Page 98 The Automatic CPS (Figure 8.6-A) is designed to interface with the CPC3050 and is energized to purge the device under test of any contaminents by an automated purge sequence within the CPC3050 user interface.
  • Page 99 The pressure connection to the Measure/ Control port of the CPC3050 is established by a pressure tube with 7/16” SAE adapters. The Automatic CPS is powered by the CPC3050 using a 3 meter long flexible cable which connects to the Automatic CPS Backplate on the instrument.
  • Page 100 Power supply 12 VDC Power consumption 13 VA Pressure Connection To the M/C port of CPC3050 1 port with 1/4” tube adapted to 7/16”- 20 F SAE To the DUT 2 ports with Standard: 7/16" - 20 F SAE Option: 6 mm tube fitting, 1/4" tube fitting, 1/4" female NPT fittings, 1/8" female NPT fittings or 1/8" female BSP fittings Dimensions &...
  • Page 101 [ 177.8mm ] 10.406in 7.000in MENSOR AUTOMATIC CPS LABEL [ 3.2mm ] R.125in [ 6.4mm ] R.250in FFigure 8.6.2.2-A - Front & side view [ 139.7mm ] 5.500in [ 139.7mm ] 5.500in Figure 8.6.2.2-B - Top view Operating Instructions - CPC3050...
  • Page 102 CPC3050 8.6.3 Automatic CPS Operation The Automatic CPS is operated by the CPC3050 by a software purge sequence. The purge button is visible on the home screen (Figure 8.6.3-A) after the installation of the Automatic CPS and the option is turned to Manual or Auto.
  • Page 103 Warning Contamination Prevention Accessories The contamination prevention accessories allow the user to operate the CPC3050 on contamination prone devices. These accessories prevent contaminants like oil or dirt from entering into the instrument. These filters, when connected to the Measure/Control Port at the rear of the instrument, prevent any liquids to enter the controller when the direction of pressure flow is from device under test (DUT) to the controller or when the device under test is vented.
  • Page 104 • Repeat steps 3 to 7 until no more liquid is observed coming out of the system. • With the block and the bleed valves securely closed, vent the controller. Figure 8.7.2 – Contamination prevention accessories Operating Instructions - CPC3050...
  • Page 105 CPC3050 Pressure Booster To control pressure, the CPC3050 requires a pressure supply of 10% above the full scale of the instru- ment. The Model 75 Pressure Booster System provides the ability to boost bottle pressure up to the supply pressure requirements of all possible CPC3050 range configurations while maximizing gas bottle/ cylinder usage.
  • Page 106 We use this knowledge in our continuing effort to design better and more robust instruments. Spare Parts Table 9.2 lists the spare parts for the CPC3050 that can be ordered from Mensor. Table 9.2 – Spare Parts List Part Description...
  • Page 107 High-Speed Pressure Controller CPC3050 Transducer Removal We suggest to send the CPC3050 to a Service Center to exchange any CPR3050 transducers. If removal is required outside of a Service Center, follow the following instructions for transducer removal or replacement: • VENT THE SYSTEM by placing the controller in vent mode. Then turn off the power.
  • Page 108 9.3.1 Barometric Reference Removal To remove the optional Barometric reference, first turn off the CPC3050 and loosen the Phillips head screws to remove top cover of the chassis The barometric reference can be removed by removing the attached ribbon cable, loosening the thumb screw, and lifting the barometric reference out of the chassis.
  • Page 109 The setpoint value is not reached. Check whether the value of the supply pressure is the value required, and leak test the plumbing. If you need help or assistance, contact Mensor at Phone: 1-512-396-4200 or 1-800-984-4200 (USA only) Fax: 512-396-1820 Website: www.mensor.com...
  • Page 110 10.2 Environment For maximum accuracy, allow the CPC3050 to warm up a minimum of 15 minutes in ambient temperature within the compensated range prior to a calibration. In addition, the instrument should be at rest on a stable platform that is free of excessive vibration and shock.
  • Page 111 A diaphragm type vacuum gauge is recom- mended over the gauge tube type of vacuum sensor for calibrating sub-atmospheric pressures. A vacu- um pump with the capacity to generate 600 mTorr absolute is recommended. Figure 10.5 – Calibration Setup Operating Instructions - CPC3050...
  • Page 112 For gauge pressure simply expose the reference and the Measure/Control port of the CPC3050 to atmospheric pressure and then press the “New Value” button and enter zero (0) using the keypad. For an absolute transducer apply a known reference pressure between 600 mTorr absolute and 20% of the active transducer’s span to the Measure/Control port of...
  • Page 113 Select a Transducer to calibrate by pressing the Channel button at the top of the screen. To calibrate the “Low Point”: 1. The Measure/Control port of the CPC3050 being calibrated should be supplied with a suitable, “low point” pressure (see section 5.4 Rear Panel for the port location).
  • Page 114 5. The “High Point” Calibration is done in a similar way as the “Low Point”. 6. Supply a pressure to the Measure/Control Port of the CPC3050 being calibrated, using a pressure standard. This pressure should be as close as possible to the full scale value of the selected trans- ducer or at least within 20% of the active transducer’s span.
  • Page 115 CPC3050. Each value from the reference standard can be entered under the reference column, corresponding Upscale and Downscale readings from the instrument can be entered in the “Actual” col- umn or “Upscale”...
  • Page 116 Note: After calibration is complete, return to the Calibration Data Application (Section 10.6) to record the certificate number, calibration interval and the date of calibration. Restoration to factory calibration can also be completed in this application. Operating Instructions - CPC3050...
  • Page 117 Height: the difference between the device under test and the sensing element in the trans- ducers in the CPC3050 (Difference = DUT - CPC3050) As an example, if the device under test (DUT) is 10 inches above the CPC3050, enter -10 in “Height” button. •...
  • Page 118 11 Technical Assistance The Technical Assistance menu provides access to additional menus that assist in troubleshooting of the CPC3050. The menu allows access to enable/ disable software options, perform real time pressure log- ging, touchscreen calibration and instrument usage information.
  • Page 119 The Logging Application enables real-time storage of current instrument output and state in a USB device plugged to the front panel of the CPC3050. The application also provides a means to log any remote communication (commands and responses) to the instrument. The primary objective of this application is to provide test data for troubleshooting purposes.
  • Page 120 “.DAT” or “.CSV” file type (Figure 11.2.2). The logging is started by pressing the “Start” line, entering a file name on the alpha numeric keypad and clicking [ ]. The values are continuously written to the file until “Stop” line is pressed. Figure 11.2.2 Data Log File Format Operating Instructions - CPC3050...
  • Page 121 The touchscreen calibration can be started by pressing [ on the right side of the screen (Figure 11.3-A). During the calibration, the CPC3050 will prompt and guide the user to press different target points on the screen (Figure 11.3-B). After success- fully completing the calibration, the user is directed back to the Technical Assistance menu.
  • Page 122 The usage screen also shows usage for the internal regulator and the total control time. The “operating time since last reset” and “control time since reset” can be reverted to 0.00 hours by pressing the corresponding “Reset” button on the screen. Figure 11.4 Instrument Usage Operating Instructions - CPC3050...
  • Page 123 @ 0°C hectopascals megapascals millimeters of water @ 20°C mm H2O 20°C centimeter of water @ 20°C cm H2O 20°C meters of water @ 20°C m H2O 20°C User Units 1 User defined Operating Instructions - CPC3050...
  • Page 124 0.01422334 kg/cm2 0.07030697 14.22334 MSW 0°C 3.5% salinity 0.6838528 1.462303 0.0625 0.006944444 0.072 13.88889 µHg 0°C 51715.08 0.00001933672 0.0005 2000 mHg 0°C 0.05171508 19.33672 68.94757 0.01450377 0.006894757 145.0377 mmH2O 20°C 704.336 0.001419777 cmH2O 20°C 70.4336 0.01419777 Operating Instructions - CPC3050...
  • Page 125 Dy/cm2 1.333220 0.750063626 gm/cm2 0.001359506 735.561166 kg/cm2 0.000001359506 735561.166 MSW 0°C 3.5% salinity 0.00001322347 75623.11663 0.0003093875 3232.1992 0.002784488 359.132477 0.000001392244 718265.0575 µHg 0°C 1.000000000 0.00000000966836 103430160.00 0.000001 1000000.00 0.001333220 750.0636259 0.0000001333220 7500636.259 mmH2O 20°C 0.01361955 73.42388114 Operating Instructions - CPC3050...
  • Page 126 1.00000E+00 Dy/cm2 1.00000E+01 1.00000E-01 gm/cm2 1.019716E-02 9.806647E+01 kg/cm2 1.019716E-05 9.806647E+04 MSW 0°C 3.5% sal 9.918444E-05 1.008222E+04 2.320603E-03 4.309223E+02 2.088543E-02 4.788025E+01 1.044271E-05 9.576052E+04 µHg 0°C 7.500636E+00 1.333220E-01 7.251885E-08 1.378951E+07 mHg 0°C 7.500636E-06 1.333220E+05 1.00000E-02 1.00000E+02 1.00000E-06 1.00000E+06 Operating Instructions - CPC3050...
  • Page 127 High-Speed Pressure Controller CPC3050 mmH2O 20°C 1.021553E-01 9.789017E+00 cmH2O 20°C 1.021553E-02 9.789017E+01 MH2O 20°C 1.021553E-04 9.789017E+03 Operating Instructions - CPC3050...
  • Page 128 201 Barnes Drive San Marcos, Texas 78666 Tel: 512-396-4200 Website: www.mensor.com Fax: 512-396-1820 Email: sales@mensor.coP High-Speed Pressure Controller CPC3050 PN 0020806001A • 03/2022 WIKA Alexander Wiegand SE & Co. KG Alexander-Wiegand-Straße 30 D-63911 Klingenberg / Germany Tel: (+49) 93 72/132-5015 Website: www.wika.de...
