9.0

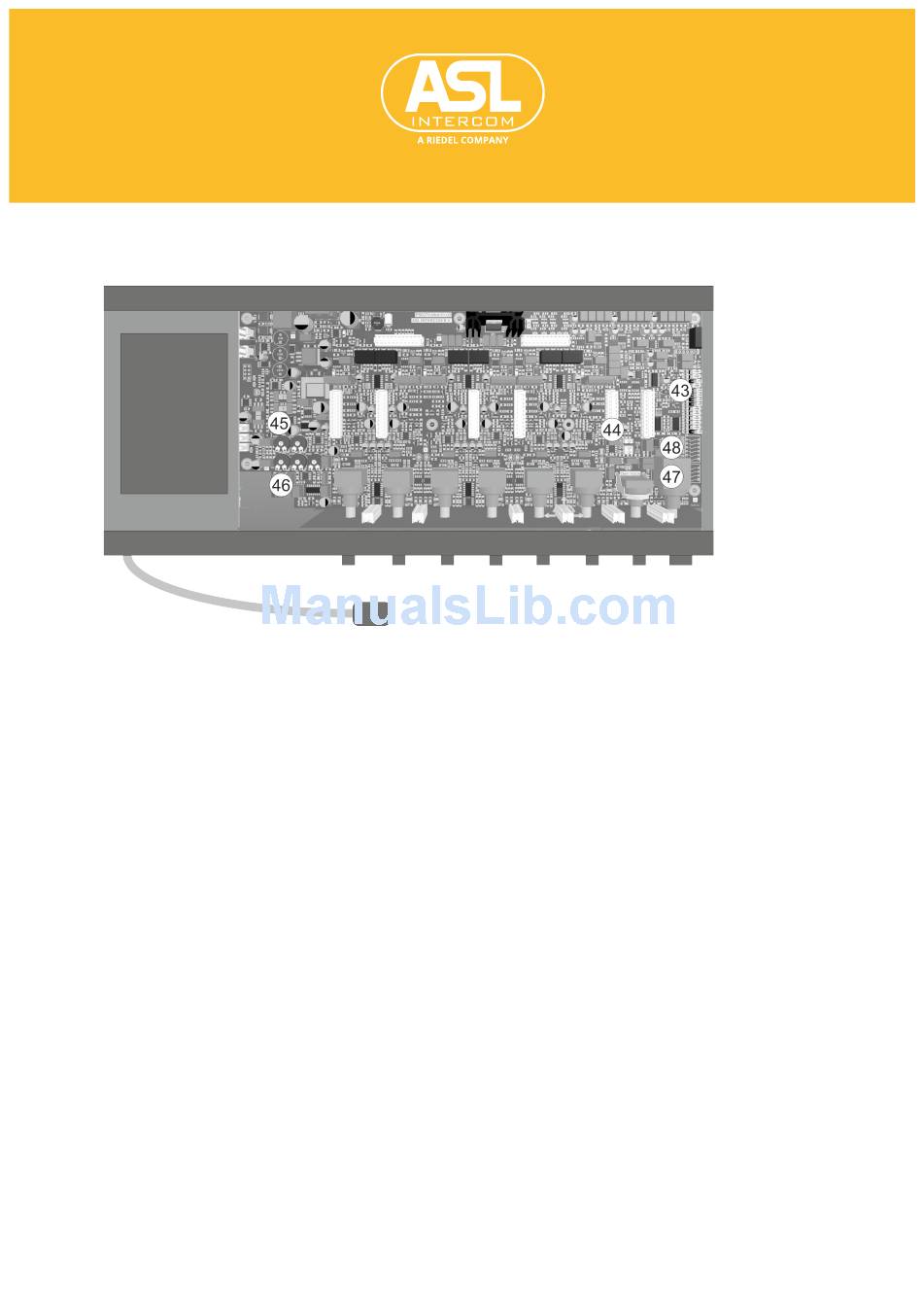

INTERNAL CONTROLS

43 Binaural Jumper Settings
The PS 6379 Mk2 can optionally be equipped with an XLR-5 headset connector for binau-
ral use. In that case the position of jumpers determine - for each channel separately - the
routing of the audio to the headset cans: either to the left can, or to the right can, or to
both cans or not to any can.
44 PGM ROUTING jumpers
With these three jumpers one determines whether the PGM (program audio) listen level
is also controlled by the Master Volume knob (see #6) and – in case of binaural use of the
PS 6379 Mk2 – the routing of the PGM signal to the headset cans.
22
